Basic Information help
| Species | Bacteroides cutis | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lineage | Bacteria; Bacteroidota; Bacteroidia; Bacteroidales; Bacteroidaceae; Bacteroides; Bacteroides cutis | |||||||||||
| CAZyme ID | MGYG000002300_01678 | |||||||||||
| CAZy Family | GH20 | |||||||||||
| CAZyme Description | N,N'-diacetylchitobiase | |||||||||||
| CAZyme Property |
|
|||||||||||
| Genome Property |
|
|||||||||||
| Gene Location | Start: 436709; End: 439201 Strand: + | |||||||||||
CAZyme Signature Domains help
| Family | Start | End | Evalue | family coverage |
|---|---|---|---|---|
| GH20 | 308 | 717 | 7.4e-98 | 0.9554896142433235 |
CDD Domains download full data without filtering help
| Cdd ID | Domain | E-Value | qStart | qEnd | sStart | sEnd | Domain Description |
|---|---|---|---|---|---|---|---|
| cd06569 | GH20_Sm-chitobiase-like | 0.0 | 303 | 722 | 1 | 422 | The chitobiase of Serratia marcescens is a beta-N-1,4-acetylhexosaminidase with a glycosyl hydrolase family 20 (GH20) domain that hydrolyzes the beta-1,4-glycosidic linkages in oligomers derived from chitin. Chitin is degraded by a two step process: i) a chitinase hydrolyzes the chitin to oligosaccharides and disaccharides such as di-N-acetyl-D-glucosamine and chitobiose, ii) chitobiase then further degrades these oligomers into monomers. The GH20 hexosaminidases are thought to act via a catalytic mechanism in which the catalytic nucleophile is not provided by solvent or the enzyme, but by the substrate itself. |
| cd06563 | GH20_chitobiase-like | 4.11e-109 | 308 | 718 | 2 | 345 | The chitobiase of Serratia marcescens is a beta-N-1,4-acetylhexosaminidase with a glycosyl hydrolase family 20 (GH20) domain that hydrolyzes the beta-1,4-glycosidic linkages in oligomers derived from chitin. Chitin is degraded by a two step process: i) a chitinase hydrolyzes the chitin to oligosaccharides and disaccharides such as di-N-acetyl-D-glucosamine and chitobiose, ii) chitobiase then further degrades these oligomers into monomers. This GH20 domain family includes an N-acetylglucosamidase (GlcNAcase A) from Pseudoalteromonas piscicida and an N-acetylhexosaminidase (SpHex) from Streptomyces plicatus. SpHex lacks the C-terminal PKD (polycystic kidney disease I)-like domain found in the chitobiases. The GH20 hexosaminidases are thought to act via a catalytic mechanism in which the catalytic nucleophile is not provided by solvent or the enzyme, but by the substrate itself. |
| pfam00728 | Glyco_hydro_20 | 2.16e-108 | 308 | 717 | 2 | 345 | Glycosyl hydrolase family 20, catalytic domain. This domain has a TIM barrel fold. |
| COG3525 | Chb | 4.93e-99 | 49 | 816 | 20 | 702 | N-acetyl-beta-hexosaminidase [Carbohydrate transport and metabolism]. |
| cd06568 | GH20_SpHex_like | 1.37e-67 | 309 | 715 | 3 | 314 | A subgroup of the Glycosyl hydrolase family 20 (GH20) catalytic domain found in proteins similar to the N-acetylhexosaminidase from Streptomyces plicatus (SpHex). SpHex catalyzes the hydrolysis of N-acetyl-beta-hexosaminides. An Asp residue within the active site plays a critical role in substrate-assisted catalysis by orienting the 2-acetamido group and stabilizing the transition state. The GH20 hexosaminidases are thought to act via a catalytic mechanism in which the catalytic nucleophile is not provided by solvent or the enzyme, but by the substrate itself. Proteins belonging to this subgroup lack the C-terminal PKD (polycystic kidney disease I)-like domain found in the chitobiases. |
CAZyme Hits help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End |
|---|---|---|---|---|---|
| QUU00208.1 | 0.0 | 1 | 825 | 1 | 829 |
| QMI79073.1 | 0.0 | 1 | 825 | 1 | 829 |
| QUT62496.1 | 0.0 | 1 | 828 | 1 | 832 |
| QQA31047.1 | 0.0 | 1 | 828 | 1 | 832 |
| QUT34090.1 | 0.0 | 1 | 825 | 1 | 829 |
PDB Hits download full data without filtering help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End | Description |
|---|---|---|---|---|---|---|
| 1QBA_A | 2.63e-97 | 50 | 790 | 44 | 821 | BACTERIALCHITOBIASE, GLYCOSYL HYDROLASE FAMILY 20 [Serratia marcescens],1QBB_A BACTERIAL CHITOBIASE COMPLEXED WITH CHITOBIOSE (DINAG) [Serratia marcescens] |
| 1C7T_A | 9.83e-96 | 50 | 790 | 44 | 821 | ChainA, BETA-N-ACETYLHEXOSAMINIDASE [Serratia marcescens] |
| 1C7S_A | 5.09e-95 | 50 | 790 | 44 | 821 | ChainA, BETA-N-ACETYLHEXOSAMINIDASE [Serratia marcescens] |
| 6EZR_A | 1.16e-77 | 161 | 762 | 108 | 640 | Crystalstructure of GH20 Exo beta-N-Acetylglucosaminidase from Vibrio harveyi [Vibrio harveyi],6EZR_B Crystal structure of GH20 Exo beta-N-Acetylglucosaminidase from Vibrio harveyi [Vibrio harveyi],6EZS_A Crystal structure of GH20 Exo beta-N-Acetylglucosaminidase from Vibrio harveyi in complex with N-acetylglucosamine [Vibrio harveyi],6EZS_B Crystal structure of GH20 Exo beta-N-Acetylglucosaminidase from Vibrio harveyi in complex with N-acetylglucosamine [Vibrio harveyi],6K35_A Crystal structure of GH20 exo beta-N-acetylglucosaminidase from Vibrio harveyi in complex with NAG-thiazoline [Vibrio harveyi],6K35_B Crystal structure of GH20 exo beta-N-acetylglucosaminidase from Vibrio harveyi in complex with NAG-thiazoline [Vibrio harveyi] |
| 6EZT_A | 1.47e-76 | 161 | 762 | 105 | 637 | Crystalstructure of GH20 Exo beta-N-Acetylglucosaminidase D437A inactive mutant from Vibrio harveyi [Vibrio harveyi],6EZT_B Crystal structure of GH20 Exo beta-N-Acetylglucosaminidase D437A inactive mutant from Vibrio harveyi [Vibrio harveyi] |
Swiss-Prot Hits download full data without filtering help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End | Description |
|---|---|---|---|---|---|---|
| Q04786 | 9.30e-108 | 52 | 790 | 47 | 809 | Beta-hexosaminidase OS=Vibrio vulnificus OX=672 GN=hex PE=3 SV=1 |
| P13670 | 2.34e-99 | 35 | 790 | 56 | 846 | N,N'-diacetylchitobiase OS=Vibrio harveyi OX=669 GN=chb PE=1 SV=1 |
| Q54468 | 3.42e-96 | 50 | 790 | 71 | 848 | Chitobiase OS=Serratia marcescens OX=615 GN=chb PE=1 SV=1 |
| P49007 | 4.86e-87 | 245 | 752 | 267 | 760 | Beta-hexosaminidase B OS=Pseudoalteromonas piscicida OX=43662 GN=nag096 PE=3 SV=1 |
| P96155 | 3.18e-72 | 218 | 714 | 174 | 604 | Beta-hexosaminidase OS=Vibrio furnissii OX=29494 GN=exoI PE=1 SV=1 |

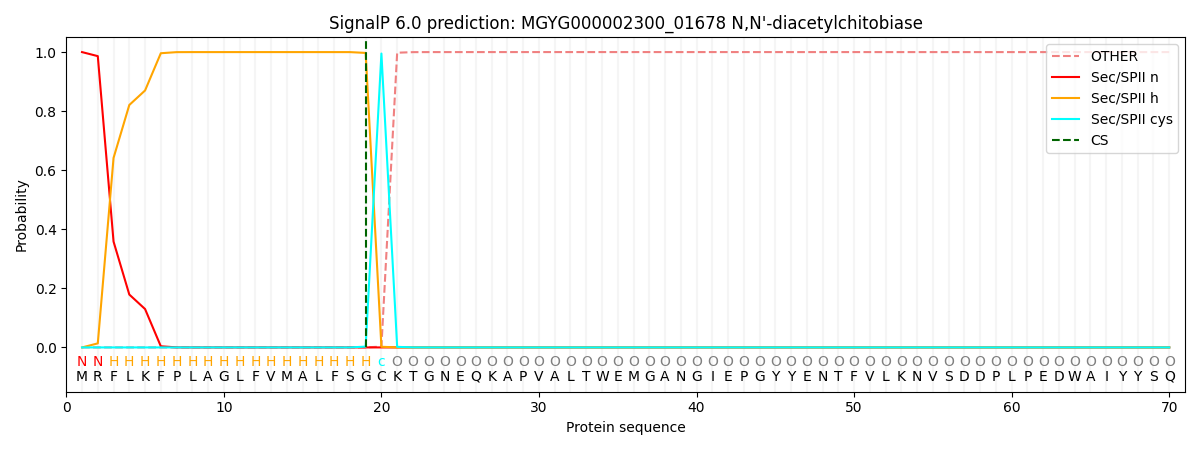

SignalP and Lipop Annotations help
This protein is predicted as LIPO
| Other | SP_Sec_SPI | LIPO_Sec_SPII | TAT_Tat_SPI | TATLIP_Sec_SPII | PILIN_Sec_SPIII |
|---|---|---|---|---|---|
| 0.000000 | 0.000000 | 1.000045 | 0.000000 | 0.000000 | 0.000000 |
