CAZyme Information: MGYG000002526_01027

Basic Information

• Species: Aeromonas hydrophila
• Lineage: Bacteria; Proteobacteria; Gammaproteobacteria; Enterobacterales; Aeromonadaceae; Aeromonas; Aeromonas hydrophila
• CAZyme ID: MGYG000002526_01027
• CAZy Family: GT2
• CAZyme Description: Undecaprenyl-phosphate 4-deoxy-4-formamido-L-arabinose transferase

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
326	MGYG000002526_1|CGC14	36075.77	6.2984

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000002526	5049466	Isolate	United States	North America

• Gene Location: Start: 1043922; End: 1044902 Strand: -

Full Sequence

MNNTDIKLVSVVIPVYNEEASLPALLSRVTAACDLLSQDYEVILIDDGSHDGSTELIRDA
AAVEGSKLVGVLLNRNYGQHAAIMAGFETAKGDLVITLDADLQNPPEEIPRLVEAAMQGY
DVVGTMRRNRQDSWFRKTASKLINKSVQKATGVHMSDYGCMLRAYRRHIIDAMLCCQERS
TFIPILANSFARRTIELEVGHAERAHGESKYGLMHLINLMYDLVTCMTTTPLRLLSIVGS
VVAGIGFTFSILLILMRLILGADWAADGVFTLFAILFTFVGVQLLGMGLLGEYIGRMYTD
VRARPRYFIHQIVRSATTPSQQEAEQ

Enzyme Prediction

EC	2.4.1.-

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GT2	10	171	9.5e-34	0.9764705882352941

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
PRK10714	PRK10714	0.0	5	326	4	325	undecaprenyl phosphate 4-deoxy-4-formamido-L-arabinose transferase; Provisional
cd04187	DPM1_like_bac	4.18e-82	11	187	1	176	Bacterial DPM1_like enzymes are related to eukaryotic DPM1. A family of bacterial enzymes related to eukaryotic DPM1; Although the mechanism of eukaryotic enzyme is well studied, the mechanism of the bacterial enzymes is not well understood. The eukaryotic DPM1 is the catalytic subunit of eukaryotic Dolichol-phosphate mannose (DPM) synthase. DPM synthase is required for synthesis of the glycosylphosphatidylinositol (GPI) anchor, N-glycan precursor, protein O-mannose, and C-mannose. The enzyme has three subunits, DPM1, DPM2 and DPM3. DPM is synthesized from dolichol phosphate and GDP-Man on the cytosolic surface of the ER membrane by DPM synthase and then is flipped onto the luminal side and used as a donor substrate. This protein family belongs to Glycosyltransferase 2 superfamily.
cd04179	DPM_DPG-synthase_like	2.32e-60	11	184	1	177	DPM_DPG-synthase_like is a member of the Glycosyltransferase 2 superfamily. DPM1 is the catalytic subunit of eukaryotic dolichol-phosphate mannose (DPM) synthase. DPM synthase is required for synthesis of the glycosylphosphatidylinositol (GPI) anchor, N-glycan precursor, protein O-mannose, and C-mannose. In higher eukaryotes,the enzyme has three subunits, DPM1, DPM2 and DPM3. DPM is synthesized from dolichol phosphate and GDP-Man on the cytosolic surface of the ER membrane by DPM synthase and then is flipped onto the luminal side and used as a donor substrate. In lower eukaryotes, such as Saccharomyces cerevisiae and Trypanosoma brucei, DPM synthase consists of a single component (Dpm1p and TbDpm1, respectively) that possesses one predicted transmembrane region near the C terminus for anchoring to the ER membrane. In contrast, the Dpm1 homologues of higher eukaryotes, namely fission yeast, fungi, and animals, have no transmembrane region, suggesting the existence of adapter molecules for membrane anchoring. This family also includes bacteria and archaea DPM1_like enzymes. However, the enzyme structure and mechanism of function are not well understood. The UDP-glucose:dolichyl-phosphate glucosyltransferase (DPG_synthase) is a transmembrane-bound enzyme of the endoplasmic reticulum involved in protein N-linked glycosylation. This enzyme catalyzes the transfer of glucose from UDP-glucose to dolichyl phosphate. This protein family belongs to Glycosyltransferase 2 superfamily.
COG0463	WcaA	7.00e-35	5	276	1	270	Glycosyltransferase involved in cell wall bisynthesis [Cell wall/membrane/envelope biogenesis].
cd06442	DPM1_like	2.26e-33	11	218	1	216	DPM1_like represents putative enzymes similar to eukaryotic DPM1. Proteins similar to eukaryotic DPM1, including enzymes from bacteria and archaea; DPM1 is the catalytic subunit of eukaryotic dolichol-phosphate mannose (DPM) synthase. DPM synthase is required for synthesis of the glycosylphosphatidylinositol (GPI) anchor, N-glycan precursor, protein O-mannose, and C-mannose. In higher eukaryotes,the enzyme has three subunits, DPM1, DPM2 and DPM3. DPM is synthesized from dolichol phosphate and GDP-Man on the cytosolic surface of the ER membrane by DPM synthase and then is flipped onto the luminal side and used as a donor substrate. In lower eukaryotes, such as Saccharomyces cerevisiae and Trypanosoma brucei, DPM synthase consists of a single component (Dpm1p and TbDpm1, respectively) that possesses one predicted transmembrane region near the C terminus for anchoring to the ER membrane. In contrast, the Dpm1 homologues of higher eukaryotes, namely fission yeast, fungi, and animals, have no transmembrane region, suggesting the existence of adapter molecules for membrane anchoring. This family also includes bacteria and archaea DPM1_like enzymes. However, the enzyme structure and mechanism of function are not well understood. This protein family belongs to Glycosyltransferase 2 superfamily.

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
BBT63633.1	4.84e-230	1	326	1	326
BBG86344.1	4.84e-230	1	326	1	326
QGZ74215.1	4.84e-230	1	326	1	326
APJ14288.1	4.84e-230	1	326	1	326
AKA18578.1	3.97e-229	1	326	1	326

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
5EKP_A	1.13e-45	2	312	22	329	Structureof the polyisoprenyl-phosphate glycosyltransferase GtrB (WT) [Synechocystis sp. PCC 6803 substr. Kazusa],5EKP_B Structure of the polyisoprenyl-phosphate glycosyltransferase GtrB (WT) [Synechocystis sp. PCC 6803 substr. Kazusa],5EKP_C Structure of the polyisoprenyl-phosphate glycosyltransferase GtrB (WT) [Synechocystis sp. PCC 6803 substr. Kazusa],5EKP_D Structure of the polyisoprenyl-phosphate glycosyltransferase GtrB (WT) [Synechocystis sp. PCC 6803 substr. Kazusa]
5EKE_A	1.59e-45	2	312	22	329	Structureof the polyisoprenyl-phosphate glycosyltransferase GtrB (F215A mutant) [Synechocystis sp. PCC 6803 substr. Kazusa],5EKE_B Structure of the polyisoprenyl-phosphate glycosyltransferase GtrB (F215A mutant) [Synechocystis sp. PCC 6803 substr. Kazusa],5EKE_C Structure of the polyisoprenyl-phosphate glycosyltransferase GtrB (F215A mutant) [Synechocystis sp. PCC 6803 substr. Kazusa],5EKE_D Structure of the polyisoprenyl-phosphate glycosyltransferase GtrB (F215A mutant) [Synechocystis sp. PCC 6803 substr. Kazusa]
5MLZ_A	1.61e-17	9	141	25	158	Dolichylphosphate mannose synthase in complex with GDP and Mg2+ [Pyrococcus furiosus DSM 3638],5MM0_A Dolichyl phosphate mannose synthase in complex with GDP-mannose and Mn2+ (donor complex) [Pyrococcus furiosus DSM 3638],5MM1_A Dolichyl phosphate mannose synthase in complex with GDP and dolichyl phosphate mannose [Pyrococcus furiosus DSM 3638]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
A0KGY7	4.60e-229	1	326	1	326	Undecaprenyl-phosphate 4-deoxy-4-formamido-L-arabinose transferase OS=Aeromonas hydrophila subsp. hydrophila (strain ATCC 7966 / DSM 30187 / BCRC 13018 / CCUG 14551 / JCM 1027 / KCTC 2358 / NCIMB 9240 / NCTC 8049) OX=380703 GN=arnC PE=3 SV=1
A4SQW8	2.41e-217	1	326	1	325	Undecaprenyl-phosphate 4-deoxy-4-formamido-L-arabinose transferase OS=Aeromonas salmonicida (strain A449) OX=382245 GN=arnC PE=3 SV=1
C5BDQ5	1.52e-160	6	323	7	324	Undecaprenyl-phosphate 4-deoxy-4-formamido-L-arabinose transferase OS=Edwardsiella ictaluri (strain 93-146) OX=634503 GN=arnC PE=3 SV=1
A8GDR6	1.05e-158	6	325	7	326	Undecaprenyl-phosphate 4-deoxy-4-formamido-L-arabinose transferase OS=Serratia proteamaculans (strain 568) OX=399741 GN=arnC PE=3 SV=1
B2K5L4	1.09e-158	3	325	4	326	Undecaprenyl-phosphate 4-deoxy-4-formamido-L-arabinose transferase OS=Yersinia pseudotuberculosis serotype IB (strain PB1/+) OX=502801 GN=arnC PE=3 SV=1

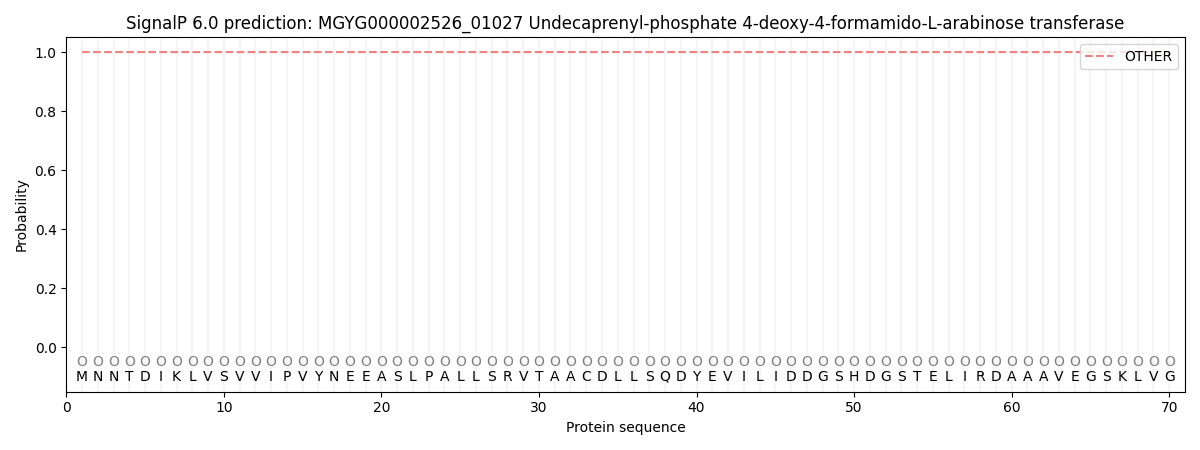

SignalP and Lipop Annotations

This protein is predicted as OTHER

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
1.000056	0.000000	0.000000	0.000000	0.000000	0.000000

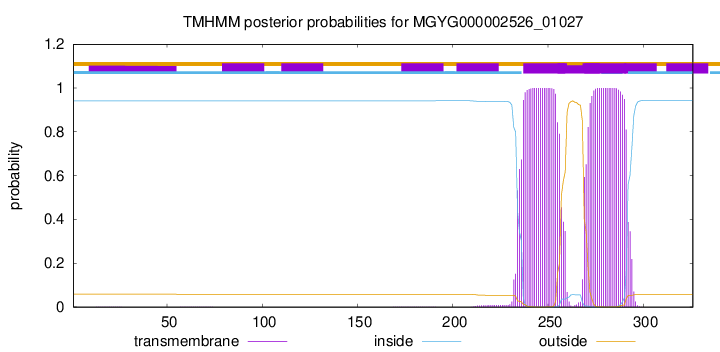

TMHMM  Annotations

start	end
237	259
269	291
