You are browsing environment: HUMAN GUT
CAZyme Information: MGYG000004334_00120
You are here: Home > Sequence: MGYG000004334_00120
Basic Information |
Genomic context |
Full Sequence |
Enzyme annotations |
CAZy signature domains |
CDD domains |
CAZyme hits |
PDB hits |
Swiss-Prot hits |
SignalP and Lipop annotations |
TMHMM annotations
Basic Information help
| Species | Ruminococcus_E sp002493635 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lineage | Bacteria; Firmicutes_A; Clostridia; Oscillospirales; Acutalibacteraceae; Ruminococcus_E; Ruminococcus_E sp002493635 | |||||||||||
| CAZyme ID | MGYG000004334_00120 | |||||||||||
| CAZy Family | CBM48 | |||||||||||
| CAZyme Description | 1,4-alpha-glucan branching enzyme GlgB | |||||||||||
| CAZyme Property |
|
|||||||||||
| Genome Property |
|
|||||||||||
| Gene Location | Start: 133041; End: 134951 Strand: + | |||||||||||
CAZyme Signature Domains help
| Family | Start | End | Evalue | family coverage |
|---|---|---|---|---|
| GH13 | 178 | 478 | 3.1e-141 | 0.9966777408637874 |
| CBM48 | 27 | 110 | 3.8e-17 | 0.881578947368421 |
CDD Domains download full data without filtering help
| Cdd ID | Domain | E-Value | qStart | qEnd | sStart | sEnd | Domain Description |
|---|---|---|---|---|---|---|---|
| PRK14705 | PRK14705 | 0.0 | 12 | 626 | 608 | 1221 | glycogen branching enzyme; Provisional |
| COG0296 | GlgB | 0.0 | 14 | 626 | 13 | 627 | 1,4-alpha-glucan branching enzyme [Carbohydrate transport and metabolism]. |
| PRK05402 | PRK05402 | 0.0 | 14 | 629 | 107 | 725 | 1,4-alpha-glucan branching protein GlgB. |
| PRK12313 | PRK12313 | 0.0 | 12 | 631 | 12 | 631 | 1,4-alpha-glucan branching protein GlgB. |
| PRK14706 | PRK14706 | 0.0 | 25 | 628 | 25 | 622 | glycogen branching enzyme; Provisional |
CAZyme Hits help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End |
|---|---|---|---|---|---|
| QCT05966.1 | 1.61e-291 | 5 | 636 | 5 | 637 |
| QEY35933.1 | 1.04e-281 | 12 | 627 | 12 | 628 |
| QNK41917.1 | 9.29e-279 | 15 | 627 | 17 | 630 |
| QAT49197.1 | 5.02e-276 | 15 | 627 | 17 | 630 |
| BCI60003.1 | 4.73e-267 | 12 | 629 | 13 | 632 |
PDB Hits download full data without filtering help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End | Description |
|---|---|---|---|---|---|---|
| 5GQW_A | 5.89e-217 | 12 | 626 | 134 | 772 | Crystalstructure of branching enzyme W610N mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GQX_A Crystal structure of branching enzyme W610N mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142] |
| 6KLF_A | 3.91e-216 | 12 | 626 | 110 | 748 | ChainA, 1,4-alpha-glucan branching enzyme GlgB [Crocosphaera subtropica ATCC 51142] |
| 5GR5_A | 9.49e-216 | 12 | 626 | 134 | 772 | Crystalstructure of branching enzyme W610A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142] |
| 5GQZ_A | 1.34e-215 | 12 | 626 | 134 | 772 | Crystalstructure of branching enzyme Y500A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142] |
| 5GQU_A | 1.90e-215 | 12 | 626 | 134 | 772 | Crystalstructure of branching enzyme from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GQV_A Crystal structure of branching enzyme from Cyanothece sp. ATCC 51142 in complex with maltohexaose [Crocosphaera subtropica ATCC 51142],5GQY_A Crystal structure of branching enzyme from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142] |
Swiss-Prot Hits download full data without filtering help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End | Description |
|---|---|---|---|---|---|---|
| O66936 | 2.66e-221 | 12 | 626 | 12 | 627 | 1,4-alpha-glucan branching enzyme GlgB OS=Aquifex aeolicus (strain VF5) OX=224324 GN=glgB PE=3 SV=1 |
| B8CVY1 | 5.35e-221 | 6 | 626 | 3 | 626 | 1,4-alpha-glucan branching enzyme GlgB OS=Halothermothrix orenii (strain H 168 / OCM 544 / DSM 9562) OX=373903 GN=glgB PE=3 SV=1 |
| Q8DLB8 | 7.93e-221 | 12 | 626 | 111 | 749 | 1,4-alpha-glucan branching enzyme GlgB OS=Thermosynechococcus vestitus (strain IAM M-273 / NIES-2133 / BP-1) OX=197221 GN=glgB PE=3 SV=1 |
| A1U0K1 | 7.28e-219 | 12 | 626 | 11 | 628 | 1,4-alpha-glucan branching enzyme GlgB OS=Marinobacter nauticus (strain ATCC 700491 / DSM 11845 / VT8) OX=351348 GN=glgB PE=3 SV=1 |
| Q1H1K2 | 7.59e-219 | 12 | 620 | 107 | 717 | 1,4-alpha-glucan branching enzyme GlgB OS=Methylobacillus flagellatus (strain KT / ATCC 51484 / DSM 6875) OX=265072 GN=glgB PE=3 SV=1 |

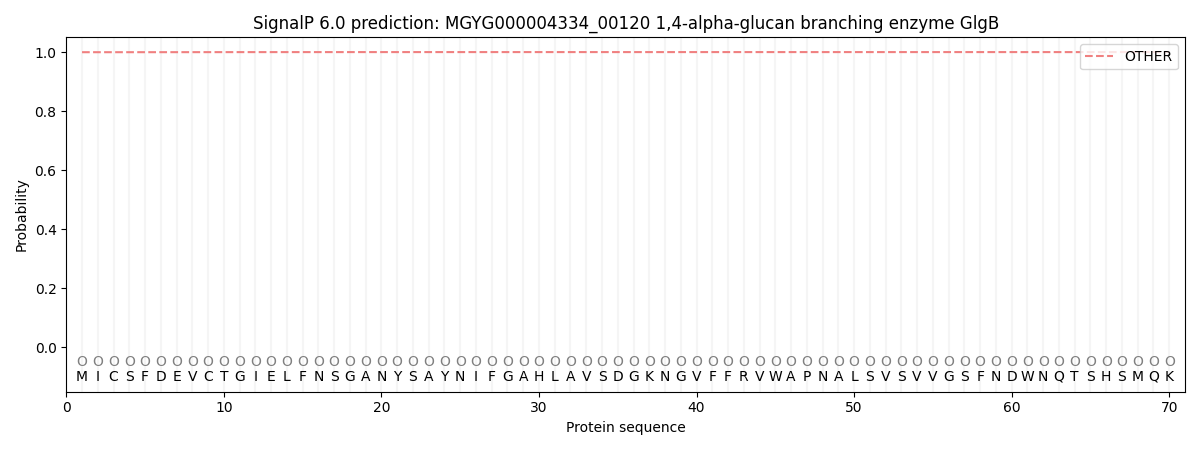

SignalP and Lipop Annotations help
This protein is predicted as OTHER
| Other | SP_Sec_SPI | LIPO_Sec_SPII | TAT_Tat_SPI | TATLIP_Sec_SPII | PILIN_Sec_SPIII |
|---|---|---|---|---|---|
| 0.999737 | 0.000297 | 0.000005 | 0.000002 | 0.000000 | 0.000001 |
