CAZyme Information: MGYG000002411_00522

Basic Information

• Species: Christensenella sp001678845
• Lineage: Bacteria; Firmicutes_A; Clostridia_A; Christensenellales; Christensenellaceae; Christensenella; Christensenella sp001678845
• CAZyme ID: MGYG000002411_00522
• CAZy Family: GH13
• CAZyme Description: Amylopullulanase

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
669		76506.97	4.6303

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000002411	3026585	Isolate	China	Asia

• Gene Location: Start: 538443; End: 540452 Strand: -

Full Sequence

MQIDFSKQLMHDSAKEEYRSPMGAVPAGTRVRLSLAVRDLYFKKMYLTLVTDGAEENIQM
QEGENGVWWAECETPKTPCVLWYWFCIRMDEDTSIYYGAHSGQTSGVGEVHWDPPPPFQL
TVYDEAFTTPGWAKGANLYQIFPDRFARDGSDTFEKGVAYHRDRGRTILVHESWDEPVLY
EAAEGMEHYEPCDYYGGTLPGIIGALDDLRDMGVTALYLNPIVEAASNHRYNTGDYLRVD
PILGTEEDFALLMREARERGIRIILDGVYSHTGDDSVYFNKYGRYDSLGAYQSQESPYYK
WYRFTEYPDQYQSWWGFTTLPEVDETQPEWVDFVIEGEQGVLSTWLSRGANGFRLDVADE
LPDETIEKMRAKIKHISQDNFLLGEVWEDATTKQSYGKHRTYALGRGLDSVMNYPFAAAV
TDFLQGKKNAAKLKQFLVGQSQNYPKDMYYCLMNLLSSHDIARIRTVLGTRIDPHSLTRE
QQAHFIVSDEQDACGAKLQKIAAGLQFALPGMPCIYYGDETGMHGLLDPFNRGPYKERDR
EMREYYKKLALLRRDTDALKTGNCVFYEQGEDVLGVLRYCIDGKDAFGTLAQDGMYLTLV
NRGKEPHNIAVDLFAHEELMPAAHTSSLREFEFERAVCRLTDEVYPVNEGLVQATVPPES
IRILEIEWI

Enzyme Prediction

No EC number prediction in MGYG000002411_00522.

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GH13	197	529	1.2e-126	0.9936708860759493

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
cd11338	AmyAc_CMD	2.78e-161	139	563	5	388	Alpha amylase catalytic domain found in cyclomaltodextrinases and related proteins. Cyclomaltodextrinase (CDase; EC3.2.1.54), neopullulanase (NPase; EC 3.2.1.135), and maltogenic amylase (MA; EC 3.2.1.133) catalyze the hydrolysis of alpha-(1,4) glycosidic linkages on a number of substrates including cyclomaltodextrins (CDs), pullulan, and starch. These enzymes hydrolyze CDs and starch to maltose and pullulan to panose by cleavage of alpha-1,4 glycosidic bonds whereas alpha-amylases essentially lack activity on CDs and pullulan. They also catalyze transglycosylation of oligosaccharides to the C3-, C4- or C6-hydroxyl groups of various acceptor sugar molecules. Since these proteins are nearly indistinguishable from each other, they are referred to as cyclomaltodextrinases (CMDs). The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
PRK10785	PRK10785	7.48e-90	114	628	100	581	maltodextrin glucosidase; Provisional
PRK14510	PRK14510	1.06e-85	9	622	3	644	bifunctional glycogen debranching protein GlgX/4-alpha-glucanotransferase.
cd11316	AmyAc_bac2_AmyA	6.54e-53	197	562	20	403	Alpha amylase catalytic domain found in bacterial Alpha-amylases (also called 1,4-alpha-D-glucan-4-glucanohydrolase). AmyA (EC 3.2.1.1) catalyzes the hydrolysis of alpha-(1,4) glycosidic linkages of glycogen, starch, related polysaccharides, and some oligosaccharides. This group includes Chloroflexi, Dictyoglomi, and Fusobacteria. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
cd11313	AmyAc_arch_bac_AmyA	2.47e-46	197	562	19	336	Alpha amylase catalytic domain found in archaeal and bacterial Alpha-amylases (also called 1,4-alpha-D-glucan-4-glucanohydrolase). AmyA (EC 3.2.1.1) catalyzes the hydrolysis of alpha-(1,4) glycosidic linkages of glycogen, starch, related polysaccharides, and some oligosaccharides. This group includes firmicutes, bacteroidetes, and proteobacteria. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
AYH39921.1	0.0	1	669	1	669
QMW70945.1	3.61e-206	9	621	1	610
BCD36163.1	3.61e-206	9	621	1	610
CBL37811.1	3.99e-205	9	666	1	640
AQP40143.1	4.56e-204	9	666	1	640

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
5BN7_A	9.83e-60	114	644	103	593	Crystalstructure of maltodextrin glucosidase from E.coli at 3.7 A resolution [Escherichia coli K-12]
1JF5_A	1.46e-59	71	563	74	504	ChainA, ALPHA AMYLASE II [Thermoactinomyces vulgaris],1JF5_B Chain B, ALPHA AMYLASE II [Thermoactinomyces vulgaris]
1JF6_A	1.46e-59	71	563	74	504	ChainA, ALPHA AMYLASE II [Thermoactinomyces vulgaris],1JF6_B Chain B, ALPHA AMYLASE II [Thermoactinomyces vulgaris]
1BVZ_A	1.46e-59	71	563	74	504	Alpha-amylaseIi (tvaii) From Thermoactinomyces Vulgaris R-47 [Thermoactinomyces vulgaris],1BVZ_B Alpha-amylase Ii (tvaii) From Thermoactinomyces Vulgaris R-47 [Thermoactinomyces vulgaris],1JI2_A Improved X-ray Structure of Thermoactinomyces vulgaris R-47 alpha-Amylase 2 [Thermoactinomyces vulgaris],1JI2_B Improved X-ray Structure of Thermoactinomyces vulgaris R-47 alpha-Amylase 2 [Thermoactinomyces vulgaris],3A6O_A Crystal structure of Thermoactinomyces vulgaris R-47 alpha-amylase 2/acarbose complex [Thermoactinomyces vulgaris],3A6O_B Crystal structure of Thermoactinomyces vulgaris R-47 alpha-amylase 2/acarbose complex [Thermoactinomyces vulgaris]
2Z1K_A	1.95e-59	132	621	3	454	CrystalStructure of Ttha1563 from Thermus thermophilus HB8 [Thermus thermophilus HB8],2Z1K_B Crystal Structure of Ttha1563 from Thermus thermophilus HB8 [Thermus thermophilus HB8],2Z1K_C Crystal Structure of Ttha1563 from Thermus thermophilus HB8 [Thermus thermophilus HB8],2Z1K_D Crystal Structure of Ttha1563 from Thermus thermophilus HB8 [Thermus thermophilus HB8]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
P38939	5.02e-106	9	612	253	878	Amylopullulanase OS=Thermoanaerobacter pseudethanolicus (strain ATCC 33223 / 39E) OX=340099 GN=apu PE=1 SV=2
P38536	1.75e-102	9	612	256	879	Amylopullulanase OS=Thermoanaerobacterium thermosulfurigenes OX=33950 GN=amyB PE=3 SV=2
P36905	7.62e-102	9	660	256	916	Amylopullulanase OS=Thermoanaerobacterium saccharolyticum OX=28896 GN=apu PE=3 SV=2
P16950	9.03e-102	9	612	253	879	Amylopullulanase OS=Thermoanaerobacter thermohydrosulfuricus OX=1516 GN=apu PE=1 SV=1
P21517	4.32e-59	114	644	101	591	Maltodextrin glucosidase OS=Escherichia coli (strain K12) OX=83333 GN=malZ PE=1 SV=5

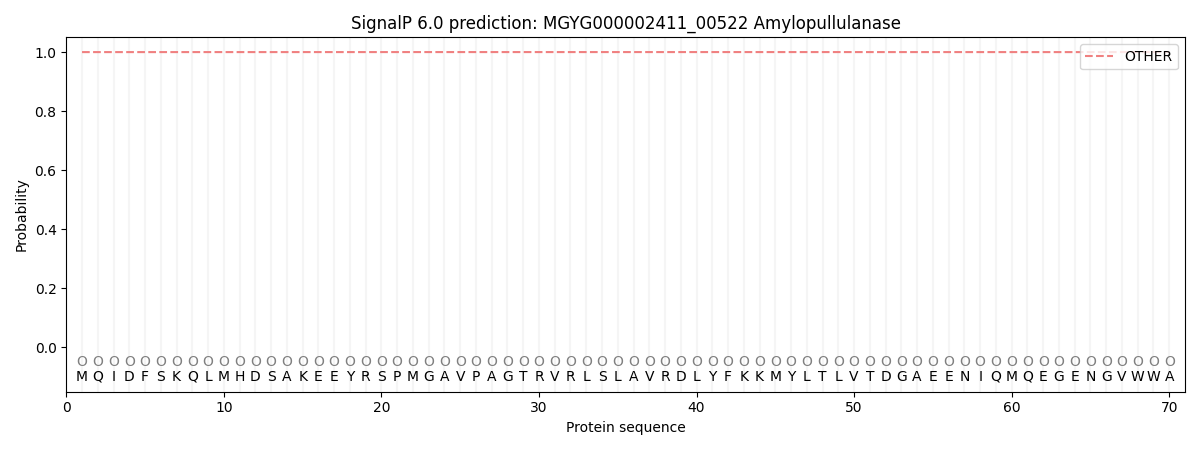

SignalP and Lipop Annotations

This protein is predicted as OTHER

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
1.000060	0.000000	0.000000	0.000000	0.000000	0.000000

TMHMM  Annotations

There is no transmembrane helices in MGYG000002411_00522.
