CAZyme Information: MGYG000002570_00133

You are here: Home > Sequence: MGYG000002570_00133

Basic Information | Genomic context | Full Sequence | Enzyme annotations |  CAZy signature domains |  CDD domains | CAZyme hits | PDB hits | Swiss-Prot hits | SignalP and Lipop annotations | TMHMM annotations

Basic Information help

Species Ruminococcus_E sp003526955
Lineage Bacteria; Firmicutes_A; Clostridia; Oscillospirales; Acutalibacteraceae; Ruminococcus_E; Ruminococcus_E sp003526955
CAZyme ID MGYG000002570_00133
CAZy Family CBM48
CAZyme Description 1,4-alpha-glucan branching enzyme GlgB
CAZyme Property
Protein Length CGC Molecular Weight Isoelectric Point
697 80758.15 4.9377
Genome Property
Genome Assembly ID Genome Size Genome Type Country Continent
MGYG000002570 2026568 MAG China Asia
Gene Location Start: 71848;  End: 73941  Strand: +

Full Sequence      Download help

MAFSLNDKRT  PLEQFLQGES  VTAYEFMGSH  FVNWGDRDGV  VFRVWAPNAL  SVSVVGDFND60
WNPDANYMYK  IDNSGVWELF  IEGVWEYACY  KYCVETPSMQ  KVMKTDPYAF  HCQTRPDNAS120
RVYEIHGYEW  NDSEWLEHKK  AHPHKNAPIN  VYEMHAGSWR  KYEDGNVFSY  KKLAEELIPY180
VKEMGYTHIE  FMPLTEYPFD  GSWGYQVTGY  FAATSRYGTP  KDLMYFVDKC  HQEGIGVILD240
WVPAHFPKDE  HGLGRFDGTG  CYEYEDWRIG  EHKEWGTYIF  NYARYEVASF  LLSSAMFWLD300
QYHIDGIRVD  AVASMLYLDY  NRKDGEWLAN  IYGGRENLVA  VDFLQKLNTV  VHMFHPEAMM360
IAEESTAWPN  VTGFPPKDMG  LGFDYKWNMG  WMNDMLSYIS  LDPLYRNYHH  DTLTFSMVYA420
FSESFMLPIS  HDEVVYGKGS  LINKMPGLYD  NKFAGVRGFL  AYMLAHPGKK  LMFMGSELGQ480
FDEWNSTEQL  QWNLLGYEKH  RQLNHFFATA  NKFYCDTPAM  HENDYDWNGF  QWIALDDYKH540
SIISFRRIAY  DGSEVIVVCN  FQPMLRENYK  IGVPKFGIYK  EVLNSEAEEF  GGCGIVNEGE600
LKAQDAADHD  LPYSINITLA  PLSVIYIELD  KELPAPEKPK  KEKTTNRKAA  ALKKAKAEKA660
AKAESKAEEK  VDEKPVVEEK  EETKETKAEE  KVETVEK697

Enzyme Prediction      help

EC 2.4.1.18

CAZyme Signature Domains help

Created with Snap3469104139174209243278313348383418453487522557592627662179480GH1327112CBM48
Family Start End Evalue family coverage
GH13 179 480 1.4e-154 0.9966777408637874
CBM48 27 112 5.6e-18 0.8947368421052632

CDD Domains      download full data without filtering help

Created with Snap346910413917420924327831334838341845348752255759262766212635PRK1231312642PRK1470617622PRK1470514629GlgB23632PRK05402
Cdd ID Domain E-Value qStart qEnd sStart sEnd Domain Description
PRK12313 PRK12313 0.0 12 635 12 633
1,4-alpha-glucan branching protein GlgB.
PRK14706 PRK14706 0.0 12 642 12 634
glycogen branching enzyme; Provisional
PRK14705 PRK14705 0.0 17 622 613 1215
glycogen branching enzyme; Provisional
COG0296 GlgB 0.0 14 629 13 628
1,4-alpha-glucan branching enzyme [Carbohydrate transport and metabolism].
PRK05402 PRK05402 0.0 23 632 116 726
1,4-alpha-glucan branching protein GlgB.

CAZyme Hits      help

Created with Snap34691041391742092432783133483834184534875225575926276621638QCT05966.1|CBM48|GH13_99639CAB1243441.1|CBM48|GH13_91628QEY35933.1|CBM48|GH13_96629CBK98932.1|CBM48|GH13_96628QNK41917.1|CBM48|GH13_9
Hit ID E-Value Query Start Query End Hit Start Hit End
QCT05966.1 0.0 1 638 1 637
CAB1243441.1 1.87e-294 9 639 11 640
QEY35933.1 4.83e-291 1 628 1 627
CBK98932.1 1.18e-282 6 629 11 633
QNK41917.1 1.78e-282 6 628 8 629

PDB Hits      download full data without filtering help

Created with Snap3469104139174209243278313348383418453487522557592627662156305GQW_A156305GR5_A156305GQZ_A156305GQU_A156305GR2_A
Hit ID E-Value Query Start Query End Hit Start Hit End Description
5GQW_A 9.52e-230 15 630 137 774
Crystalstructure of branching enzyme W610N mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GQX_A Crystal structure of branching enzyme W610N mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142]
5GR5_A 9.52e-230 15 630 137 774
Crystalstructure of branching enzyme W610A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]
5GQZ_A 1.35e-229 15 630 137 774
Crystalstructure of branching enzyme Y500A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]
5GQU_A 1.91e-229 15 630 137 774
Crystalstructure of branching enzyme from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GQV_A Crystal structure of branching enzyme from Cyanothece sp. ATCC 51142 in complex with maltohexaose [Crocosphaera subtropica ATCC 51142],5GQY_A Crystal structure of branching enzyme from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142]
5GR2_A 2.70e-229 15 630 137 774
Crystalstructure of branching enzyme L541A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GR4_A Crystal structure of branching enzyme L541A mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142]

Swiss-Prot Hits      download full data without filtering help

Created with Snap346910413917420924327831334838341845348752255759262766215628sp|O66936|GLGB_AQUAE15638sp|Q8DLB8|GLGB_THEVB15628sp|B8CVY1|GLGB_HALOH15628sp|Q2JT08|GLGB_SYNJA12631sp|P52981|GLGB_SYNY3
Hit ID E-Value Query Start Query End Hit Start Hit End Description
O66936 1.98e-239 15 628 15 627
1,4-alpha-glucan branching enzyme GlgB OS=Aquifex aeolicus (strain VF5) OX=224324 GN=glgB PE=3 SV=1
Q8DLB8 1.48e-237 15 638 114 759
1,4-alpha-glucan branching enzyme GlgB OS=Thermosynechococcus vestitus (strain IAM M-273 / NIES-2133 / BP-1) OX=197221 GN=glgB PE=3 SV=1
B8CVY1 6.90e-235 15 628 14 626
1,4-alpha-glucan branching enzyme GlgB OS=Halothermothrix orenii (strain H 168 / OCM 544 / DSM 9562) OX=373903 GN=glgB PE=3 SV=1
Q2JT08 4.08e-233 15 628 125 752
1,4-alpha-glucan branching enzyme GlgB OS=Synechococcus sp. (strain JA-3-3Ab) OX=321327 GN=glgB PE=3 SV=1
P52981 3.29e-232 12 631 114 754
1,4-alpha-glucan branching enzyme GlgB OS=Synechocystis sp. (strain PCC 6803 / Kazusa) OX=1111708 GN=glgB PE=3 SV=1

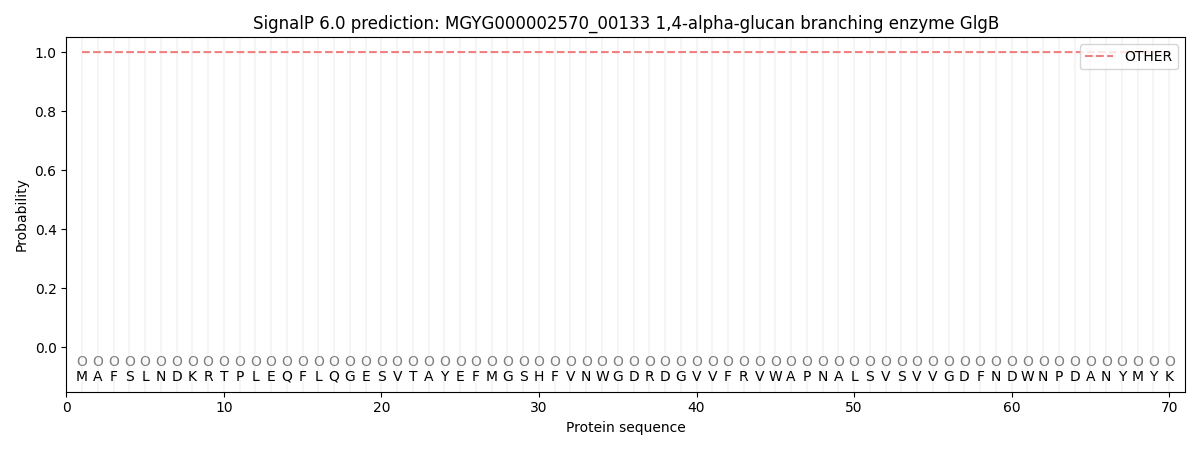

SignalP and Lipop Annotations help

This protein is predicted as OTHER

Other SP_Sec_SPI LIPO_Sec_SPII TAT_Tat_SPI TATLIP_Sec_SPII PILIN_Sec_SPIII
1.000061 0.000000 0.000000 0.000000 0.000000 0.000000

TMHMM  Annotations      help

There is no transmembrane helices in MGYG000002570_00133.
