CAZyme Information: MGYG000003857_00603

Basic Information

• Lineage: Bacteria; Cyanobacteria; Vampirovibrionia; Gastranaerophilales; Gastranaerophilaceae; RUG841
• CAZyme ID: MGYG000003857_00603
• CAZy Family: GT2
• CAZyme Description: Undecaprenyl-phosphate 4-deoxy-4-formamido-L-arabinose transferase

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
313	MGYG000003857_31|CGC1	35273.34	9.6834

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000003857	1817818	MAG	United States	North America

• Gene Location: Start: 2214; End: 3155 Strand: -

Full Sequence

MKLIIQIPAYNEEISLPLTLSSIKREYDGIDEVEVLVINDGSTDRTKYIAEEYGVEHILN
FPTNKGLAKAFTLGLQYCINAGADIIVNIDADNQYNADDIAKLIWPIVNNKADIVIGKRP
VDRIKHFSIVKKVLQKIGTKVVKLLSSTGTEDAPSGFRAFSRKAAMQINVFDNYTYTIET
IMQSKAKGFVIESVPIRTNDGYRKSRLVKNLFDYVKKSAFTVLRMFIIYRPFRFFAIIGG
VFCLAGVLIWAKYFFALLNGSAENHLQSLIFSVILIFCGVQTAILGVIADLLAINRKLLE
DIQFRVKVLEQKK

Enzyme Prediction

No EC number prediction in MGYG000003857_00603.

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GT2	7	165	6.4e-26	0.9529411764705882

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
cd04179	DPM_DPG-synthase_like	3.37e-43	5	186	1	185	DPM_DPG-synthase_like is a member of the Glycosyltransferase 2 superfamily. DPM1 is the catalytic subunit of eukaryotic dolichol-phosphate mannose (DPM) synthase. DPM synthase is required for synthesis of the glycosylphosphatidylinositol (GPI) anchor, N-glycan precursor, protein O-mannose, and C-mannose. In higher eukaryotes,the enzyme has three subunits, DPM1, DPM2 and DPM3. DPM is synthesized from dolichol phosphate and GDP-Man on the cytosolic surface of the ER membrane by DPM synthase and then is flipped onto the luminal side and used as a donor substrate. In lower eukaryotes, such as Saccharomyces cerevisiae and Trypanosoma brucei, DPM synthase consists of a single component (Dpm1p and TbDpm1, respectively) that possesses one predicted transmembrane region near the C terminus for anchoring to the ER membrane. In contrast, the Dpm1 homologues of higher eukaryotes, namely fission yeast, fungi, and animals, have no transmembrane region, suggesting the existence of adapter molecules for membrane anchoring. This family also includes bacteria and archaea DPM1_like enzymes. However, the enzyme structure and mechanism of function are not well understood. The UDP-glucose:dolichyl-phosphate glucosyltransferase (DPG_synthase) is a transmembrane-bound enzyme of the endoplasmic reticulum involved in protein N-linked glycosylation. This enzyme catalyzes the transfer of glucose from UDP-glucose to dolichyl phosphate. This protein family belongs to Glycosyltransferase 2 superfamily.
cd06442	DPM1_like	1.30e-31	4	216	1	219	DPM1_like represents putative enzymes similar to eukaryotic DPM1. Proteins similar to eukaryotic DPM1, including enzymes from bacteria and archaea; DPM1 is the catalytic subunit of eukaryotic dolichol-phosphate mannose (DPM) synthase. DPM synthase is required for synthesis of the glycosylphosphatidylinositol (GPI) anchor, N-glycan precursor, protein O-mannose, and C-mannose. In higher eukaryotes,the enzyme has three subunits, DPM1, DPM2 and DPM3. DPM is synthesized from dolichol phosphate and GDP-Man on the cytosolic surface of the ER membrane by DPM synthase and then is flipped onto the luminal side and used as a donor substrate. In lower eukaryotes, such as Saccharomyces cerevisiae and Trypanosoma brucei, DPM synthase consists of a single component (Dpm1p and TbDpm1, respectively) that possesses one predicted transmembrane region near the C terminus for anchoring to the ER membrane. In contrast, the Dpm1 homologues of higher eukaryotes, namely fission yeast, fungi, and animals, have no transmembrane region, suggesting the existence of adapter molecules for membrane anchoring. This family also includes bacteria and archaea DPM1_like enzymes. However, the enzyme structure and mechanism of function are not well understood. This protein family belongs to Glycosyltransferase 2 superfamily.
cd04188	DPG_synthase	8.48e-24	7	197	3	203	DPG_synthase is involved in protein N-linked glycosylation. UDP-glucose:dolichyl-phosphate glucosyltransferase (DPG_synthase) is a transmembrane-bound enzyme of the endoplasmic reticulum involved in protein N-linked glycosylation. This enzyme catalyzes the transfer of glucose from UDP-glucose to dolichyl phosphate.
pfam00535	Glycos_transf_2	2.36e-22	7	164	4	163	Glycosyl transferase family 2. Diverse family, transferring sugar from UDP-glucose, UDP-N-acetyl- galactosamine, GDP-mannose or CDP-abequose, to a range of substrates including cellulose, dolichol phosphate and teichoic acids.
cd04187	DPM1_like_bac	2.99e-18	7	172	3	166	Bacterial DPM1_like enzymes are related to eukaryotic DPM1. A family of bacterial enzymes related to eukaryotic DPM1; Although the mechanism of eukaryotic enzyme is well studied, the mechanism of the bacterial enzymes is not well understood. The eukaryotic DPM1 is the catalytic subunit of eukaryotic Dolichol-phosphate mannose (DPM) synthase. DPM synthase is required for synthesis of the glycosylphosphatidylinositol (GPI) anchor, N-glycan precursor, protein O-mannose, and C-mannose. The enzyme has three subunits, DPM1, DPM2 and DPM3. DPM is synthesized from dolichol phosphate and GDP-Man on the cytosolic surface of the ER membrane by DPM synthase and then is flipped onto the luminal side and used as a donor substrate. This protein family belongs to Glycosyltransferase 2 superfamily.

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
AOR37677.1	8.66e-127	1	313	1	313
ASC69380.1	1.21e-114	1	307	1	308
BCL60650.1	2.68e-114	1	307	1	307
ACB52699.1	3.63e-112	2	313	3	315
AOX01319.1	1.42e-111	2	310	3	311

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
6P61_A	3.21e-10	7	103	19	113	Structureof a Glycosyltransferase from Leptospira borgpetersenii serovar Hardjo-bovis (strain JB197) [Leptospira borgpetersenii serovar Hardjo-bovis str. JB197],6P61_B Structure of a Glycosyltransferase from Leptospira borgpetersenii serovar Hardjo-bovis (strain JB197) [Leptospira borgpetersenii serovar Hardjo-bovis str. JB197],6P61_C Structure of a Glycosyltransferase from Leptospira borgpetersenii serovar Hardjo-bovis (strain JB197) [Leptospira borgpetersenii serovar Hardjo-bovis str. JB197],6P61_D Structure of a Glycosyltransferase from Leptospira borgpetersenii serovar Hardjo-bovis (strain JB197) [Leptospira borgpetersenii serovar Hardjo-bovis str. JB197]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
A0QZ12	3.19e-18	7	196	28	224	Polyprenol monophosphomannose synthase OS=Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155) OX=246196 GN=ppm1 PE=1 SV=1
B3VA58	1.26e-17	7	198	10	218	UDP-N-acetylglucosamine--dolichyl-phosphate N-acetylglucosaminyltransferase OS=Methanococcus voltae OX=2188 GN=aglK PE=1 SV=1
C5CBV8	1.51e-17	1	213	1	198	Undecaprenyl-phosphate mannosyltransferase OS=Micrococcus luteus (strain ATCC 4698 / DSM 20030 / JCM 1464 / NBRC 3333 / NCIMB 9278 / NCTC 2665 / VKM Ac-2230) OX=465515 GN=Mlut_12000 PE=1 SV=1
A2E3C6	5.79e-16	7	230	80	316	Dolichyl-phosphate beta-glucosyltransferase ALG5D OS=Trichomonas vaginalis OX=5722 GN=ALG5D PE=1 SV=1
A2DSR8	9.13e-15	7	220	79	310	Dolichyl-phosphate beta-glucosyltransferase ALG5E OS=Trichomonas vaginalis OX=5722 GN=ALG5E PE=1 SV=1

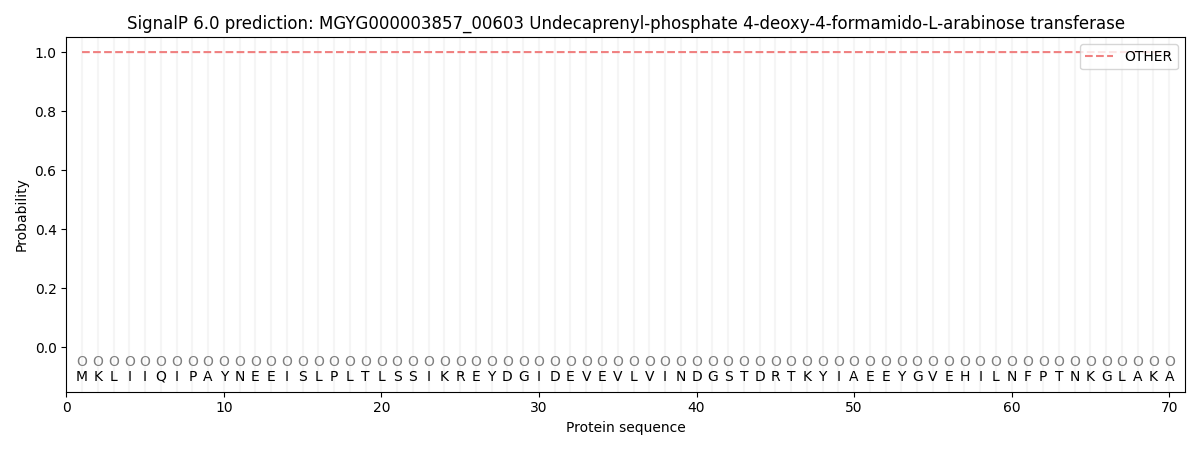

SignalP and Lipop Annotations

This protein is predicted as OTHER

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
1.000046	0.000000	0.000000	0.000000	0.000000	0.000000

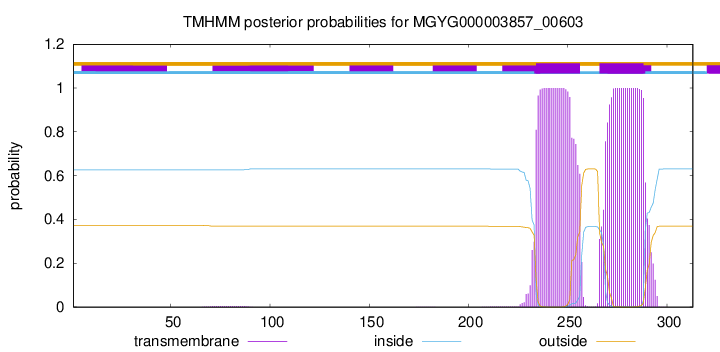

TMHMM  Annotations

start	end
234	256
266	288
