CAZyme Information: MGYG000000012_01412

Basic Information

• Species: Bacillus subtilis
• Lineage: Bacteria; Firmicutes; Bacilli; Bacillales; Bacillaceae; Bacillus; Bacillus subtilis
• CAZyme ID: MGYG000000012_01412
• CAZy Family: GH53
• CAZyme Description: Arabinogalactan endo-beta-1,4-galactanase

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
429	MGYG000000012_2|CGC6	47094.99	7.8887

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000000012	4053580	Isolate	United Kingdom	Europe

• Gene Location: Start: 332684; End: 333973 Strand: -

Full Sequence

MRNGVKMCLAAAIVWSAFSSPGYAAAVEKEKHVPELRAEDLFVKKVEGMNKDFIKGADVS
SVIALENSGVTFYNTSGKRQDIFTTLKQAGVNYVRVRIWNNPYDSNGNGYGGGNNDIQKA
IEIGKRATANGMKVLADFHYSDFWADPAKQKVPKAWANLSFEAKKAKLYEYTKQSLQKMI
KEGVDIGMVQVGNETTGGFAGETDWTKMCQLFQEGSRAVRETNPGILVALHFTNPETAGR
YSFIAETLSKNKVDYDVFASSYYPFWHGTLQNLTSVLKAVADTYGKKVMVAETSYTYTAE
DGDGHGNTAPKSGQTLPYPISVQGQATAVRDVMAAVANTGKAGLGVFYWEPAWIPVGPKT
QIEKNKVLWETYGSGWASSYAAEYDPEDAGKWYGGSAVDNQALFDFNGHPLPSLQVFQYA
ESGHIPKKR

Enzyme Prediction

EC	3.2.1.89

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GH53	54	417	3.2e-135	0.9970760233918129

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
COG3867	GanB	0.0	6	429	1	403	Arabinogalactan endo-1,4-beta-galactosidase [Carbohydrate transport and metabolism].
pfam07745	Glyco_hydro_53	2.30e-176	54	417	1	333	Glycosyl hydrolase family 53. This domain belongs to family 53 of the glycosyl hydrolase classification. These enzymes are enzymes are endo-1,4- beta-galactanases (EC:3.2.1.89). The structure of this domain is known and has a TIM barrel fold.
pfam00150	Cellulase	0.002	67	292	14	235	Cellulase (glycosyl hydrolase family 5).

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
AUS11527.1	0.0	1	429	1	429
ASB62496.1	0.0	1	429	1	429
QRZ92279.1	0.0	1	429	1	429
AFI29989.1	0.0	1	429	1	429
AUZ40483.1	0.0	1	429	1	429

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
1R8L_A	5.48e-236	41	423	12	394	Thestructure of endo-beta-1,4-galactanase from Bacillus licheniformis [Bacillus licheniformis],1R8L_B The structure of endo-beta-1,4-galactanase from Bacillus licheniformis [Bacillus licheniformis],1UR0_A The structure of endo-beta-1,4-galactanase from Bacillus licheniformis in complex with two oligosaccharide products. [Bacillus licheniformis],1UR0_B The structure of endo-beta-1,4-galactanase from Bacillus licheniformis in complex with two oligosaccharide products. [Bacillus licheniformis],1UR4_A The structure of endo-beta-1,4-galactanase from Bacillus licheniformis in complex with two oligosaccharide products. [Bacillus licheniformis],1UR4_B The structure of endo-beta-1,4-galactanase from Bacillus licheniformis in complex with two oligosaccharide products. [Bacillus licheniformis],2CCR_A Structure of Beta-1,4-Galactanase [Bacillus licheniformis],2CCR_B Structure of Beta-1,4-Galactanase [Bacillus licheniformis],2J74_A Structure of Beta-1,4-Galactanase [Bacillus licheniformis],2J74_B Structure of Beta-1,4-Galactanase [Bacillus licheniformis]
2GFT_A	4.49e-235	41	423	12	394	ChainA, Glycosyl Hydrolase Family 53 [Bacillus licheniformis],2GFT_B Chain B, Glycosyl Hydrolase Family 53 [Bacillus licheniformis]
7OSK_A	2.02e-87	39	418	36	392	ChainA, Arabinogalactan endo-1,4-beta-galactosidase [Ignisphaera aggregans DSM 17230],7OSK_B Chain B, Arabinogalactan endo-1,4-beta-galactosidase [Ignisphaera aggregans DSM 17230]
1FHL_A	4.27e-46	55	354	5	302	CrystalStructure Of Beta-1,4-galactanase From Aspergillus Aculeatus At 293k [Aspergillus aculeatus],1FOB_A Crystal Structure Of Beta-1,4-galactanase From Aspergillus Aculeatus At 100k [Aspergillus aculeatus],6Q3R_A ASPERGILLUS ACULEATUS GALACTANASE [Aspergillus aculeatus],6Q3R_B ASPERGILLUS ACULEATUS GALACTANASE [Aspergillus aculeatus]
1HJS_A	8.27e-45	55	354	5	301	Structureof two fungal beta-1,4-galactanases: searching for the basis for temperature and pH optimum. [Thermothelomyces thermophilus],1HJS_B Structure of two fungal beta-1,4-galactanases: searching for the basis for temperature and pH optimum. [Thermothelomyces thermophilus],1HJS_C Structure of two fungal beta-1,4-galactanases: searching for the basis for temperature and pH optimum. [Thermothelomyces thermophilus],1HJS_D Structure of two fungal beta-1,4-galactanases: searching for the basis for temperature and pH optimum. [Thermothelomyces thermophilus],1HJU_A Structure of two fungal beta-1,4-galactanases: searching for the basis for temperature and pH optimum. [Thermothelomyces thermophilus],1HJU_B Structure of two fungal beta-1,4-galactanases: searching for the basis for temperature and pH optimum. [Thermothelomyces thermophilus],1HJU_C Structure of two fungal beta-1,4-galactanases: searching for the basis for temperature and pH optimum. [Thermothelomyces thermophilus],1HJU_D Structure of two fungal beta-1,4-galactanases: searching for the basis for temperature and pH optimum. [Thermothelomyces thermophilus]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
O07013	1.79e-310	1	429	1	429	Endo-beta-1,4-galactanase OS=Bacillus subtilis (strain 168) OX=224308 GN=ganB PE=1 SV=1
Q65CX5	4.57e-236	1	423	1	419	Endo-beta-1,4-galactanase OS=Bacillus licheniformis (strain ATCC 14580 / DSM 13 / JCM 2505 / CCUG 7422 / NBRC 12200 / NCIMB 9375 / NCTC 10341 / NRRL NRS-1264 / Gibson 46) OX=279010 GN=ganB PE=1 SV=1
P48843	3.45e-58	53	355	6	314	Uncharacterized protein in bgaB 5'region (Fragment) OS=Niallia circulans OX=1397 PE=3 SV=1
P48841	3.70e-50	50	360	24	336	Arabinogalactan endo-beta-1,4-galactanase OS=Cellvibrio japonicus (strain Ueda107) OX=498211 GN=ganB PE=1 SV=1
Q4WJ80	2.04e-45	55	354	26	324	Probable arabinogalactan endo-beta-1,4-galactanase A OS=Neosartorya fumigata (strain ATCC MYA-4609 / Af293 / CBS 101355 / FGSC A1100) OX=330879 GN=galA PE=3 SV=2

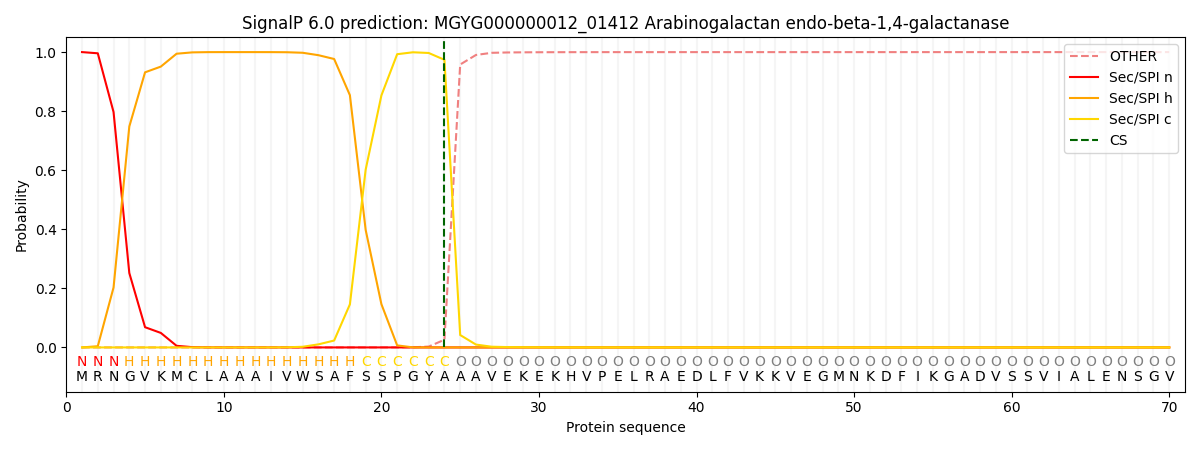

SignalP and Lipop Annotations

This protein is predicted as SP

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
0.000227	0.999087	0.000196	0.000168	0.000148	0.000132

TMHMM  Annotations

There is no transmembrane helices in MGYG000000012_01412.
