CAZyme Information: MGYG000000014_02072

Basic Information

• Species: Clostridium butyricum
• Lineage: Bacteria; Firmicutes_A; Clostridia; Clostridiales; Clostridiaceae; Clostridium; Clostridium butyricum
• CAZyme ID: MGYG000000014_02072
• CAZy Family: GH13
• CAZyme Description: Trehalose synthase/amylase TreS

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
378	MGYG000000014_7|CGC2	43051.52	4.8513

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000000014	4564499	Isolate	United Kingdom	Europe

• Gene Location: Start: 172766; End: 173902 Strand: +

Full Sequence

MQWLRGIGQRDGAVAVNYFSTQPALNYGYLNPNDEWQQSVDSEGPAATKEELKKIMRFWL
KAGCDGFRVDMADSLVKNDDENSSGTVALWQEFRKFLDKEFPEAVMVSEWGQPDKSLKGG
FHMDFLLHFGPSHYNDLFRCDEPYFSSRGKGKVSDFIETYIKNYEQSERRGLICIPSGNH
DMDRLARRLTVEEIKIAFAFLLSMPGAPFIYYGDEIGLNYVENITSVEGGFGRTGSRSPM
QWNKGLNAGFSSAPEEKLYIPLDKNLDRPDVVTQIENSNSLYNEIKHLISIRMSHKPLQS
NGQIEFITKSEYPLVYKRNYENETILVIINPSRESQIIETDVSCGEIIYSYGGSIKFIDE
KAVNIDGCTAVFIKFKED

Enzyme Prediction

No EC number prediction in MGYG000000014_02072.

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GH13	33	219	6.6e-28	0.5732484076433121

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
cd11348	AmyAc_2	1.49e-166	1	291	130	429	Alpha amylase catalytic domain found in an uncharacterized protein family. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The catalytic triad (DED) is not present here. The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
cd11316	AmyAc_bac2_AmyA	9.95e-40	20	299	150	401	Alpha amylase catalytic domain found in bacterial Alpha-amylases (also called 1,4-alpha-D-glucan-4-glucanohydrolase). AmyA (EC 3.2.1.1) catalyzes the hydrolysis of alpha-(1,4) glycosidic linkages of glycogen, starch, related polysaccharides, and some oligosaccharides. This group includes Chloroflexi, Dictyoglomi, and Fusobacteria. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
cd11334	AmyAc_TreS	1.44e-38	18	292	160	447	Alpha amylase catalytic domain found in Trehalose synthetase. Trehalose synthetase (TreS) catalyzes the reversible interconversion of trehalose and maltose. The enzyme catalyzes the reaction in both directions, but the preferred substrate is maltose. Glucose is formed as a by-product of this reaction. It is believed that the catalytic mechanism may involve the cutting of the incoming disaccharide and transfer of a glucose to an enzyme-bound glucose. This enzyme also catalyzes production of a glucosamine disaccharide from maltose and glucosamine. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
cd11331	AmyAc_OligoGlu_like	4.44e-34	18	300	161	448	Alpha amylase catalytic domain found in oligo-1,6-glucosidase (also called isomaltase; sucrase-isomaltase; alpha-limit dextrinase) and related proteins. Oligo-1,6-glucosidase (EC 3.2.1.10) hydrolyzes the alpha-1,6-glucosidic linkage of isomalto-oligosaccharides, pannose, and dextran. Unlike alpha-1,4-glucosidases (EC 3.2.1.20), it fails to hydrolyze the alpha-1,4-glucosidic bonds of maltosaccharides. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
COG0366	AmyA	1.95e-32	11	339	133	491	Glycosidase [Carbohydrate transport and metabolism].

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
QJU46751.1	7.67e-282	1	378	138	515
AXB87247.1	7.67e-282	1	378	138	515
QGH20148.1	7.67e-282	1	378	138	515
QCJ08510.1	7.67e-282	1	378	138	515
QGH24183.1	7.67e-282	1	378	138	515

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
4WF7_A	1.29e-26	18	336	175	507	Crystalstructures of trehalose synthase from Deinococcus radiodurans reveal that a closed conformation is involved in the intramolecular isomerization catalysis [Deinococcus radiodurans R1],4WF7_B Crystal structures of trehalose synthase from Deinococcus radiodurans reveal that a closed conformation is involved in the intramolecular isomerization catalysis [Deinococcus radiodurans R1],4WF7_C Crystal structures of trehalose synthase from Deinococcus radiodurans reveal that a closed conformation is involved in the intramolecular isomerization catalysis [Deinococcus radiodurans R1],4WF7_D Crystal structures of trehalose synthase from Deinococcus radiodurans reveal that a closed conformation is involved in the intramolecular isomerization catalysis [Deinococcus radiodurans R1]
4TVU_A	1.29e-26	18	336	175	507	Crystalstructure of trehalose synthase from Deinococcus radiodurans reveals a closed conformation for catalysis of the intramolecular isomerization [Deinococcus radiodurans R1],4TVU_B Crystal structure of trehalose synthase from Deinococcus radiodurans reveals a closed conformation for catalysis of the intramolecular isomerization [Deinococcus radiodurans R1],4TVU_C Crystal structure of trehalose synthase from Deinococcus radiodurans reveals a closed conformation for catalysis of the intramolecular isomerization [Deinococcus radiodurans R1],4TVU_D Crystal structure of trehalose synthase from Deinococcus radiodurans reveals a closed conformation for catalysis of the intramolecular isomerization [Deinococcus radiodurans R1],4TVU_E Crystal structure of trehalose synthase from Deinococcus radiodurans reveals a closed conformation for catalysis of the intramolecular isomerization [Deinococcus radiodurans R1],4TVU_F Crystal structure of trehalose synthase from Deinococcus radiodurans reveals a closed conformation for catalysis of the intramolecular isomerization [Deinococcus radiodurans R1],4TVU_G Crystal structure of trehalose synthase from Deinococcus radiodurans reveals a closed conformation for catalysis of the intramolecular isomerization [Deinococcus radiodurans R1],4TVU_H Crystal structure of trehalose synthase from Deinococcus radiodurans reveals a closed conformation for catalysis of the intramolecular isomerization [Deinococcus radiodurans R1]
5GTW_A	2.36e-26	18	336	175	507	TheN253R mutant structures of trehalose synthase from Deinococcus radiodurans display two different active-site conformations [Deinococcus radiodurans R1],5GTW_B The N253R mutant structures of trehalose synthase from Deinococcus radiodurans display two different active-site conformations [Deinococcus radiodurans R1],5GTW_C The N253R mutant structures of trehalose synthase from Deinococcus radiodurans display two different active-site conformations [Deinococcus radiodurans R1],5GTW_D The N253R mutant structures of trehalose synthase from Deinococcus radiodurans display two different active-site conformations [Deinococcus radiodurans R1]
5YKB_A	3.20e-26	18	336	175	507	TheN253F mutant structure of trehalose synthase from Deinococcus radiodurans reveals an open active-site conformation [Deinococcus radiodurans R1],5YKB_B The N253F mutant structure of trehalose synthase from Deinococcus radiodurans reveals an open active-site conformation [Deinococcus radiodurans R1],5YKB_C The N253F mutant structure of trehalose synthase from Deinococcus radiodurans reveals an open active-site conformation [Deinococcus radiodurans R1],5YKB_D The N253F mutant structure of trehalose synthase from Deinococcus radiodurans reveals an open active-site conformation [Deinococcus radiodurans R1]
5X7U_A	5.34e-26	18	343	166	503	Trehalosesynthase from Thermobaculum terrenum [Thermobaculum terrenum ATCC BAA-798]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
P14899	5.42e-23	26	333	163	457	Alpha-amylase 3 OS=Dictyoglomus thermophilum (strain ATCC 35947 / DSM 3960 / H-6-12) OX=309799 GN=amyC PE=3 SV=2
P9WQ18	1.05e-22	18	342	202	545	Trehalose synthase/amylase TreS OS=Mycobacterium tuberculosis (strain CDC 1551 / Oshkosh) OX=83331 GN=treS PE=3 SV=1
P9WQ19	1.05e-22	18	342	202	545	Trehalose synthase/amylase TreS OS=Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv) OX=83332 GN=treS PE=1 SV=1
P20845	1.10e-22	35	363	199	510	Alpha-amylase OS=Priestia megaterium OX=1404 PE=1 SV=1
A0R6E0	6.16e-22	18	357	194	560	Trehalose synthase/amylase TreS OS=Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155) OX=246196 GN=treS PE=1 SV=1

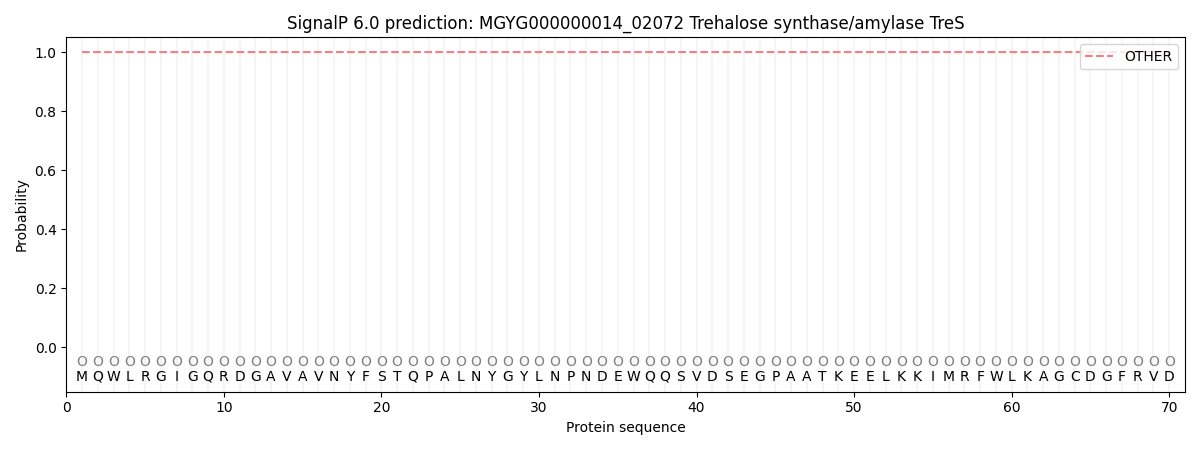

SignalP and Lipop Annotations

This protein is predicted as OTHER

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
1.000052	0.000000	0.000000	0.000000	0.000000	0.000000

TMHMM  Annotations

There is no transmembrane helices in MGYG000000014_02072.
