CAZyme Information: MGYG000000054_01409

Basic Information

• Species: Bacteroides acidifaciens
• Lineage: Bacteria; Bacteroidota; Bacteroidia; Bacteroidales; Bacteroidaceae; Bacteroides; Bacteroides acidifaciens
• CAZyme ID: MGYG000000054_01409
• CAZy Family: GH43
• CAZyme Description: Extracellular endo-alpha-(1->5)-L-arabinanase

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
513	MGYG000000054_12|CGC1	58594.16	5.3696

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000000054	5213730	Isolate	United Kingdom	Europe

• Gene Location: Start: 28500; End: 30041 Strand: -

Full Sequence

MNENTDVMKNLFLPVFLIAGSLFASCTSAVFKPIPSANPWDDNYLSVAKMENYRQWGTYN
VHDPSCRKLGDYYYMYSTDAIFGENQKEAKEKEVPLGYIQMRRSKDLVHWEFLGWAFPEI
PEEAVRWVQAHAGGHGATNIWAPYIIPYKDKYRLYYCVSAFGRKTSYIGLAESVSPEGPW
TQVGCTVKTDDSTAMNAIDPSVIVDEVTGKWWMHYGSFFGGLYCVELNPETGLPLKNGDL
GHLVARRANYRKDNLEAPEIIYNPDLKQYYLFTSYDPLMTTYNVRVSRSDAAEGPFVDYS
GKAVKDTTNNFPILTAPYRFENHQGWAGTAHCGVFSDGEGNYFMAHQGRLSPQNQLMVLH
IRQLFFTPDGWPVVSPERYAGTVPRKFTEADLAGEWEIIRVQEPKYERQLEAGQILWGEG
ELKNGEWNLSTRISLLKDGTCKGEMTDDEWKIVQMNGNWSFLTEKHLLMVKFGKEEINNL
IIFAGHDWENETETILFTGLDSQGRSVWGKRIK

Enzyme Prediction

EC	3.2.1.99

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GH43	60	372	6.2e-98	0.9967741935483871

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
cd08998	GH43_Arb43a-like	1.19e-110	61	367	1	278	Glycosyl hydrolase family 43 protein such as Bacillus subtilis subsp. subtilis str. 168 endo-alpha-1,5-L-arabinanase Arb43A. This glycosyl hydrolase family 43 (GH43) subgroup belongs to the glycosyl hydrolase clan F (according to carbohydrate-active enzymes database (CAZY)) which includes family 43 (GH43) and 62 (GH62) families. GH43 are inverting enzymes (i.e. they invert the stereochemistry of the anomeric carbon atom of the substrate) that have an aspartate as the catalytic general base, a glutamate as the catalytic general acid and another aspartate that is responsible for pKa modulation and orienting the catalytic acid. The GH43 ABN enzymes hydrolyze alpha-1,5-L-arabinofuranoside linkages while the ABF enzymes cleave arabinose side chains so that the combined actions of these two enzymes reduce arabinan to L-arabinose and/or arabinooligosaccharides. Many of these enzymes such as the Bacillus subtilis arabinanase Abn2, that hydrolyzes sugar beet arabinan (branched), linear alpha-1,5-L-arabinan and pectin, are different from other arabinases; they are organized into two different domains with a divalent metal cluster close to the catalytic residues to guarantee the correct protonation state of the catalytic residues and consequently the enzyme activity. These arabinan-degrading enzymes are important in the food industry for efficient production of L-arabinose from agricultural waste; L-arabinose is often used as a bioactive sweetener. A common structural feature of GH43 enzymes is a 5-bladed beta-propeller domain that contains the catalytic acid and catalytic base. A long V-shaped groove, partially enclosed at one end, forms a single extended substrate-binding surface across the face of the propeller.
cd18616	GH43_ABN-like	2.15e-54	63	344	10	263	Glycosyl hydrolase family 43 such as arabinan endo-1 5-alpha-L-arabinosidase. This glycosyl hydrolase family 43 (GH43) subgroup includes mostly enzymes with endo-alpha-L-arabinanase (ABN; EC 3.2.1.99) activity. These are inverting enzymes (i.e. they invert the stereochemistry of the anomeric carbon atom of the substrate) that have an aspartate as the catalytic general base, a glutamate as the catalytic general acid and another aspartate that is responsible for pKa modulation and orienting the catalytic acid. The GH43 ABN enzymes hydrolyze alpha-1,5-L-arabinofuranoside linkages. These arabinan-degrading enzymes are important in the food industry for efficient production of L-arabinose from agricultural waste; L-arabinose is often used as a bioactive sweetener. A common structural feature of GH43 enzymes is a 5-bladed beta-propeller domain that contains the catalytic acid and catalytic base. A long V-shaped groove, partially enclosed at one end, forms a single extended substrate-binding surface across the face of the propeller.
cd18832	GH43_GsAbnA-like	4.09e-49	61	367	1	332	Glycosyl hydrolase family 43 protein such as Geobacillus stearothermophilus endo-alpha-1,5-L-arabinanase AbnA. This glycosyl hydrolase family 43 (GH43) subgroup includes mostly enzymes with alpha-L-arabinofuranosidase (ABF; EC 3.2.1.55) and endo-alpha-L-arabinanase (ABN; EC 3.2.1.99) activities. It includes Geobacillus stearothermophilus T-6 NCIMB 40222 AbnA, Bacillus subtilis subsp. subtilis str. 168 (Abn2;YxiA;J3A;BSU39330) (Arb43B), and Thermotoga petrophila RKU-1 (AbnA;TpABN;Tpet_0637). These are inverting enzymes (i.e. they invert the stereochemistry of the anomeric carbon atom of the substrate) that have an aspartate as the catalytic general base, a glutamate as the catalytic general acid and another aspartate that is responsible for pKa modulation and orienting the catalytic acid. The GH43 ABN enzymes hydrolyze alpha-1,5-L-arabinofuranoside linkages while the ABF enzymes cleave arabinose side chains so that the combined actions of these two enzymes reduce arabinan to L-arabinose and/or arabinooligosaccharides. Many of these enzymes are different from other arabinases; they are organized into two different domains with a divalent metal cluster close to the catalytic residues to guarantee the correct protonation state of the catalytic residues and consequently the enzyme activity. These arabinan-degrading enzymes are important in the food industry for efficient production of L-arabinose from agricultural waste; L-arabinose is often used as a bioactive sweetener. A common structural feature of GH43 enzymes is a 5-bladed beta-propeller domain that contains the catalytic acid and catalytic base. A long V-shaped groove, partially enclosed at one end, forms a single extended substrate-binding surface across the face of the propeller.
cd18830	GH43_CjArb43A-like	5.78e-49	61	346	1	271	Glycosyl hydrolase family 43 protein such as Cellvibrio japonicus Ueda107 endo-alpha-1,5-L-arabinanase / exo-alpha-1,5-L-arabinanase 43A (ArbA;CJA_0805) (Arb43A). This glycosyl hydrolase family 43 (GH43) subgroup includes mostly enzymes annotated with alpha-L-arabinofuranosidase (ABF; EC 3.2.1.55) and endo-alpha-L-arabinanase (ABN; EC 3.2.1.99) activities, and includes the bifunctional Cellvibrio japonicus Ueda107 endo-alpha-1,5-L-arabinanase / exo-alpha-1,5-L-arabinanase 43A (ArbA;CJA_0805) (Arb43A). It belongs to the glycosyl hydrolase clan F (according to carbohydrate-active enzymes database (CAZY)) which includes family 43 (GH43) and 62 (GH62) families. GH43 are inverting enzymes (i.e. they invert the stereochemistry of the anomeric carbon atom of the substrate) that have an aspartate as the catalytic general base, a glutamate as the catalytic general acid and another aspartate that is responsible for pKa modulation and orienting the catalytic acid. The GH43 ABN enzymes hydrolyze alpha-1,5-L-arabinofuranoside linkages while the ABF enzymes cleave arabinose side chains so that the combined actions of these two enzymes reduce arabinan to L-arabinose and/or arabinooligosaccharides. Many of these enzymes such as the Bacillus subtilis arabinanase Abn2, that hydrolyzes sugar beet arabinan (branched), linear alpha-1,5-L-arabinan and pectin, are different from other arabinases; they are organized into two different domains with a divalent metal cluster close to the catalytic residues to guarantee the correct protonation state of the catalytic residues and consequently the enzyme activity. These arabinan-degrading enzymes are important in the food industry for efficient production of L-arabinose from agricultural waste; L-arabinose is often used as a bioactive sweetener. A common structural feature of GH43 enzymes is a 5-bladed beta-propeller domain that contains the catalytic acid and catalytic base. A long V-shaped groove, partially enclosed at one end, forms a single extended substrate-binding surface across the face of the propeller.
cd08988	GH43_ABN	2.33e-43	62	365	1	276	Glycosyl hydrolase family 43. This glycosyl hydrolase family 43 (GH43) subgroup includes mostly enzymes with alpha-L-arabinofuranosidase (ABF; EC 3.2.1.55) and endo-alpha-L-arabinanase (ABN; EC 3.2.1.99) activities. These are inverting enzymes (i.e. they invert the stereochemistry of the anomeric carbon atom of the substrate) that have an aspartate as the catalytic general base, a glutamate as the catalytic general acid and another aspartate that is responsible for pKa modulation and orienting the catalytic acid. The GH43 ABN enzymes hydrolyze alpha-1,5-L-arabinofuranoside linkages while the ABF enzymes cleave arabinose side chains so that the combined actions of these two enzymes reduce arabinan to L-arabinose and/or arabinooligosaccharides. These arabinan-degrading enzymes are important in the food industry for efficient production of L-arabinose from agricultural waste; L-arabinose is often used as a bioactive sweetener. A common structural feature of GH43 enzymes is a 5-bladed beta-propeller domain that contains the catalytic acid and catalytic base. A long V-shaped groove, partially enclosed at one end, forms a single extended substrate-binding surface across the face of the propeller.

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
QQR17856.1	0.0	1	513	1	513
ANU57273.1	0.0	1	513	1	513
QIU95481.1	0.0	1	513	1	514
QUT37953.1	0.0	1	513	1	513
QMW87420.1	0.0	1	513	1	513

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
4KC7_A	9.71e-54	61	513	33	473	CrystalStructure of Endo-1,5-alpha-L-arabinanase from Thermotoga petrophila RKU-1 [Thermotoga petrophila RKU-1],4KC7_B Crystal Structure of Endo-1,5-alpha-L-arabinanase from Thermotoga petrophila RKU-1 [Thermotoga petrophila RKU-1],4KC7_C Crystal Structure of Endo-1,5-alpha-L-arabinanase from Thermotoga petrophila RKU-1 [Thermotoga petrophila RKU-1],4KC8_A Crystal Structure of Endo-1,5-alpha-L-arabinanase from Thermotoga petrophila RKU-1 in complex with TRIS [Thermotoga petrophila RKU-1],4KC8_B Crystal Structure of Endo-1,5-alpha-L-arabinanase from Thermotoga petrophila RKU-1 in complex with TRIS [Thermotoga petrophila RKU-1],4KC8_C Crystal Structure of Endo-1,5-alpha-L-arabinanase from Thermotoga petrophila RKU-1 in complex with TRIS [Thermotoga petrophila RKU-1]
3CU9_A	3.82e-42	62	375	25	313	Highresolution crystal structure of 1,5-alpha-L-arabinanase from Geobacillus Stearothermophilus [Geobacillus stearothermophilus]
3D5Y_A	2.74e-41	62	375	25	313	ChainA, Intracellular arabinanase [Geobacillus stearothermophilus],3D5Z_A Chain A, Intracellular arabinanase [Geobacillus stearothermophilus]
6F1G_A	2.81e-41	62	375	26	314	Thestructure of AbnB-E201A, an intracellular 1,5-alpha-L-arabinanase from Geobacillus stearothermophilus, in complex with arabinopentaose [Geobacillus stearothermophilus]
2X8F_A	5.03e-41	60	511	35	469	Nativestructure of Endo-1,5-alpha-L-arabinanases from Bacillus subtilis [Bacillus subtilis],2X8F_B Native structure of Endo-1,5-alpha-L-arabinanases from Bacillus subtilis [Bacillus subtilis]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
A5IKD4	4.99e-53	61	513	30	470	Extracellular endo-alpha-(1->5)-L-arabinanase OS=Thermotoga petrophila (strain ATCC BAA-488 / DSM 13995 / JCM 10881 / RKU-1) OX=390874 GN=Tpet_0637 PE=1 SV=1
B3EYM8	2.15e-41	62	375	26	314	Intracellular endo-alpha-(1->5)-L-arabinanase OS=Geobacillus stearothermophilus OX=1422 GN=abnB PE=1 SV=1
P42293	2.71e-40	60	511	35	469	Extracellular endo-alpha-(1->5)-L-arabinanase 2 OS=Bacillus subtilis (strain 168) OX=224308 GN=abn2 PE=1 SV=2
Q93HT9	2.74e-38	62	372	26	311	Intracellular endo-alpha-(1->5)-L-arabinanase OS=Geobacillus thermodenitrificans OX=33940 GN=abn-ts PE=1 SV=1
P95470	1.77e-29	60	375	35	334	Extracellular exo-alpha-(1->5)-L-arabinofuranosidase ArbA OS=Cellvibrio japonicus (strain Ueda107) OX=498211 GN=arbA PE=1 SV=1

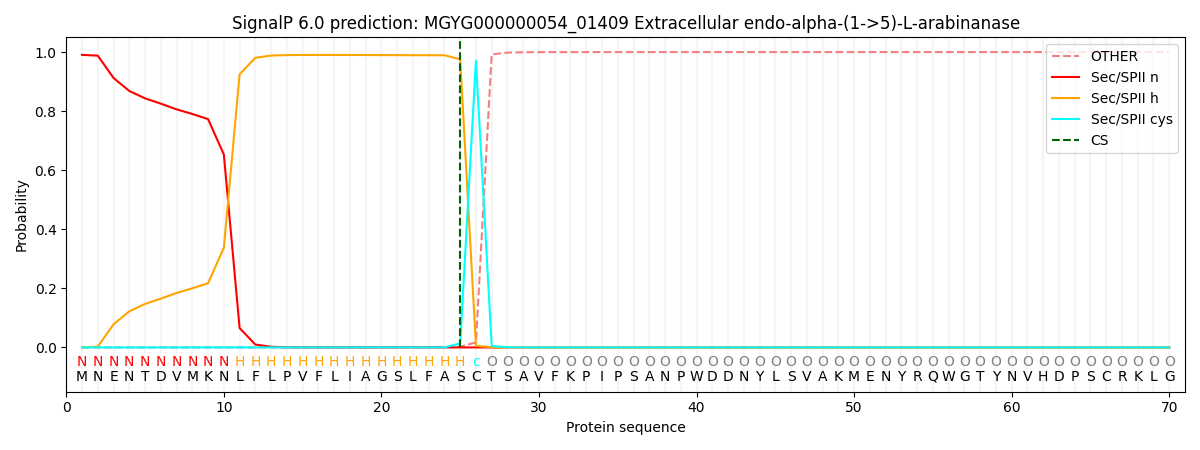

SignalP and Lipop Annotations

This protein is predicted as LIPO

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
0.000047	0.009018	0.990936	0.000004	0.000006	0.000004

TMHMM  Annotations

start	end
12	31
