CAZyme Information: MGYG000000074_00741

Basic Information

• Species: Alistipes onderdonkii
• Lineage: Bacteria; Bacteroidota; Bacteroidia; Bacteroidales; Rikenellaceae; Alistipes; Alistipes onderdonkii
• CAZyme ID: MGYG000000074_00741
• CAZy Family: GH43
• CAZyme Description: Extracellular endo-alpha-(1->5)-L-arabinanase 1

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
341		37743.33	5.2223

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000000074	3211686	Isolate	United Kingdom	Europe

• Gene Location: Start: 101019; End: 102044 Strand: +

Full Sequence

MKNYFVALAFTALFLPVACACGTPEPARSGDGDPLPGNPGAKSYKNPVFREFLVADPTVI
RAEDGNFYLYATESGKNNIPILHSSDLVNWTKVGEVFTAENHPQITDKAGANLWAPDINK
IGDRYVLYYSQPGENNKHAIGVASGPSPVGPFTDHGKLIGSDEIGVDISIDQFYIEEDGH
KYMFWGSFRGIWAIELADDGLSLKPGAEKRKIAGDQYEGTYIHKRDGYYYLIVSTGDFMK
DYHVVVGRSRSLMGPYVDRAGRDMLGVHHELVVGNGNGFVAPGHNAEFITDDKGQDWMLY
HTRLEVGGPRYLILDRIEWNDGWPEVRGHVPARSAEAPVFE

Enzyme Prediction

No EC number prediction in MGYG000000074_00741.

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GH43	44	324	2.5e-97	0.9966555183946488

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
cd18616	GH43_ABN-like	8.65e-139	46	319	1	291	Glycosyl hydrolase family 43 such as arabinan endo-1 5-alpha-L-arabinosidase. This glycosyl hydrolase family 43 (GH43) subgroup includes mostly enzymes with endo-alpha-L-arabinanase (ABN; EC 3.2.1.99) activity. These are inverting enzymes (i.e. they invert the stereochemistry of the anomeric carbon atom of the substrate) that have an aspartate as the catalytic general base, a glutamate as the catalytic general acid and another aspartate that is responsible for pKa modulation and orienting the catalytic acid. The GH43 ABN enzymes hydrolyze alpha-1,5-L-arabinofuranoside linkages. These arabinan-degrading enzymes are important in the food industry for efficient production of L-arabinose from agricultural waste; L-arabinose is often used as a bioactive sweetener. A common structural feature of GH43 enzymes is a 5-bladed beta-propeller domain that contains the catalytic acid and catalytic base. A long V-shaped groove, partially enclosed at one end, forms a single extended substrate-binding surface across the face of the propeller.
cd08998	GH43_Arb43a-like	4.99e-69	54	319	1	277	Glycosyl hydrolase family 43 protein such as Bacillus subtilis subsp. subtilis str. 168 endo-alpha-1,5-L-arabinanase Arb43A. This glycosyl hydrolase family 43 (GH43) subgroup belongs to the glycosyl hydrolase clan F (according to carbohydrate-active enzymes database (CAZY)) which includes family 43 (GH43) and 62 (GH62) families. GH43 are inverting enzymes (i.e. they invert the stereochemistry of the anomeric carbon atom of the substrate) that have an aspartate as the catalytic general base, a glutamate as the catalytic general acid and another aspartate that is responsible for pKa modulation and orienting the catalytic acid. The GH43 ABN enzymes hydrolyze alpha-1,5-L-arabinofuranoside linkages while the ABF enzymes cleave arabinose side chains so that the combined actions of these two enzymes reduce arabinan to L-arabinose and/or arabinooligosaccharides. Many of these enzymes such as the Bacillus subtilis arabinanase Abn2, that hydrolyzes sugar beet arabinan (branched), linear alpha-1,5-L-arabinan and pectin, are different from other arabinases; they are organized into two different domains with a divalent metal cluster close to the catalytic residues to guarantee the correct protonation state of the catalytic residues and consequently the enzyme activity. These arabinan-degrading enzymes are important in the food industry for efficient production of L-arabinose from agricultural waste; L-arabinose is often used as a bioactive sweetener. A common structural feature of GH43 enzymes is a 5-bladed beta-propeller domain that contains the catalytic acid and catalytic base. A long V-shaped groove, partially enclosed at one end, forms a single extended substrate-binding surface across the face of the propeller.
pfam04616	Glyco_hydro_43	1.03e-68	44	324	1	281	Glycosyl hydrolases family 43. The glycosyl hydrolase family 43 contains members that are arabinanases. Arabinanases hydrolyze the alpha-1,5-linked L-arabinofuranoside backbone of plant cell wall arabinans. The structure of arabinanase Arb43A from Cellvibrio japonicus reveals a five-bladed beta-propeller fold. A long V-shaped groove, partially enclosed at one end, forms a single extended substrate-binding surface across the face of the propeller.
cd08999	GH43_ABN-like	1.91e-63	46	324	1	283	Glycosyl hydrolase family 43 protein such as endo-alpha-L-arabinanase. This glycosyl hydrolase family 43 (GH43) subgroup includes mostly enzymes with alpha-L-arabinofuranosidase (ABF; EC 3.2.1.55) and endo-alpha-L-arabinanase (ABN; EC 3.2.1.99) activities. These are inverting enzymes (i.e. they invert the stereochemistry of the anomeric carbon atom of the substrate) that have an aspartate as the catalytic general base, a glutamate as the catalytic general acid and another aspartate that is responsible for pKa modulation and orienting the catalytic acid. The GH43 ABN enzymes hydrolyze alpha-1,5-L-arabinofuranoside linkages while the ABF enzymes cleave arabinose side chains so that the combined actions of these two enzymes reduce arabinan to L-arabinose and/or arabinooligosaccharides. These arabinan-degrading enzymes are important in the food industry for efficient production of L-arabinose from agricultural waste; L-arabinose is often used as a bioactive sweetener. A common structural feature of GH43 enzymes is a 5-bladed beta-propeller domain that contains the catalytic acid and catalytic base. A long V-shaped groove, partially enclosed at one end, forms a single extended substrate-binding surface across the face of the propeller.
cd08988	GH43_ABN	2.19e-63	55	319	1	277	Glycosyl hydrolase family 43. This glycosyl hydrolase family 43 (GH43) subgroup includes mostly enzymes with alpha-L-arabinofuranosidase (ABF; EC 3.2.1.55) and endo-alpha-L-arabinanase (ABN; EC 3.2.1.99) activities. These are inverting enzymes (i.e. they invert the stereochemistry of the anomeric carbon atom of the substrate) that have an aspartate as the catalytic general base, a glutamate as the catalytic general acid and another aspartate that is responsible for pKa modulation and orienting the catalytic acid. The GH43 ABN enzymes hydrolyze alpha-1,5-L-arabinofuranoside linkages while the ABF enzymes cleave arabinose side chains so that the combined actions of these two enzymes reduce arabinan to L-arabinose and/or arabinooligosaccharides. These arabinan-degrading enzymes are important in the food industry for efficient production of L-arabinose from agricultural waste; L-arabinose is often used as a bioactive sweetener. A common structural feature of GH43 enzymes is a 5-bladed beta-propeller domain that contains the catalytic acid and catalytic base. A long V-shaped groove, partially enclosed at one end, forms a single extended substrate-binding surface across the face of the propeller.

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
BBL01543.1	6.39e-263	1	341	1	341
BBL09401.1	5.58e-163	126	341	1	216
BBL12194.1	5.58e-163	126	341	1	216
QCQ40040.1	1.39e-113	41	340	20	322
ANQ62620.1	1.39e-113	41	340	20	322

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
3LV4_A	7.92e-27	45	329	4	338	Crystalstructure of the glycoside hydrolase, family 43 YxiA protein from Bacillus licheniformis. Northeast Structural Genomics Consortium Target BiR14. [Bacillus licheniformis DSM 13 = ATCC 14580],3LV4_B Crystal structure of the glycoside hydrolase, family 43 YxiA protein from Bacillus licheniformis. Northeast Structural Genomics Consortium Target BiR14. [Bacillus licheniformis DSM 13 = ATCC 14580]
1UV4_A	1.06e-25	53	324	11	291	NativeBacillus subtilis Arabinanase Arb43A [Bacillus subtilis]
2X8S_A	2.03e-25	39	324	21	360	CrystalStructure of the Abn2 D171A mutant in complex with arabinotriose [Bacillus subtilis],2X8S_B Crystal Structure of the Abn2 D171A mutant in complex with arabinotriose [Bacillus subtilis]
2X8F_A	3.78e-25	39	324	21	360	Nativestructure of Endo-1,5-alpha-L-arabinanases from Bacillus subtilis [Bacillus subtilis],2X8F_B Native structure of Endo-1,5-alpha-L-arabinanases from Bacillus subtilis [Bacillus subtilis]
1GYD_B	2.07e-24	54	326	4	301	Structureof Cellvibrio cellulosa alpha-L-arabinanase [Cellvibrio japonicus]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
P94522	9.76e-25	53	324	41	321	Extracellular endo-alpha-(1->5)-L-arabinanase 1 OS=Bacillus subtilis (strain 168) OX=224308 GN=abnA PE=1 SV=3
P42293	2.06e-24	39	324	21	360	Extracellular endo-alpha-(1->5)-L-arabinanase 2 OS=Bacillus subtilis (strain 168) OX=224308 GN=abn2 PE=1 SV=2
Q5AUM3	3.38e-24	61	326	37	320	Arabinan endo-1,5-alpha-L-arabinosidase C OS=Emericella nidulans (strain FGSC A4 / ATCC 38163 / CBS 112.46 / NRRL 194 / M139) OX=227321 GN=abnC PE=2 SV=1
A1DHW8	7.14e-24	25	301	32	344	Probable arabinan endo-1,5-alpha-L-arabinosidase B OS=Neosartorya fischeri (strain ATCC 1020 / DSM 3700 / CBS 544.65 / FGSC A1164 / JCM 1740 / NRRL 181 / WB 181) OX=331117 GN=abnB PE=3 SV=2
Q5B8T6	2.90e-23	56	338	49	364	Probable arabinan endo-1,5-alpha-L-arabinosidase D OS=Emericella nidulans (strain FGSC A4 / ATCC 38163 / CBS 112.46 / NRRL 194 / M139) OX=227321 GN=abnD PE=2 SV=2

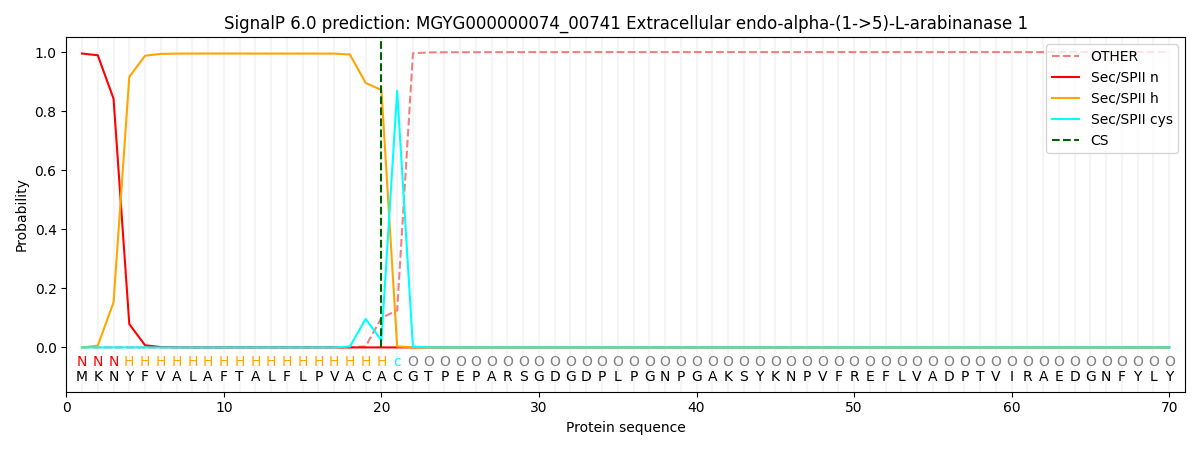

SignalP and Lipop Annotations

This protein is predicted as LIPO

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
0.000005	0.004681	0.995365	0.000001	0.000002	0.000002

TMHMM  Annotations

There is no transmembrane helices in MGYG000000074_00741.
