CAZyme Information: MGYG000000235_03257

Basic Information

• Species: Enterobacter kobei
• Lineage: Bacteria; Proteobacteria; Gammaproteobacteria; Enterobacterales; Enterobacteriaceae; Enterobacter; Enterobacter kobei
• CAZyme ID: MGYG000000235_03257
• CAZy Family: CBM48
• CAZyme Description: 1,4-alpha-glucan branching enzyme GlgB

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
753	MGYG000000235_13|CGC1	86999	6.4851

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000000235	4917845	Isolate	China	Asia

• Gene Location: Start: 89049; End: 91310 Strand: -

Full Sequence

MDARQVTLKSSQALKKDDIKNRMNTMSDRVDRDVINALIAGHFADPFSVLGMHRTEAGLE
VRALLPDATEVWVIEPKTGRKVANLECLDSRGFFSGIMPRRKNPFRYQLAVIWHGQQNLI
DDPYSFGPLLKEMDAWLLSEGTHLRPYETLGAHADTMDGITGTRFAVWAPNAQRVSVVGQ
FNYWDGRRHPMRLRRETGIWELFIPGAHNGQLYKFEMIDAHGKLRIKADPYAFEAQMRPD
TASLICGLPEKVVQTEERKQANRFDAPISVYEVHLGSWRRHTDNNFWLSYRELADQLVPY
AKWMGFTHLELLPVNEHPFDGSWGYQPTGLYAPTRRFGTRDDFRYFINAAHAAGLNVILD
WVPGHFPSDDFALAEFDGTKLYEHSDPREGYHQDWNTLIYNYGRREVANYLVGNALYWIE
RFGIDALRVDAVASMIYRDYSRKEGEWIPNEYGGRENLEAIEFLRSTNRIIGEQVEGAVT
MAEESTDFAGVSRPPSSGGLGFWYKWNLGWMHDTLDYMKLDPVYRQYHHDKLTFGLLYNY
TENFMLPLSHDEVVHGKKSILDRMPGDAWQKFANLRAYYGWMFAFPGKKLLFMGNEFAQG
REWNHDSSLDWHLLEGGDNWHHGVQRLVRDLNLTYRHHKALHELDFDPYGFEWLVVDDHE
RSVFVFVRRDKAGNEIIVASNFTPVPREHYRFGINQPGKWREILNTDSMHYHGSNAGNGG
LVQSDAIESHGRPNSLSLTLPPLGTIWLMREGE

Enzyme Prediction

EC	2.4.1.18

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GH13	299	599	3.1e-157	0.9966777408637874
CBM48	149	236	1e-21	0.9210526315789473

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
PRK12313	PRK12313	0.0	127	752	4	629	1,4-alpha-glucan branching protein GlgB.
COG0296	GlgB	0.0	125	750	1	628	1,4-alpha-glucan branching enzyme [Carbohydrate transport and metabolism].
PRK14705	PRK14705	0.0	30	748	503	1220	glycogen branching enzyme; Provisional
PRK14706	PRK14706	0.0	144	748	21	619	glycogen branching enzyme; Provisional
PRK05402	PRK05402	0.0	30	753	1	726	1,4-alpha-glucan branching protein GlgB.

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
BBW23880.1	0.0	1	753	1	753
BBV73100.1	0.0	1	753	1	753
BBV89033.1	0.0	1	753	1	753
BBV83766.1	0.0	1	753	1	753
BBS34402.1	0.0	1	753	1	753

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
1M7X_A	0.0	137	753	1	617	TheX-ray Crystallographic Structure of Branching Enzyme [Escherichia coli],1M7X_B The X-ray Crystallographic Structure of Branching Enzyme [Escherichia coli],1M7X_C The X-ray Crystallographic Structure of Branching Enzyme [Escherichia coli],1M7X_D The X-ray Crystallographic Structure of Branching Enzyme [Escherichia coli]
4LPC_A	0.0	142	753	1	612	CrystalStructure of E.Coli Branching Enzyme in complex with maltoheptaose [Escherichia coli],4LPC_B Crystal Structure of E.Coli Branching Enzyme in complex with maltoheptaose [Escherichia coli],4LPC_C Crystal Structure of E.Coli Branching Enzyme in complex with maltoheptaose [Escherichia coli],4LPC_D Crystal Structure of E.Coli Branching Enzyme in complex with maltoheptaose [Escherichia coli],4LQ1_A Crystal Structure of E.Coli Branching Enzyme in complex with maltohexaose [Escherichia coli],4LQ1_B Crystal Structure of E.Coli Branching Enzyme in complex with maltohexaose [Escherichia coli],4LQ1_C Crystal Structure of E.Coli Branching Enzyme in complex with maltohexaose [Escherichia coli],4LQ1_D Crystal Structure of E.Coli Branching Enzyme in complex with maltohexaose [Escherichia coli],5E6Y_A Crystal structure of E.Coli branching enzyme in complex with alpha cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E6Y_B Crystal structure of E.Coli branching enzyme in complex with alpha cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E6Y_C Crystal structure of E.Coli branching enzyme in complex with alpha cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E6Y_D Crystal structure of E.Coli branching enzyme in complex with alpha cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E6Z_A Crystal structure of Ecoli Branching Enzyme with beta cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E6Z_B Crystal structure of Ecoli Branching Enzyme with beta cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E6Z_C Crystal structure of Ecoli Branching Enzyme with beta cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E6Z_D Crystal structure of Ecoli Branching Enzyme with beta cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E70_A Crystal structure of Ecoli Branching Enzyme with gamma cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E70_B Crystal structure of Ecoli Branching Enzyme with gamma cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E70_C Crystal structure of Ecoli Branching Enzyme with gamma cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E70_D Crystal structure of Ecoli Branching Enzyme with gamma cyclodextrin [Escherichia coli O139:H28 str. E24377A]
5GQW_A	1.65e-253	22	748	17	771	Crystalstructure of branching enzyme W610N mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GQX_A Crystal structure of branching enzyme W610N mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142]
5GR1_A	2.34e-253	22	748	17	771	Crystalstructure of branching enzyme Y500A/D501A mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142],5GR6_A Crystal structure of branching enzyme Y500A/D501A double mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]
5GQZ_A	3.31e-253	22	748	17	771	Crystalstructure of branching enzyme Y500A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
Q32AV3	0.0	26	753	1	728	1,4-alpha-glucan branching enzyme GlgB OS=Shigella dysenteriae serotype 1 (strain Sd197) OX=300267 GN=glgB PE=3 SV=1
Q5PM06	0.0	26	753	1	728	1,4-alpha-glucan branching enzyme GlgB OS=Salmonella paratyphi A (strain ATCC 9150 / SARB42) OX=295319 GN=glgB PE=3 SV=1
Q57IT8	0.0	26	753	1	728	1,4-alpha-glucan branching enzyme GlgB OS=Salmonella choleraesuis (strain SC-B67) OX=321314 GN=glgB PE=3 SV=1
Q3YW93	0.0	26	753	1	728	1,4-alpha-glucan branching enzyme GlgB OS=Shigella sonnei (strain Ss046) OX=300269 GN=glgB PE=3 SV=1
Q6CZK0	0.0	33	751	6	724	1,4-alpha-glucan branching enzyme GlgB OS=Pectobacterium atrosepticum (strain SCRI 1043 / ATCC BAA-672) OX=218491 GN=glgB PE=3 SV=1

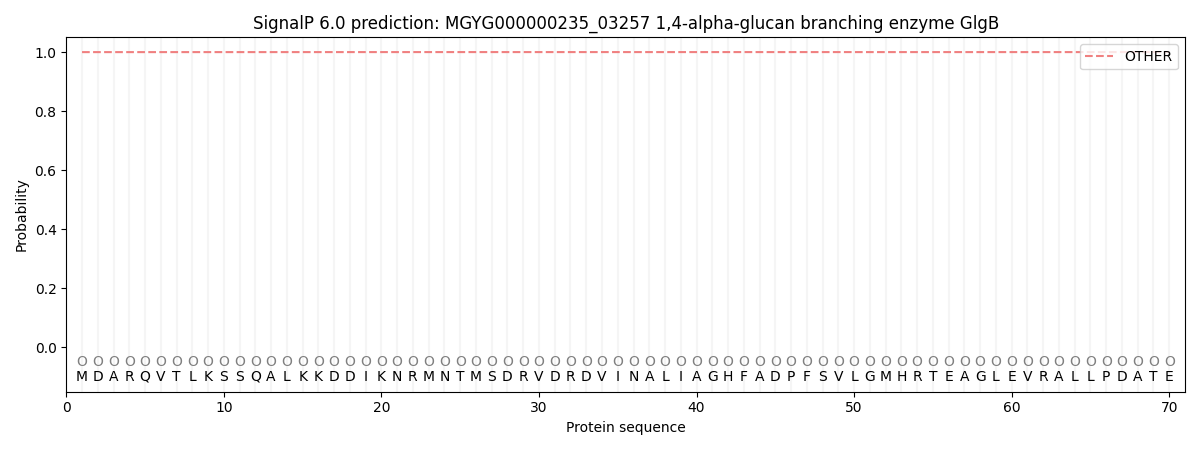

SignalP and Lipop Annotations

This protein is predicted as OTHER

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
1.000028	0.000000	0.000000	0.000000	0.000000	0.000000

TMHMM  Annotations

There is no transmembrane helices in MGYG000000235_03257.
