CAZyme Information: MGYG000000236_02362

Basic Information

• Species: Bacteroides fragilis_A
• Lineage: Bacteria; Bacteroidota; Bacteroidia; Bacteroidales; Bacteroidaceae; Bacteroides; Bacteroides fragilis_A
• CAZyme ID: MGYG000000236_02362
• CAZy Family: GH16
• CAZyme Description: Keratan-sulfate endo-1,4-beta-galactosidase

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
286	MGYG000000236_11|CGC1	32491.61	4.8421

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000000236	5355078	Isolate	China	Asia

• Gene Location: Start: 127656; End: 128516 Strand: -

Full Sequence

MRRILYCFLFIAGGGIIHASAREERVGTEDRIKPDSVLFVDSFDGSSVVPDTAVWKLCTY
ANNAWSQWFRDVNGYENVKVEDGYLKLRACKDNGTYKNGGVFSKIGFPCGTRLEVKARLT
KLVRGGFPAIWQMPIGAPEWPRGGEIDLMEWVQGTPLQIYQTVHTYYINGANGSAGVTNK
NPDKNFDVTKDHVYAVERTEKEVIFYVDGKETWRYGNQYLDEGKLQYPFCEYPFNIILNF
SLGGELNGRMTWPGEICDEDLPGEMWVDWVRVVSLNNENQSDTGDK

Enzyme Prediction

No EC number prediction in MGYG000000236_02362.

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GH16	41	272	9.9e-39	0.9826086956521739

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
cd08023	GH16_laminarinase_like	7.64e-62	39	272	1	234	Laminarinase, member of the glycosyl hydrolase family 16. Laminarinase, also known as glucan endo-1,3-beta-D-glucosidase, is a glycosyl hydrolase family 16 member that hydrolyzes 1,3-beta-D-glucosidic linkages in 1,3-beta-D-glucans such as laminarins, curdlans, paramylons, and pachymans, with very limited action on mixed-link (1,3-1,4-)-beta-D-glucans.
cd00413	Glyco_hydrolase_16	1.04e-22	41	273	1	210	glycosyl hydrolase family 16. The O-Glycosyl hydrolases are a widespread group of enzymes that hydrolyse the glycosidic bond between two or more carbohydrates, or between a carbohydrate and a non-carbohydrate moiety. A glycosyl hydrolase classification system based on sequence similarity has led to the definition of more than 95 different families inlcuding glycosyl hydrolase family 16. Family 16 includes lichenase, xyloglucan endotransglycosylase (XET), beta-agarase, kappa-carrageenase, endo-beta-1,3-glucanase, endo-beta-1,3-1,4-glucanase, and endo-beta-galactosidase, all of which have a conserved jelly roll fold with a deep active site channel harboring the catalytic residues.
cd02182	GH16_Strep_laminarinase_like	4.36e-19	36	272	3	257	Streptomyces laminarinase-like, member of glycosyl hydrolase family 16. Proteins similar to Streptomyces sioyaensis beta-1,3-glucanase (laminarinase) present in Actinomycetales as well as Peziomycotina. Laminarinases belong to glycosyl hydrolase family 16 and hydrolyze the glycosidic bond of the 1,3-beta-linked glucan, a major component of fungal and plant cell walls and the structural and storage polysaccharides (laminarin) of marine macro-algae. Members of the GH16 family have a conserved jelly roll fold with an active site channel.
cd02178	GH16_beta_agarase	9.89e-11	41	272	27	256	Beta-agarase, member of glycosyl hydrolase family 16. Beta-agarase is a glycosyl hydrolase family 16 (GH16) member that hydrolyzes the internal beta-1,4-linkage of agarose, a hydrophilic polysaccharide found in the cell wall of Rhodophyceaea, marine red algae. Agarose is a linear chain of galactose units linked by alternating L-alpha-1,3- and D-beta-1,4-linkages that are additionally modified by a 3,6-anhydro-bridge. Agarose forms thermo-reversible gels that are widely used in the food industry or as a laboratory medium. While beta-agarases are also found in two other families derived from the sequence-based classification of glycosyl hydrolases (GH50, and GH86) the GH16 members are most abundant. This domain adopts a curved beta-sandwich conformation, with a tunnel-shaped active site cavity, referred to as a jellyroll fold.
pfam00722	Glyco_hydro_16	4.62e-10	73	271	1	168	Glycosyl hydrolases family 16.

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
QRM71862.1	3.13e-224	1	286	1	286
QCQ53670.1	3.13e-224	1	286	1	286
BAD50993.1	5.20e-223	1	286	1	286
QCT76326.1	5.20e-223	1	286	1	286
AKA53672.1	5.20e-223	1	286	1	286

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
6T2S_AAA	4.90e-189	36	276	1	241	ChainAAA, Glycoside hydrolase family 16 protein [Bacteroides finegoldii DSM 17565],6T2S_BBB Chain BBB, Glycoside hydrolase family 16 protein [Bacteroides finegoldii DSM 17565],6T2S_CCC Chain CCC, Glycoside hydrolase family 16 protein [Bacteroides finegoldii DSM 17565]
6T2O_AAA	1.22e-169	19	277	22	277	ChainAAA, Glycosyl hydrolase family 16 [Bacteroides caccae ATCC 43185],6T2O_BBB Chain BBB, Glycosyl hydrolase family 16 [Bacteroides caccae ATCC 43185]
6T2P_AAA	3.49e-169	19	277	22	277	ChainAAA, Glycosyl hydrolase family 16 [Bacteroides caccae ATCC 43185],6T2P_BBB Chain BBB, Glycosyl hydrolase family 16 [Bacteroides caccae ATCC 43185],6T2Q_AAA Chain AAA, Glycosyl hydrolase family 16 [Bacteroides caccae ATCC 43185],6T2Q_BBB Chain BBB, Glycosyl hydrolase family 16 [Bacteroides caccae ATCC 43185]
6T2R_AAA	7.71e-24	37	271	31	259	ChainAAA, Beta-glycosidase [Bacteroides caccae]
3ILN_A	5.96e-21	37	272	7	246	ChainA, Laminarinase [Rhodothermus marinus],3ILN_B Chain B, Laminarinase [Rhodothermus marinus]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
Q9ZG90	1.48e-20	37	275	58	289	Keratan-sulfate endo-1,4-beta-galactosidase OS=Sphingobacterium multivorum OX=28454 PE=1 SV=1
P45798	5.88e-20	1	272	13	281	Beta-glucanase OS=Rhodothermus marinus OX=29549 GN=bglA PE=1 SV=1

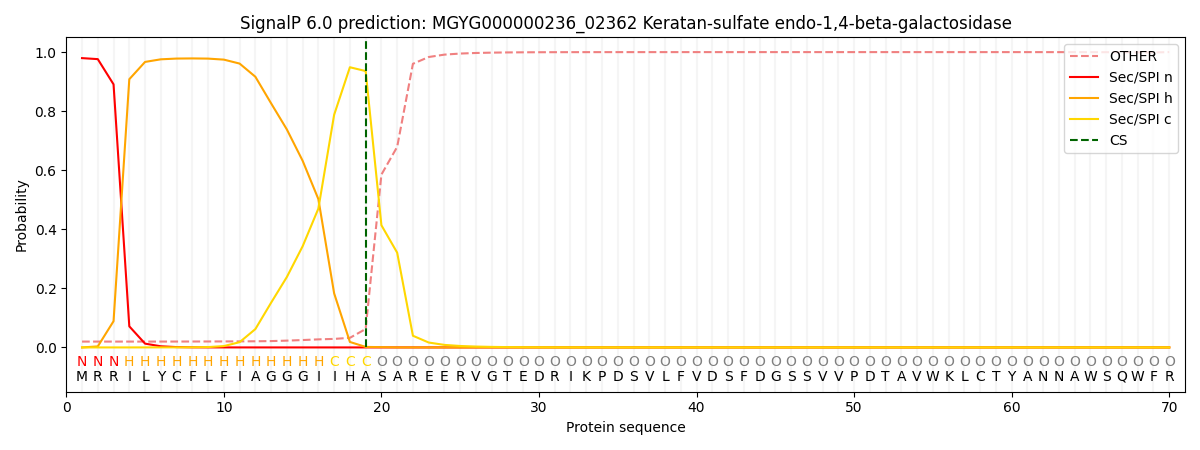

SignalP and Lipop Annotations

This protein is predicted as SP

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
0.025797	0.972110	0.001090	0.000422	0.000287	0.000284

TMHMM  Annotations

There is no transmembrane helices in MGYG000000236_02362.
