CAZyme Information: MGYG000000344_00741
You are here: Home > Sequence: MGYG000000344_00741
Basic Information |
Genomic context |
Full Sequence |
Enzyme annotations |
CAZy signature domains |
CDD domains |
CAZyme hits |
PDB hits |
Swiss-Prot hits |
SignalP and Lipop annotations |
TMHMM annotations
Basic Information help
| Species | QALS01 sp900555925 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lineage | Bacteria; Firmicutes_A; Clostridia_A; Christensenellales; Borkfalkiaceae; QALS01; QALS01 sp900555925 | |||||||||||
| CAZyme ID | MGYG000000344_00741 | |||||||||||
| CAZy Family | GH94 | |||||||||||
| CAZyme Description | Cellobiose phosphorylase | |||||||||||
| CAZyme Property |
|
|||||||||||
| Genome Property |
|
|||||||||||
| Gene Location | Start: 10756; End: 13026 Strand: - | |||||||||||
CAZyme Signature Domains help
| Family | Start | End | Evalue | family coverage |
|---|---|---|---|---|
| GH94 | 9 | 749 | 6e-183 | 0.7432432432432432 |
CDD Domains download full data without filtering help
| Cdd ID | Domain | E-Value | qStart | qEnd | sStart | sEnd | Domain Description |
|---|---|---|---|---|---|---|---|
| COG3459 | COG3459 | 1.82e-131 | 10 | 754 | 271 | 1051 | Cellobiose phosphorylase [Carbohydrate transport and metabolism]. |
| pfam17167 | Glyco_hydro_36 | 6.42e-98 | 290 | 687 | 1 | 425 | Glycosyl hydrolase 36 superfamily, catalytic domain. This is the catalytic region of the superfamily of enzymes referred to as GH36. UniProtKB:Q76IQ9 is a chitobiose phosphorylase that catalyzes the reversible phosphorolysis of chitobiose into alpha-GlcNAc-1-phosphate and GlcNAc with inversion of the anomeric configuration. The full-length enzyme comprises a beta sandwich domain and an (alpha/alpha)(6) barrel domain. The alpha-helical barrel component of the domain, this family, is the catalytic region. |
| pfam06165 | Glyco_transf_36 | 1.22e-43 | 68 | 260 | 49 | 247 | Glycosyltransferase family 36. The glycosyltransferase family 36 includes cellobiose phosphorylase (EC:2.4.1.20), cellodextrin phosphorylase (EC:2.4.1.49), chitobiose phosphorylase (EC:2.4.1.-). Many members of this family contain two copies of this domain. |
| cd11755 | GH94N_ChBP_like | 3.27e-36 | 11 | 286 | 2 | 299 | N-terminal domain of chitobiose phosphorylase (ChBP) and similar proteins. The glycoside hydrolase family 94 (previously known as glycosyltransferase family 36) includes chitobiose phosphorylase (EC:2.4.1.-). This N-terminal domain is involved in oligomerization and may play a role in catalysis, but it is separate from the catalytic domain [an (alpha/alpha)(6) barrel]. Chitobiose phosphorylase catalyzes the reversible phosphate dependent hydrolysis of chitobiose [(GlcNAc)2] into alpha-GlcNAc-1-phosphate and GlcNAc. In some organisms, ChBP may be involved in the production of GlcNac-6-phosphate in intracellular pathways. |
| cd11756 | GH94N_ChvB_NdvB_1_like | 1.20e-34 | 70 | 275 | 79 | 283 | First GH94N domain of cyclic beta 1-2 glucan synthetase and similar domains. The glycoside hydrolase family 94 (previously known as glycosyltransferase family 36) includes cyclic beta 1-2 glucan synthetase (EC:2.4.1.20) or ChvB (encoded by the chromosomal chvB virulence gene). This first of two tandemly repeated GH94-N-terminal-like domains has not been characterized functionally. Some beta 1-2 glucan synthetases are annotated as NdvB (nodule development B) gene products, glycosyltransferases required for the synthesis of cyclic beta-(1,2)-glucans, which play a role in interactions between bacteria and plants. |
CAZyme Hits help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End |
|---|---|---|---|---|---|
| AIQ60507.1 | 1.09e-148 | 17 | 747 | 11 | 759 |
| APF19318.1 | 4.56e-112 | 68 | 743 | 71 | 783 |
| AKI97789.1 | 1.04e-110 | 13 | 756 | 7 | 782 |
| ACL75793.1 | 5.87e-110 | 11 | 754 | 2 | 781 |
| AEY65461.1 | 6.19e-109 | 11 | 754 | 2 | 781 |
PDB Hits download full data without filtering help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End | Description |
|---|---|---|---|---|---|---|
| 3QDE_A | 9.76e-96 | 11 | 748 | 2 | 802 | ChainA, Cellobiose phosphorylase [Acetivibrio thermocellus],3QDE_B Chain B, Cellobiose phosphorylase [Acetivibrio thermocellus] |
| 1V7V_A | 1.78e-81 | 11 | 742 | 2 | 787 | Crystalstructure of Vibrio proteolyticus chitobiose phosphorylase [Vibrio proteolyticus],1V7W_A Crystal structure of Vibrio proteolyticus chitobiose phosphorylase in complex with GlcNAc [Vibrio proteolyticus],1V7X_A Crystal structure of Vibrio proteolyticus chitobiose phosphorylase in complex with GlcNAc and sulfate [Vibrio proteolyticus] |
| 4ZLE_A | 7.45e-81 | 68 | 724 | 78 | 749 | Cellobionicacid phosphorylase - ligand free structure [Saccharophagus degradans 2-40],4ZLF_A Cellobionic acid phosphorylase - cellobionic acid complex [Saccharophagus degradans 2-40],4ZLG_A Cellobionic acid phosphorylase - gluconic acid complex [Saccharophagus degradans 2-40],4ZLI_A Cellobionic acid phosphorylase - 3-O-beta-D-glucopyranosyl-alpha-D-glucopyranuronic acid complex [Saccharophagus degradans 2-40] |
| 3RRS_A | 3.94e-77 | 11 | 747 | 2 | 813 | Crystalstructure analysis of cellobiose phosphorylase from Cellulomonas uda [Cellulomonas uda],3RRS_B Crystal structure analysis of cellobiose phosphorylase from Cellulomonas uda [Cellulomonas uda],3RSY_A Cellobiose phosphorylase from Cellulomonas uda in complex with sulfate and glycerol [Cellulomonas uda],3RSY_B Cellobiose phosphorylase from Cellulomonas uda in complex with sulfate and glycerol [Cellulomonas uda],3S4A_A Cellobiose phosphorylase from Cellulomonas uda in complex with cellobiose [Cellulomonas uda],3S4A_B Cellobiose phosphorylase from Cellulomonas uda in complex with cellobiose [Cellulomonas uda],3S4B_A Cellobiose phosphorylase from Cellulomonas uda in complex with glucose [Cellulomonas uda],3S4B_B Cellobiose phosphorylase from Cellulomonas uda in complex with glucose [Cellulomonas uda] |
| 3S4C_A | 3.94e-77 | 11 | 747 | 2 | 813 | Lactosephosphorylase in complex with sulfate [Cellulomonas uda],3S4D_A Lactose phosphorylase in a ternary complex with cellobiose and sulfate [Cellulomonas uda] |
Swiss-Prot Hits download full data without filtering help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End | Description |
|---|---|---|---|---|---|---|
| B9K7M6 | 7.06e-99 | 11 | 749 | 2 | 805 | Cellobiose phosphorylase OS=Thermotoga neapolitana (strain ATCC 49049 / DSM 4359 / NBRC 107923 / NS-E) OX=309803 GN=cbpA PE=1 SV=1 |
| Q8P3J4 | 1.20e-84 | 68 | 742 | 91 | 777 | Cellobionic acid phosphorylase OS=Xanthomonas campestris pv. campestris (strain ATCC 33913 / DSM 3586 / NCPPB 528 / LMG 568 / P 25) OX=190485 GN=XCC4077 PE=1 SV=1 |
| Q76IQ9 | 8.74e-81 | 11 | 742 | 2 | 787 | N,N'-diacetylchitobiose phosphorylase OS=Vibrio proteolyticus OX=671 GN=chbP PE=1 SV=1 |
| Q9F8X1 | 6.08e-80 | 11 | 737 | 2 | 782 | N,N'-diacetylchitobiose phosphorylase OS=Vibrio furnissii OX=29494 GN=chbP PE=1 SV=1 |
| Q7S0S2 | 1.86e-78 | 68 | 742 | 85 | 771 | Cellobionic acid phosphorylase OS=Neurospora crassa (strain ATCC 24698 / 74-OR23-1A / CBS 708.71 / DSM 1257 / FGSC 987) OX=367110 GN=NCU09425 PE=1 SV=1 |

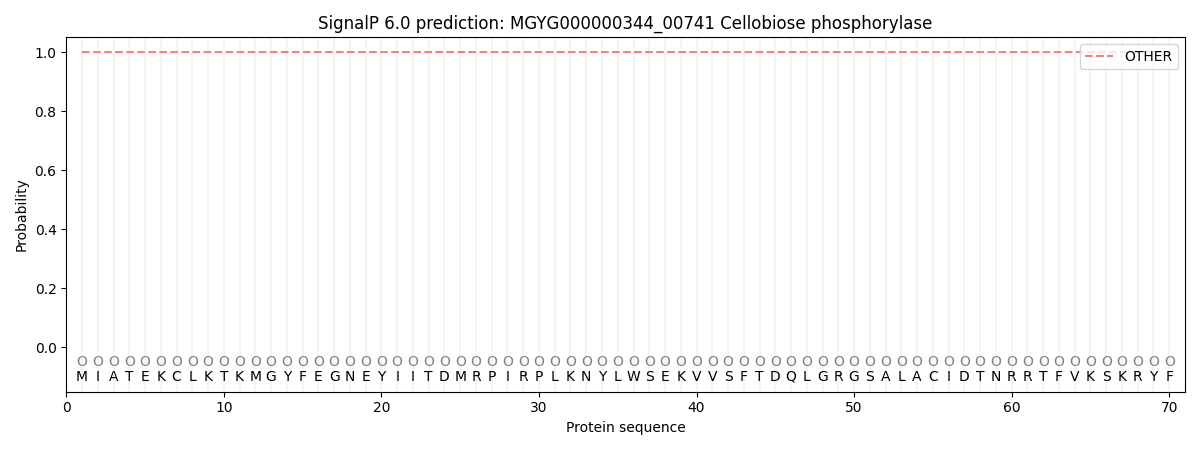

SignalP and Lipop Annotations help
This protein is predicted as OTHER
| Other | SP_Sec_SPI | LIPO_Sec_SPII | TAT_Tat_SPI | TATLIP_Sec_SPII | PILIN_Sec_SPIII |
|---|---|---|---|---|---|
| 1.000024 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 |
