CAZyme Information: MGYG000000383_01406

You are here: Home > Sequence: MGYG000000383_01406

Basic Information | Genomic context | Full Sequence | Enzyme annotations |  CAZy signature domains |  CDD domains | CAZyme hits | PDB hits | Swiss-Prot hits | SignalP and Lipop annotations | TMHMM annotations

Basic Information help

Species
Lineage Bacteria; Firmicutes_A; Clostridia; Oscillospirales; Acutalibacteraceae; UBA737;
CAZyme ID MGYG000000383_01406
CAZy Family CBM48
CAZyme Description 1,4-alpha-glucan branching enzyme GlgB
CAZyme Property
Protein Length CGC Molecular Weight Isoelectric Point
628 72808.29 6.6014
Genome Property
Genome Assembly ID Genome Size Genome Type Country Continent
MGYG000000383 1702468 MAG Sweden Europe
Gene Location Start: 35873;  End: 37759  Strand: -

Full Sequence      Download help

Enzyme Prediction      help

EC 2.4.1.18

CAZyme Signature Domains help

Family Start End Evalue family coverage
GH13 168 468 7.8e-160 0.9966777408637874
CBM48 30 101 6e-17 0.7894736842105263

CDD Domains      download full data without filtering help

Cdd ID Domain E-Value qStart qEnd sStart sEnd Domain Description
PRK14705 PRK14705 0.0 28 615 638 1220
glycogen branching enzyme; Provisional
COG0296 GlgB 0.0 16 617 21 628
1,4-alpha-glucan branching enzyme [Carbohydrate transport and metabolism].
PRK14706 PRK14706 0.0 32 612 42 616
glycogen branching enzyme; Provisional
TIGR01515 branching_enzym 0.0 17 613 13 615
alpha-1,4-glucan:alpha-1,4-glucan 6-glycosyltransferase. This model describes the glycogen branching enzymes which are responsible for the transfer of chains of approx. 7 alpha(1--4)-linked glucosyl residues to other similar chains (in new alpha(1--6) linkages) in the biosynthesis of glycogen. This enzyme is a member of the broader amylase family of starch hydrolases which fold as (beta/alpha)8 barrels, the so-called TIM-barrel structure. All of the sequences comprising the seed of this model have been experimentally characterized. This model encompasses both bacterial and eukaryotic species. No archaea have this enzyme, although Aquifex aolicus does. Two species, Bacillus thuringiensis and Clostridium perfringens have two sequences each which are annotated as amylases. These annotations are aparrently in error. GP|18143720 from C. perfringens, for instance, contains the note "674 aa, similar to gp:A14658_1 amylase (1,4-alpha-glucan branching enzyme (EC 2.4.1.18) ) from Bacillus thuringiensis (648 aa); 51.1% identity in 632 aa overlap." A branching enzyme from Porphyromonas gingivales, OMNI|PG1793, appears to be more closely related to the eukaryotic species (across a deep phylogenetic split) and may represent an instance of lateral transfer from this species' host. A sequence from Arabidopsis thaliana, GP|9294564, scores just above trusted, but appears either to contain corrupt sequence or, more likely, to be a pseudogene as some of the conserved catalytic residues common to the alpha amylase family are not conserved here. [Energy metabolism, Biosynthesis and degradation of polysaccharides]
PRK12313 PRK12313 0.0 3 624 9 633
1,4-alpha-glucan branching protein GlgB.

CAZyme Hits      help

Hit ID E-Value Query Start Query End Hit Start Hit End
BCI60003.1 4.79e-306 30 624 41 637
QEY35933.1 5.43e-294 33 627 43 638
CBL01646.1 1.26e-293 16 625 27 641
CBL16844.1 2.70e-293 32 628 43 637
AXB29737.1 2.84e-292 16 625 27 641

PDB Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
5GR5_A 3.41e-219 32 612 164 768
Crystalstructure of branching enzyme W610A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]
5GQW_A 2.74e-218 32 612 164 768
Crystalstructure of branching enzyme W610N mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GQX_A Crystal structure of branching enzyme W610N mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142]
5GQU_A 3.88e-218 32 612 164 768
Crystalstructure of branching enzyme from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GQV_A Crystal structure of branching enzyme from Cyanothece sp. ATCC 51142 in complex with maltohexaose [Crocosphaera subtropica ATCC 51142],5GQY_A Crystal structure of branching enzyme from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142]
5GR2_A 7.78e-218 32 612 164 768
Crystalstructure of branching enzyme L541A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GR4_A Crystal structure of branching enzyme L541A mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142]
5GQZ_A 1.56e-217 32 612 164 768
Crystalstructure of branching enzyme Y500A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]

Swiss-Prot Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
B8CVY1 3.47e-247 17 615 22 625
1,4-alpha-glucan branching enzyme GlgB OS=Halothermothrix orenii (strain H 168 / OCM 544 / DSM 9562) OX=373903 GN=glgB PE=3 SV=1
O66936 6.58e-240 9 614 15 625
1,4-alpha-glucan branching enzyme GlgB OS=Aquifex aeolicus (strain VF5) OX=224324 GN=glgB PE=3 SV=1
Q608L5 1.06e-230 28 611 136 719
1,4-alpha-glucan branching enzyme GlgB OS=Methylococcus capsulatus (strain ATCC 33009 / NCIMB 11132 / Bath) OX=243233 GN=glgB PE=3 SV=1
Q3JCN0 4.09e-230 31 611 145 726
1,4-alpha-glucan branching enzyme GlgB OS=Nitrosococcus oceani (strain ATCC 19707 / BCRC 17464 / JCM 30415 / NCIMB 11848 / C-107) OX=323261 GN=glgB PE=3 SV=1
Q1AZ86 4.70e-230 32 614 134 716
1,4-alpha-glucan branching enzyme GlgB OS=Rubrobacter xylanophilus (strain DSM 9941 / NBRC 16129 / PRD-1) OX=266117 GN=glgB PE=3 SV=1

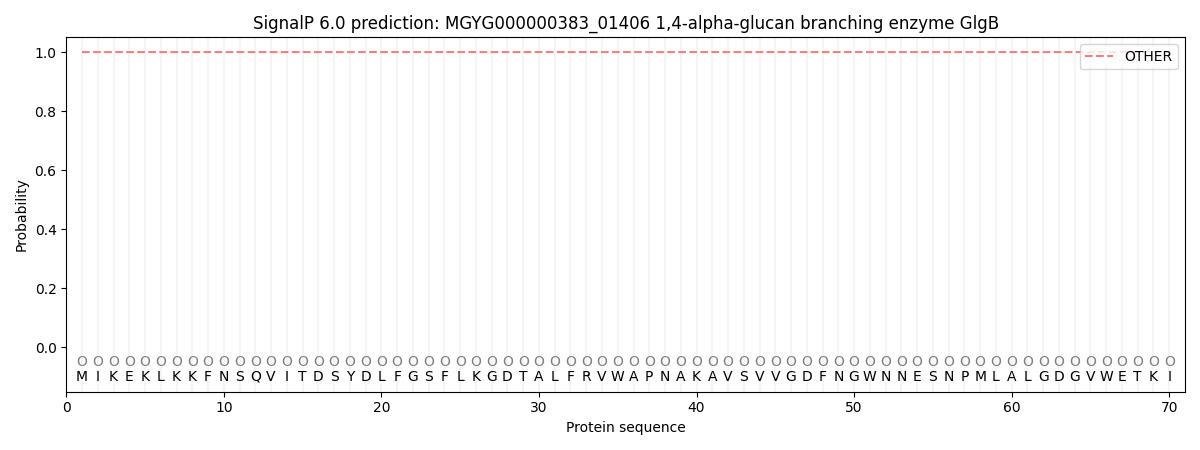

SignalP and Lipop Annotations help

This protein is predicted as OTHER

Other SP_Sec_SPI LIPO_Sec_SPII TAT_Tat_SPI TATLIP_Sec_SPII PILIN_Sec_SPIII
1.000047 0.000001 0.000000 0.000000 0.000000 0.000000

TMHMM  Annotations      help

There is no transmembrane helices in MGYG000000383_01406.
