Basic Information help
| Species | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lineage | Bacteria; Firmicutes_A; Clostridia; Lachnospirales; Lachnospiraceae; CAG-127; | |||||||||||
| CAZyme ID | MGYG000000625_01509 | |||||||||||
| CAZy Family | CBM48 | |||||||||||
| CAZyme Description | 1,4-alpha-glucan branching enzyme GlgB | |||||||||||
| CAZyme Property |
|
|||||||||||
| Genome Property |
|
|||||||||||
| Gene Location | Start: 8666; End: 10873 Strand: + | |||||||||||
CAZyme Signature Domains help
| Family | Start | End | Evalue | family coverage |
|---|---|---|---|---|
| GH13 | 281 | 581 | 5.5e-157 | 0.9966777408637874 |
| CBM48 | 128 | 214 | 6.7e-19 | 0.9078947368421053 |
CDD Domains download full data without filtering help
| Cdd ID | Domain | E-Value | qStart | qEnd | sStart | sEnd | Domain Description |
|---|---|---|---|---|---|---|---|
| PRK12313 | PRK12313 | 0.0 | 113 | 732 | 11 | 628 | 1,4-alpha-glucan branching protein GlgB. |
| COG0296 | GlgB | 0.0 | 105 | 730 | 2 | 627 | 1,4-alpha-glucan branching enzyme [Carbohydrate transport and metabolism]. |
| PRK14705 | PRK14705 | 0.0 | 21 | 730 | 514 | 1221 | glycogen branching enzyme; Provisional |
| PRK14706 | PRK14706 | 0.0 | 129 | 730 | 27 | 620 | glycogen branching enzyme; Provisional |
| PRK05402 | PRK05402 | 0.0 | 13 | 732 | 4 | 724 | 1,4-alpha-glucan branching protein GlgB. |
CAZyme Hits help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End |
|---|---|---|---|---|---|
| QNM00753.1 | 0.0 | 1 | 735 | 1 | 735 |
| QWT54329.1 | 0.0 | 13 | 735 | 1 | 723 |
| QHQ61835.1 | 0.0 | 10 | 729 | 9 | 731 |
| BCJ99479.1 | 0.0 | 10 | 729 | 9 | 730 |
| AWY97839.1 | 0.0 | 10 | 735 | 9 | 742 |
PDB Hits download full data without filtering help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End | Description |
|---|---|---|---|---|---|---|
| 5GQW_A | 4.24e-267 | 14 | 730 | 29 | 772 | Crystalstructure of branching enzyme W610N mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GQX_A Crystal structure of branching enzyme W610N mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142] |
| 5GR1_A | 1.21e-266 | 14 | 730 | 29 | 772 | Crystalstructure of branching enzyme Y500A/D501A mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142],5GR6_A Crystal structure of branching enzyme Y500A/D501A double mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142] |
| 5GR0_A | 1.71e-266 | 14 | 730 | 29 | 772 | Crystalstructure of branching enzyme D501A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142] |
| 5GR5_A | 6.89e-266 | 14 | 730 | 29 | 772 | Crystalstructure of branching enzyme W610A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142] |
| 5GQZ_A | 9.76e-266 | 14 | 730 | 29 | 772 | Crystalstructure of branching enzyme Y500A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142] |
Swiss-Prot Hits download full data without filtering help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End | Description |
|---|---|---|---|---|---|---|
| Q8DLB8 | 4.03e-278 | 14 | 730 | 7 | 749 | 1,4-alpha-glucan branching enzyme GlgB OS=Thermosynechococcus vestitus (strain IAM M-273 / NIES-2133 / BP-1) OX=197221 GN=glgB PE=3 SV=1 |
| B3PGN4 | 3.15e-275 | 18 | 724 | 17 | 729 | 1,4-alpha-glucan branching enzyme GlgB OS=Cellvibrio japonicus (strain Ueda107) OX=498211 GN=glgB PE=3 SV=1 |
| P52981 | 3.74e-272 | 8 | 730 | 3 | 751 | 1,4-alpha-glucan branching enzyme GlgB OS=Synechocystis sp. (strain PCC 6803 / Kazusa) OX=1111708 GN=glgB PE=3 SV=1 |
| Q3JCN0 | 5.10e-267 | 15 | 732 | 19 | 733 | 1,4-alpha-glucan branching enzyme GlgB OS=Nitrosococcus oceani (strain ATCC 19707 / BCRC 17464 / JCM 30415 / NCIMB 11848 / C-107) OX=323261 GN=glgB PE=3 SV=1 |
| Q114I1 | 3.69e-266 | 14 | 730 | 7 | 749 | 1,4-alpha-glucan branching enzyme GlgB OS=Trichodesmium erythraeum (strain IMS101) OX=203124 GN=glgB PE=3 SV=1 |

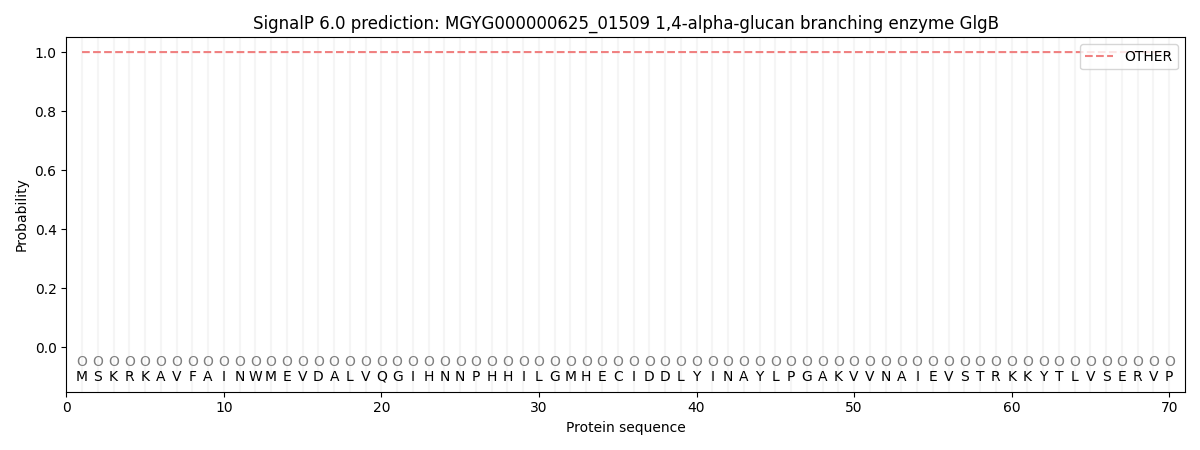

SignalP and Lipop Annotations help
This protein is predicted as OTHER
| Other | SP_Sec_SPI | LIPO_Sec_SPII | TAT_Tat_SPI | TATLIP_Sec_SPII | PILIN_Sec_SPIII |
|---|---|---|---|---|---|
| 1.000066 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 |
