CAZyme Information: MGYG000000652_02699

You are here: Home > Sequence: MGYG000000652_02699

Basic Information | Genomic context | Full Sequence | Enzyme annotations |  CAZy signature domains |  CDD domains | CAZyme hits | PDB hits | Swiss-Prot hits | SignalP and Lipop annotations | TMHMM annotations

Basic Information help

Species Bacteroides togonis
Lineage Bacteria; Bacteroidota; Bacteroidia; Bacteroidales; Bacteroidaceae; Bacteroides; Bacteroides togonis
CAZyme ID MGYG000000652_02699
CAZy Family PL8
CAZyme Description Chondroitinase-AC
CAZyme Property
Protein Length CGC Molecular Weight Isoelectric Point
717 81412.11 6.7416
Genome Property
Genome Assembly ID Genome Size Genome Type Country Continent
MGYG000000652 3410500 MAG Germany Europe
Gene Location Start: 10984;  End: 13137  Strand: -

Full Sequence      Download help

Enzyme Prediction      help

No EC number prediction in MGYG000000652_02699.

CAZyme Signature Domains help

Family Start End Evalue family coverage
PL8 343 595 2.1e-103 0.9919678714859438

CDD Domains      download full data without filtering help

Cdd ID Domain E-Value qStart qEnd sStart sEnd Domain Description
cd01083 GAG_Lyase 0.0 33 673 1 693
Glycosaminoglycan (GAG) polysaccharide lyase family. This family consists of a group of secreted bacterial lyase enzymes capable of acting on glycosaminoglycans, such as hyaluronan and chondroitin, in the extracellular matrix of host tissues, contributing to the invasive capacity of the pathogen. These are broad-specificity glycosaminoglycan lyases which recognize uronyl residues in polysaccharides and cleave their glycosidic bonds via a beta-elimination reaction to form a double bond between C-4 and C-5 of the non-reducing terminal uronyl residues of released products. Substrates include chondroitin, chondroitin 4-sulfate, chondroitin 6-sulfate, and hyaluronic acid. Family members include chondroitin AC lyase, chondroitin abc lyase, xanthan lyase, and hyalurate lyase.
pfam02278 Lyase_8 7.66e-115 343 596 1 251
Polysaccharide lyase family 8, super-sandwich domain. This family consists of a group of secreted bacterial lyase enzymes EC:4.2.2.1 capable of acting on hyaluronan and chondroitin in the extracellular matrix of host tissues, contributing to the invasive capacity of the pathogen.
pfam08124 Lyase_8_N 6.23e-80 32 324 12 314
Polysaccharide lyase family 8, N terminal alpha-helical domain. This family consists of a group of secreted bacterial lyase enzymes EC:4.2.2.1 capable of acting on hyaluronan and chondroitin in the extracellular matrix of host tissues, contributing to the invasive capacity of the pathogen.
pfam02884 Lyase_8_C 2.37e-23 614 681 1 67
Polysaccharide lyase family 8, C-terminal beta-sandwich domain. This family consists of a group of secreted bacterial lyase enzymes EC:4.2.2.1 capable of acting on hyaluronan and chondroitin in the extracellular matrix of host tissues, contributing to the invasive capacity of the pathogen.

CAZyme Hits      help

Hit ID E-Value Query Start Query End Hit Start Hit End
ALJ58172.1 0.0 1 715 1 710
QUT90810.1 0.0 1 715 1 710
QDO70900.1 0.0 2 716 4 714
QIU93971.1 0.0 26 715 33 721
ASM65495.1 0.0 1 715 1 721

PDB Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
1CB8_A 1.13e-167 60 710 36 674
CHONDROITINASEAC LYASE FROM FLAVOBACTERIUM HEPARINUM [Pedobacter heparinus]
1HM2_A 2.24e-167 60 710 58 696
ACTIVESITE OF CHONDROITINASE AC LYASE REVEALED BY THE STRUCTURE OF ENZYME-OLIGOSACCHARIDE COMPLEXES AND MUTAGENESIS [Pedobacter heparinus],1HM3_A Active Site Of Chondroitinase Ac Lyase Revealed By The Structure Of Enzyme-Oligosaccharide Complexes And Mutagenesis [Pedobacter heparinus],1HMU_A ACTIVE SITE OF CHONDROITINASE AC LYASE REVEALED BY THE STRUCTURE OF ENZYME-OLIGOSACCHARIDE COMPLEXES AND MUTAGENESIS [Pedobacter heparinus],1HMW_A Active Site Of Chondroitinase Ac Lyase Revealed By The Structure Of Enzyme-oligosaccharide Complexes And Mutagenesis [Pedobacter heparinus]
6F2P_A 1.27e-41 89 676 79 699
Structureof Paenibacillus xanthan lyase to 2.6 A resolution [Paenibacillus]
2E24_A 1.42e-38 32 675 2 699
ChainA, Xanthan lyase [Bacillus sp. GL1]
2E22_A 2.55e-38 32 675 2 699
Crystalstructure of xanthan lyase in complex with mannose [Bacillus sp. GL1]

Swiss-Prot Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
Q59288 1.23e-166 60 710 58 696
Chondroitinase-AC OS=Pedobacter heparinus (strain ATCC 13125 / DSM 2366 / CIP 104194 / JCM 7457 / NBRC 12017 / NCIMB 9290 / NRRL B-14731 / HIM 762-3) OX=485917 GN=cslA PE=1 SV=1
Q9AQS0 1.82e-37 30 675 25 724
Xanthan lyase OS=Bacillus sp. (strain GL1) OX=84635 GN=xly PE=1 SV=1
Q54873 6.06e-33 26 636 299 957
Hyaluronate lyase OS=Streptococcus pneumoniae serotype 4 (strain ATCC BAA-334 / TIGR4) OX=170187 GN=SP_0314 PE=1 SV=2
Q53591 4.67e-25 86 661 322 962
Hyaluronate lyase OS=Streptococcus agalactiae serotype III (strain NEM316) OX=211110 GN=hylB PE=1 SV=2
P59807 3.02e-14 374 688 653 981
Chondroitin sulfate ABC endolyase OS=Proteus vulgaris OX=585 PE=1 SV=2

SignalP and Lipop Annotations help

This protein is predicted as SP

Other SP_Sec_SPI LIPO_Sec_SPII TAT_Tat_SPI TATLIP_Sec_SPII PILIN_Sec_SPIII
0.000340 0.998381 0.000761 0.000179 0.000162 0.000163

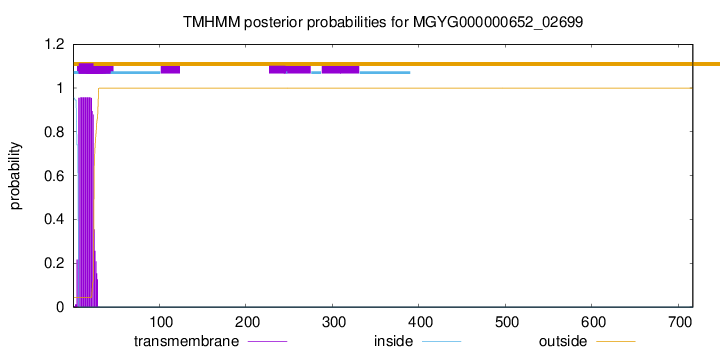

TMHMM  Annotations      download full data without filtering help

start end
7 24
