CAZyme Information: MGYG000000973_00842

You are here: Home > Sequence: MGYG000000973_00842

Basic Information | Genomic context | Full Sequence | Enzyme annotations |  CAZy signature domains |  CDD domains | CAZyme hits | PDB hits | Swiss-Prot hits | SignalP and Lipop annotations | TMHMM annotations

Basic Information help

Species UMGS1490 sp900552245
Lineage Bacteria; Verrucomicrobiota; Verrucomicrobiae; Opitutales; CAG-312; UMGS1490; UMGS1490 sp900552245
CAZyme ID MGYG000000973_00842
CAZy Family GH97
CAZyme Description Retaining alpha-galactosidase
CAZyme Property
Protein Length CGC Molecular Weight Isoelectric Point
632 MGYG000000973_40|CGC1 71281.34 7.8114
Genome Property
Genome Assembly ID Genome Size Genome Type Country Continent
MGYG000000973 2116765 MAG Australia Oceania
Gene Location Start: 3588;  End: 5486  Strand: +

Full Sequence      Download help

Enzyme Prediction      help

EC 3.2.1.22

CAZyme Signature Domains help

Family Start End Evalue family coverage
GH97 21 631 4.5e-166 0.9873217115689382

CDD Domains      download full data without filtering help

Cdd ID Domain E-Value qStart qEnd sStart sEnd Domain Description
pfam10566 Glyco_hydro_97 4.43e-81 282 538 1 278
Glycoside hydrolase 97. This domain is the catalytic region of the bacterial glycosyl-hydrolase family 97. This central part of the GH97 family protein sequences represents a typical and complete (beta/alpha)8-barrel or catalytic TIM-barrel type domain. The N- and C-terminal parts of the sequences, mainly consisting of beta-strands, form two additional non-catalytic domains. In all known glycosidases with the (beta-alpha)8-barrel fold, the amino acid residues at the active site are located on the C-termini of the beta-strands.
pfam14508 GH97_N 2.48e-49 33 277 1 235
Glycosyl-hydrolase 97 N-terminal. This N-terminal domain of glycosyl-hydrolase-97 contributes part of the active site pocket. It is also important for contact with the catalytic and C-terminal domains of the whole.
pfam14509 GH97_C 7.43e-22 541 632 1 97
Glycosyl-hydrolase 97 C-terminal, oligomerization. Glycosyl-hydrolase-97 is made up of three tightly linked and highly conserved globular domains. The C-terminal domain is found to be necessary for oligomerization of the whole molecule in order to create the active-site pocket and the Ca++-binding site.

CAZyme Hits      help

Hit ID E-Value Query Start Query End Hit Start Hit End
ALJ60079.1 5.36e-244 21 632 16 630
QUT88912.1 3.07e-243 21 632 16 630
QDO68315.1 2.17e-241 21 632 18 632
QUT44167.1 2.69e-239 18 632 13 630
QRQ49851.1 1.54e-238 18 632 13 630

PDB Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
5XFM_A 2.16e-79 27 630 15 641
Crystalstructure of beta-arabinopyranosidase [Bacteroides thetaiotaomicron],5XFM_B Crystal structure of beta-arabinopyranosidase [Bacteroides thetaiotaomicron],5XFM_C Crystal structure of beta-arabinopyranosidase [Bacteroides thetaiotaomicron],5XFM_D Crystal structure of beta-arabinopyranosidase [Bacteroides thetaiotaomicron]
3A24_A 2.93e-47 33 632 6 641
Crystalstructure of BT1871 retaining glycosidase [Bacteroides thetaiotaomicron],3A24_B Crystal structure of BT1871 retaining glycosidase [Bacteroides thetaiotaomicron]
5E1Q_A 3.06e-46 33 632 20 655
Mutant(D415G) GH97 alpha-galactosidase in complex with Gal-Lac [Bacteroides thetaiotaomicron VPI-5482],5E1Q_B Mutant (D415G) GH97 alpha-galactosidase in complex with Gal-Lac [Bacteroides thetaiotaomicron VPI-5482]
5HQ4_A 1.39e-37 30 626 2 653
AGlycoside Hydrolase Family 97 enzyme from Pseudoalteromonas sp. strain K8 [Pseudoalteromonas sp. K8],5HQA_A A Glycoside Hydrolase Family 97 enzyme in complex with Acarbose from Pseudoalteromonas sp. strain K8 [Pseudoalteromonas sp. K8]
5HQC_A 1.39e-37 30 626 2 653
AGlycoside Hydrolase Family 97 enzyme R171K variant from Pseudoalteromonas sp. strain K8 [Pseudoalteromonas sp. K8]

Swiss-Prot Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
D7CFN7 1.52e-91 2 630 5 619
Probable retaining alpha-galactosidase OS=Streptomyces bingchenggensis (strain BCW-1) OX=749414 GN=SBI_01652 PE=3 SV=1
Q8A6L0 2.91e-49 9 632 3 662
Retaining alpha-galactosidase OS=Bacteroides thetaiotaomicron (strain ATCC 29148 / DSM 2079 / JCM 5827 / CCUG 10774 / NCTC 10582 / VPI-5482 / E50) OX=226186 GN=BT_1871 PE=1 SV=1
G8JZS4 3.18e-21 31 632 25 724
Glucan 1,4-alpha-glucosidase SusB OS=Bacteroides thetaiotaomicron (strain ATCC 29148 / DSM 2079 / JCM 5827 / CCUG 10774 / NCTC 10582 / VPI-5482 / E50) OX=226186 GN=susB PE=1 SV=1

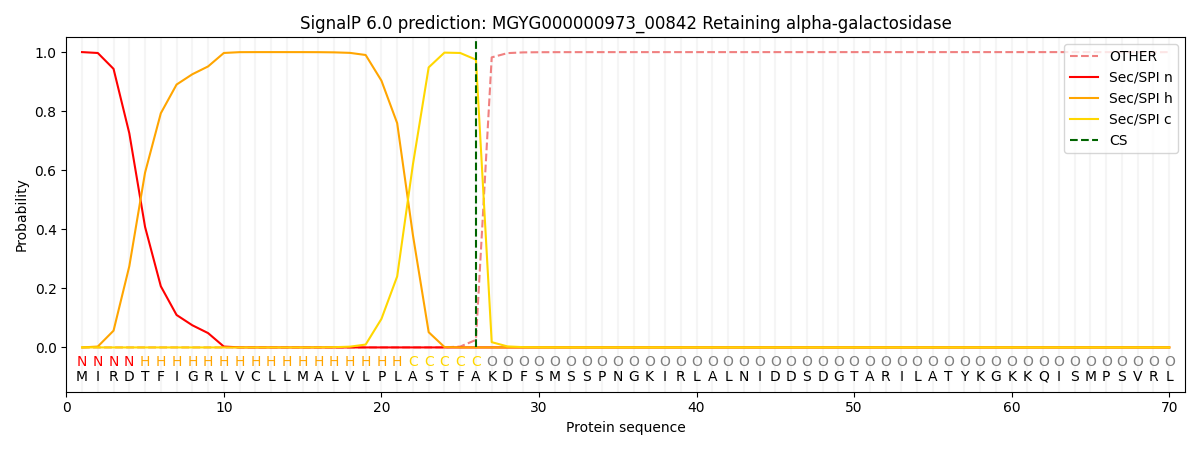

SignalP and Lipop Annotations help

This protein is predicted as SP

Other SP_Sec_SPI LIPO_Sec_SPII TAT_Tat_SPI TATLIP_Sec_SPII PILIN_Sec_SPIII
0.000617 0.998453 0.000313 0.000203 0.000202 0.000181

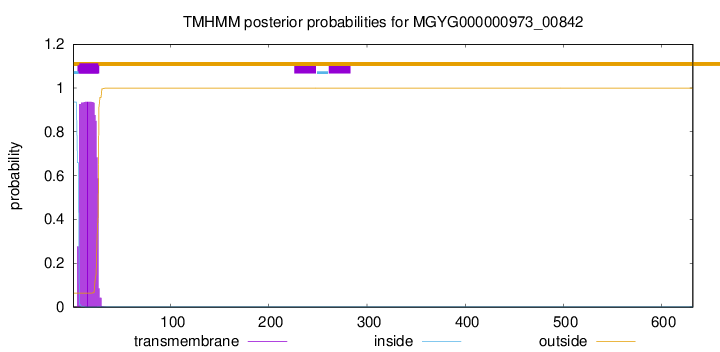

TMHMM  Annotations      download full data without filtering help

start end
7 26
