CAZyme Information: MGYG000001394_01131

Basic Information

• Species: Yokenella regensburgei
• Lineage: Bacteria; Proteobacteria; Gammaproteobacteria; Enterobacterales; Enterobacteriaceae; Yokenella; Yokenella regensburgei
• CAZyme ID: MGYG000001394_01131
• CAZy Family: GH13
• CAZyme Description: Periplasmic alpha-amylase

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
678	MGYG000001394_12|CGC6	76056	5.9641

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000001394	4680112	Isolate	not provided	not provided

• Gene Location: Start: 223673; End: 225709 Strand: +

Full Sequence

MKRAALMPLLLPGLAWSAVWTANDFPNFTPQGVGQFVTQKTLAKGTRALTLGLDQKCWQP
ATPIKLNQTLSLEPCNDDAPGWRVFRDGLYTLTIDTRSGTPTLTVSLRAEETSAASAVTR
QCPTWNGGPLTLDVSQTFPEGTVVRDFYSQQTTTVSEGKITLQPAPDSNGLLLLERAETD
APAPFNWHNATVYFVLTDRFVNGDPGNDNSYGRHKDGQQEIGTFHGGDLKGLTSKLDYLQ
QLGVNALWISSPLEQIHGWVGGGTKGDFPHYAYHGYYTQDWTRLDANMGNEDDLKRLVDG
AHQRGIRVLFDIVMNHTGYATLADMQEYQFGALYLKGDELKKTLGEHWTNWQPGPGQNWH
SFNDYINFSDKAAWENWWGKKWIRTDIGDYDNPGFDDLTMSLAFLPDLKTESTVPSGLPV
FYQHKTDTHAKAIAGFTPRDYLTHWLSQWVRDYGIDGFRVDTAKHVELPAWQQLKNQSTE
ALAAWKHANPQKALDNAPFWMTGEAWGHGVMQSEYYRYGFDAMINFDYQQQATSASGCLA
EMDATWQQMADKLQNFNVLSYLSSHDTQLFREPGHRAAELLLLAPGAVQIFYGDESERPF
GPTGSDPLQGTRSDMNWQDVDGKAAALVKHWQRLGQFRARHPAIGEGRQTTLPLTQGYGF
VRQHGDDKVMVIWAGLKK

Enzyme Prediction

EC	3.2.1.98	3.2.1.60	3.2.1.-	3.2.1.1

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GH13	227	596	4.3e-167	0.9972222222222222

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
PRK09505	malS	0.0	1	675	1	681	alpha-amylase; Reviewed
COG0366	AmyA	2.24e-57	190	673	1	468	Glycosidase [Carbohydrate transport and metabolism].
cd11339	AmyAc_bac_CMD_like_2	5.61e-54	191	641	4	344	Alpha amylase catalytic domain found in bacterial cyclomaltodextrinases and related proteins. Cyclomaltodextrinase (CDase; EC3.2.1.54), neopullulanase (NPase; EC 3.2.1.135), and maltogenic amylase (MA; EC 3.2.1.133) catalyze the hydrolysis of alpha-(1,4) glycosidic linkages on a number of substrates including cyclomaltodextrins (CDs), pullulan, and starch. These enzymes hydrolyze CDs and starch to maltose and pullulan to panose by cleavage of alpha-1,4 glycosidic bonds whereas alpha-amylases essentially lack activity on CDs and pullulan. They also catalyze transglycosylation of oligosaccharides to the C3-, C4- or C6-hydroxyl groups of various acceptor sugar molecules. Since these proteins are nearly indistinguishable from each other, they are referred to as cyclomaltodextrinases (CMDs). This group of CMDs is bacterial. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
cd11320	AmyAc_AmyMalt_CGTase_like	1.03e-48	191	638	6	387	Alpha amylase catalytic domain found in maltogenic amylases, cyclodextrin glycosyltransferase, and related proteins. Enzymes such as amylases, cyclomaltodextrinase (CDase), and cyclodextrin glycosyltransferase (CGTase) degrade starch to smaller oligosaccharides by hydrolyzing the alpha-D-(1,4) linkages between glucose residues. In the case of CGTases, an additional cyclization reaction is catalyzed yielding mixtures of cyclic oligosaccharides which are referred to as alpha-, beta-, or gamma-cyclodextrins (CDs), consisting of six, seven, or eight glucose residues, respectively. CGTases are characterized depending on the major product of the cyclization reaction. Besides having similar catalytic site residues, amylases and CGTases contain carbohydrate binding domains that are distant from the active site and are implicated in attaching the enzyme to raw starch granules and in guiding the amylose chain into the active site. The maltogenic alpha-amylase from Bacillus is a five-domain structure, unlike most alpha-amylases, but similar to that of cyclodextrin glycosyltransferase. In addition to the A, B, and C domains, they have a domain D and a starch-binding domain E. Maltogenic amylase is an endo-acting amylase that has activity on cyclodextrins, terminally modified linear maltodextrins, and amylose. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
cd11338	AmyAc_CMD	1.94e-44	189	647	1	387	Alpha amylase catalytic domain found in cyclomaltodextrinases and related proteins. Cyclomaltodextrinase (CDase; EC3.2.1.54), neopullulanase (NPase; EC 3.2.1.135), and maltogenic amylase (MA; EC 3.2.1.133) catalyze the hydrolysis of alpha-(1,4) glycosidic linkages on a number of substrates including cyclomaltodextrins (CDs), pullulan, and starch. These enzymes hydrolyze CDs and starch to maltose and pullulan to panose by cleavage of alpha-1,4 glycosidic bonds whereas alpha-amylases essentially lack activity on CDs and pullulan. They also catalyze transglycosylation of oligosaccharides to the C3-, C4- or C6-hydroxyl groups of various acceptor sugar molecules. Since these proteins are nearly indistinguishable from each other, they are referred to as cyclomaltodextrinases (CMDs). The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
QIU90922.1	0.0	1	678	1	678
QIR25523.1	0.0	1	675	1	676
BBS94644.1	0.0	1	675	1	677
BBR56855.1	0.0	1	675	1	677
BBS89622.1	0.0	1	675	1	677

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
5A2A_A	1.21e-34	187	672	6	395	CrystalStructure of Anoxybacillus Alpha-amylase Provides Insights into a New Glycosyl Hydrolase Subclass [Anoxybacillus ayderensis]
5A2B_A	2.23e-34	187	672	40	429	CrystalStructure of Anoxybacillus Alpha-amylase Provides Insights into a New Glycosyl Hydrolase Subclass [Anoxybacillus ayderensis],5A2C_A Crystal Structure of Anoxybacillus Alpha-amylase Provides Insights into a New Glycosyl Hydrolase Subclass [Anoxybacillus ayderensis]
4E2O_A	1.27e-31	187	672	7	396	Crystalstructure of alpha-amylase from Geobacillus thermoleovorans, GTA, complexed with acarbose [Geobacillus thermoleovorans CCB_US3_UF5]
1QHO_A	4.44e-26	192	671	11	433	FIVE-DOMAINALPHA-AMYLASE FROM BACILLUS STEAROTHERMOPHILUS, MALTOSE/ACARBOSE COMPLEX [Geobacillus stearothermophilus],1QHP_A Five-Domain Alpha-Amylase From Bacillus Stearothermophilus, Maltose Complex [Geobacillus stearothermophilus]
6WNI_A	9.19e-26	177	671	24	459	ChainA, Cyclomaltodextrin glucanotransferase [Caldanaerobacter subterraneus],6WNI_B Chain B, Cyclomaltodextrin glucanotransferase [Caldanaerobacter subterraneus],6WNU_A Chain A, Cyclomaltodextrin glucanotransferase [Caldanaerobacter subterraneus]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
P25718	0.0	1	675	1	674	Periplasmic alpha-amylase OS=Escherichia coli (strain K12) OX=83333 GN=malS PE=1 SV=1
Q05884	2.65e-30	222	659	93	541	Alpha-amylase OS=Streptomyces lividans OX=1916 GN=amy PE=1 SV=1
P21543	1.74e-28	186	671	743	1141	Beta/alpha-amylase OS=Paenibacillus polymyxa OX=1406 PE=1 SV=1
P31746	2.55e-25	177	670	27	453	Cyclomaltodextrin glucanotransferase OS=Bacillus sp. (strain 1-1) OX=29334 GN=cgt PE=1 SV=1
P19531	2.65e-25	192	671	44	466	Maltogenic alpha-amylase OS=Geobacillus stearothermophilus OX=1422 GN=amyM PE=1 SV=2

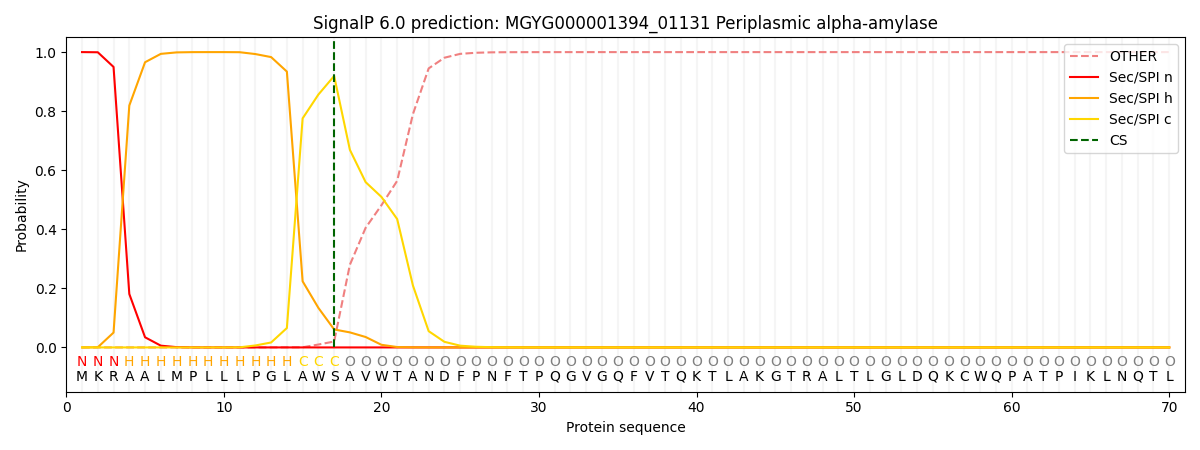

SignalP and Lipop Annotations

This protein is predicted as SP

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
0.000379	0.998903	0.000176	0.000179	0.000170	0.000163

TMHMM  Annotations

There is no transmembrane helices in MGYG000001394_01131.
