CAZyme Information: MGYG000001396_00757

You are here: Home > Sequence: MGYG000001396_00757

Basic Information | Genomic context | Full Sequence | Enzyme annotations |  CAZy signature domains |  CDD domains | CAZyme hits | PDB hits | Swiss-Prot hits | SignalP and Lipop annotations | TMHMM annotations

Basic Information help

Species Clostridium_AQ innocuum
Lineage Bacteria; Firmicutes; Bacilli; Erysipelotrichales; Erysipelotrichaceae; Clostridium_AQ; Clostridium_AQ innocuum
CAZyme ID MGYG000001396_00757
CAZy Family CBM48
CAZyme Description 1,4-alpha-glucan branching enzyme GlgB
CAZyme Property
Protein Length CGC Molecular Weight Isoelectric Point
619 MGYG000001396_1|CGC7 72833.53 6.3627
Genome Property
Genome Assembly ID Genome Size Genome Type Country Continent
MGYG000001396 4835467 Isolate not provided not provided
Gene Location Start: 775534;  End: 777393  Strand: +

Full Sequence      Download help

Enzyme Prediction      help

EC 2.4.1.18

CAZyme Signature Domains help

Family Start End Evalue family coverage
GH13 172 459 9.4e-125 0.9900332225913622
CBM48 21 104 4.6e-18 0.868421052631579

CDD Domains      download full data without filtering help

Cdd ID Domain E-Value qStart qEnd sStart sEnd Domain Description
PRK12313 PRK12313 0.0 17 606 23 626
1,4-alpha-glucan branching protein GlgB.
PRK14706 PRK14706 0.0 20 606 26 620
glycogen branching enzyme; Provisional
PRK14705 PRK14705 0.0 18 601 620 1216
glycogen branching enzyme; Provisional
TIGR01515 branching_enzym 0.0 11 605 7 617
alpha-1,4-glucan:alpha-1,4-glucan 6-glycosyltransferase. This model describes the glycogen branching enzymes which are responsible for the transfer of chains of approx. 7 alpha(1--4)-linked glucosyl residues to other similar chains (in new alpha(1--6) linkages) in the biosynthesis of glycogen. This enzyme is a member of the broader amylase family of starch hydrolases which fold as (beta/alpha)8 barrels, the so-called TIM-barrel structure. All of the sequences comprising the seed of this model have been experimentally characterized. This model encompasses both bacterial and eukaryotic species. No archaea have this enzyme, although Aquifex aolicus does. Two species, Bacillus thuringiensis and Clostridium perfringens have two sequences each which are annotated as amylases. These annotations are aparrently in error. GP|18143720 from C. perfringens, for instance, contains the note "674 aa, similar to gp:A14658_1 amylase (1,4-alpha-glucan branching enzyme (EC 2.4.1.18) ) from Bacillus thuringiensis (648 aa); 51.1% identity in 632 aa overlap." A branching enzyme from Porphyromonas gingivales, OMNI|PG1793, appears to be more closely related to the eukaryotic species (across a deep phylogenetic split) and may represent an instance of lateral transfer from this species' host. A sequence from Arabidopsis thaliana, GP|9294564, scores just above trusted, but appears either to contain corrupt sequence or, more likely, to be a pseudogene as some of the conserved catalytic residues common to the alpha amylase family are not conserved here. [Energy metabolism, Biosynthesis and degradation of polysaccharides]
PRK05402 PRK05402 0.0 6 607 103 723
1,4-alpha-glucan branching protein GlgB.

CAZyme Hits      help

Hit ID E-Value Query Start Query End Hit Start Hit End
QIX10926.1 0.0 1 619 1 619
QJA04600.1 0.0 1 619 1 619
ANU71216.1 0.0 1 619 1 619
ASU20299.1 0.0 1 619 1 619
QQR24912.1 0.0 1 619 1 619

PDB Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
5GR2_A 6.35e-184 18 613 146 779
Crystalstructure of branching enzyme L541A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GR4_A Crystal structure of branching enzyme L541A mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142]
5GQW_A 1.27e-183 18 613 146 779
Crystalstructure of branching enzyme W610N mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GQX_A Crystal structure of branching enzyme W610N mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142]
5GR5_A 1.79e-183 18 613 146 779
Crystalstructure of branching enzyme W610A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]
5GQU_A 3.58e-183 18 613 146 779
Crystalstructure of branching enzyme from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GQV_A Crystal structure of branching enzyme from Cyanothece sp. ATCC 51142 in complex with maltohexaose [Crocosphaera subtropica ATCC 51142],5GQY_A Crystal structure of branching enzyme from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142]
5GQZ_A 3.58e-183 18 613 146 779
Crystalstructure of branching enzyme Y500A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]

Swiss-Prot Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
Q0SWZ1 8.15e-209 1 615 27 669
1,4-alpha-glucan branching enzyme GlgB 1 OS=Clostridium perfringens (strain SM101 / Type A) OX=289380 GN=glgB1 PE=3 SV=1
P30538 2.87e-208 9 616 14 621
1,4-alpha-glucan branching enzyme GlgB OS=Geobacillus stearothermophilus OX=1422 GN=glgB PE=1 SV=1
Q8XPA2 9.32e-208 1 615 27 669
1,4-alpha-glucan branching enzyme GlgB 1 OS=Clostridium perfringens (strain 13 / Type A) OX=195102 GN=glgB1 PE=3 SV=1
P30537 7.52e-205 9 610 14 622
1,4-alpha-glucan branching enzyme GlgB OS=Bacillus caldolyticus OX=1394 GN=glgB PE=1 SV=1
A7GUA1 3.00e-204 6 616 11 627
1,4-alpha-glucan branching enzyme GlgB OS=Bacillus cytotoxicus (strain DSM 22905 / CIP 110041 / 391-98 / NVH 391-98) OX=315749 GN=glgB PE=3 SV=1

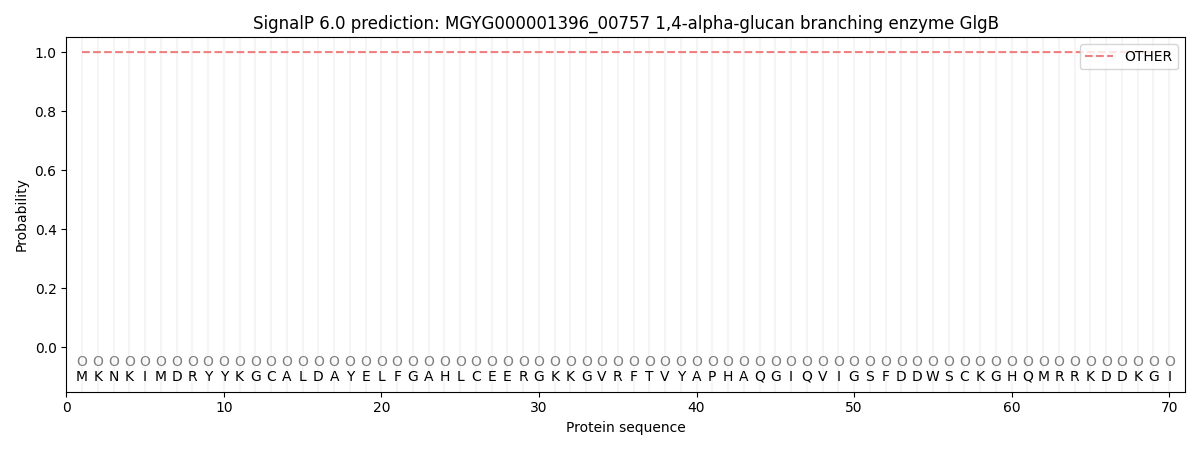

SignalP and Lipop Annotations help

This protein is predicted as OTHER

Other SP_Sec_SPI LIPO_Sec_SPII TAT_Tat_SPI TATLIP_Sec_SPII PILIN_Sec_SPIII
1.000058 0.000000 0.000000 0.000000 0.000000 0.000000

TMHMM  Annotations      help

There is no transmembrane helices in MGYG000001396_00757.
