CAZyme Information: MGYG000001486_01661

Basic Information

• Species: Mobilicoccus massiliensis
• Lineage: Bacteria; Actinobacteriota; Actinomycetia; Actinomycetales; Dermatophilaceae; Mobilicoccus; Mobilicoccus massiliensis
• CAZyme ID: MGYG000001486_01661
• CAZy Family: GH13
• CAZyme Description: Alpha-1,4-glucan:maltose-1-phosphate maltosyltransferase 1

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
700		78094.71	4.6915

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000001486	3841955	Isolate	not provided	not provided

• Gene Location: Start: 100436; End: 102538 Strand: -

Full Sequence

MPRSEPPLHAGAEPDSFGLVRTTTSIPTSSVLDAAGQRPLGRIPVMNVQPVVDGGAYPTA
AVVDEDIVVSAEVFREGHDAVNASVVLTDPDGEEHVVPMTCRNVGLSLWDASIRAGRTGM
WTFRVEGWSDPYATWEHDATIKIEAGVDVEVMLEEGARMIERAIDEVDRSEDARRMLARA
VETLRDTGLSVSERLGAGIASDVEHELVTTPLRDFVSPSTDYHLLVERERALYGAWYEFF
PRSEGCYYDEAAGRWVTGTLRTAAERLPAVADMGFDVIYLTPIHPIGTINRKGPNNTLNA
GPEDPGSPYAIGSKDGGHDAIEPSLGTFEDFDAFVARAGELGLEVALDLALQCAPDHPWV
TEHPEWFTTRADGTIAYAENPPKKYQDIYPLNFDNDPAGIYAEMRRVVQVWIDHGVKIFR
VDNPHTKPVQFWQWLIADVAKQHPDVIWLAEAFTKPAMMATLAKTGFQQSYTYYAWRNEK
AELLEYMEELSGPAAAYMRPSFWPTTHDILTPFMQFGGPTGWKLRAALAATLVPTYGIYA
GYELMEAVPRPGAEEQIDNEKYQFKNREWERYAPGGDREGQLWMADYLRTLNDIRRAHPA
LHHLRNFHAHTADDDATICFSKRRVMGGAEDTIIVVANLDPHSTRETFVHLDMEALGLEP
GSGFIAKDLITGASWHWGEHDYVRLGVDGEPVHIIHVRRF

Enzyme Prediction

EC	2.4.99.16

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GH13	264	484	3.9e-94	0.9857142857142858

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
cd11344	AmyAc_GlgE_like	0.0	233	599	1	355	Alpha amylase catalytic domain found in GlgE-like proteins. GlgE is a (1,4)-a-D-glucan:phosphate a-D-maltosyltransferase, involved in a-glucan biosynthesis in bacteria. It is also an anti-tuberculosis drug target. GlgE isoform I from Streptomyces coelicolor has the same catalytic and very similar kinetic properties to GlgE from Mycobacterium tuberculosis. GlgE from Streptomyces coelicolor forms a homodimer with each subunit comprising five domains (A, B, C, N, and S) and 2 inserts. Domain A is a catalytic alpha-amylase-type domain that along with domain N, which has a beta-sandwich fold and forms the core of the dimer interface, binds cyclodextrins. Domain A, B, and the 2 inserts define a well conserved donor pocket that binds maltose. Cyclodextrins competitively inhibit the binding of maltooligosaccharides to the S. coelicolor enzyme, indicating that the hydrophobic patch overlaps with the acceptor binding site. This is not the case in M. tuberculosis GlgE because cyclodextrins do not inhibit this enzyme, despite acceptor length specificity being conserved. Domain C is hypothesized to help stabilize domain A and could be involved in substrate binding. Domain S is a helix bundle that is inserted within the N domain and it plays a role in the dimer interface and interacts directly with domain B. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
pfam11896	DUF3416	8.36e-68	41	228	1	185	Domain of unknown function (DUF3416). This presumed domain is functionally uncharacterized. This domain is found in bacteria and archaea. This domain is about 190 amino acids in length. This domain is found associated with pfam00128.
cd11313	AmyAc_arch_bac_AmyA	9.02e-50	237	603	8	335	Alpha amylase catalytic domain found in archaeal and bacterial Alpha-amylases (also called 1,4-alpha-D-glucan-4-glucanohydrolase). AmyA (EC 3.2.1.1) catalyzes the hydrolysis of alpha-(1,4) glycosidic linkages of glycogen, starch, related polysaccharides, and some oligosaccharides. This group includes firmicutes, bacteroidetes, and proteobacteria. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
cd00551	AmyAc_family	5.42e-19	237	546	3	259	Alpha amylase catalytic domain family. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; and C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost this catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
cd11316	AmyAc_bac2_AmyA	1.55e-18	234	601	1	400	Alpha amylase catalytic domain found in bacterial Alpha-amylases (also called 1,4-alpha-D-glucan-4-glucanohydrolase). AmyA (EC 3.2.1.1) catalyzes the hydrolysis of alpha-(1,4) glycosidic linkages of glycogen, starch, related polysaccharides, and some oligosaccharides. This group includes Chloroflexi, Dictyoglomi, and Fusobacteria. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
QNK54309.1	0.0	27	700	52	725
QEH92844.1	0.0	25	700	68	743
SNV20349.1	0.0	20	700	5	680
QGN59298.1	0.0	37	700	32	700
QQY25689.1	0.0	27	700	74	749

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
5VSJ_A	1.29e-254	29	699	7	663	ScoGlgEI-V279S in complex with a pyrolidene-based ethyl-phosphonate compound [Streptomyces coelicolor A3(2)],5VSJ_B Sco GlgEI-V279S in complex with a pyrolidene-based ethyl-phosphonate compound [Streptomyces coelicolor A3(2)],5VT4_A Sco GlgEI-V279S in complex with a pyrolidene-based methyl-phosphonate compound [Streptomyces coelicolor A3(2)],5VT4_B Sco GlgEI-V279S in complex with a pyrolidene-based methyl-phosphonate compound [Streptomyces coelicolor A3(2)],5VT4_C Sco GlgEI-V279S in complex with a pyrolidene-based methyl-phosphonate compound [Streptomyces coelicolor A3(2)],5VT4_D Sco GlgEI-V279S in complex with a pyrolidene-based methyl-phosphonate compound [Streptomyces coelicolor A3(2)]
4U2Y_A	2.60e-254	29	699	7	663	ScoGlgEI-V279S in Complex with Reaction Intermediate Azasugar [Streptomyces coelicolor A3(2)],4U2Y_B Sco GlgEI-V279S in Complex with Reaction Intermediate Azasugar [Streptomyces coelicolor A3(2)],4U2Z_A X-ray crystal structure of an Sco GlgEI-V279S/1,2,2-trifluromaltose complex [Streptomyces coelicolor A3(2)],4U2Z_B X-ray crystal structure of an Sco GlgEI-V279S/1,2,2-trifluromaltose complex [Streptomyces coelicolor A3(2)],4U31_A Sco GlgEI-V279S in Complex with maltose-C-phosphonate [Streptomyces coelicolor A3(2)],4U31_B Sco GlgEI-V279S in Complex with maltose-C-phosphonate [Streptomyces coelicolor A3(2)],7MEL_A Chain A, Alpha-1,4-glucan:maltose-1-phosphate maltosyltransferase 1 [Streptomyces coelicolor A3(2)],7MEL_B Chain B, Alpha-1,4-glucan:maltose-1-phosphate maltosyltransferase 1 [Streptomyces coelicolor A3(2)],7MGY_A Chain A, Alpha-1,4-glucan:maltose-1-phosphate maltosyltransferase 1 [Streptomyces coelicolor A3(2)],7MGY_B Chain B, Alpha-1,4-glucan:maltose-1-phosphate maltosyltransferase 1 [Streptomyces coelicolor A3(2)]
3ZSS_A	5.61e-254	16	699	11	683	Apoform of GlgE isoform 1 from Streptomyces coelicolor [Streptomyces coelicolor],3ZSS_B Apo form of GlgE isoform 1 from Streptomyces coelicolor [Streptomyces coelicolor],3ZSS_C Apo form of GlgE isoform 1 from Streptomyces coelicolor [Streptomyces coelicolor],3ZSS_D Apo form of GlgE isoform 1 from Streptomyces coelicolor [Streptomyces coelicolor],3ZST_A GlgE isoform 1 from Streptomyces coelicolor with alpha-cyclodextrin bound [Streptomyces coelicolor],3ZST_B GlgE isoform 1 from Streptomyces coelicolor with alpha-cyclodextrin bound [Streptomyces coelicolor],3ZT5_A GlgE isoform 1 from Streptomyces coelicolor with maltose bound [Streptomyces coelicolor],3ZT5_B GlgE isoform 1 from Streptomyces coelicolor with maltose bound [Streptomyces coelicolor],3ZT5_C GlgE isoform 1 from Streptomyces coelicolor with maltose bound [Streptomyces coelicolor],3ZT5_D GlgE isoform 1 from Streptomyces coelicolor with maltose bound [Streptomyces coelicolor],3ZT6_A GlgE isoform 1 from Streptomyces coelicolor with alpha-cyclodextrin and maltose bound [Streptomyces coelicolor],3ZT6_B GlgE isoform 1 from Streptomyces coelicolor with alpha-cyclodextrin and maltose bound [Streptomyces coelicolor],3ZT6_C GlgE isoform 1 from Streptomyces coelicolor with alpha-cyclodextrin and maltose bound [Streptomyces coelicolor],3ZT6_D GlgE isoform 1 from Streptomyces coelicolor with alpha-cyclodextrin and maltose bound [Streptomyces coelicolor],3ZT7_A GlgE isoform 1 from Streptomyces coelicolor with beta-cyclodextrin and maltose bound [Streptomyces coelicolor],3ZT7_B GlgE isoform 1 from Streptomyces coelicolor with beta-cyclodextrin and maltose bound [Streptomyces coelicolor],3ZT7_C GlgE isoform 1 from Streptomyces coelicolor with beta-cyclodextrin and maltose bound [Streptomyces coelicolor],3ZT7_D GlgE isoform 1 from Streptomyces coelicolor with beta-cyclodextrin and maltose bound [Streptomyces coelicolor]
4CN4_A	4.54e-253	16	699	11	683	GlgEisoform 1 from Streptomyces coelicolor E423A mutant with 2-deoxy- 2-fluoro-beta-maltosyl modification [Streptomyces coelicolor],4CN4_B GlgE isoform 1 from Streptomyces coelicolor E423A mutant with 2-deoxy- 2-fluoro-beta-maltosyl modification [Streptomyces coelicolor],4CN6_A GlgE isoform 1 from Streptomyces coelicolor E423A mutant with maltose bound [Streptomyces coelicolor],4CN6_B GlgE isoform 1 from Streptomyces coelicolor E423A mutant with maltose bound [Streptomyces coelicolor],5LGV_A GlgE isoform 1 from Streptomyces coelicolor E423A mutant soaked in maltooctaose [Streptomyces coelicolor A3(2)],5LGV_B GlgE isoform 1 from Streptomyces coelicolor E423A mutant soaked in maltooctaose [Streptomyces coelicolor A3(2)]
4CN1_A	9.12e-253	16	699	11	683	GlgEisoform 1 from Streptomyces coelicolor D394A mutant with maltose- 1-phosphate bound [Streptomyces coelicolor],4CN1_B GlgE isoform 1 from Streptomyces coelicolor D394A mutant with maltose- 1-phosphate bound [Streptomyces coelicolor],5LGW_A GlgE isoform 1 from Streptomyces coelicolor D394A mutant co-crystallised with maltodextrin [Streptomyces coelicolor],5LGW_B GlgE isoform 1 from Streptomyces coelicolor D394A mutant co-crystallised with maltodextrin [Streptomyces coelicolor]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
Q9KY04	5.00e-253	40	699	9	654	Alpha-1,4-glucan:maltose-1-phosphate maltosyltransferase 2 OS=Streptomyces coelicolor (strain ATCC BAA-471 / A3(2) / M145) OX=100226 GN=glgE2 PE=1 SV=1
Q9L1K2	8.74e-253	29	699	7	663	Alpha-1,4-glucan:maltose-1-phosphate maltosyltransferase 1 OS=Streptomyces coelicolor (strain ATCC BAA-471 / A3(2) / M145) OX=100226 GN=glgE1 PE=1 SV=1
D7BMJ2	4.37e-229	40	698	27	688	Alpha-1,4-glucan:maltose-1-phosphate maltosyltransferase OS=Arcanobacterium haemolyticum (strain ATCC 9345 / DSM 20595 / CCUG 17215 / LMG 16163 / NBRC 15585 / NCTC 8452 / 11018) OX=644284 GN=glgE PE=3 SV=1
Q9RP48	1.57e-204	41	697	8	682	Alpha-1,4-glucan:maltose-1-phosphate maltosyltransferase OS=Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155) OX=246196 GN=glgE PE=1 SV=1
Q8NR39	1.72e-203	41	694	3	651	Alpha-1,4-glucan:maltose-1-phosphate maltosyltransferase OS=Corynebacterium glutamicum (strain ATCC 13032 / DSM 20300 / BCRC 11384 / JCM 1318 / LMG 3730 / NCIMB 10025) OX=196627 GN=glgE PE=3 SV=2

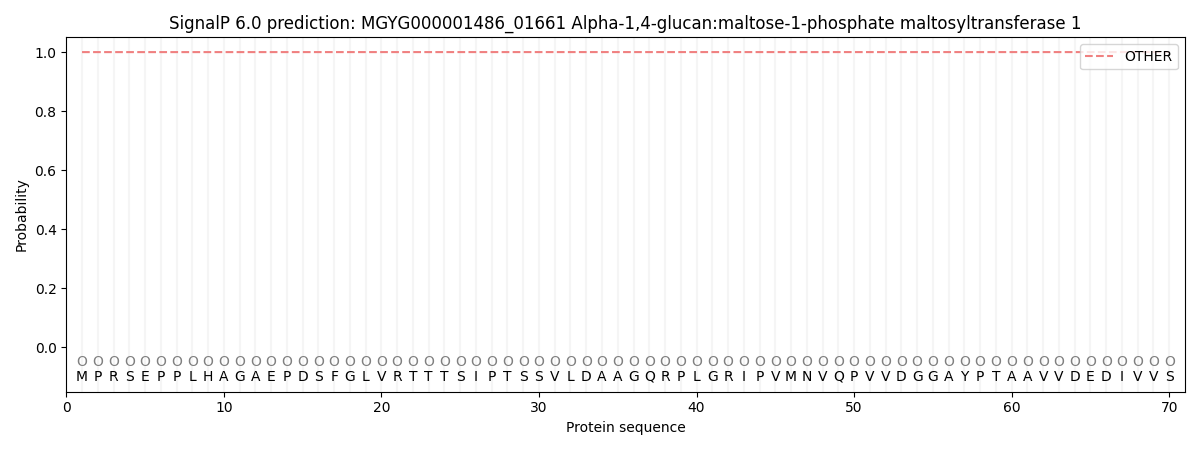

SignalP and Lipop Annotations

This protein is predicted as OTHER

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
1.000035	0.000019	0.000000	0.000000	0.000000	0.000000

TMHMM  Annotations

There is no transmembrane helices in MGYG000001486_01661.
