CAZyme Information: MGYG000001828_00079

Basic Information

• Species: UBA4951 sp900542595
• Lineage: Bacteria; Firmicutes; Bacilli; RFN20; CAG-826; UBA4951; UBA4951 sp900542595
• CAZyme ID: MGYG000001828_00079
• CAZy Family: GH13
• CAZyme Description: Alpha-1,4-glucan:maltose-1-phosphate maltosyltransferase

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
433		50095.48	5.1628

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000001828	1066613	MAG	Denmark	Europe

• Gene Location: Start: 73758; End: 75059 Strand: -

Full Sequence

MKTELLNQIIYQVYTRNFSEEGSFKEVGKALPYFKKLGVDILYLLPVSPIGKLNRKGDLG
SPYSIEDYMKINPELGTEDDFKSLIKNAHGEGMKVMIDIVFNHTSRDSYLVKHHPEWMYK
NKEGKMSNKVGDWSDVYDLEYDAPGLVDYLVSVIEHYCALGVDGFRFDVASLLPKKFFLA
LRKMLDEKYPETILLGESVEPSFITYLRSNNITALSDSELYDCGFDLLYMYDCFPYLRDY
LEGKGDENLTRYKLALYLETTANPKEGMRIRGLENHDQKRLLQFTNDRTCLLSLLSFSVF
MKGPMFIYDGLETDSDHALNLFTKDVMTWGDPDKVIPGWKEHLQKLISFKKEEKNKHILT
SVPSLKEGKYLLIKNTYDDGDISFGYFPLAPGLKVTDEELIDDEYTDYLSKERIKVEHHL
LQSDVPLLLFKKL

Enzyme Prediction

No EC number prediction in MGYG000001828_00079.

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GH13	17	313	6.8e-42	0.9331103678929766

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
cd11313	AmyAc_arch_bac_AmyA	3.43e-117	7	354	4	331	Alpha amylase catalytic domain found in archaeal and bacterial Alpha-amylases (also called 1,4-alpha-D-glucan-4-glucanohydrolase). AmyA (EC 3.2.1.1) catalyzes the hydrolysis of alpha-(1,4) glycosidic linkages of glycogen, starch, related polysaccharides, and some oligosaccharides. This group includes firmicutes, bacteroidetes, and proteobacteria. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
COG0366	AmyA	1.82e-36	8	312	1	355	Glycosidase [Carbohydrate transport and metabolism].
cd11338	AmyAc_CMD	1.31e-35	31	197	62	238	Alpha amylase catalytic domain found in cyclomaltodextrinases and related proteins. Cyclomaltodextrinase (CDase; EC3.2.1.54), neopullulanase (NPase; EC 3.2.1.135), and maltogenic amylase (MA; EC 3.2.1.133) catalyze the hydrolysis of alpha-(1,4) glycosidic linkages on a number of substrates including cyclomaltodextrins (CDs), pullulan, and starch. These enzymes hydrolyze CDs and starch to maltose and pullulan to panose by cleavage of alpha-1,4 glycosidic bonds whereas alpha-amylases essentially lack activity on CDs and pullulan. They also catalyze transglycosylation of oligosaccharides to the C3-, C4- or C6-hydroxyl groups of various acceptor sugar molecules. Since these proteins are nearly indistinguishable from each other, they are referred to as cyclomaltodextrinases (CMDs). The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
cd00551	AmyAc_family	8.37e-34	9	308	1	252	Alpha amylase catalytic domain family. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; and C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost this catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
cd11344	AmyAc_GlgE_like	1.45e-33	11	197	5	214	Alpha amylase catalytic domain found in GlgE-like proteins. GlgE is a (1,4)-a-D-glucan:phosphate a-D-maltosyltransferase, involved in a-glucan biosynthesis in bacteria. It is also an anti-tuberculosis drug target. GlgE isoform I from Streptomyces coelicolor has the same catalytic and very similar kinetic properties to GlgE from Mycobacterium tuberculosis. GlgE from Streptomyces coelicolor forms a homodimer with each subunit comprising five domains (A, B, C, N, and S) and 2 inserts. Domain A is a catalytic alpha-amylase-type domain that along with domain N, which has a beta-sandwich fold and forms the core of the dimer interface, binds cyclodextrins. Domain A, B, and the 2 inserts define a well conserved donor pocket that binds maltose. Cyclodextrins competitively inhibit the binding of maltooligosaccharides to the S. coelicolor enzyme, indicating that the hydrophobic patch overlaps with the acceptor binding site. This is not the case in M. tuberculosis GlgE because cyclodextrins do not inhibit this enzyme, despite acceptor length specificity being conserved. Domain C is hypothesized to help stabilize domain A and could be involved in substrate binding. Domain S is a helix bundle that is inserted within the N domain and it plays a role in the dimer interface and interacts directly with domain B. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
BCR36439.1	9.15e-104	2	431	6	424
QOS39137.1	3.04e-103	1	426	1	418
CCB83111.1	2.18e-98	2	431	6	425
AYJ40583.1	2.18e-98	2	431	6	425
QLY40718.1	2.93e-98	2	329	6	330

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
3DHU_A	9.20e-95	2	410	7	405	Crystalstructure of an alpha-amylase from Lactobacillus plantarum [Lactiplantibacillus plantarum],3DHU_B Crystal structure of an alpha-amylase from Lactobacillus plantarum [Lactiplantibacillus plantarum],3DHU_C Crystal structure of an alpha-amylase from Lactobacillus plantarum [Lactiplantibacillus plantarum],3DHU_D Crystal structure of an alpha-amylase from Lactobacillus plantarum [Lactiplantibacillus plantarum]
4GKL_A	1.46e-58	5	384	3	351	Crystalstructure of a noncanonic maltogenic alpha-amylase AmyB from Thermotoga neapolitana [Thermotoga neapolitana],4GKL_B Crystal structure of a noncanonic maltogenic alpha-amylase AmyB from Thermotoga neapolitana [Thermotoga neapolitana]
2ZE0_A	2.21e-21	2	312	3	366	Alpha-glucosidaseGSJ [Geobacillus sp. HTA-462]
5CGM_A	5.12e-21	22	198	251	445	Structureof Mycobacterium thermoresistibile GlgE in complex with maltose at 1.95A resolution [Mycolicibacterium thermoresistibile ATCC 19527],5CGM_B Structure of Mycobacterium thermoresistibile GlgE in complex with maltose at 1.95A resolution [Mycolicibacterium thermoresistibile ATCC 19527],5CIM_A Structure of Mycobacterium thermoresistibile GlgE in complex with maltose (cocrystallisation with maltose-1-phosphate) at 3.32A resolution [Mycolicibacterium thermoresistibile ATCC 19527],5CIM_B Structure of Mycobacterium thermoresistibile GlgE in complex with maltose (cocrystallisation with maltose-1-phosphate) at 3.32A resolution [Mycolicibacterium thermoresistibile ATCC 19527],5CJ5_A Structure of Mycobacterium thermoresistibile GlgE APO form at 3.13A resolution [Mycolicibacterium thermoresistibile ATCC 19527],5CJ5_B Structure of Mycobacterium thermoresistibile GlgE APO form at 3.13A resolution [Mycolicibacterium thermoresistibile ATCC 19527]
4U33_A	1.26e-20	22	201	276	473	Structureof Mtb GlgE bound to maltose [Mycobacterium tuberculosis CDC1551],4U33_B Structure of Mtb GlgE bound to maltose [Mycobacterium tuberculosis CDC1551],4U33_C Structure of Mtb GlgE bound to maltose [Mycobacterium tuberculosis CDC1551],4U33_D Structure of Mtb GlgE bound to maltose [Mycobacterium tuberculosis CDC1551],4U33_E Structure of Mtb GlgE bound to maltose [Mycobacterium tuberculosis CDC1551],4U33_F Structure of Mtb GlgE bound to maltose [Mycobacterium tuberculosis CDC1551],4U3C_A Docking Site of Maltohexaose in the Mtb GlgE [Mycobacterium tuberculosis CDC1551],4U3C_B Docking Site of Maltohexaose in the Mtb GlgE [Mycobacterium tuberculosis CDC1551],4U3C_C Docking Site of Maltohexaose in the Mtb GlgE [Mycobacterium tuberculosis CDC1551],4U3C_D Docking Site of Maltohexaose in the Mtb GlgE [Mycobacterium tuberculosis CDC1551],4U3C_E Docking Site of Maltohexaose in the Mtb GlgE [Mycobacterium tuberculosis CDC1551],4U3C_F Docking Site of Maltohexaose in the Mtb GlgE [Mycobacterium tuberculosis CDC1551]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
Q1D651	2.43e-23	11	198	206	416	Alpha-1,4-glucan:maltose-1-phosphate maltosyltransferase OS=Myxococcus xanthus (strain DK1622) OX=246197 GN=glgE PE=3 SV=1
Q2S498	3.25e-23	16	247	204	447	Alpha-1,4-glucan:maltose-1-phosphate maltosyltransferase OS=Salinibacter ruber (strain DSM 13855 / M31) OX=309807 GN=glgE PE=3 SV=1
Q9R9H8	2.17e-22	22	353	175	499	Intracellular maltogenic amylase OS=Bacillus subtilis OX=1423 GN=bbmA PE=1 SV=2
O06988	1.26e-21	22	353	175	499	Intracellular maltogenic amylase OS=Bacillus subtilis (strain 168) OX=224308 GN=bbmA PE=3 SV=2
P14898	2.21e-20	14	391	153	551	Alpha-amylase 2 OS=Dictyoglomus thermophilum (strain ATCC 35947 / DSM 3960 / H-6-12) OX=309799 GN=amyB PE=1 SV=2

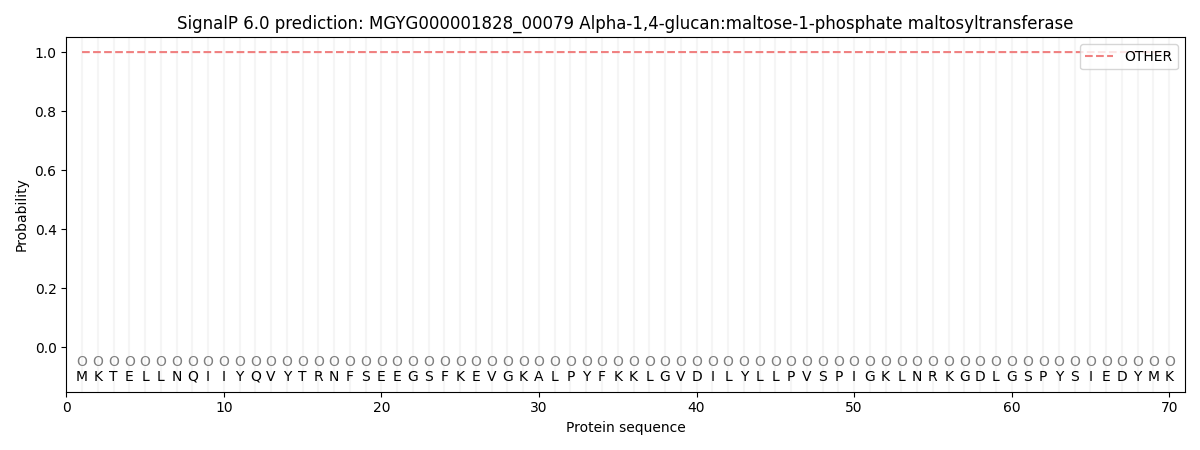

SignalP and Lipop Annotations

This protein is predicted as OTHER

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
1.000074	0.000000	0.000000	0.000000	0.000000	0.000000

TMHMM  Annotations

There is no transmembrane helices in MGYG000001828_00079.
