CAZyme Information: MGYG000002025_00712

Basic Information

• Lineage: Bacteria; Firmicutes_A; Clostridia; Lachnospirales; Lachnospiraceae; RUG12045
• CAZyme ID: MGYG000002025_00712
• CAZy Family: GT2
• CAZyme Description: Undecaprenyl-phosphate 4-deoxy-4-formamido-L-arabinose transferase

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
336	MGYG000002025_10|CGC2	38288.44	6.4987

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000002025	2870501	MAG	Spain	Europe

• Gene Location: Start: 64409; End: 65419 Strand: +

Full Sequence

MLVSVVIPCYNSEHTIEKVVDLCMEAFAQWEGYECEMVLVNDYSKDKTFEAITRAAKKYP
NVIGVNLAKNFGQHAAIMAGLHYVHGDYVVGMDDDLQNQPYQIKQFLDKVEEGYDVVFGC
FKKRKFSAFKNFTGAVSQFLLFHLVDRPKDIEMSSFWLARRYVIDEIKKYRGNDAFIQLL
FVRTTRNLADIEIDHFERAVGESNYTFWKGLKLFLSFMNYSTIPLQLSTVLGAGFSVVGF
IAAIAILIRKLVDPGVQVGWSSTMCIILIVAGITFLMMGIIGEYVGKLIMTMNQTPLYVV
RDTLNTEKGQKAEETVSEKDETTRETKKLEKIEKKD

Enzyme Prediction

No EC number prediction in MGYG000002025_00712.

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GT2	4	167	3.1e-32	0.9882352941176471

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
cd04187	DPM1_like_bac	4.59e-57	5	181	1	176	Bacterial DPM1_like enzymes are related to eukaryotic DPM1. A family of bacterial enzymes related to eukaryotic DPM1; Although the mechanism of eukaryotic enzyme is well studied, the mechanism of the bacterial enzymes is not well understood. The eukaryotic DPM1 is the catalytic subunit of eukaryotic Dolichol-phosphate mannose (DPM) synthase. DPM synthase is required for synthesis of the glycosylphosphatidylinositol (GPI) anchor, N-glycan precursor, protein O-mannose, and C-mannose. The enzyme has three subunits, DPM1, DPM2 and DPM3. DPM is synthesized from dolichol phosphate and GDP-Man on the cytosolic surface of the ER membrane by DPM synthase and then is flipped onto the luminal side and used as a donor substrate. This protein family belongs to Glycosyltransferase 2 superfamily.
cd04179	DPM_DPG-synthase_like	5.22e-44	5	177	1	176	DPM_DPG-synthase_like is a member of the Glycosyltransferase 2 superfamily. DPM1 is the catalytic subunit of eukaryotic dolichol-phosphate mannose (DPM) synthase. DPM synthase is required for synthesis of the glycosylphosphatidylinositol (GPI) anchor, N-glycan precursor, protein O-mannose, and C-mannose. In higher eukaryotes,the enzyme has three subunits, DPM1, DPM2 and DPM3. DPM is synthesized from dolichol phosphate and GDP-Man on the cytosolic surface of the ER membrane by DPM synthase and then is flipped onto the luminal side and used as a donor substrate. In lower eukaryotes, such as Saccharomyces cerevisiae and Trypanosoma brucei, DPM synthase consists of a single component (Dpm1p and TbDpm1, respectively) that possesses one predicted transmembrane region near the C terminus for anchoring to the ER membrane. In contrast, the Dpm1 homologues of higher eukaryotes, namely fission yeast, fungi, and animals, have no transmembrane region, suggesting the existence of adapter molecules for membrane anchoring. This family also includes bacteria and archaea DPM1_like enzymes. However, the enzyme structure and mechanism of function are not well understood. The UDP-glucose:dolichyl-phosphate glucosyltransferase (DPG_synthase) is a transmembrane-bound enzyme of the endoplasmic reticulum involved in protein N-linked glycosylation. This enzyme catalyzes the transfer of glucose from UDP-glucose to dolichyl phosphate. This protein family belongs to Glycosyltransferase 2 superfamily.
PRK10714	PRK10714	9.37e-44	3	315	8	323	undecaprenyl phosphate 4-deoxy-4-formamido-L-arabinose transferase; Provisional
pfam00535	Glycos_transf_2	5.45e-27	4	164	1	164	Glycosyl transferase family 2. Diverse family, transferring sugar from UDP-glucose, UDP-N-acetyl- galactosamine, GDP-mannose or CDP-abequose, to a range of substrates including cellulose, dolichol phosphate and teichoic acids.
COG0463	WcaA	3.85e-23	1	251	3	252	Glycosyltransferase involved in cell wall bisynthesis [Cell wall/membrane/envelope biogenesis].

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
QNM10258.1	4.56e-158	1	313	1	316
QOV20099.1	4.64e-147	1	305	1	305
QUF80541.1	2.90e-86	1	315	1	317
SOB73627.1	2.10e-83	1	305	1	307
QUI96750.1	1.83e-82	1	302	1	303

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
5EKP_A	1.15e-37	4	302	29	328	Structureof the polyisoprenyl-phosphate glycosyltransferase GtrB (WT) [Synechocystis sp. PCC 6803 substr. Kazusa],5EKP_B Structure of the polyisoprenyl-phosphate glycosyltransferase GtrB (WT) [Synechocystis sp. PCC 6803 substr. Kazusa],5EKP_C Structure of the polyisoprenyl-phosphate glycosyltransferase GtrB (WT) [Synechocystis sp. PCC 6803 substr. Kazusa],5EKP_D Structure of the polyisoprenyl-phosphate glycosyltransferase GtrB (WT) [Synechocystis sp. PCC 6803 substr. Kazusa]
5EKE_A	1.60e-37	4	302	29	328	Structureof the polyisoprenyl-phosphate glycosyltransferase GtrB (F215A mutant) [Synechocystis sp. PCC 6803 substr. Kazusa],5EKE_B Structure of the polyisoprenyl-phosphate glycosyltransferase GtrB (F215A mutant) [Synechocystis sp. PCC 6803 substr. Kazusa],5EKE_C Structure of the polyisoprenyl-phosphate glycosyltransferase GtrB (F215A mutant) [Synechocystis sp. PCC 6803 substr. Kazusa],5EKE_D Structure of the polyisoprenyl-phosphate glycosyltransferase GtrB (F215A mutant) [Synechocystis sp. PCC 6803 substr. Kazusa]
5MLZ_A	3.93e-12	1	119	23	137	Dolichylphosphate mannose synthase in complex with GDP and Mg2+ [Pyrococcus furiosus DSM 3638],5MM0_A Dolichyl phosphate mannose synthase in complex with GDP-mannose and Mn2+ (donor complex) [Pyrococcus furiosus DSM 3638],5MM1_A Dolichyl phosphate mannose synthase in complex with GDP and dolichyl phosphate mannose [Pyrococcus furiosus DSM 3638]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
B4ETL6	6.48e-43	3	314	10	324	Undecaprenyl-phosphate 4-deoxy-4-formamido-L-arabinose transferase OS=Proteus mirabilis (strain HI4320) OX=529507 GN=arnC PE=3 SV=1
O34319	3.27e-42	4	301	8	306	Uncharacterized glycosyltransferase YkcC OS=Bacillus subtilis (strain 168) OX=224308 GN=ykcC PE=3 SV=2
Q7N3Q6	3.43e-42	3	301	9	310	Undecaprenyl-phosphate 4-deoxy-4-formamido-L-arabinose transferase OS=Photorhabdus laumondii subsp. laumondii (strain DSM 15139 / CIP 105565 / TT01) OX=243265 GN=arnC PE=2 SV=1
A8FRR3	3.95e-42	3	304	10	314	Undecaprenyl-phosphate 4-deoxy-4-formamido-L-arabinose transferase OS=Shewanella sediminis (strain HAW-EB3) OX=425104 GN=arnC PE=3 SV=1
Q9HY64	2.21e-37	2	300	8	309	Undecaprenyl-phosphate 4-deoxy-4-formamido-L-arabinose transferase OS=Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1) OX=208964 GN=arnC PE=3 SV=1

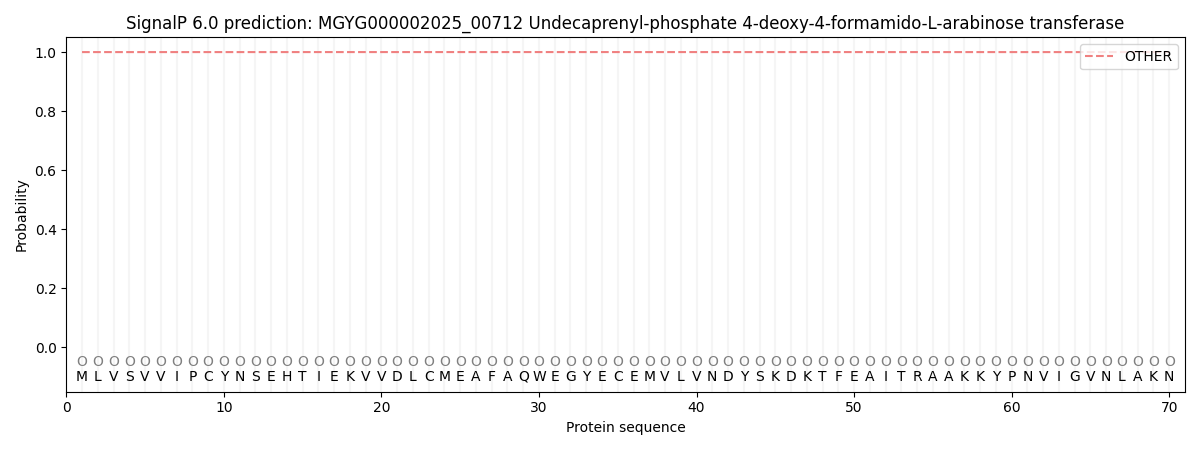

SignalP and Lipop Annotations

This protein is predicted as OTHER

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
1.000077	0.000000	0.000000	0.000000	0.000000	0.000000

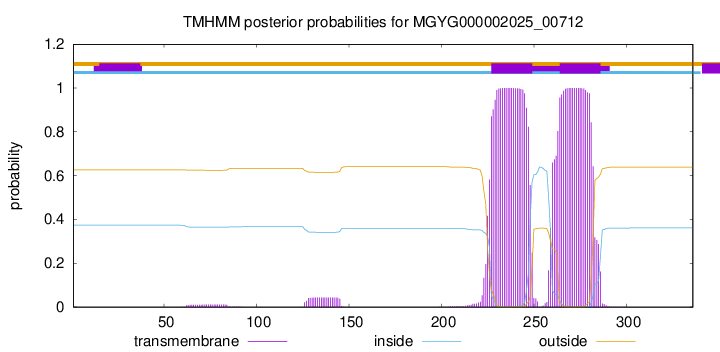

TMHMM  Annotations

start	end
227	249
264	286
