CAZyme Information: MGYG000002071_00625

Basic Information

• Lineage: Bacteria; Firmicutes_A; Clostridia; Oscillospirales; Oscillospiraceae; HGM13006
• CAZyme ID: MGYG000002071_00625
• CAZy Family: GH13
• CAZyme Description: 1,4-alpha-glucan branching enzyme GlgB

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
328		37666.63	5.797

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000002071	2257677	MAG	Netherlands	Europe

• Gene Location: Start: 6261; End: 7247 Strand: -

Full Sequence

MTSMLYLNFGLPDWAEKQYNEHGTEEDLHAVSFLRELNRVVHQYAPGAITVAEESSAWPQ
VTGPVEDGGLGFDYKWDMGWMNDTLDYCKTDFPYRPGCHDKLTFSMMYNFSERFILPLSH
DEVVHGKLSLLSRMPGDYWRQFAGLRLLLLYQITHPGGKLSFMSTEYAPFIEWREYESLE
WFLLDYPAHRSHQDYVKSLNALYRDTPALWQRDRSWEGFCWLDAGDAEQSILLYRRTGEK
AGGSVTVLLNFQPTVYQNFRIGVPQPGVYREIFCSDYKEFGGSGKGNFTPLKAEPIPCHG
EKYSVAVEVPPIGGIVLQRLPRGRKANA

Enzyme Prediction

EC	2.4.1.18

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GH13	2	168	2.2e-68	0.5481727574750831

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
PRK05402	PRK05402	1.49e-170	3	319	408	723	1,4-alpha-glucan branching protein GlgB.
PRK12313	PRK12313	1.14e-159	3	325	313	633	1,4-alpha-glucan branching protein GlgB.
TIGR01515	branching_enzym	1.86e-128	3	317	304	617	alpha-1,4-glucan:alpha-1,4-glucan 6-glycosyltransferase. This model describes the glycogen branching enzymes which are responsible for the transfer of chains of approx. 7 alpha(1--4)-linked glucosyl residues to other similar chains (in new alpha(1--6) linkages) in the biosynthesis of glycogen. This enzyme is a member of the broader amylase family of starch hydrolases which fold as (beta/alpha)8 barrels, the so-called TIM-barrel structure. All of the sequences comprising the seed of this model have been experimentally characterized. This model encompasses both bacterial and eukaryotic species. No archaea have this enzyme, although Aquifex aolicus does. Two species, Bacillus thuringiensis and Clostridium perfringens have two sequences each which are annotated as amylases. These annotations are aparrently in error. GP|18143720 from C. perfringens, for instance, contains the note "674 aa, similar to gp:A14658_1 amylase (1,4-alpha-glucan branching enzyme (EC 2.4.1.18) ) from Bacillus thuringiensis (648 aa); 51.1% identity in 632 aa overlap." A branching enzyme from Porphyromonas gingivales, OMNI|PG1793, appears to be more closely related to the eukaryotic species (across a deep phylogenetic split) and may represent an instance of lateral transfer from this species' host. A sequence from Arabidopsis thaliana, GP|9294564, scores just above trusted, but appears either to contain corrupt sequence or, more likely, to be a pseudogene as some of the conserved catalytic residues common to the alpha amylase family are not conserved here. [Energy metabolism, Biosynthesis and degradation of polysaccharides]
cd11322	AmyAc_Glg_BE	1.60e-117	3	205	201	402	Alpha amylase catalytic domain found in the Glycogen branching enzyme (also called 1,4-alpha-glucan branching enzyme). The glycogen branching enzyme catalyzes the third step of glycogen biosynthesis by the cleavage of an alpha-(1,4)-glucosidic linkage and the formation a new alpha-(1,6)-branch by subsequent transfer of cleaved oligosaccharide. They are part of a group called branching enzymes which catalyze the formation of alpha-1,6 branch points in either glycogen or starch. This group includes proteins from bacteria, eukaryotes, and archaea. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
COG0296	GlgB	2.41e-112	2	319	306	628	1,4-alpha-glucan branching enzyme [Carbohydrate transport and metabolism].

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
QRG87199.1	1.22e-137	1	320	305	624
BCV18019.1	8.98e-130	1	319	319	638
QUC03504.1	3.54e-128	1	325	329	657
BBH49561.1	7.82e-128	1	319	340	659
ACV51479.1	1.94e-127	1	325	338	666

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
6JOY_A	1.10e-93	1	318	307	617	TheX-ray Crystallographic Structure of Branching Enzyme from Rhodothermus obamensis STB05 [Rhodothermus marinus]
6KLF_A	8.22e-93	1	321	432	751	ChainA, 1,4-alpha-glucan branching enzyme GlgB [Crocosphaera subtropica ATCC 51142]
5GQZ_A	1.26e-92	1	321	456	775	Crystalstructure of branching enzyme Y500A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]
5GQU_A	1.77e-92	1	321	456	775	Crystalstructure of branching enzyme from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GQV_A Crystal structure of branching enzyme from Cyanothece sp. ATCC 51142 in complex with maltohexaose [Crocosphaera subtropica ATCC 51142],5GQY_A Crystal structure of branching enzyme from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142]
5GR2_A	4.89e-92	1	321	456	775	Crystalstructure of branching enzyme L541A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GR4_A Crystal structure of branching enzyme L541A mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
Q8CZE8	2.16e-107	1	322	309	636	1,4-alpha-glucan branching enzyme GlgB OS=Oceanobacillus iheyensis (strain DSM 14371 / CIP 107618 / JCM 11309 / KCTC 3954 / HTE831) OX=221109 GN=glgB PE=3 SV=1
B8CVY1	2.53e-107	1	320	310	628	1,4-alpha-glucan branching enzyme GlgB OS=Halothermothrix orenii (strain H 168 / OCM 544 / DSM 9562) OX=373903 GN=glgB PE=3 SV=1
Q0SWZ1	1.57e-106	1	327	338	664	1,4-alpha-glucan branching enzyme GlgB 1 OS=Clostridium perfringens (strain SM101 / Type A) OX=289380 GN=glgB1 PE=3 SV=1
Q8XPA2	6.20e-106	1	327	338	664	1,4-alpha-glucan branching enzyme GlgB 1 OS=Clostridium perfringens (strain 13 / Type A) OX=195102 GN=glgB1 PE=3 SV=1
Q24VW3	1.03e-103	1	318	312	628	1,4-alpha-glucan branching enzyme GlgB OS=Desulfitobacterium hafniense (strain Y51) OX=138119 GN=glgB PE=3 SV=1

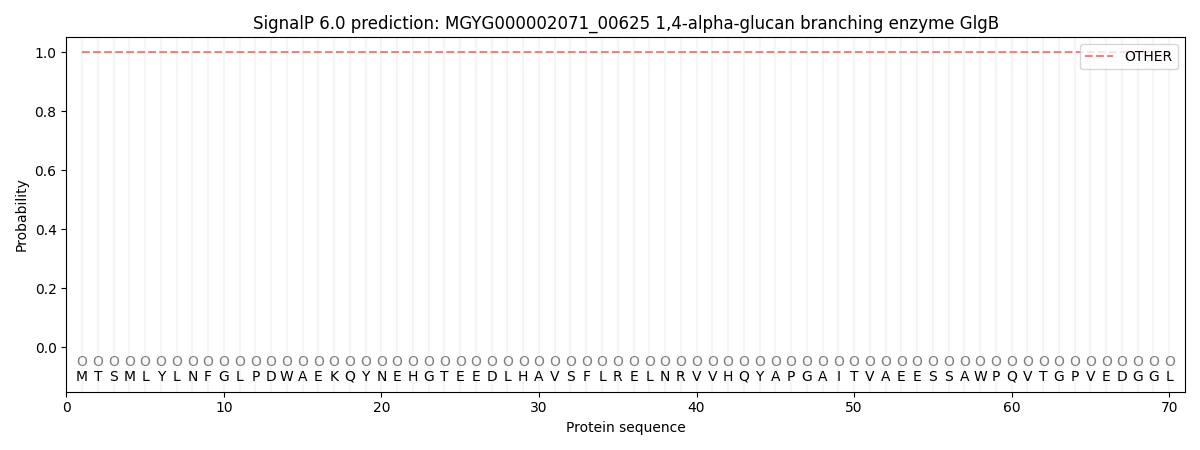

SignalP and Lipop Annotations

This protein is predicted as OTHER

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
1.000054	0.000009	0.000000	0.000000	0.000000	0.000000

TMHMM  Annotations

There is no transmembrane helices in MGYG000002071_00625.
