Basic Information help
| Species | CAG-83 sp900550585 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lineage | Bacteria; Firmicutes_A; Clostridia; Oscillospirales; Oscillospiraceae; CAG-83; CAG-83 sp900550585 | |||||||||||
| CAZyme ID | MGYG000002156_01424 | |||||||||||
| CAZy Family | CBM48 | |||||||||||
| CAZyme Description | 1,4-alpha-glucan branching enzyme GlgB | |||||||||||
| CAZyme Property |
|
|||||||||||
| Genome Property |
|
|||||||||||
| Gene Location | Start: 6153; End: 8045 Strand: + | |||||||||||
CAZyme Signature Domains help
| Family | Start | End | Evalue | family coverage |
|---|---|---|---|---|
| GH13 | 166 | 465 | 7.7e-147 | 0.9933554817275747 |
| CBM48 | 20 | 98 | 6.6e-17 | 0.8947368421052632 |
CDD Domains download full data without filtering help
| Cdd ID | Domain | E-Value | qStart | qEnd | sStart | sEnd | Domain Description |
|---|---|---|---|---|---|---|---|
| PRK14705 | PRK14705 | 0.0 | 28 | 609 | 639 | 1217 | glycogen branching enzyme; Provisional |
| PRK05402 | PRK05402 | 0.0 | 4 | 617 | 102 | 726 | 1,4-alpha-glucan branching protein GlgB. |
| PRK14706 | PRK14706 | 0.0 | 20 | 624 | 27 | 631 | glycogen branching enzyme; Provisional |
| TIGR01515 | branching_enzym | 0.0 | 7 | 613 | 4 | 618 | alpha-1,4-glucan:alpha-1,4-glucan 6-glycosyltransferase. This model describes the glycogen branching enzymes which are responsible for the transfer of chains of approx. 7 alpha(1--4)-linked glucosyl residues to other similar chains (in new alpha(1--6) linkages) in the biosynthesis of glycogen. This enzyme is a member of the broader amylase family of starch hydrolases which fold as (beta/alpha)8 barrels, the so-called TIM-barrel structure. All of the sequences comprising the seed of this model have been experimentally characterized. This model encompasses both bacterial and eukaryotic species. No archaea have this enzyme, although Aquifex aolicus does. Two species, Bacillus thuringiensis and Clostridium perfringens have two sequences each which are annotated as amylases. These annotations are aparrently in error. GP|18143720 from C. perfringens, for instance, contains the note "674 aa, similar to gp:A14658_1 amylase (1,4-alpha-glucan branching enzyme (EC 2.4.1.18) ) from Bacillus thuringiensis (648 aa); 51.1% identity in 632 aa overlap." A branching enzyme from Porphyromonas gingivales, OMNI|PG1793, appears to be more closely related to the eukaryotic species (across a deep phylogenetic split) and may represent an instance of lateral transfer from this species' host. A sequence from Arabidopsis thaliana, GP|9294564, scores just above trusted, but appears either to contain corrupt sequence or, more likely, to be a pseudogene as some of the conserved catalytic residues common to the alpha amylase family are not conserved here. [Energy metabolism, Biosynthesis and degradation of polysaccharides] |
| PRK12313 | PRK12313 | 0.0 | 4 | 620 | 11 | 633 | 1,4-alpha-glucan branching protein GlgB. |
CAZyme Hits help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End |
|---|---|---|---|---|---|
| QUO35275.1 | 0.0 | 1 | 622 | 3 | 612 |
| BCK80923.1 | 0.0 | 11 | 629 | 11 | 626 |
| BCK78909.1 | 0.0 | 10 | 622 | 8 | 613 |
| QNL44653.1 | 0.0 | 17 | 625 | 12 | 621 |
| QUO39422.1 | 3.54e-314 | 5 | 625 | 7 | 634 |
PDB Hits download full data without filtering help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End | Description |
|---|---|---|---|---|---|---|
| 3K1D_A | 4.28e-216 | 4 | 612 | 105 | 719 | Crystalstructure of glycogen branching enzyme synonym: 1,4-alpha-D-glucan:1,4-alpha-D-GLUCAN 6-glucosyl-transferase from mycobacterium tuberculosis H37RV [Mycobacterium tuberculosis H37Rv] |
| 6JOY_A | 1.40e-212 | 3 | 612 | 7 | 616 | TheX-ray Crystallographic Structure of Branching Enzyme from Rhodothermus obamensis STB05 [Rhodothermus marinus] |
| 5GQW_A | 1.11e-204 | 3 | 613 | 132 | 772 | Crystalstructure of branching enzyme W610N mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GQX_A Crystal structure of branching enzyme W610N mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142] |
| 5GR5_A | 1.57e-204 | 3 | 613 | 132 | 772 | Crystalstructure of branching enzyme W610A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142] |
| 5GQZ_A | 1.57e-204 | 3 | 613 | 132 | 772 | Crystalstructure of branching enzyme Y500A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142] |
Swiss-Prot Hits download full data without filtering help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End | Description |
|---|---|---|---|---|---|---|
| Q5NXV7 | 4.67e-232 | 4 | 612 | 14 | 625 | 1,4-alpha-glucan branching enzyme GlgB OS=Aromatoleum aromaticum (strain EbN1) OX=76114 GN=glgB PE=3 SV=1 |
| Q1AZ86 | 4.41e-231 | 4 | 615 | 103 | 720 | 1,4-alpha-glucan branching enzyme GlgB OS=Rubrobacter xylanophilus (strain DSM 9941 / NBRC 16129 / PRD-1) OX=266117 GN=glgB PE=3 SV=1 |
| B8CVY1 | 2.85e-224 | 7 | 613 | 13 | 626 | 1,4-alpha-glucan branching enzyme GlgB OS=Halothermothrix orenii (strain H 168 / OCM 544 / DSM 9562) OX=373903 GN=glgB PE=3 SV=1 |
| O66936 | 9.31e-223 | 4 | 616 | 11 | 630 | 1,4-alpha-glucan branching enzyme GlgB OS=Aquifex aeolicus (strain VF5) OX=224324 GN=glgB PE=3 SV=1 |
| Q8DLB8 | 2.25e-221 | 4 | 625 | 110 | 757 | 1,4-alpha-glucan branching enzyme GlgB OS=Thermosynechococcus vestitus (strain IAM M-273 / NIES-2133 / BP-1) OX=197221 GN=glgB PE=3 SV=1 |

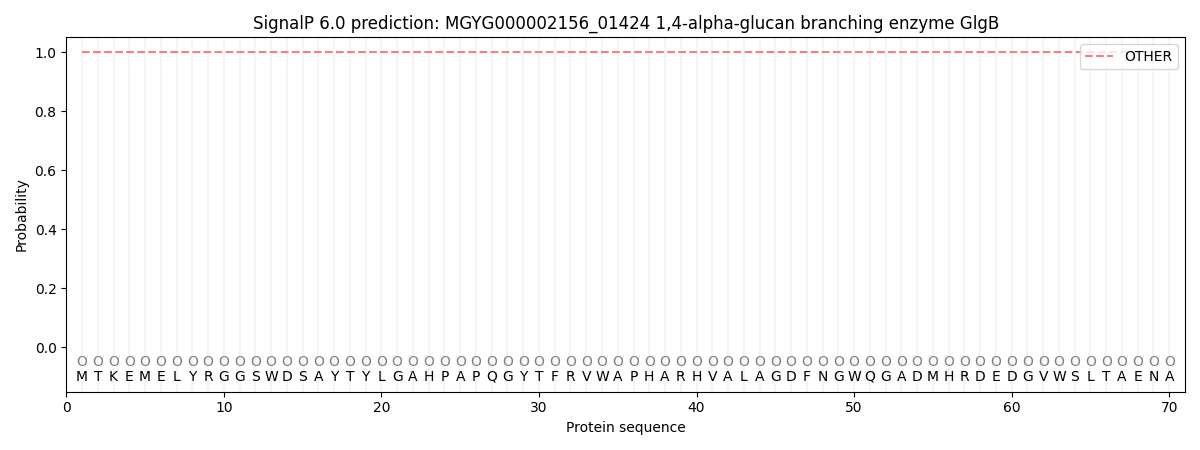

SignalP and Lipop Annotations help
This protein is predicted as OTHER
| Other | SP_Sec_SPI | LIPO_Sec_SPII | TAT_Tat_SPI | TATLIP_Sec_SPII | PILIN_Sec_SPIII |
|---|---|---|---|---|---|
| 1.000062 | 0.000001 | 0.000000 | 0.000000 | 0.000000 | 0.000000 |
