CAZyme Information: MGYG000002289_01446

You are here: Home > Sequence: MGYG000002289_01446

Basic Information | Genomic context | Full Sequence | Enzyme annotations |  CAZy signature domains |  CDD domains | CAZyme hits | PDB hits | Swiss-Prot hits | SignalP and Lipop annotations | TMHMM annotations

Basic Information help

Species Coprococcus sp000433075
Lineage Bacteria; Firmicutes_A; Clostridia; Lachnospirales; Lachnospiraceae; Coprococcus; Coprococcus sp000433075
CAZyme ID MGYG000002289_01446
CAZy Family CBM48
CAZyme Description 1,4-alpha-glucan branching enzyme GlgB
CAZyme Property
Protein Length CGC Molecular Weight Isoelectric Point
821 93112.69 7.2499
Genome Property
Genome Assembly ID Genome Size Genome Type Country Continent
MGYG000002289 2644240 Isolate China Asia
Gene Location Start: 24433;  End: 26898  Strand: +

Full Sequence      Download help

Enzyme Prediction      help

EC 2.4.1.18

CAZyme Signature Domains help

Family Start End Evalue family coverage
GH13 288 587 3e-151 0.9933554817275747
CBM48 129 214 1.7e-17 0.8947368421052632

CDD Domains      download full data without filtering help

Cdd ID Domain E-Value qStart qEnd sStart sEnd Domain Description
COG0296 GlgB 0.0 105 737 1 628
1,4-alpha-glucan branching enzyme [Carbohydrate transport and metabolism].
PRK14705 PRK14705 0.0 16 730 510 1215
glycogen branching enzyme; Provisional
PRK12313 PRK12313 0.0 108 737 5 627
1,4-alpha-glucan branching protein GlgB.
PRK05402 PRK05402 0.0 15 738 7 724
1,4-alpha-glucan branching protein GlgB.
cd11322 AmyAc_Glg_BE 0.0 217 623 1 402
Alpha amylase catalytic domain found in the Glycogen branching enzyme (also called 1,4-alpha-glucan branching enzyme). The glycogen branching enzyme catalyzes the third step of glycogen biosynthesis by the cleavage of an alpha-(1,4)-glucosidic linkage and the formation a new alpha-(1,6)-branch by subsequent transfer of cleaved oligosaccharide. They are part of a group called branching enzymes which catalyze the formation of alpha-1,6 branch points in either glycogen or starch. This group includes proteins from bacteria, eukaryotes, and archaea. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.

CAZyme Hits      help

Hit ID E-Value Query Start Query End Hit Start Hit End
CBK82088.1 0.0 1 760 1 761
QNL99342.1 0.0 1 768 1 766
QWT52740.1 0.0 1 746 1 745
BBF44560.1 0.0 1 760 1 759
ANV77640.1 5.38e-295 22 736 14 730

PDB Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
5GR5_A 1.07e-240 7 740 28 776
Crystalstructure of branching enzyme W610A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]
5GR1_A 2.14e-240 7 740 28 776
Crystalstructure of branching enzyme Y500A/D501A mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142],5GR6_A Crystal structure of branching enzyme Y500A/D501A double mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]
5GR2_A 4.28e-240 7 740 28 776
Crystalstructure of branching enzyme L541A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GR4_A Crystal structure of branching enzyme L541A mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142]
5GQZ_A 4.28e-240 7 740 28 776
Crystalstructure of branching enzyme Y500A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]
5GR0_A 6.05e-240 7 740 28 776
Crystalstructure of branching enzyme D501A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]

Swiss-Prot Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
P30539 1.29e-261 110 743 7 638
1,4-alpha-glucan branching enzyme GlgB OS=Butyrivibrio fibrisolvens OX=831 GN=glgB PE=1 SV=1
Q1AZ86 6.82e-260 17 735 10 717
1,4-alpha-glucan branching enzyme GlgB OS=Rubrobacter xylanophilus (strain DSM 9941 / NBRC 16129 / PRD-1) OX=266117 GN=glgB PE=3 SV=1
Q7NL20 5.26e-257 25 736 21 727
1,4-alpha-glucan branching enzyme GlgB OS=Gloeobacter violaceus (strain ATCC 29082 / PCC 7421) OX=251221 GN=glgB PE=3 SV=1
Q608L5 1.08e-255 14 735 14 723
1,4-alpha-glucan branching enzyme GlgB OS=Methylococcus capsulatus (strain ATCC 33009 / NCIMB 11132 / Bath) OX=243233 GN=glgB PE=3 SV=1
Q8DLB8 8.59e-254 15 738 9 751
1,4-alpha-glucan branching enzyme GlgB OS=Thermosynechococcus vestitus (strain IAM M-273 / NIES-2133 / BP-1) OX=197221 GN=glgB PE=3 SV=1

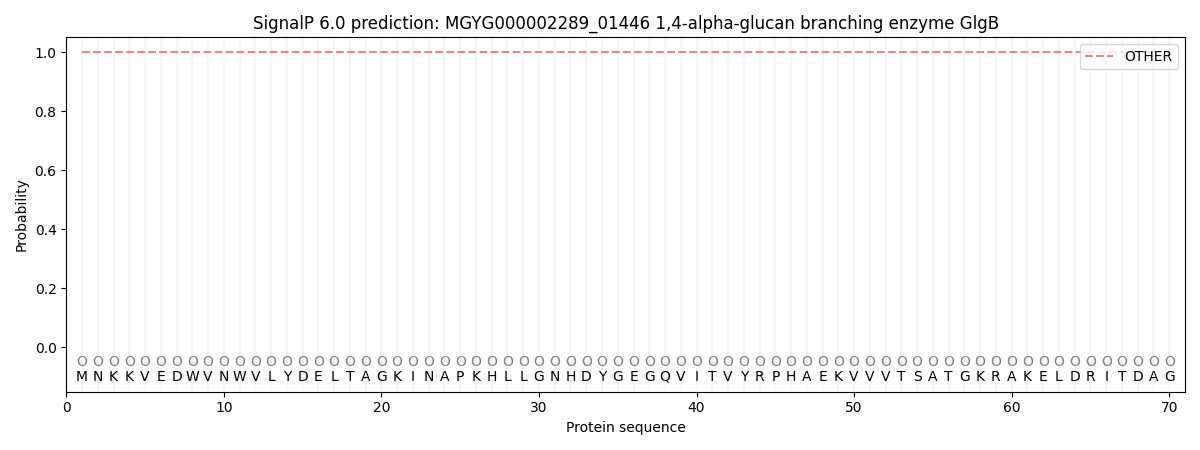

SignalP and Lipop Annotations help

This protein is predicted as OTHER

Other SP_Sec_SPI LIPO_Sec_SPII TAT_Tat_SPI TATLIP_Sec_SPII PILIN_Sec_SPIII
1.000070 0.000000 0.000000 0.000000 0.000000 0.000000

TMHMM  Annotations      help

There is no transmembrane helices in MGYG000002289_01446.
