CAZyme Information: MGYG000002311_03321

Basic Information

• Species: Vibrio cholerae
• Lineage: Bacteria; Proteobacteria; Gammaproteobacteria; Enterobacterales; Vibrionaceae; Vibrio; Vibrio cholerae
• CAZyme ID: MGYG000002311_03321
• CAZy Family: CBM48
• CAZyme Description: 1,4-alpha-glucan branching enzyme GlgB

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
729	MGYG000002311_2|CGC5	84026.56	6.171

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000002311	4089020	Isolate	Haiti	North America

• Gene Location: Start: 649826; End: 652015 Strand: +

Full Sequence

MKITKKPSKVQQFYDQLARAAFADPFSFLGPYIPAEQGALRVWMPGADNVALVVEGQARV
ALEREGEGGFVLKDGRNLRFTHYQLAVDWAGTEQLLDDPYQYHGLYAEYEDLHTPKQMYH
HMGAQFVTLERDGKMVSGVRFLVYAPHAAACSLIGAFNHWDGRRHPMQRLDYGIWGIFIP
GLPEGTQYKFELKGPHGEGLPHKADPWGFYAEQYPSFASVTYDHRRYQWQDTAWQQRPVT
EKRKQALSFYELHVGSWKRGENGEFLNYRELADQLVPYLVEMGYTHVELMPVAEHPFYGS
WGYQPVGLFAPTSRYGSPDDFKYFVDLCHQAGIGVVLDWVPAHFPSDSHGLANFDGTPLF
HDPDPRRGWHQDWNSYIYDLGREHVRRFLVANALYWFEMFHIDGIRVDAVASMLYLDYSR
SHDQWIPNVDGGRENYDAIATFKWMNEEVYKHFPNAMTIAEESTAFPGVSAPTFMGGLGF
GFKWNMGWMHDSLSYIKEDPVHRKYHHNTLTFPLIYAFSENYVLSLSHDEVVYGKRSLMY
KMPGDEWQQTANLRAYLGYMYGQPGKKLNFMGTELGQTAEWDHDGQLQWFLTQFERHAGI
QRLVRDLNHLYQAQTALHQLDCDPRGFEWRLQDNADLSVIAHERMDEAGNRVLVITNFTP
VPQQEFRLGVPKTGKYRLLLNTDAKQYNGSDYPVLQDVSTEAISSEGLDQSLLLSVPPLA
TLFYQWSAK

Enzyme Prediction

EC	2.4.1.18

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GH13	277	577	9.6e-157	0.9966777408637874
CBM48	122	211	8.8e-16	0.8552631578947368

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
PRK12313	PRK12313	0.0	117	725	22	626	1,4-alpha-glucan branching protein GlgB.
COG0296	GlgB	0.0	101	726	1	628	1,4-alpha-glucan branching enzyme [Carbohydrate transport and metabolism].
PRK14705	PRK14705	0.0	16	724	510	1220	glycogen branching enzyme; Provisional
PRK14706	PRK14706	0.0	120	728	25	623	glycogen branching enzyme; Provisional
PRK05402	PRK05402	0.0	11	729	3	726	1,4-alpha-glucan branching protein GlgB.

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
QJS82968.1	0.0	1	729	1	729
QKU64384.1	0.0	1	729	1	729
APF69322.1	0.0	1	729	1	729
ATD22258.1	0.0	1	729	1	729
QJS79311.1	0.0	1	729	1	729

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
4LPC_A	2.35e-229	114	723	1	606	CrystalStructure of E.Coli Branching Enzyme in complex with maltoheptaose [Escherichia coli],4LPC_B Crystal Structure of E.Coli Branching Enzyme in complex with maltoheptaose [Escherichia coli],4LPC_C Crystal Structure of E.Coli Branching Enzyme in complex with maltoheptaose [Escherichia coli],4LPC_D Crystal Structure of E.Coli Branching Enzyme in complex with maltoheptaose [Escherichia coli],4LQ1_A Crystal Structure of E.Coli Branching Enzyme in complex with maltohexaose [Escherichia coli],4LQ1_B Crystal Structure of E.Coli Branching Enzyme in complex with maltohexaose [Escherichia coli],4LQ1_C Crystal Structure of E.Coli Branching Enzyme in complex with maltohexaose [Escherichia coli],4LQ1_D Crystal Structure of E.Coli Branching Enzyme in complex with maltohexaose [Escherichia coli],5E6Y_A Crystal structure of E.Coli branching enzyme in complex with alpha cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E6Y_B Crystal structure of E.Coli branching enzyme in complex with alpha cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E6Y_C Crystal structure of E.Coli branching enzyme in complex with alpha cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E6Y_D Crystal structure of E.Coli branching enzyme in complex with alpha cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E6Z_A Crystal structure of Ecoli Branching Enzyme with beta cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E6Z_B Crystal structure of Ecoli Branching Enzyme with beta cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E6Z_C Crystal structure of Ecoli Branching Enzyme with beta cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E6Z_D Crystal structure of Ecoli Branching Enzyme with beta cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E70_A Crystal structure of Ecoli Branching Enzyme with gamma cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E70_B Crystal structure of Ecoli Branching Enzyme with gamma cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E70_C Crystal structure of Ecoli Branching Enzyme with gamma cyclodextrin [Escherichia coli O139:H28 str. E24377A],5E70_D Crystal structure of Ecoli Branching Enzyme with gamma cyclodextrin [Escherichia coli O139:H28 str. E24377A]
1M7X_A	2.80e-229	114	723	6	611	TheX-ray Crystallographic Structure of Branching Enzyme [Escherichia coli],1M7X_B The X-ray Crystallographic Structure of Branching Enzyme [Escherichia coli],1M7X_C The X-ray Crystallographic Structure of Branching Enzyme [Escherichia coli],1M7X_D The X-ray Crystallographic Structure of Branching Enzyme [Escherichia coli]
5GQW_A	5.29e-219	24	722	40	769	Crystalstructure of branching enzyme W610N mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GQX_A Crystal structure of branching enzyme W610N mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142]
5GR5_A	1.50e-218	24	722	40	769	Crystalstructure of branching enzyme W610A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]
5GR0_A	1.50e-218	24	722	40	769	Crystalstructure of branching enzyme D501A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
Q87FR0	0.0	1	725	25	752	1,4-alpha-glucan branching enzyme GlgB OS=Vibrio parahaemolyticus serotype O3:K6 (strain RIMD 2210633) OX=223926 GN=glgB PE=3 SV=1
Q8D4P0	0.0	14	725	2	713	1,4-alpha-glucan branching enzyme GlgB OS=Vibrio vulnificus (strain CMCP6) OX=216895 GN=glgB PE=3 SV=1
Q5DZB8	0.0	16	725	2	713	1,4-alpha-glucan branching enzyme GlgB OS=Aliivibrio fischeri (strain ATCC 700601 / ES114) OX=312309 GN=glgB PE=3 SV=1
Q9KNE8	0.0	1	729	1	729	1,4-alpha-glucan branching enzyme GlgB OS=Vibrio cholerae serotype O1 (strain ATCC 39315 / El Tor Inaba N16961) OX=243277 GN=glgB PE=3 SV=2
Q6LHN1	0.0	16	723	2	709	1,4-alpha-glucan branching enzyme GlgB OS=Photobacterium profundum (strain SS9) OX=298386 GN=glgB PE=3 SV=1

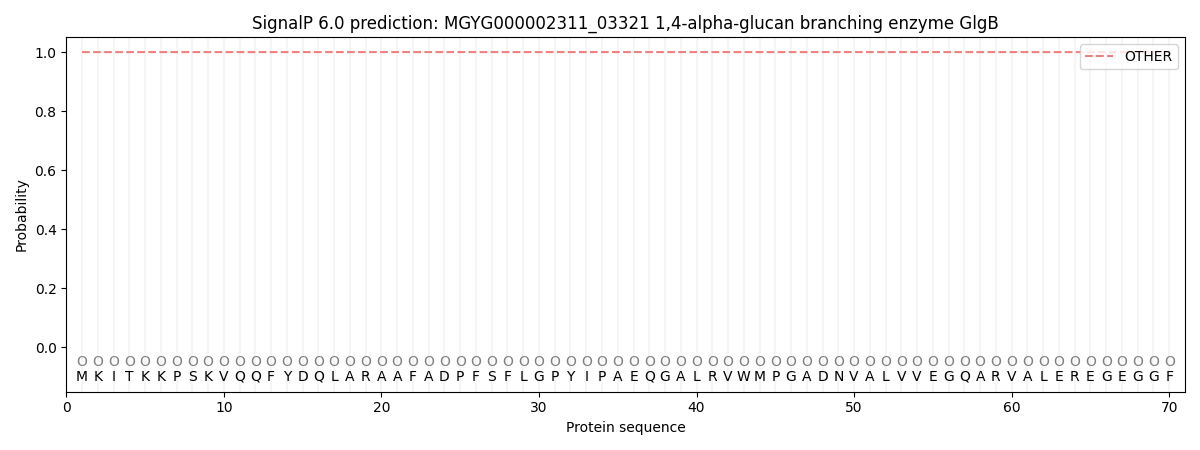

SignalP and Lipop Annotations

This protein is predicted as OTHER

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
1.000053	0.000000	0.000000	0.000000	0.000000	0.000000

TMHMM  Annotations

There is no transmembrane helices in MGYG000002311_03321.
