CAZyme Information: MGYG000002321_02294

You are here: Home > Sequence: MGYG000002321_02294

Basic Information help

Species

Ruminococcus_D bicirculans

Lineage

Bacteria; Firmicutes_A; Clostridia; Oscillospirales; Ruminococcaceae; Ruminococcus_D; Ruminococcus_D bicirculans

CAZyme ID

MGYG000002321_02294

CAZy Family

GH13

CAZyme Description

1,4-alpha-glucan branching enzyme GlgB

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
594		69559.2	5.6842

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000002321	2968500	Isolate	not provided	not provided

Gene Location

Start: 157333; End: 159117 Strand: -

Full Sequence Download help

Enzyme Prediction help

No EC number prediction in MGYG000002321_02294.

CAZyme Signature Domains help

Family	Start	End	Evalue	family coverage
GH13	164	453	2.4e-118	0.9966777408637874

CDD Domains download full data without filtering help

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
COG0296	GlgB	0.0	16	592	21	627	1,4-alpha-glucan branching enzyme [Carbohydrate transport and metabolism].
PRK05402	PRK05402	0.0	9	590	108	720	1,4-alpha-glucan branching protein GlgB.
PRK12313	PRK12313	0.0	9	591	15	625	1,4-alpha-glucan branching protein GlgB.
cd11322	AmyAc_Glg_BE	0.0	97	489	1	402	Alpha amylase catalytic domain found in the Glycogen branching enzyme (also called 1,4-alpha-glucan branching enzyme). The glycogen branching enzyme catalyzes the third step of glycogen biosynthesis by the cleavage of an alpha-(1,4)-glucosidic linkage and the formation a new alpha-(1,6)-branch by subsequent transfer of cleaved oligosaccharide. They are part of a group called branching enzymes which catalyze the formation of alpha-1,6 branch points in either glycogen or starch. This group includes proteins from bacteria, eukaryotes, and archaea. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
PRK12568	PRK12568	2.16e-161	11	594	119	729	glycogen branching enzyme; Provisional

CAZyme Hits help

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
CCO05921.1	0.0	1	594	1	594
ADU22582.1	0.0	5	591	2	588
BCI60272.1	6.90e-257	1	591	1	604
CAB1245011.1	6.90e-236	1	565	1	580
QKN23379.1	1.21e-223	1	564	24	598

PDB Hits download full data without filtering help

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
5GQW_A	3.84e-157	9	591	137	771	Crystalstructure of branching enzyme W610N mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GQX_A Crystal structure of branching enzyme W610N mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142]
5GR2_A	3.84e-157	9	591	137	771	Crystalstructure of branching enzyme L541A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GR4_A Crystal structure of branching enzyme L541A mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142]
5GR1_A	5.43e-157	9	591	137	771	Crystalstructure of branching enzyme Y500A/D501A mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142],5GR6_A Crystal structure of branching enzyme Y500A/D501A double mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]
5GR5_A	5.43e-157	9	591	137	771	Crystalstructure of branching enzyme W610A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]
5GQZ_A	7.66e-157	9	591	137	771	Crystalstructure of branching enzyme Y500A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]

Swiss-Prot Hits download full data without filtering help

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
P30537	2.62e-177	9	569	14	586	1,4-alpha-glucan branching enzyme GlgB OS=Bacillus caldolyticus OX=1394 GN=glgB PE=1 SV=1
P30538	2.28e-174	9	569	14	586	1,4-alpha-glucan branching enzyme GlgB OS=Geobacillus stearothermophilus OX=1422 GN=glgB PE=1 SV=1
B7HBC7	2.94e-168	8	569	13	586	1,4-alpha-glucan branching enzyme GlgB OS=Bacillus cereus (strain B4264) OX=405532 GN=glgB PE=3 SV=1
B7IM37	8.32e-168	8	569	13	586	1,4-alpha-glucan branching enzyme GlgB OS=Bacillus cereus (strain G9842) OX=405531 GN=glgB PE=3 SV=1
Q632H1	1.29e-167	8	569	5	578	1,4-alpha-glucan branching enzyme GlgB OS=Bacillus cereus (strain ZK / E33L) OX=288681 GN=glgB PE=3 SV=1

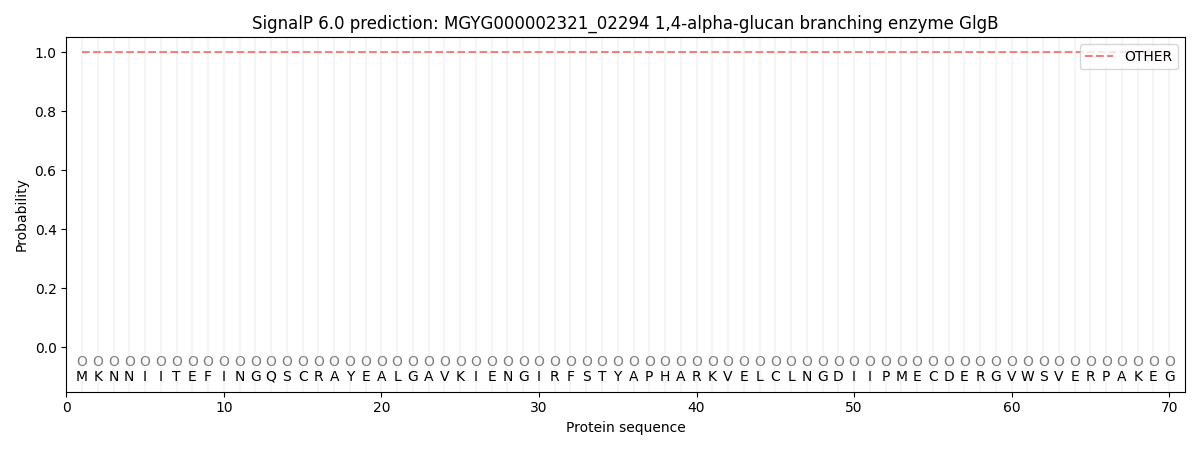

SignalP and Lipop Annotations help

This protein is predicted as OTHER

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
1.000085	0.000000	0.000000	0.000000	0.000000	0.000000

TMHMM Annotations help

There is no transmembrane helices in MGYG000002321_02294.
