You are browsing environment: HUMAN GUT
help

CAZyme Information: MGYG000002334_01640

You are here: Home > Sequence: MGYG000002334_01640

Basic Information | Genomic context | Full Sequence | Enzyme annotations |  CAZy signature domains |  CDD domains | CAZyme hits | PDB hits | Swiss-Prot hits | SignalP and Lipop annotations | TMHMM annotations

Basic Information help

Species Bifidobacterium thermophilum
Lineage Bacteria; Actinobacteriota; Actinomycetia; Actinomycetales; Bifidobacteriaceae; Bifidobacterium; Bifidobacterium thermophilum
CAZyme ID MGYG000002334_01640
CAZy Family GH13
CAZyme Description Pullulanase
CAZyme Property
Protein Length CGC Molecular Weight Isoelectric Point
657 MGYG000002334_1|CGC21 71848.92 4.5723
Genome Property
Genome Assembly ID Genome Size Genome Type Country Continent
MGYG000002334 2291643 Isolate not provided not provided
Gene Location Start: 2087513;  End: 2089486  Strand: +

Full Sequence      Download help

Enzyme Prediction      help

EC 3.2.1.1 3.2.1.41

CAZyme Signature Domains help

Family Start End Evalue family coverage
GH13 197 520 3.9e-102 0.9930795847750865

CDD Domains      download full data without filtering help

Cdd ID Domain E-Value qStart qEnd sStart sEnd Domain Description
cd11341 AmyAc_Pullulanase_LD-like 0.0 150 563 4 406
Alpha amylase catalytic domain found in Pullulanase (also called dextrinase; alpha-dextrin endo-1,6-alpha glucosidase), limit dextrinase, and related proteins. Pullulanase is an enzyme with action similar to that of isoamylase; it cleaves 1,6-alpha-glucosidic linkages in pullulan, amylopectin, and glycogen, and in alpha-and beta-amylase limit-dextrins of amylopectin and glycogen. Pullulanases are very similar to limit dextrinases, although they differ in their action on glycogen and the rate of hydrolysis of limit dextrins. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
TIGR02104 pulA_typeI 0.0 11 625 8 599
pullulanase, type I. Pullulan is an unusual, industrially important polysaccharide in which short alpha-1,4 chains (maltotriose) are connected in alpha-1,6 linkages. Enzymes that cleave alpha-1,6 linkages in pullulan and release maltotriose are called pullulanases although pullulan itself may not be the natural substrate. This family consists of pullulanases related to the subfamilies described in TIGR02102 and TIGR02103 but having a different domain architecture with shorter sequences. Members are called type I pullulanases.
COG1523 PulA 5.30e-123 23 657 68 692
Pullulanase/glycogen debranching enzyme [Carbohydrate transport and metabolism].
TIGR02103 pullul_strch 2.74e-91 15 653 128 893
alpha-1,6-glucosidases, pullulanase-type. Members of this protein family include secreted (or membrane-anchored) pullulanases of Gram-negative bacteria and pullulanase-type starch debranching enzymes of plants. Both enzymes hydrolyze alpha-1,6 glycosidic linkages. Pullulan is an unusual, industrially important polysaccharide in which short alpha-1,4 chains (maltotriose) are connected in alpha-1,6 linkages. Enzymes that cleave alpha-1,6 linkages in pullulan and release maltotriose are called pullulanases although pullulan itself may not be the natural substrate. This family is closely homologous to, but architecturally different from, the Gram-positive pullulanases of Gram-positive bacteria (TIGR02102). [Energy metabolism, Biosynthesis and degradation of polysaccharides]
PLN02877 PLN02877 1.45e-84 11 543 211 791
alpha-amylase/limit dextrinase

CAZyme Hits      help

Hit ID E-Value Query Start Query End Hit Start Hit End
AGH41957.1 0.0 1 657 1 657
AYZ21359.1 6.44e-250 1 655 1 659
ADP38323.1 7.41e-249 4 655 5 659
SDR90778.1 7.41e-249 4 655 5 659
BAQ32759.1 7.41e-249 4 655 5 659

PDB Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
7LSA_A 2.11e-129 15 653 64 710
ChainA, Pullulanase [Ruminococcus bromii]
7LSR_A 3.22e-128 15 653 64 710
ChainA, Pullulanase [Ruminococcus bromii]
7LSU_A 3.40e-128 15 653 64 710
ChainA, Pullulanase [Ruminococcus bromii]
7LST_A 3.48e-128 15 653 64 710
ChainA, Pullulanase [Ruminococcus bromii]
6JEQ_A 4.10e-123 15 569 41 564
Crystalstructure of Pullulanase from Paenibacillus barengoltzii complex with beta-cyclodextrin [Paenibacillus barengoltzii],6JFJ_A Crystal structure of Pullulanase from Paenibacillus barengoltzii complex with maltohexaose and alpha-cyclodextrin [Paenibacillus barengoltzii],6JFX_A Crystal structure of Pullulanase from Paenibacillus barengoltzii complex with maltopentaose [Paenibacillus barengoltzii],6JHF_A Crystal structure of apo Pullulanase from Paenibacillus barengoltzii [Paenibacillus barengoltzii],6JHG_A Crystal structure of apo Pullulanase from Paenibacillus barengoltzii in space group P212121 [Paenibacillus barengoltzii]

Swiss-Prot Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
O33840 1.17e-104 11 624 221 815
Pullulanase OS=Thermotoga maritima (strain ATCC 43589 / DSM 3109 / JCM 10099 / NBRC 100826 / MSB8) OX=243274 GN=pulA PE=1 SV=2
C0SPA0 1.89e-104 11 569 102 619
Pullulanase OS=Bacillus subtilis (strain 168) OX=224308 GN=amyX PE=1 SV=1
Q8GTR4 3.49e-57 11 547 204 794
Pullulanase 1, chloroplastic OS=Arabidopsis thaliana OX=3702 GN=PU1 PE=1 SV=2
A0A0H2ZL64 2.66e-56 11 532 432 942
Pullulanase A OS=Streptococcus pneumoniae serotype 2 (strain D39 / NCTC 7466) OX=373153 GN=spuA PE=3 SV=1
Q9F930 3.67e-56 11 525 454 957
Pullulanase A OS=Streptococcus pneumoniae OX=1313 GN=spuA PE=1 SV=1

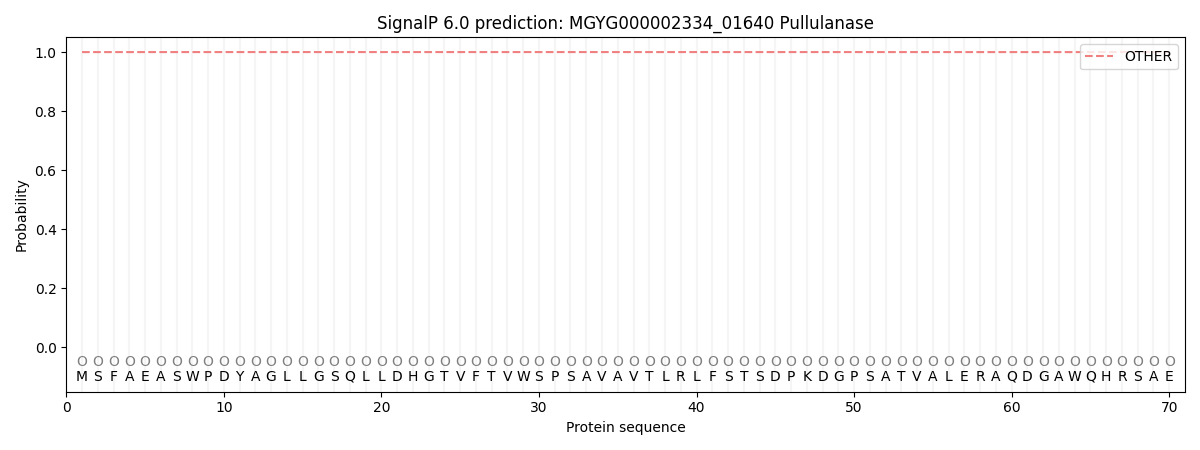

SignalP and Lipop Annotations help

This protein is predicted as OTHER

Other SP_Sec_SPI LIPO_Sec_SPII TAT_Tat_SPI TATLIP_Sec_SPII PILIN_Sec_SPIII
1.000066 0.000001 0.000000 0.000000 0.000000 0.000000

TMHMM  Annotations      help

There is no transmembrane helices in MGYG000002334_01640.
