CAZyme Information: MGYG000002478_00032

You are here: Home > Sequence: MGYG000002478_00032

Basic Information | Genomic context | Full Sequence | Enzyme annotations |  CAZy signature domains |  CDD domains | CAZyme hits | PDB hits | Swiss-Prot hits | SignalP and Lipop annotations | TMHMM annotations

Basic Information help

Species Phocaeicola dorei
Lineage Bacteria; Bacteroidota; Bacteroidia; Bacteroidales; Bacteroidaceae; Phocaeicola; Phocaeicola dorei
CAZyme ID MGYG000002478_00032
CAZy Family GH67
CAZyme Description Extracellular xylan exo-alpha-(1->2)-glucuronosidase
CAZyme Property
Protein Length CGC Molecular Weight Isoelectric Point
681 MGYG000002478_1|CGC2 77278.37 7.3306
Genome Property
Genome Assembly ID Genome Size Genome Type Country Continent
MGYG000002478 5444912 Isolate Finland Europe
Gene Location Start: 35544;  End: 37589  Strand: -

Full Sequence      Download help

Enzyme Prediction      help

EC 3.2.1.139 3.2.1.131 3.2.1.-

CAZyme Signature Domains help

Family Start End Evalue family coverage
GH67 65 650 3.8e-266 0.9028400597907325

CDD Domains      download full data without filtering help

Cdd ID Domain E-Value qStart qEnd sStart sEnd Domain Description
COG3661 AguA2 0.0 91 647 92 674
Alpha-glucuronidase [Carbohydrate transport and metabolism].
pfam07488 Glyco_hydro_67M 0.0 124 424 1 324
Glycosyl hydrolase family 67 middle domain. Alpha-glucuronidases, components of an ensemble of enzymes central to the recycling of photosynthetic biomass, remove the alpha-1,2 linked 4-O-methyl glucuronic acid from xylans. This family represents the central catalytic domain of alpha-glucuronidase.
pfam07477 Glyco_hydro_67C 1.70e-135 426 653 1 223
Glycosyl hydrolase family 67 C-terminus. Alpha-glucuronidases, components of an ensemble of enzymes central to the recycling of photosynthetic biomass, remove the alpha-1,2 linked 4-O-methyl glucuronic acid from xylans. This family represents the C terminal region of alpha-glucuronidase which is mainly alpha-helical. It wraps around the catalytic domain (pfam07488), making additional interactions both with the N-terminal domain (pfam03648) of its parent monomer and also forming the majority of the dimer-surface with the equivalent C-terminal domain of the other monomer of the dimer.
pfam03648 Glyco_hydro_67N 2.14e-04 41 121 1 120
Glycosyl hydrolase family 67 N-terminus. Alpha-glucuronidases, components of an ensemble of enzymes central to the recycling of photosynthetic biomass, remove the alpha-1,2 linked 4-O-methyl glucuronic acid from xylans. This family represents the N-terminal region of alpha-glucuronidase. The N-terminal domain forms a two-layer sandwich, each layer being formed by a beta sheet of five strands. A further two helices form part of the interface with the central, catalytic, module (pfam07488).

CAZyme Hits      help

Hit ID E-Value Query Start Query End Hit Start Hit End
ALA72078.1 0.0 1 681 1 681
QJR54275.1 0.0 1 681 1 681
QJR60927.1 0.0 1 681 1 681
AII66219.1 0.0 1 681 1 681
QJR73691.1 0.0 1 681 1 681

PDB Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
1GQI_A 2.81e-237 36 663 1 686
Structureof Pseudomonas cellulosa alpha-D-glucuronidase [Cellvibrio japonicus],1GQI_B Structure of Pseudomonas cellulosa alpha-D-glucuronidase [Cellvibrio japonicus],1GQJ_A Structure of Pseudomonas cellulosa alpha-D-glucuronidase complexed with xylobiose [Cellvibrio japonicus],1GQJ_B Structure of Pseudomonas cellulosa alpha-D-glucuronidase complexed with xylobiose [Cellvibrio japonicus],1GQK_A Structure of Pseudomonas cellulosa alpha-D-glucuronidase complexed with glucuronic acid [Cellvibrio japonicus],1GQK_B Structure of Pseudomonas cellulosa alpha-D-glucuronidase complexed with glucuronic acid [Cellvibrio japonicus],1GQL_A Structure of Pseudomonas cellulosa alpha-D-glucuronidase complexed with glucuronic acid and xylotriose [Cellvibrio japonicus],1GQL_B Structure of Pseudomonas cellulosa alpha-D-glucuronidase complexed with glucuronic acid and xylotriose [Cellvibrio japonicus]
1H41_A 2.27e-236 36 663 1 686
Pseudomonascellulosa E292A alpha-D-glucuronidase mutant complexed with aldotriuronic acid [Cellvibrio japonicus],1H41_B Pseudomonas cellulosa E292A alpha-D-glucuronidase mutant complexed with aldotriuronic acid [Cellvibrio japonicus]
1K9D_A 1.27e-171 48 646 33 669
The1.7 A crystal structure of alpha-D-glucuronidase, a family-67 glycoside hydrolase from Bacillus stearothermophilus T-1 [Geobacillus stearothermophilus],1L8N_A The 1.5A crystal structure of alpha-D-glucuronidase from Bacillus stearothermophilus T-1, complexed with 4-O-methyl-glucuronic acid and xylotriose [Geobacillus stearothermophilus],1MQQ_A THE CRYSTAL STRUCTURE OF ALPHA-D-GLUCURONIDASE FROM BACILLUS STEAROTHERMOPHILUS T-1 COMPLEXED WITH GLUCURONIC ACID [Geobacillus stearothermophilus]
1MQP_A 1.80e-171 48 646 33 669
TheCrystal Structure Of Alpha-D-Glucuronidase From Bacillus Stearothermophilus T-6 [Geobacillus stearothermophilus]
1MQR_A 5.08e-171 48 646 33 669
ChainA, ALPHA-D-GLUCURONIDASE [Geobacillus stearothermophilus]

Swiss-Prot Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
B3PC73 3.47e-236 36 663 25 710
Extracellular xylan exo-alpha-(1->2)-glucuronosidase OS=Cellvibrio japonicus (strain Ueda107) OX=498211 GN=gla67A PE=1 SV=1
Q09LY5 9.86e-171 48 646 33 669
Xylan alpha-(1->2)-glucuronosidase OS=Geobacillus stearothermophilus OX=1422 GN=aguA PE=1 SV=1
P96105 1.36e-163 106 651 103 669
Xylan alpha-(1->2)-glucuronosidase OS=Thermotoga maritima (strain ATCC 43589 / DSM 3109 / JCM 10099 / NBRC 100826 / MSB8) OX=243274 GN=aguA PE=1 SV=2
A1CC12 3.30e-145 93 663 113 706
Probable alpha-glucuronidase A OS=Aspergillus clavatus (strain ATCC 1007 / CBS 513.65 / DSM 816 / NCTC 3887 / NRRL 1 / QM 1276 / 107) OX=344612 GN=aguA PE=3 SV=1
Q4WW45 5.59e-143 93 646 113 686
Probable alpha-glucuronidase A OS=Neosartorya fumigata (strain ATCC MYA-4609 / Af293 / CBS 101355 / FGSC A1100) OX=330879 GN=aguA PE=3 SV=1

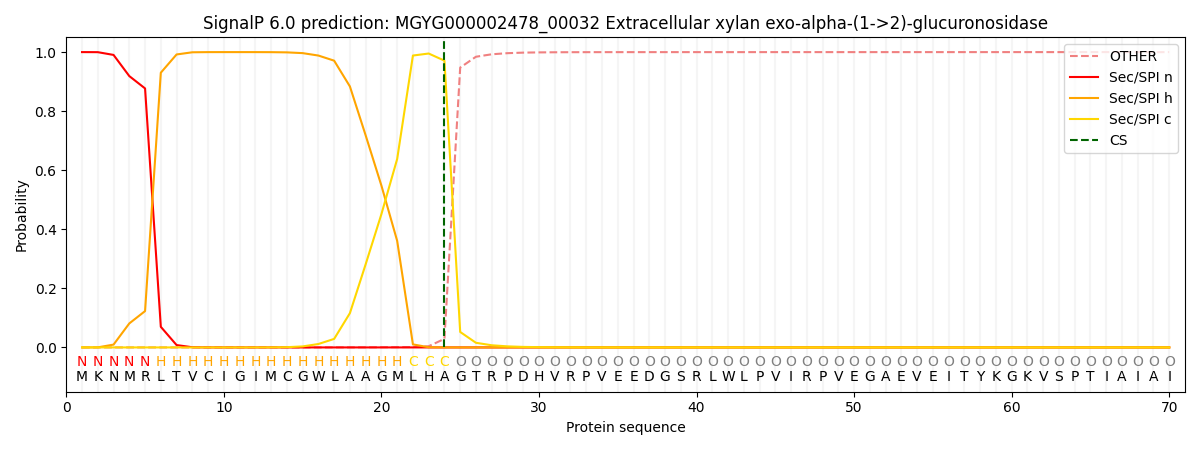

SignalP and Lipop Annotations help

This protein is predicted as SP

Other SP_Sec_SPI LIPO_Sec_SPII TAT_Tat_SPI TATLIP_Sec_SPII PILIN_Sec_SPIII
0.000471 0.998590 0.000336 0.000213 0.000194 0.000173

TMHMM  Annotations      help

There is no transmembrane helices in MGYG000002478_00032.
