You are browsing environment: HUMAN GUT
CAZyme Information: MGYG000002531_00516
You are here: Home > Sequence: MGYG000002531_00516
Basic Information |
Genomic context |
Full Sequence |
Enzyme annotations |
CAZy signature domains |
CDD domains |
CAZyme hits |
PDB hits |
Swiss-Prot hits |
SignalP and Lipop annotations |
TMHMM annotations
Basic Information help
| Species | Pseudobutyrivibrio fibrisolvens_A | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lineage | Bacteria; Firmicutes_A; Clostridia; Lachnospirales; Lachnospiraceae; Pseudobutyrivibrio; Pseudobutyrivibrio fibrisolvens_A | |||||||||||
| CAZyme ID | MGYG000002531_00516 | |||||||||||
| CAZy Family | GH13 | |||||||||||
| CAZyme Description | Neopullulanase 1 | |||||||||||
| CAZyme Property |
|
|||||||||||
| Genome Property |
|
|||||||||||
| Gene Location | Start: 478605; End: 480638 Strand: - | |||||||||||
CAZyme Signature Domains help
| Family | Start | End | Evalue | family coverage |
|---|---|---|---|---|
| GH13 | 173 | 552 | 2.4e-92 | 0.9968354430379747 |
CDD Domains download full data without filtering help
| Cdd ID | Domain | E-Value | qStart | qEnd | sStart | sEnd | Domain Description |
|---|---|---|---|---|---|---|---|
| cd11338 | AmyAc_CMD | 3.30e-156 | 120 | 588 | 1 | 389 | Alpha amylase catalytic domain found in cyclomaltodextrinases and related proteins. Cyclomaltodextrinase (CDase; EC3.2.1.54), neopullulanase (NPase; EC 3.2.1.135), and maltogenic amylase (MA; EC 3.2.1.133) catalyze the hydrolysis of alpha-(1,4) glycosidic linkages on a number of substrates including cyclomaltodextrins (CDs), pullulan, and starch. These enzymes hydrolyze CDs and starch to maltose and pullulan to panose by cleavage of alpha-1,4 glycosidic bonds whereas alpha-amylases essentially lack activity on CDs and pullulan. They also catalyze transglycosylation of oligosaccharides to the C3-, C4- or C6-hydroxyl groups of various acceptor sugar molecules. Since these proteins are nearly indistinguishable from each other, they are referred to as cyclomaltodextrinases (CMDs). The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase. |
| PRK10785 | PRK10785 | 1.28e-127 | 17 | 638 | 12 | 580 | maltodextrin glucosidase; Provisional |
| pfam00128 | Alpha-amylase | 1.77e-51 | 173 | 551 | 1 | 334 | Alpha amylase, catalytic domain. Alpha amylase is classified as family 13 of the glycosyl hydrolases. The structure is an 8 stranded alpha/beta barrel containing the active site, interrupted by a ~70 a.a. calcium-binding domain protruding between beta strand 3 and alpha helix 3, and a carboxyl-terminal Greek key beta-barrel domain. |
| COG0366 | AmyA | 4.14e-49 | 121 | 566 | 1 | 379 | Glycosidase [Carbohydrate transport and metabolism]. |
| PRK14510 | PRK14510 | 3.45e-39 | 170 | 588 | 175 | 577 | bifunctional glycogen debranching protein GlgX/4-alpha-glucanotransferase. |
CAZyme Hits help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End |
|---|---|---|---|---|---|
| CBK73472.1 | 0.0 | 1 | 677 | 1 | 677 |
| QFJ54948.1 | 0.0 | 1 | 677 | 1 | 677 |
| CBL08719.1 | 4.20e-293 | 5 | 673 | 28 | 696 |
| CBL13964.1 | 1.99e-289 | 5 | 673 | 28 | 708 |
| QUO31302.1 | 6.65e-289 | 1 | 675 | 1 | 676 |
PDB Hits download full data without filtering help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End | Description |
|---|---|---|---|---|---|---|
| 5Z0T_A | 2.57e-102 | 19 | 676 | 25 | 637 | Thermoactinomycesvulgaris R-47 alpha-amylase I (TVA I) mutant A357V/Q359N/Y360E (AQY/VNE) [Thermoactinomyces vulgaris],5Z0T_B Thermoactinomyces vulgaris R-47 alpha-amylase I (TVA I) mutant A357V/Q359N/Y360E (AQY/VNE) [Thermoactinomyces vulgaris] |
| 1JI1_A | 3.86e-101 | 19 | 676 | 25 | 637 | CrystalStructure Analysis of Thermoactinomyces vulgaris R-47 alpha-Amylase 1 [Thermoactinomyces vulgaris],1JI1_B Crystal Structure Analysis of Thermoactinomyces vulgaris R-47 alpha-Amylase 1 [Thermoactinomyces vulgaris],1UH3_A Thermoactinomyces vulgaris R-47 alpha-amylase/acarbose complex [Thermoactinomyces vulgaris] |
| 1IZJ_A | 5.41e-101 | 19 | 676 | 25 | 637 | ChainA, amylase [Thermoactinomyces vulgaris] |
| 1IZK_A | 1.06e-100 | 19 | 676 | 25 | 637 | ChainA, amylase [Thermoactinomyces vulgaris] |
| 5Z0U_A | 1.57e-100 | 19 | 676 | 25 | 626 | Thermoactinomycesvulgaris R-47 alpha-amylase I (TVA I) 11 residues (from A363 to N373) deletion mutant (Del11) [Thermoactinomyces vulgaris] |
Swiss-Prot Hits download full data without filtering help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End | Description |
|---|---|---|---|---|---|---|
| Q60053 | 4.43e-100 | 19 | 676 | 54 | 666 | Neopullulanase 1 OS=Thermoactinomyces vulgaris OX=2026 GN=tvaI PE=1 SV=1 |
| P38939 | 7.20e-81 | 114 | 623 | 379 | 878 | Amylopullulanase OS=Thermoanaerobacter pseudethanolicus (strain ATCC 33223 / 39E) OX=340099 GN=apu PE=1 SV=2 |
| P29964 | 1.26e-80 | 5 | 620 | 5 | 538 | Cyclomaltodextrinase OS=Thermoanaerobacter pseudethanolicus (strain ATCC 33223 / 39E) OX=340099 GN=Teth39_0676 PE=1 SV=2 |
| P16950 | 1.96e-77 | 114 | 628 | 379 | 884 | Amylopullulanase OS=Thermoanaerobacter thermohydrosulfuricus OX=1516 GN=apu PE=1 SV=1 |
| P36905 | 1.74e-76 | 27 | 673 | 277 | 919 | Amylopullulanase OS=Thermoanaerobacterium saccharolyticum OX=28896 GN=apu PE=3 SV=2 |

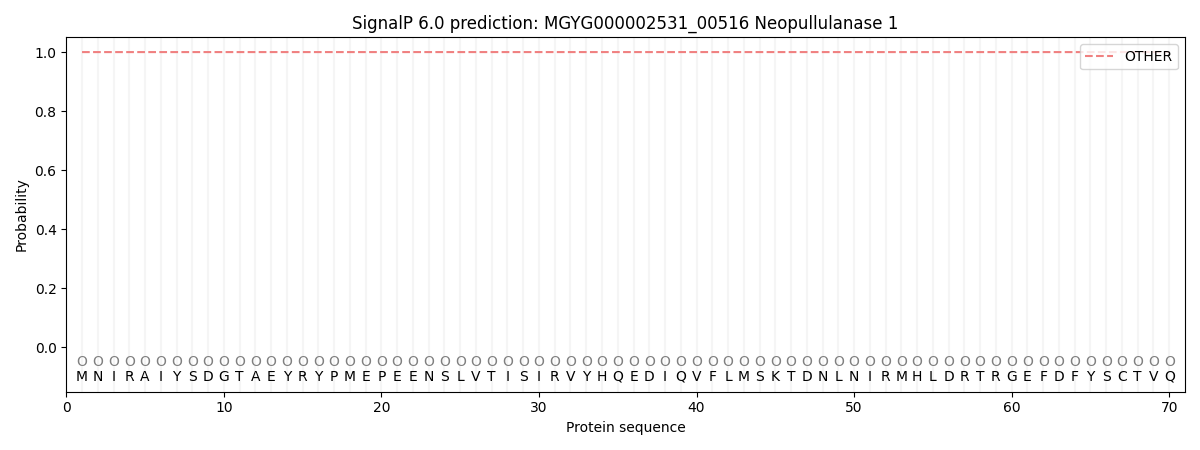

SignalP and Lipop Annotations help
This protein is predicted as OTHER
| Other | SP_Sec_SPI | LIPO_Sec_SPII | TAT_Tat_SPI | TATLIP_Sec_SPII | PILIN_Sec_SPIII |
|---|---|---|---|---|---|
| 1.000059 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 |
