CAZyme Information: MGYG000002614_01850

You are here: Home > Sequence: MGYG000002614_01850

Basic Information | Genomic context | Full Sequence | Enzyme annotations |  CAZy signature domains |  CDD domains | CAZyme hits | PDB hits | Swiss-Prot hits | SignalP and Lipop annotations | TMHMM annotations

Basic Information help

Species
Lineage Bacteria; Bacteroidota; Bacteroidia; Bacteroidales; Bacteroidaceae; Phocaeicola;
CAZyme ID MGYG000002614_01850
CAZy Family GH13
CAZyme Description Pullulanase
CAZyme Property
Protein Length CGC Molecular Weight Isoelectric Point
662 74227.6 5.9734
Genome Property
Genome Assembly ID Genome Size Genome Type Country Continent
MGYG000002614 2560607 MAG China Asia
Gene Location Start: 618;  End: 2606  Strand: -

Full Sequence      Download help

Enzyme Prediction      help

No EC number prediction in MGYG000002614_01850.

CAZyme Signature Domains help

Family Start End Evalue family coverage
GH13 199 520 1.5e-112 0.9965397923875432

CDD Domains      download full data without filtering help

Cdd ID Domain E-Value qStart qEnd sStart sEnd Domain Description
TIGR02104 pulA_typeI 0.0 28 637 1 602
pullulanase, type I. Pullulan is an unusual, industrially important polysaccharide in which short alpha-1,4 chains (maltotriose) are connected in alpha-1,6 linkages. Enzymes that cleave alpha-1,6 linkages in pullulan and release maltotriose are called pullulanases although pullulan itself may not be the natural substrate. This family consists of pullulanases related to the subfamilies described in TIGR02102 and TIGR02103 but having a different domain architecture with shorter sequences. Members are called type I pullulanases.
cd11341 AmyAc_Pullulanase_LD-like 0.0 156 563 2 406
Alpha amylase catalytic domain found in Pullulanase (also called dextrinase; alpha-dextrin endo-1,6-alpha glucosidase), limit dextrinase, and related proteins. Pullulanase is an enzyme with action similar to that of isoamylase; it cleaves 1,6-alpha-glucosidic linkages in pullulan, amylopectin, and glycogen, and in alpha-and beta-amylase limit-dextrins of amylopectin and glycogen. Pullulanases are very similar to limit dextrinases, although they differ in their action on glycogen and the rate of hydrolysis of limit dextrins. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
COG1523 PulA 9.88e-142 51 661 71 690
Pullulanase/glycogen debranching enzyme [Carbohydrate transport and metabolism].
TIGR02103 pullul_strch 8.51e-119 46 622 134 851
alpha-1,6-glucosidases, pullulanase-type. Members of this protein family include secreted (or membrane-anchored) pullulanases of Gram-negative bacteria and pullulanase-type starch debranching enzymes of plants. Both enzymes hydrolyze alpha-1,6 glycosidic linkages. Pullulan is an unusual, industrially important polysaccharide in which short alpha-1,4 chains (maltotriose) are connected in alpha-1,6 linkages. Enzymes that cleave alpha-1,6 linkages in pullulan and release maltotriose are called pullulanases although pullulan itself may not be the natural substrate. This family is closely homologous to, but architecturally different from, the Gram-positive pullulanases of Gram-positive bacteria (TIGR02102). [Energy metabolism, Biosynthesis and degradation of polysaccharides]
PLN02877 PLN02877 2.72e-104 44 623 219 923
alpha-amylase/limit dextrinase

CAZyme Hits      help

Hit ID E-Value Query Start Query End Hit Start Hit End
QJR63956.1 6.20e-303 1 662 1 664
QJR76795.1 6.20e-303 1 662 1 664
QJR68220.1 6.20e-303 1 662 1 664
QJR72555.1 6.20e-303 1 662 1 664
ALA74962.1 8.80e-303 1 662 1 664

PDB Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
6JEQ_A 1.84e-176 29 623 30 618
Crystalstructure of Pullulanase from Paenibacillus barengoltzii complex with beta-cyclodextrin [Paenibacillus barengoltzii],6JFJ_A Crystal structure of Pullulanase from Paenibacillus barengoltzii complex with maltohexaose and alpha-cyclodextrin [Paenibacillus barengoltzii],6JFX_A Crystal structure of Pullulanase from Paenibacillus barengoltzii complex with maltopentaose [Paenibacillus barengoltzii],6JHF_A Crystal structure of apo Pullulanase from Paenibacillus barengoltzii [Paenibacillus barengoltzii],6JHG_A Crystal structure of apo Pullulanase from Paenibacillus barengoltzii in space group P212121 [Paenibacillus barengoltzii]
6JHI_A 2.94e-175 29 623 30 618
Crystalstructure of mutant D470A of Pullulanase from Paenibacillus barengoltzii complexed with maltotetraose [Paenibacillus barengoltzii]
6JHH_A 2.94e-175 29 623 30 618
Crystalstructure of mutant D350A of Pullulanase from Paenibacillus barengoltzii complexed with maltotriose [Paenibacillus barengoltzii]
2WAN_A 8.84e-162 44 662 322 921
Pullulanasefrom Bacillus acidopullulyticus [Bacillus acidopullulyticus]
2E8Y_A 2.01e-141 24 645 91 706
Crystalstructure of pullulanase type I from Bacillus subtilis str. 168 [Bacillus subtilis],2E8Y_B Crystal structure of pullulanase type I from Bacillus subtilis str. 168 [Bacillus subtilis],2E8Z_A Crystal structure of pullulanase type I from Bacillus subtilis str. 168 complexed with alpha-cyclodextrin [Bacillus subtilis],2E8Z_B Crystal structure of pullulanase type I from Bacillus subtilis str. 168 complexed with alpha-cyclodextrin [Bacillus subtilis],2E9B_A Crystal structure of pullulanase type I from Bacillus subtilis str. 168 complexed with maltose [Bacillus subtilis],2E9B_B Crystal structure of pullulanase type I from Bacillus subtilis str. 168 complexed with maltose [Bacillus subtilis]

Swiss-Prot Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
O33840 7.38e-156 22 662 209 842
Pullulanase OS=Thermotoga maritima (strain ATCC 43589 / DSM 3109 / JCM 10099 / NBRC 100826 / MSB8) OX=243274 GN=pulA PE=1 SV=2
C0SPA0 4.34e-140 24 645 91 706
Pullulanase OS=Bacillus subtilis (strain 168) OX=224308 GN=amyX PE=1 SV=1
Q8GTR4 1.48e-70 44 585 212 839
Pullulanase 1, chloroplastic OS=Arabidopsis thaliana OX=3702 GN=PU1 PE=1 SV=2
P07811 6.76e-64 40 586 310 996
Pullulanase OS=Klebsiella aerogenes OX=548 GN=pulA PE=1 SV=1
A0A0H2ZL64 3.76e-63 50 587 448 1037
Pullulanase A OS=Streptococcus pneumoniae serotype 2 (strain D39 / NCTC 7466) OX=373153 GN=spuA PE=3 SV=1

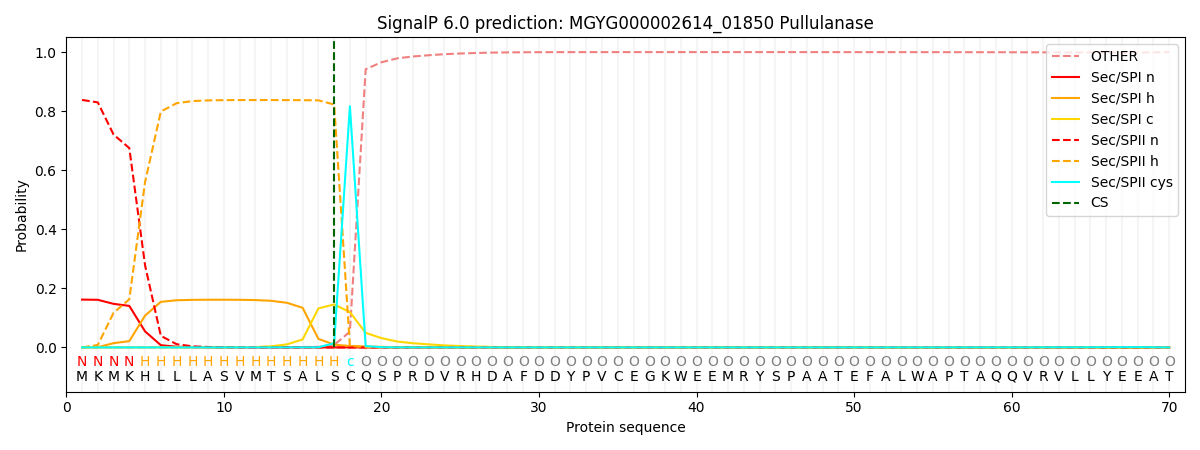

SignalP and Lipop Annotations help

This protein is predicted as LIPO

Other SP_Sec_SPI LIPO_Sec_SPII TAT_Tat_SPI TATLIP_Sec_SPII PILIN_Sec_SPIII
0.000706 0.156226 0.842591 0.000146 0.000207 0.000144

TMHMM  Annotations      help

There is no transmembrane helices in MGYG000002614_01850.
