You are browsing environment: HUMAN GUT
help

CAZyme Information: MGYG000002762_01585

You are here: Home > Sequence: MGYG000002762_01585

Basic Information | Genomic context | Full Sequence | Enzyme annotations |  CAZy signature domains |  CDD domains | CAZyme hits | PDB hits | Swiss-Prot hits | SignalP and Lipop annotations | TMHMM annotations

Basic Information help

Species CAG-485 sp900554845
Lineage Bacteria; Bacteroidota; Bacteroidia; Bacteroidales; Muribaculaceae; CAG-485; CAG-485 sp900554845
CAZyme ID MGYG000002762_01585
CAZy Family GH67
CAZyme Description Extracellular xylan exo-alpha-(1->2)-glucuronosidase
CAZyme Property
Protein Length CGC Molecular Weight Isoelectric Point
573 MGYG000002762_79|CGC1 65235.42 6.5045
Genome Property
Genome Assembly ID Genome Size Genome Type Country Continent
MGYG000002762 3275168 MAG Netherlands Europe
Gene Location Start: 6956;  End: 8677  Strand: -

Full Sequence      Download help

Enzyme Prediction      help

EC 3.2.1.139 3.2.1.131 3.2.1.-

CAZyme Signature Domains help

Family Start End Evalue family coverage
GH67 23 536 2.8e-235 0.7922272047832586

CDD Domains      download full data without filtering help

Cdd ID Domain E-Value qStart qEnd sStart sEnd Domain Description
COG3661 AguA2 0.0 26 536 144 674
Alpha-glucuronidase [Carbohydrate transport and metabolism].
pfam07488 Glyco_hydro_67M 0.0 26 311 16 324
Glycosyl hydrolase family 67 middle domain. Alpha-glucuronidases, components of an ensemble of enzymes central to the recycling of photosynthetic biomass, remove the alpha-1,2 linked 4-O-methyl glucuronic acid from xylans. This family represents the central catalytic domain of alpha-glucuronidase.
pfam07477 Glyco_hydro_67C 2.28e-112 313 539 1 220
Glycosyl hydrolase family 67 C-terminus. Alpha-glucuronidases, components of an ensemble of enzymes central to the recycling of photosynthetic biomass, remove the alpha-1,2 linked 4-O-methyl glucuronic acid from xylans. This family represents the C terminal region of alpha-glucuronidase which is mainly alpha-helical. It wraps around the catalytic domain (pfam07488), making additional interactions both with the N-terminal domain (pfam03648) of its parent monomer and also forming the majority of the dimer-surface with the equivalent C-terminal domain of the other monomer of the dimer.

CAZyme Hits      help

Hit ID E-Value Query Start Query End Hit Start Hit End
QCD35193.1 1.17e-291 27 573 125 673
QUU00908.1 1.86e-277 22 573 119 668
QRQ48276.1 1.28e-275 27 573 124 669
QUT46117.1 3.11e-275 27 573 149 694
AVM57866.1 7.10e-275 19 573 116 668

PDB Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
1GQI_A 1.38e-187 24 549 143 683
Structureof Pseudomonas cellulosa alpha-D-glucuronidase [Cellvibrio japonicus],1GQI_B Structure of Pseudomonas cellulosa alpha-D-glucuronidase [Cellvibrio japonicus],1GQJ_A Structure of Pseudomonas cellulosa alpha-D-glucuronidase complexed with xylobiose [Cellvibrio japonicus],1GQJ_B Structure of Pseudomonas cellulosa alpha-D-glucuronidase complexed with xylobiose [Cellvibrio japonicus],1GQK_A Structure of Pseudomonas cellulosa alpha-D-glucuronidase complexed with glucuronic acid [Cellvibrio japonicus],1GQK_B Structure of Pseudomonas cellulosa alpha-D-glucuronidase complexed with glucuronic acid [Cellvibrio japonicus],1GQL_A Structure of Pseudomonas cellulosa alpha-D-glucuronidase complexed with glucuronic acid and xylotriose [Cellvibrio japonicus],1GQL_B Structure of Pseudomonas cellulosa alpha-D-glucuronidase complexed with glucuronic acid and xylotriose [Cellvibrio japonicus]
1H41_A 1.11e-186 24 549 143 683
Pseudomonascellulosa E292A alpha-D-glucuronidase mutant complexed with aldotriuronic acid [Cellvibrio japonicus],1H41_B Pseudomonas cellulosa E292A alpha-D-glucuronidase mutant complexed with aldotriuronic acid [Cellvibrio japonicus]
1MQP_A 2.94e-148 26 529 139 663
TheCrystal Structure Of Alpha-D-Glucuronidase From Bacillus Stearothermophilus T-6 [Geobacillus stearothermophilus]
1K9D_A 5.87e-148 26 529 139 663
The1.7 A crystal structure of alpha-D-glucuronidase, a family-67 glycoside hydrolase from Bacillus stearothermophilus T-1 [Geobacillus stearothermophilus],1L8N_A The 1.5A crystal structure of alpha-D-glucuronidase from Bacillus stearothermophilus T-1, complexed with 4-O-methyl-glucuronic acid and xylotriose [Geobacillus stearothermophilus],1MQQ_A THE CRYSTAL STRUCTURE OF ALPHA-D-GLUCURONIDASE FROM BACILLUS STEAROTHERMOPHILUS T-1 COMPLEXED WITH GLUCURONIC ACID [Geobacillus stearothermophilus]
1MQR_A 8.30e-148 26 529 139 663
ChainA, ALPHA-D-GLUCURONIDASE [Geobacillus stearothermophilus]

Swiss-Prot Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
B3PC73 1.62e-186 24 549 167 707
Extracellular xylan exo-alpha-(1->2)-glucuronosidase OS=Cellvibrio japonicus (strain Ueda107) OX=498211 GN=gla67A PE=1 SV=1
P96105 8.65e-155 26 536 136 665
Xylan alpha-(1->2)-glucuronosidase OS=Thermotoga maritima (strain ATCC 43589 / DSM 3109 / JCM 10099 / NBRC 100826 / MSB8) OX=243274 GN=aguA PE=1 SV=2
Q09LY5 1.61e-147 26 529 139 663
Xylan alpha-(1->2)-glucuronosidase OS=Geobacillus stearothermophilus OX=1422 GN=aguA PE=1 SV=1
Q5AQZ4 2.49e-127 14 536 148 694
Alpha-glucuronidase A OS=Emericella nidulans (strain FGSC A4 / ATCC 38163 / CBS 112.46 / NRRL 194 / M139) OX=227321 GN=aguA PE=1 SV=1
A1CC12 1.92e-124 19 529 151 680
Probable alpha-glucuronidase A OS=Aspergillus clavatus (strain ATCC 1007 / CBS 513.65 / DSM 816 / NCTC 3887 / NRRL 1 / QM 1276 / 107) OX=344612 GN=aguA PE=3 SV=1

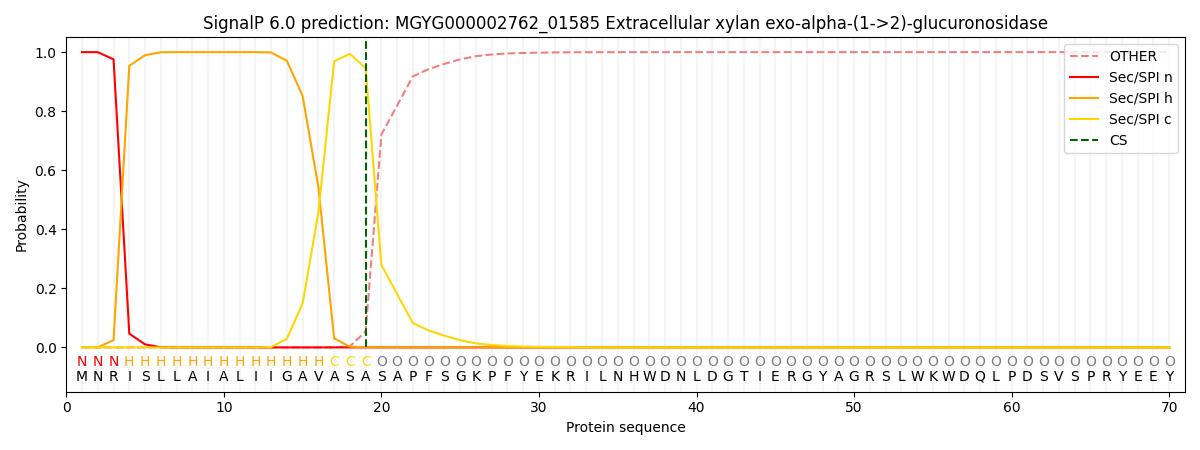

SignalP and Lipop Annotations help

This protein is predicted as SP

Other SP_Sec_SPI LIPO_Sec_SPII TAT_Tat_SPI TATLIP_Sec_SPII PILIN_Sec_SPIII
0.000405 0.998952 0.000156 0.000165 0.000148 0.000141

TMHMM  Annotations      download full data without filtering help

start end
5 24
