CAZyme Information: MGYG000002881_00726

You are here: Home > Sequence: MGYG000002881_00726

Basic Information | Genomic context | Full Sequence | Enzyme annotations |  CAZy signature domains |  CDD domains | CAZyme hits | PDB hits | Swiss-Prot hits | SignalP and Lipop annotations | TMHMM annotations

Basic Information help

Species
Lineage Bacteria; Firmicutes_A; Clostridia; Oscillospirales; Ruminococcaceae; Ruminococcus;
CAZyme ID MGYG000002881_00726
CAZy Family CBM35
CAZyme Description Mannan endo-1,4-beta-mannosidase
CAZyme Property
Protein Length CGC Molecular Weight Isoelectric Point
617 68475.74 4.076
Genome Property
Genome Assembly ID Genome Size Genome Type Country Continent
MGYG000002881 1270591 MAG United States North America
Gene Location Start: 1078;  End: 2931  Strand: +

Full Sequence      Download help

Enzyme Prediction      help

EC 3.2.1.78

CAZyme Signature Domains help

Family Start End Evalue family coverage
GH26 185 511 2.4e-109 0.9966996699669967
CBM35 65 168 8.6e-25 0.8823529411764706

CDD Domains      download full data without filtering help

Cdd ID Domain E-Value qStart qEnd sStart sEnd Domain Description
pfam02156 Glyco_hydro_26 2.76e-59 186 511 2 311
Glycosyl hydrolase family 26.
cd04086 CBM35_mannanase-like 1.33e-35 37 169 2 119
Carbohydrate Binding Module 35 (CBM35); appended to several carbohydrate binding enzymes, including several glycoside hydrolase (GH) family 26 mannanase domains. This family includes carbohydrate binding module 35 (CBM35) domains that are appended to several carbohydrate binding enzymes, including periplasmic component of ABC-type sugar transport system involved in carbohydrate transport and metabolism, and several glycoside hydrolase (GH) domains, including GH26. These CBM6s are non-catalytic carbohydrate binding domains that facilitate the strong binding of the GH catalytic modules with their dedicated, insoluble substrates. Examples of proteins having CMB35s belonging to this family are mannanase A from Clostridium thermocellum (GH26), Man26B from Paenibacillus sp. BME-14 (GH26), and the multifunctional Cel44C-Man26A from Paenibacillus polymyxa GS01 (which has two GH domains, GH44 and GH26). GH26 mainly includes mannan endo-1,4-beta-mannosidase which hydrolyzes 1,4-beta-D-linkages in mannans, galacto-mannans, glucomannans, and galactoglucomannans, but displays little activity towards other plant cell wall polysaccharides. A few proteins belonging to this family have additional CBM3 domains; these CBM3s are not found in the CBM6-CBM35-CBM36_like superfamily.
COG4124 ManB2 4.35e-16 316 431 145 267
Beta-mannanase [Carbohydrate transport and metabolism].
cd04083 CBM35_Lmo2446-like 3.51e-12 37 168 2 125
Carbohydrate Binding Module 35 (CBM35) domains similar to Lmo2446. This family includes carbohydrate binding module 35 (CBM35) domains that are appended to several carbohydrate binding enzymes. Some CBM35 domains belonging to this family are appended to glycoside hydrolase (GH) family domains, including glycoside hydrolase family 31 (GH31), for example the CBM35 domain of Lmo2446, an uncharacterized protein from Listeria monocytogenes EGD-e. These CBM35s are non-catalytic carbohydrate binding domains that facilitate the strong binding of the GH catalytic modules with their dedicated, insoluble substrates. GH31 has a wide range of hydrolytic activities such as alpha-glucosidase, alpha-xylosidase, 6-alpha-glucosyltransferase, or alpha-1,4-glucan lyase, cleaving a terminal carbohydrate moiety from a substrate that may be a starch or a glycoprotein. Most characterized GH31 enzymes are alpha-glucosidases.
pfam16990 CBM_35 1.44e-09 38 170 2 119
Carbohydrate binding module (family 35). This is a mannan-specific carbohydrate binding domain, previously known as the X4 module. Unlike other carbohydrate binding modules, binding to substrate causes a conformational change.

CAZyme Hits      help

Hit ID E-Value Query Start Query End Hit Start Hit End
ADU21882.1 1.73e-311 13 614 12 601
CBL18146.1 5.46e-234 35 587 34 584
BAB19050.1 1.60e-209 23 580 19 556
ALX07411.1 3.21e-209 23 580 19 556
ANV75150.1 3.21e-209 23 580 19 556

PDB Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
3ZM8_A 6.26e-87 34 517 11 452
ChainA, Gh26 Endo-beta-1,4-mannanase [Podospora anserina S mat+]
6HPF_A 3.17e-59 179 512 1 310
Structureof Inactive E165Q mutant of fungal non-CBM carrying GH26 endo-b-mannanase from Yunnania penicillata in complex with alpha-62-61-di-galactosyl-mannotriose [Yunnania penicillata]
6HF2_A 2.99e-56 170 496 31 329
Thestructure of BoMan26B, a GH26 beta-mannanase from Bacteroides ovatus [Bacteroides ovatus ATCC 8483],6HF4_A The structure of BoMan26B, a GH26 beta-mannanase from Bacteroides ovatus, complexed with G1M4 [Bacteroides ovatus ATCC 8483]
3WDQ_A 5.73e-56 187 513 37 353
Crystalstructure of beta-mannanase from a symbiotic protist of the termite Reticulitermes speratus [Symbiotic protist of Reticulitermes speratus],3WDR_A Crystal structure of beta-mannanase from a symbiotic protist of the termite Reticulitermes speratus complexed with gluco-manno-oligosaccharide [Symbiotic protist of Reticulitermes speratus]
6D2X_A 1.89e-50 184 512 4 334
Crystalstructure of the GH26 domain from PbGH26-GH5A endo-beta-mannanase/endo-beta-glucanase from Prevotella bryantii [Prevotella bryantii B14]

Swiss-Prot Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
P55297 1.51e-86 38 513 24 462
Mannan endo-1,4-beta-mannosidase B OS=Piromyces sp. OX=45796 GN=MANB PE=2 SV=1
P55298 7.77e-86 38 513 23 460
Mannan endo-1,4-beta-mannosidase C OS=Piromyces sp. OX=45796 GN=MANC PE=2 SV=1
G2Q4H7 1.33e-83 28 512 34 476
Mannan endo-1,4-beta-mannosidase OS=Myceliophthora thermophila (strain ATCC 42464 / BCRC 31852 / DSM 1799) OX=573729 GN=Man26A PE=1 SV=1
P55296 2.28e-82 38 513 24 461
Mannan endo-1,4-beta-mannosidase A OS=Piromyces sp. OX=45796 GN=MANA PE=2 SV=1
P49425 1.93e-75 33 518 14 463
Mannan endo-1,4-beta-mannosidase OS=Rhodothermus marinus (strain ATCC 43812 / DSM 4252 / R-10) OX=518766 GN=manA PE=1 SV=3

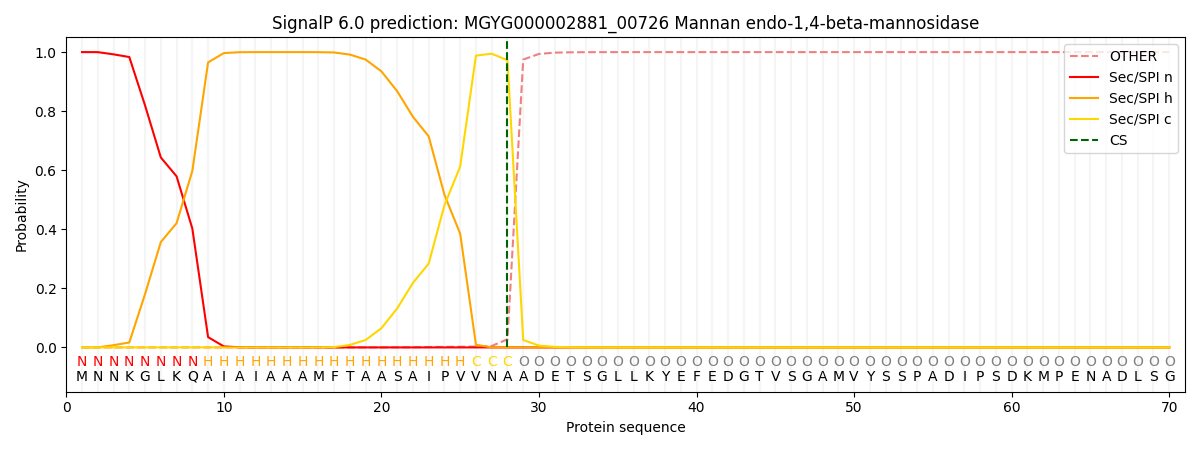

SignalP and Lipop Annotations help

This protein is predicted as SP

Other SP_Sec_SPI LIPO_Sec_SPII TAT_Tat_SPI TATLIP_Sec_SPII PILIN_Sec_SPIII
0.000233 0.999049 0.000188 0.000190 0.000172 0.000141

TMHMM  Annotations      help

There is no transmembrane helices in MGYG000002881_00726.
