CAZyme Information: MGYG000002920_01696

Basic Information

• Species: CAG-485 sp900550645
• Lineage: Bacteria; Bacteroidota; Bacteroidia; Bacteroidales; Muribaculaceae; CAG-485; CAG-485 sp900550645
• CAZyme ID: MGYG000002920_01696
• CAZy Family: GH13
• CAZyme Description: 1,4-alpha-glucan branching enzyme GlgB

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
769	MGYG000002920_214|CGC1	84297.33	4.5425

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000002920	2230487	MAG	United States	North America

• Gene Location: Start: 1625; End: 3934 Strand: -

Full Sequence

MYKRQVIQPQSTVSFTLLASQAADLTLSVNGNSIGTASGKTELTAKYSFAQSGNYTVTGT
ATAGGQTVTKSIEYVCLAPSAAADYPGGKPVMGAVRNGDGSVTFCIAAPQKQTAMLVGSW
NDYANDTKYTMAYQDYEGNRYFWITVPDLERGKDYMYYYLIDGTTKVGDPYARLILDPNY
DQYIAADVFPDMPAYPDAVSDVPLAVFNDNINDYDWQVSGFKGAEASNLFIYELLLRDFT
GTEGQAYGNGNVRLAMEKIPYLKQLGVNAVELMPITEFNGNNSWGYNPNFYFAPDKAYGT
PADYKAFIDECHRNGIAVILDMVFNQSDWLHPWYQMYPAGSNPFFNATAPHAYSVLNDWN
QGNPLVRQYFCDVLQYWLTEYRVDGFRFDLVKGLGDNSSYNGSGDSATEQFNQSRIDNMR
RFQQAVMEVNPNAYFINENLASPAEENAMAEYGQLNWANVNYSGSQYAAGLKDNSGLNRF
YAPADSRNWGSTVSYLESHDEQRLAYVQNTSGATGIKGNIVNSMHRLGSAAAQMMMSPGA
HMIWQFSELGNAQNTKNSGGNNTDPKTVNWKHLDNANRHGLYDSYAELAAIRNNNPQMFS
RDVQVTVNTSASYWNNGRSIVLSNGNQQILLAVNPNIDGEPINVSVPFKSSDNADYQVLS
KSYDTDPTYNAAAGYITVAPNCYAVIGSADLTEVEGIASDSTRLIVSGGNGTLNIAGSNG
SIAVYTPAGVCVYRAEGTADDSVSLTLPRGIYIVRAAQGDTARTVKVRI

Enzyme Prediction

No EC number prediction in MGYG000002920_01696.

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GH13	253	556	2.4e-50	0.9297658862876255

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
cd11350	AmyAc_4	1.61e-138	214	602	1	390	Alpha amylase catalytic domain found in an uncharacterized protein family. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
COG0296	GlgB	1.14e-53	92	602	26	524	1,4-alpha-glucan branching enzyme [Carbohydrate transport and metabolism].
cd11325	AmyAc_GTHase	1.40e-50	213	398	22	197	Alpha amylase catalytic domain found in Glycosyltrehalose trehalohydrolase (also called Maltooligosyl trehalose Trehalohydrolase). Glycosyltrehalose trehalohydrolase (GTHase) was discovered as part of a coupled system for the production of trehalose from soluble starch. In the first half of the reaction, glycosyltrehalose synthase (GTSase), an intramolecular glycosyl transferase, converts the glycosidic bond between the last two glucose residues of amylose from an alpha-1,4 bond to an alpha-1,1 bond, making a non-reducing glycosyl trehaloside. In the second half of the reaction, GTHase cleaves the alpha-1,4 glycosidic bond adjacent to the trehalose moiety to release trehalose and malto-oligosaccharide. Like isoamylase and other glycosidases that recognize branched oligosaccharides, GTHase contains an N-terminal extension and does not have the conserved calcium ion present in other alpha amylase family enzymes. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase. Glycosyltrehalose Trehalohydrolase Maltooligosyltrehalose Trehalohydrolase
cd00551	AmyAc_family	5.55e-39	231	551	2	259	Alpha amylase catalytic domain family. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; and C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost this catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
COG1523	PulA	1.55e-36	169	390	108	360	Pullulanase/glycogen debranching enzyme [Carbohydrate transport and metabolism].

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
QIM10833.1	2.78e-304	13	765	156	906
QCD35300.1	1.24e-263	13	754	169	915
QQR08212.1	9.97e-223	85	665	166	759
ANU64421.1	9.97e-223	85	665	166	759
ASB37479.1	9.97e-223	85	665	166	759

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
3M07_A	2.97e-31	188	399	97	295	1.4Angstrom Resolution Crystal Structure of Putative alpha Amylase from Salmonella typhimurium. [Salmonella enterica subsp. enterica serovar Typhimurium str. LT2]
4J7R_A	5.45e-27	144	394	122	422	CrystalStructure of Chlamydomonas reinhardtii Isoamylase 1 (ISA1) [Chlamydomonas reinhardtii],4J7R_B Crystal Structure of Chlamydomonas reinhardtii Isoamylase 1 (ISA1) [Chlamydomonas reinhardtii],4OKD_A Crystal Structure of Chlamydomonas reinhardtii Isoamylase 1 (ISA1) in complex with maltoheptaose [Chlamydomonas reinhardtii],4OKD_B Crystal Structure of Chlamydomonas reinhardtii Isoamylase 1 (ISA1) in complex with maltoheptaose [Chlamydomonas reinhardtii]
2BHU_A	7.85e-26	148	398	70	284	Crystalstructure of Deinococcus radiodurans maltooligosyltrehalose trehalohydrolase [Deinococcus radiodurans]
2BHY_A	2.36e-24	148	398	70	284	Crystalstructure of Deinococcus radiodurans maltooligosyltrehalose trehalohydrolase in complex with trehalose [Deinococcus radiodurans],2BHZ_A Crystal structure of Deinococcus radiodurans maltooligosyltrehalose trehalohydrolase in complex with maltose [Deinococcus radiodurans R1],2BXY_A Is radiation damage dependent on the dose-rate used during macromolecular crystallography data collection [Deinococcus radiodurans],2BXZ_A Is radiation damage dependent on the dose-rate used during macromolecular crystallography data collection [Deinococcus radiodurans],2BY0_A Is radiation damage dependent on the dose-rate used during macromolecular crystallography data collection [Deinococcus radiodurans],2BY1_A Is radiation damage dependent on the dose-rate used during macromolecular crystallography data collection [Deinococcus radiodurans R1],2BY2_A Is radiation damage dependent on the dose-rate used during macromolecular crystallography data collection [Deinococcus radiodurans R1],2BY3_A Is radiation damage dependent on the dose-rate used during macromolecular crystallography data collection [Deinococcus radiodurans]
1EHA_A	1.83e-23	228	398	101	261	CRYSTALSTRUCTURE OF GLYCOSYLTREHALOSE TREHALOHYDROLASE FROM SULFOLOBUS SOLFATARICUS [Saccharolobus solfataricus]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
P95867	2.57e-27	102	398	12	264	Malto-oligosyltrehalose trehalohydrolase OS=Saccharolobus solfataricus (strain ATCC 35092 / DSM 1617 / JCM 11322 / P2) OX=273057 GN=treZ PE=1 SV=1
Q53238	1.36e-26	89	396	9	272	Malto-oligosyltrehalose trehalohydrolase OS=Rhizobium sp. (strain M-11) OX=269089 GN=treZ PE=3 SV=1
O22637	4.75e-26	150	394	166	422	Isoamylase SU1, chloroplastic OS=Zea mays OX=4577 GN=SU1 PE=1 SV=1
Q44316	1.01e-25	85	396	5	274	Malto-oligosyltrehalose trehalohydrolase OS=Arthrobacter sp. (strain Q36) OX=104027 GN=treZ PE=3 SV=1
Q9RX51	4.25e-25	148	398	70	284	Malto-oligosyltrehalose trehalohydrolase OS=Deinococcus radiodurans (strain ATCC 13939 / DSM 20539 / JCM 16871 / LMG 4051 / NBRC 15346 / NCIMB 9279 / R1 / VKM B-1422) OX=243230 GN=treZ PE=1 SV=1

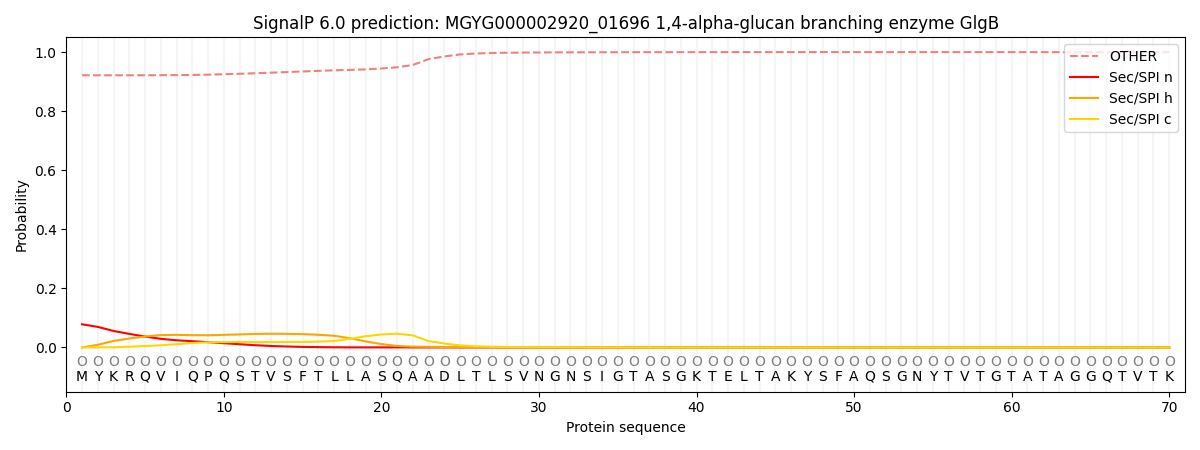

SignalP and Lipop Annotations

This protein is predicted as OTHER

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
0.926812	0.072680	0.000237	0.000099	0.000058	0.000102

TMHMM  Annotations

There is no transmembrane helices in MGYG000002920_01696.
