CAZyme Information: MGYG000003163_00312

You are here: Home > Sequence: MGYG000003163_00312

Basic Information | Genomic context | Full Sequence | Enzyme annotations |  CAZy signature domains |  CDD domains | CAZyme hits | PDB hits | Swiss-Prot hits | SignalP and Lipop annotations | TMHMM annotations

Basic Information help

Species Phocaeicola sp900546645
Lineage Bacteria; Bacteroidota; Bacteroidia; Bacteroidales; Bacteroidaceae; Phocaeicola; Phocaeicola sp900546645
CAZyme ID MGYG000003163_00312
CAZy Family GH67
CAZyme Description Extracellular xylan exo-alpha-(1->2)-glucuronosidase
CAZyme Property
Protein Length CGC Molecular Weight Isoelectric Point
671 MGYG000003163_5|CGC1 76883.81 6.9106
Genome Property
Genome Assembly ID Genome Size Genome Type Country Continent
MGYG000003163 2819390 MAG United States North America
Gene Location Start: 54858;  End: 56873  Strand: +

Full Sequence      Download help

Enzyme Prediction      help

EC 3.2.1.139 3.2.1.131 3.2.1.-

CAZyme Signature Domains help

Family Start End Evalue family coverage
GH67 70 637 2.3e-266 0.8819133034379671

CDD Domains      download full data without filtering help

Cdd ID Domain E-Value qStart qEnd sStart sEnd Domain Description
COG3661 AguA2 0.0 17 628 1 668
Alpha-glucuronidase [Carbohydrate transport and metabolism].
pfam07488 Glyco_hydro_67M 0.0 111 411 1 324
Glycosyl hydrolase family 67 middle domain. Alpha-glucuronidases, components of an ensemble of enzymes central to the recycling of photosynthetic biomass, remove the alpha-1,2 linked 4-O-methyl glucuronic acid from xylans. This family represents the central catalytic domain of alpha-glucuronidase.
pfam07477 Glyco_hydro_67C 2.57e-131 413 640 1 223
Glycosyl hydrolase family 67 C-terminus. Alpha-glucuronidases, components of an ensemble of enzymes central to the recycling of photosynthetic biomass, remove the alpha-1,2 linked 4-O-methyl glucuronic acid from xylans. This family represents the C terminal region of alpha-glucuronidase which is mainly alpha-helical. It wraps around the catalytic domain (pfam07488), making additional interactions both with the N-terminal domain (pfam03648) of its parent monomer and also forming the majority of the dimer-surface with the equivalent C-terminal domain of the other monomer of the dimer.
pfam02838 Glyco_hydro_20b 2.57e-04 64 116 63 115
Glycosyl hydrolase family 20, domain 2. This domain has a zincin-like fold.
pfam03648 Glyco_hydro_67N 0.001 75 108 83 120
Glycosyl hydrolase family 67 N-terminus. Alpha-glucuronidases, components of an ensemble of enzymes central to the recycling of photosynthetic biomass, remove the alpha-1,2 linked 4-O-methyl glucuronic acid from xylans. This family represents the N-terminal region of alpha-glucuronidase. The N-terminal domain forms a two-layer sandwich, each layer being formed by a beta sheet of five strands. A further two helices form part of the interface with the central, catalytic, module (pfam07488).

CAZyme Hits      help

Hit ID E-Value Query Start Query End Hit Start Hit End
QRQ48276.1 0.0 18 667 19 665
QUT46117.1 0.0 18 667 44 690
QDO69417.1 0.0 18 667 18 672
EDV05062.1 0.0 18 667 18 672
ALJ61533.1 0.0 18 667 17 671

PDB Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
1GQI_A 1.65e-228 21 650 1 686
Structureof Pseudomonas cellulosa alpha-D-glucuronidase [Cellvibrio japonicus],1GQI_B Structure of Pseudomonas cellulosa alpha-D-glucuronidase [Cellvibrio japonicus],1GQJ_A Structure of Pseudomonas cellulosa alpha-D-glucuronidase complexed with xylobiose [Cellvibrio japonicus],1GQJ_B Structure of Pseudomonas cellulosa alpha-D-glucuronidase complexed with xylobiose [Cellvibrio japonicus],1GQK_A Structure of Pseudomonas cellulosa alpha-D-glucuronidase complexed with glucuronic acid [Cellvibrio japonicus],1GQK_B Structure of Pseudomonas cellulosa alpha-D-glucuronidase complexed with glucuronic acid [Cellvibrio japonicus],1GQL_A Structure of Pseudomonas cellulosa alpha-D-glucuronidase complexed with glucuronic acid and xylotriose [Cellvibrio japonicus],1GQL_B Structure of Pseudomonas cellulosa alpha-D-glucuronidase complexed with glucuronic acid and xylotriose [Cellvibrio japonicus]
1H41_A 1.33e-227 21 650 1 686
Pseudomonascellulosa E292A alpha-D-glucuronidase mutant complexed with aldotriuronic acid [Cellvibrio japonicus],1H41_B Pseudomonas cellulosa E292A alpha-D-glucuronidase mutant complexed with aldotriuronic acid [Cellvibrio japonicus]
1MQP_A 4.58e-172 43 627 52 663
TheCrystal Structure Of Alpha-D-Glucuronidase From Bacillus Stearothermophilus T-6 [Geobacillus stearothermophilus]
1K9D_A 6.47e-172 43 627 52 663
The1.7 A crystal structure of alpha-D-glucuronidase, a family-67 glycoside hydrolase from Bacillus stearothermophilus T-1 [Geobacillus stearothermophilus],1L8N_A The 1.5A crystal structure of alpha-D-glucuronidase from Bacillus stearothermophilus T-1, complexed with 4-O-methyl-glucuronic acid and xylotriose [Geobacillus stearothermophilus],1MQQ_A THE CRYSTAL STRUCTURE OF ALPHA-D-GLUCURONIDASE FROM BACILLUS STEAROTHERMOPHILUS T-1 COMPLEXED WITH GLUCURONIC ACID [Geobacillus stearothermophilus]
1MQR_A 1.29e-171 43 627 52 663
ChainA, ALPHA-D-GLUCURONIDASE [Geobacillus stearothermophilus]

Swiss-Prot Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
B3PC73 5.03e-228 17 650 21 710
Extracellular xylan exo-alpha-(1->2)-glucuronosidase OS=Cellvibrio japonicus (strain Ueda107) OX=498211 GN=gla67A PE=1 SV=1
Q09LY5 2.51e-171 43 627 52 663
Xylan alpha-(1->2)-glucuronosidase OS=Geobacillus stearothermophilus OX=1422 GN=aguA PE=1 SV=1
P96105 1.75e-161 77 627 83 658
Xylan alpha-(1->2)-glucuronosidase OS=Thermotoga maritima (strain ATCC 43589 / DSM 3109 / JCM 10099 / NBRC 100826 / MSB8) OX=243274 GN=aguA PE=1 SV=2
B0Y2K1 1.50e-139 77 631 110 684
Probable alpha-glucuronidase A OS=Neosartorya fumigata (strain CEA10 / CBS 144.89 / FGSC A1163) OX=451804 GN=aguA PE=3 SV=1
Q4WW45 2.10e-139 80 631 113 684
Probable alpha-glucuronidase A OS=Neosartorya fumigata (strain ATCC MYA-4609 / Af293 / CBS 101355 / FGSC A1100) OX=330879 GN=aguA PE=3 SV=1

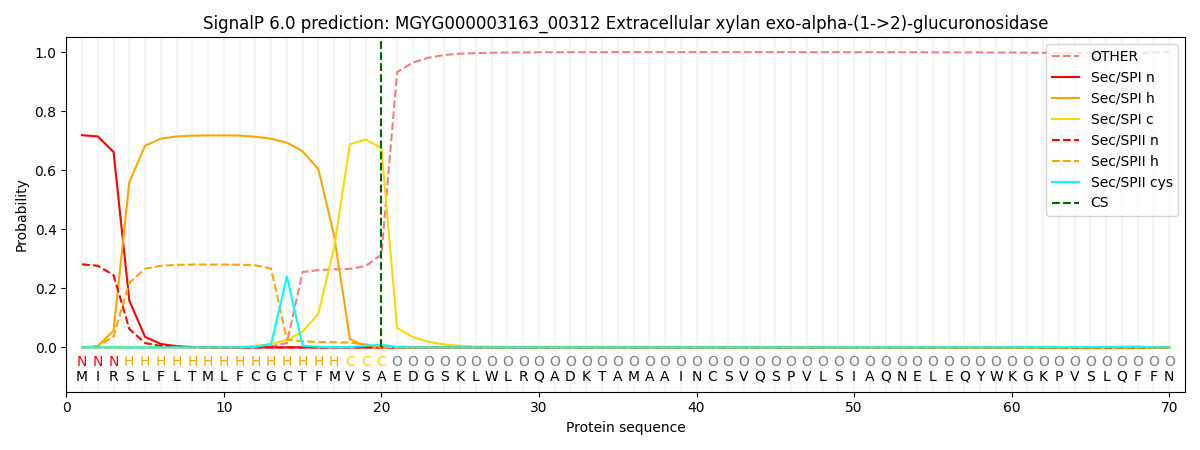

SignalP and Lipop Annotations help

This protein is predicted as SP

Other SP_Sec_SPI LIPO_Sec_SPII TAT_Tat_SPI TATLIP_Sec_SPII PILIN_Sec_SPIII
0.000956 0.704281 0.293793 0.000367 0.000302 0.000274

TMHMM  Annotations      help

There is no transmembrane helices in MGYG000003163_00312.
