CAZyme Information: MGYG000003383_01528

Basic Information

• Species: Bifidobacterium scardovii
• Lineage: Bacteria; Actinobacteriota; Actinomycetia; Actinomycetales; Bifidobacteriaceae; Bifidobacterium; Bifidobacterium scardovii
• CAZyme ID: MGYG000003383_01528
• CAZy Family: GH130
• CAZyme Description: 1,4-beta-mannosyl-N-acetylglucosamine phosphorylase

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
336	MGYG000003383_19|CGC6	37606.1	4.5244

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000003383	3123324	MAG	United States	North America

• Gene Location: Start: 196227; End: 197237 Strand: +

Full Sequence

MINTSFFTGASFPLGPFVPYEHNPILRPLGGSWESANLYNPAALVVDDEVVLLYRAHAED
IVSHIGIARSKDGLHFERESEPVLSPSEDYERYGCEDPRVSVIDGVYYLTYTGWDRHSAQ
LCLATSTDLHHWTKHGPLFSDFDTFAATPDAHGFNWSKAGVIVPFKIQGKWWMYFGEGSI
YWATSDDLVHWVPGTSDADPMYRPTPGTFDADLVEIGAPPVMTDNGLLLFVMNGATRTPR
GENAWDVDYRCGQFAVDPARPTKVIARMQEPWLKPQTFEDHNGLIPNVTFVEGLVKFHGK
WFAYYGQSDTTLAVAVCDPDSPWGDDFRVEVMNSGI

Enzyme Prediction

No EC number prediction in MGYG000003383_01528.

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GH130	20	318	4.7e-93	0.956081081081081

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
cd18610	GH130_BT3780-like	1.62e-145	24	317	1	301	Glycosyl hydrolase family 130, such as beta-mammosidase BT3780 and BACOVA_03624. This subfamily contains glycosyl hydrolase family 130, as classified by the carbohydrate-active enzymes database (CAZY), and includes Bacteroides enzymes, BT3780 and BACOVA_03624. Members of this family possess 5-bladed beta-propeller domains similar to families 32, 43, 62, 68, 117 (GH32, GH43, GH62, GH68, GH117). GH130 enzymes are involved in the bacterial utilization of mannans or N-linked glycans. GH130 enzymes have also been shown to target beta-1,2- and beta-1,4-mannosidic linkages where these phosphorylases mediate bond cleavage by a single displacement reaction in which phosphate functions as the catalytic nucleophile. However, some lack the conserved basic residues that bind the phosphate nucleophile, as observed for the Bacteroides enzymes, BT3780 and BACOVA_03624, which are indeed beta-mannosidases that hydrolyze beta-1,2-mannosidic linkages through an inverting mechanism.
cd18607	GH130	2.37e-80	33	317	1	269	Glycoside hydrolase family 130. Members of the glycosyl hydrolase family 130, as classified by the carbohydrate-active enzymes database (CAZY), are phosphorylases and hydrolases for beta-mannosides, and include beta-1,4-mannosylglucose phosphorylase (EC 2.4.1.281), beta-1,4-mannooligosaccharide phosphorylase (EC 2.4.1.319), beta-1,4-mannosyl-N-acetyl-glucosamine phosphorylase (EC 2.4.1.320), beta-1,2-mannobiose phosphorylase (EC 2.4.1.-), beta-1,2-oligomannan phosphorylase (EC 2.4.1.-) and beta-1,2-mannosidase (EC 3.2.1.-). They possess 5-bladed beta-propeller domains similar to families 32, 43, 62, 68, 117 (GH32, GH43, GH62, GH68, GH117). GH130 enzymes are involved in the bacterial utilization of mannans or N-linked glycans. Beta-1,4-mannosylglucose phosphorylase is involved in degradation of beta-1,4-D-mannosyl-N-acetyl-D-glucosamine linkages in the core of N-glycans; it produces alpha-mannose 1-phosphate and glucose from 4-O-beta-D-mannosyl-D-glucose and inorganic phosphate, using a critical catalytic Asp as a proton donor.
cd18614	GH130	1.63e-64	33	318	1	275	Glycosyl hydrolase family 130; uncharacterized. This subfamily contains glycosyl hydrolase family 130 (GH130) proteins, as classified by the carbohydrate-active enzymes database (CAZY), most of which are as yet uncharacterized. GH130 enzymes are phosphorylases and hydrolases for beta-mannosides, and include beta-1,4-mannosylglucose phosphorylase (EC 2.4.1.281), beta-1,4-mannooligosaccharide phosphorylase (EC 2.4.1.319), beta-1,4-mannosyl-N-acetyl-glucosamine phosphorylase (EC 2.4.1.320), beta-1,2-mannobiose phosphorylase (EC 2.4.1.-), beta-1,2-oligomannan phosphorylase (EC 2.4.1.-) and beta-1,2-mannosidase (EC 3.2.1.-). They possess 5-bladed beta-propeller domains similar to families 32, 43, 62, 68, 117 (GH32, GH43, GH62, GH68, GH117). GH130 enzymes are involved in the bacterial utilization of mannans or N-linked glycans. Beta-1,4-mannosylglucose phosphorylase is involved in degradation of beta-1,4-D-mannosyl-N-acetyl-D-glucosamine linkages in the core of N-glycans; it produces alpha-mannose 1-phosphate and glucose from 4-O-beta-D-mannosyl-D-glucose and inorganic phosphate, using a critical catalytic Asp as a proton donor.
cd18612	GH130_Lin0857-like	3.95e-59	33	315	1	258	Glycoside hydrolase family 130 such as Listeria innocua beta-1,2-mannobiose phosphorylase. This subfamily contains the glycosyl hydrolase family 130 (GH130), as classified by the carbohydrate-active enzymes database (CAZY), enzymes that are phosphorylases and hydrolases for beta-mannosides, and includes Listeria innocua beta-1,2-mannobiose phosphorylase (Lin0857). hey possess 5-bladed beta-propeller domains similar to families 32, 43, 62, 68, 117 (GH32, GH43, GH62, GH68, GH117). GH130 enzymes are involved in the bacterial utilization of mannans or N-linked glycans. Structure of Lin0857 shows beta-1,2-mannotriose bound in a U-shape, interacting with a phosphate analog at both ends. Lin0857 has a unique dimer structure connected by a loop, with a significant open-close loop displacement observed for substrate entry. A long loop, which is exclusively present in Lin0857, covers the active site to limit the pocket size.
COG2152	COG2152	1.85e-54	15	315	3	298	Predicted glycosyl hydrolase, GH43/DUF377 family [Carbohydrate transport and metabolism].

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
BAQ31053.1	1.57e-265	1	336	1	336
QOL32693.1	1.21e-221	4	327	7	330
QMU96713.1	1.91e-197	7	330	2	324
QOR72635.1	3.39e-197	7	329	2	323
QEA27808.1	7.63e-197	7	330	2	324

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
3QC2_A	2.13e-67	19	322	22	357	Crystalstructure of a glycosyl hydrolase (BACOVA_03624) from Bacteroides ovatus at 2.30 A resolution [Bacteroides ovatus ATCC 8483],3QC2_B Crystal structure of a glycosyl hydrolase (BACOVA_03624) from Bacteroides ovatus at 2.30 A resolution [Bacteroides ovatus ATCC 8483]
5A7V_A	1.15e-66	19	322	45	380	TheGH130 family of mannoside phosphorylases contains glycoside hydrolases that target beta-1,2 mannosidic linkages in Candida mannan [Bacteroides thetaiotaomicron]
5A7V_B	1.15e-66	19	322	45	380	TheGH130 family of mannoside phosphorylases contains glycoside hydrolases that target beta-1,2 mannosidic linkages in Candida mannan [Bacteroides thetaiotaomicron]
3R67_A	3.29e-64	32	319	45	353	Crystalstructure of a putative glycosidase (BT_4094) from BACTEROIDES THETAIOTAOMICRON VPI-5482 at 2.30 A resolution [Bacteroides thetaiotaomicron VPI-5482],3R67_B Crystal structure of a putative glycosidase (BT_4094) from BACTEROIDES THETAIOTAOMICRON VPI-5482 at 2.30 A resolution [Bacteroides thetaiotaomicron VPI-5482],3R67_C Crystal structure of a putative glycosidase (BT_4094) from BACTEROIDES THETAIOTAOMICRON VPI-5482 at 2.30 A resolution [Bacteroides thetaiotaomicron VPI-5482],3R67_D Crystal structure of a putative glycosidase (BT_4094) from BACTEROIDES THETAIOTAOMICRON VPI-5482 at 2.30 A resolution [Bacteroides thetaiotaomicron VPI-5482]
3TAW_A	2.86e-62	19	318	20	351	Crystalstructure of a putative glycoside hydrolase (BDI_3141) from Parabacteroides distasonis ATCC 8503 at 1.70 A resolution [Parabacteroides distasonis ATCC 8503]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
B0K2C2	5.66e-44	24	318	11	290	1,2-beta-oligomannan phosphorylase OS=Thermoanaerobacter sp. (strain X514) OX=399726 GN=Teth514_1788 PE=1 SV=1
B0K2C3	1.10e-34	21	320	8	298	Beta-1,2-mannobiose phosphorylase OS=Thermoanaerobacter sp. (strain X514) OX=399726 GN=Teth514_1789 PE=1 SV=1
Q92DF6	1.74e-22	62	313	106	337	Beta-1,2-mannobiose phosphorylase OS=Listeria innocua serovar 6a (strain ATCC BAA-680 / CLIP 11262) OX=272626 GN=lin0857 PE=1 SV=1

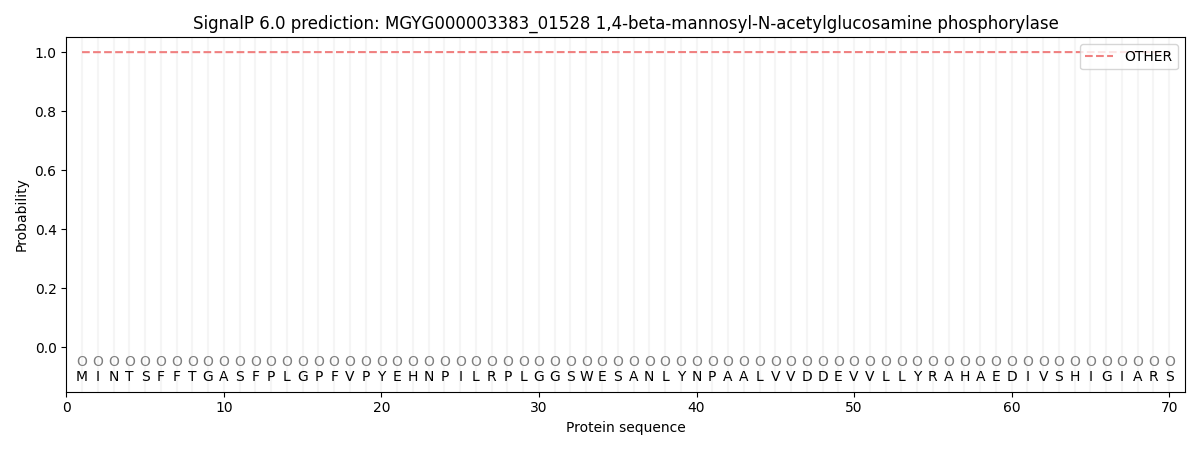

SignalP and Lipop Annotations

This protein is predicted as OTHER

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
0.999877	0.000166	0.000001	0.000000	0.000000	0.000000

TMHMM  Annotations

There is no transmembrane helices in MGYG000003383_01528.
