CAZyme Information: MGYG000003466_00412

Basic Information

• Species: Treponema_D sp900767955
• Lineage: Bacteria; Spirochaetota; Spirochaetia; Treponematales; Treponemataceae; Treponema_D; Treponema_D sp900767955
• CAZyme ID: MGYG000003466_00412
• CAZy Family: GH13
• CAZyme Description: Alpha-amylase

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
592	MGYG000003466_17|CGC1	65594.49	6.2587

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000003466	2580548	MAG	Fiji	Oceania

• Gene Location: Start: 37659; End: 39437 Strand: -

Full Sequence

MLTKSKKIAIASVCLAACLTTAFAAKPKTKFKAVDPELAVNELAAVTRTAAKPGEGVYYS
MFVRSFADSNKDGIGDFNGIIKKLDYLNDGDDLTTTDLGITGIWMLPIFPSQSYHGYDVD
NYYDVNPEYGTMKDFENLLAECKKRGISVIIDMTCNHSSAYNDWFIQSKKADSPYRTWYR
WINDLDFAENGGPYNRNQKGLAGNIWTIDMSSPVLDANGKPVLDKSGLAVMNYYAGLFST
QMPDLNMDEPAVREEFKKVFKFWLDKGVSGFRFDAAGHVYNSAEVKPGSETMPKAIAFWK
EMNDYIKSVNPDAYCVAEVWDPTAVRAKYLGGMQSNFHFDLGTLITQIINNQEMNDKANT
PDDPDTSTYNGFARSLESTYSLYASNNPDYIDAPFLSNHDQPRSCAGLRNKPEKMKLAAN
MYILAEGIPFIYYGEEIGMKSGKDDPSKRTPLVWKAAGKEKLTPTWIDSGAYGNAAIYNK
KTVPVDVQEKDPASVLQHYKRVIRVKTAHPALHRGRLKAVPTDSAVVESYVMECDVEKAF
VAHNVSSTRTVKVKIPEGCDMPLVFASNAGVTVEGGELTIPPMTSIVLAANK

Enzyme Prediction

No EC number prediction in MGYG000003466_00412.

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GH13	75	440	1.3e-111	0.9904458598726115

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
cd11316	AmyAc_bac2_AmyA	0.0	56	515	1	403	Alpha amylase catalytic domain found in bacterial Alpha-amylases (also called 1,4-alpha-D-glucan-4-glucanohydrolase). AmyA (EC 3.2.1.1) catalyzes the hydrolysis of alpha-(1,4) glycosidic linkages of glycogen, starch, related polysaccharides, and some oligosaccharides. This group includes Chloroflexi, Dictyoglomi, and Fusobacteria. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
cd11333	AmyAc_SI_OligoGlu_DGase	2.83e-106	55	506	2	426	Alpha amylase catalytic domain found in Sucrose isomerases, oligo-1,6-glucosidase (also called isomaltase; sucrase-isomaltase; alpha-limit dextrinase), dextran glucosidase (also called glucan 1,6-alpha-glucosidase), and related proteins. The sucrose isomerases (SIs) Isomaltulose synthase (EC 5.4.99.11) and Trehalose synthase (EC 5.4.99.16) catalyze the isomerization of sucrose and maltose to produce isomaltulose and trehalulose, respectively. Oligo-1,6-glucosidase (EC 3.2.1.10) hydrolyzes the alpha-1,6-glucosidic linkage of isomaltooligosaccharides, pannose, and dextran. Unlike alpha-1,4-glucosidases (EC 3.2.1.20), it fails to hydrolyze the alpha-1,4-glucosidic bonds of maltosaccharides. Dextran glucosidase (DGase, EC 3.2.1.70) hydrolyzes alpha-1,6-glucosidic linkages at the non-reducing end of panose, isomaltooligosaccharides and dextran to produce alpha-glucose.The common reaction chemistry of the alpha-amylase family enzymes is based on a two-step acid catalytic mechanism that requires two critical carboxylates: one acting as a general acid/base (Glu) and the other as a nucleophile (Asp). Both hydrolysis and transglycosylation proceed via the nucleophilic substitution reaction between the anomeric carbon, C1 and a nucleophile. Both enzymes contain the three catalytic residues (Asp, Glu and Asp) common to the alpha-amylase family as well as two histidine residues which are predicted to be critical to binding the glucose residue adjacent to the scissile bond in the substrates. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
cd11334	AmyAc_TreS	4.56e-87	55	505	4	446	Alpha amylase catalytic domain found in Trehalose synthetase. Trehalose synthetase (TreS) catalyzes the reversible interconversion of trehalose and maltose. The enzyme catalyzes the reaction in both directions, but the preferred substrate is maltose. Glucose is formed as a by-product of this reaction. It is believed that the catalytic mechanism may involve the cutting of the incoming disaccharide and transfer of a glucose to an enzyme-bound glucose. This enzyme also catalyzes production of a glucosamine disaccharide from maltose and glucosamine. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
cd11331	AmyAc_OligoGlu_like	1.97e-81	55	516	5	450	Alpha amylase catalytic domain found in oligo-1,6-glucosidase (also called isomaltase; sucrase-isomaltase; alpha-limit dextrinase) and related proteins. Oligo-1,6-glucosidase (EC 3.2.1.10) hydrolyzes the alpha-1,6-glucosidic linkage of isomalto-oligosaccharides, pannose, and dextran. Unlike alpha-1,4-glucosidases (EC 3.2.1.20), it fails to hydrolyze the alpha-1,4-glucosidic bonds of maltosaccharides. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
pfam00128	Alpha-amylase	3.84e-81	75	446	1	334	Alpha amylase, catalytic domain. Alpha amylase is classified as family 13 of the glycosyl hydrolases. The structure is an 8 stranded alpha/beta barrel containing the active site, interrupted by a ~70 a.a. calcium-binding domain protruding between beta strand 3 and alpha helix 3, and a carboxyl-terminal Greek key beta-barrel domain.

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
QQA01604.1	7.27e-215	32	591	38	564
QNL98238.1	1.41e-206	46	592	40	541
AEE16131.1	1.86e-202	33	592	34	553
QSI02738.1	6.48e-198	46	592	37	552
AUS97761.1	3.18e-125	56	588	69	566

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
1WZA_A	5.67e-97	56	588	5	485	Crystalstructure of alpha-amylase from H.orenii [Halothermothrix orenii]
7JJT_A	8.89e-87	47	592	10	524	ChainA, Alpha-amylase [Ruminococcus bromii]
7JJN_A	4.70e-68	59	591	38	524	ChainA, Glycosidases [[Eubacterium] rectale DSM 17629],7JJN_B Chain B, Glycosidases [[Eubacterium] rectale DSM 17629]
5H2T_A	2.17e-56	57	546	27	511	Structureof trehalose synthase [Thermomonospora curvata DSM 43183],5H2T_B Structure of trehalose synthase [Thermomonospora curvata DSM 43183],5H2T_C Structure of trehalose synthase [Thermomonospora curvata DSM 43183],5H2T_D Structure of trehalose synthase [Thermomonospora curvata DSM 43183],5H2T_E Structure of trehalose synthase [Thermomonospora curvata DSM 43183],5H2T_F Structure of trehalose synthase [Thermomonospora curvata DSM 43183],5H2T_G Structure of trehalose synthase [Thermomonospora curvata DSM 43183],5H2T_H Structure of trehalose synthase [Thermomonospora curvata DSM 43183]
2ZE0_A	2.49e-56	55	546	8	507	Alpha-glucosidaseGSJ [Geobacillus sp. HTA-462]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
P14899	1.10e-110	57	588	36	496	Alpha-amylase 3 OS=Dictyoglomus thermophilum (strain ATCC 35947 / DSM 3960 / H-6-12) OX=309799 GN=amyC PE=3 SV=2
P20845	8.94e-102	56	588	40	519	Alpha-amylase OS=Priestia megaterium OX=1404 PE=1 SV=1
P29094	2.16e-55	55	557	8	522	Oligo-1,6-glucosidase OS=Parageobacillus thermoglucosidasius OX=1426 GN=malL PE=1 SV=1
Q8A1G3	3.07e-53	57	548	62	647	Alpha-amylase SusG OS=Bacteroides thetaiotaomicron (strain ATCC 29148 / DSM 2079 / JCM 5827 / CCUG 10774 / NCTC 10582 / VPI-5482 / E50) OX=226186 GN=susG PE=1 SV=1
Q9K8U9	9.28e-51	55	530	8	495	Oligo-1,6-glucosidase OS=Alkalihalobacillus halodurans (strain ATCC BAA-125 / DSM 18197 / FERM 7344 / JCM 9153 / C-125) OX=272558 GN=malL PE=3 SV=1

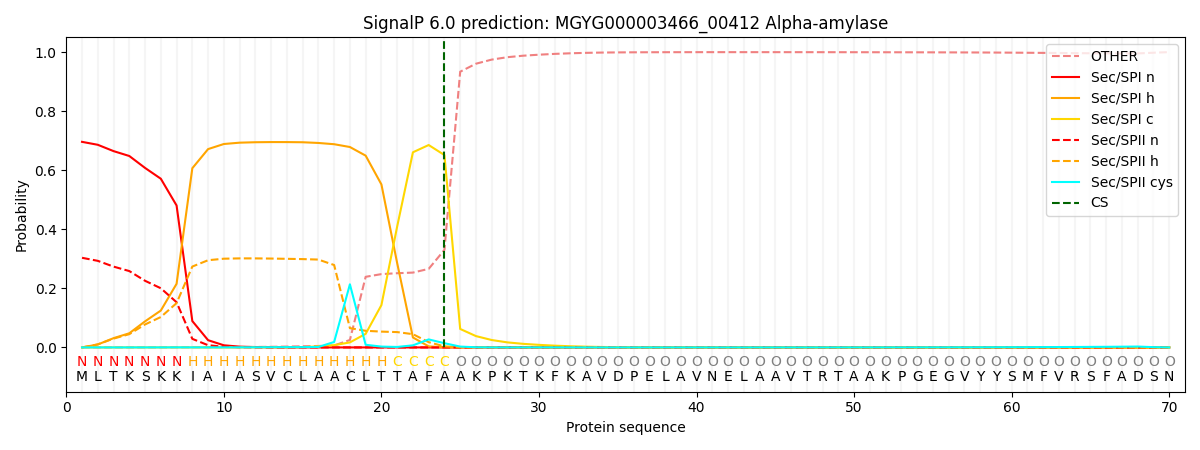

SignalP and Lipop Annotations

This protein is predicted as SP

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
0.001247	0.680553	0.316811	0.000676	0.000397	0.000290

TMHMM  Annotations

There is no transmembrane helices in MGYG000003466_00412.
