CAZyme Information: MGYG000003515_00699
You are here: Home > Sequence: MGYG000003515_00699
Basic Information |
Genomic context |
Full Sequence |
Enzyme annotations |
CAZy signature domains |
CDD domains |
CAZyme hits |
PDB hits |
Swiss-Prot hits |
SignalP and Lipop annotations |
TMHMM annotations
Basic Information help
| Species | Prevotella sp900769275 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lineage | Bacteria; Bacteroidota; Bacteroidia; Bacteroidales; Bacteroidaceae; Prevotella; Prevotella sp900769275 | |||||||||||
| CAZyme ID | MGYG000003515_00699 | |||||||||||
| CAZy Family | GH51 | |||||||||||
| CAZyme Description | Intracellular exo-alpha-L-arabinofuranosidase 2 | |||||||||||
| CAZyme Property |
|
|||||||||||
| Genome Property |
|
|||||||||||
| Gene Location | Start: 4916; End: 6457 Strand: - | |||||||||||
CAZyme Signature Domains help
| Family | Start | End | Evalue | family coverage |
|---|---|---|---|---|
| GH51 | 10 | 511 | 3.2e-131 | 0.7333333333333333 |
CDD Domains download full data without filtering help
| Cdd ID | Domain | E-Value | qStart | qEnd | sStart | sEnd | Domain Description |
|---|---|---|---|---|---|---|---|
| COG3534 | AbfA | 1.88e-177 | 13 | 512 | 3 | 500 | Alpha-L-arabinofuranosidase [Carbohydrate transport and metabolism]. |
| pfam06964 | Alpha-L-AF_C | 9.88e-68 | 309 | 504 | 1 | 192 | Alpha-L-arabinofuranosidase C-terminal domain. This family represents the C-terminus (approximately 200 residues) of bacterial and eukaryotic alpha-L-arabinofuranosidase (EC:3.2.1.55). This catalyzes the hydrolysis of nonreducing terminal alpha-L-arabinofuranosidic linkages in L-arabinose-containing polysaccharides. |
| smart00813 | Alpha-L-AF_C | 2.74e-56 | 309 | 504 | 1 | 189 | Alpha-L-arabinofuranosidase C-terminus. This entry represents the C terminus (approximately 200 residues) of bacterial and eukaryotic alpha-L-arabinofuranosidase. This catalyses the hydrolysis of non-reducing terminal alpha-L-arabinofuranosidic linkages in L-arabinose-containing polysaccharides. |
CAZyme Hits help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End |
|---|---|---|---|---|---|
| QQY44740.1 | 5.69e-257 | 2 | 510 | 5 | 506 |
| QUT57142.1 | 5.69e-257 | 2 | 510 | 5 | 506 |
| QQY40424.1 | 5.69e-257 | 2 | 510 | 5 | 506 |
| QEW35854.1 | 5.69e-257 | 2 | 510 | 5 | 506 |
| ALK86132.1 | 6.83e-257 | 2 | 510 | 10 | 511 |
PDB Hits download full data without filtering help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End | Description |
|---|---|---|---|---|---|---|
| 2VRQ_A | 1.06e-200 | 16 | 512 | 7 | 495 | StructureOf An Inactive Mutant Of Arabinofuranosidase From Thermobacillus Xylanilyticus In Complex With A Pentasaccharide [Thermobacillus xylanilyticus],2VRQ_B Structure Of An Inactive Mutant Of Arabinofuranosidase From Thermobacillus Xylanilyticus In Complex With A Pentasaccharide [Thermobacillus xylanilyticus],2VRQ_C Structure Of An Inactive Mutant Of Arabinofuranosidase From Thermobacillus Xylanilyticus In Complex With A Pentasaccharide [Thermobacillus xylanilyticus] |
| 6ZT6_A | 4.28e-200 | 16 | 512 | 7 | 495 | ChainA, Alpha-L-arabinofuranosidase [Thermobacillus xylanilyticus],6ZT6_B Chain B, Alpha-L-arabinofuranosidase [Thermobacillus xylanilyticus],6ZT6_C Chain C, Alpha-L-arabinofuranosidase [Thermobacillus xylanilyticus],6ZT7_A Chain A, Alpha-L-arabinofuranosidase [Thermobacillus xylanilyticus],6ZT7_B Chain B, Alpha-L-arabinofuranosidase [Thermobacillus xylanilyticus],6ZT7_C Chain C, Alpha-L-arabinofuranosidase [Thermobacillus xylanilyticus] |
| 6ZTA_A | 9.92e-199 | 16 | 512 | 7 | 495 | ChainA, Alpha-L-arabinofuranosidase [Thermobacillus xylanilyticus],6ZTA_B Chain B, Alpha-L-arabinofuranosidase [Thermobacillus xylanilyticus],6ZTA_C Chain C, Alpha-L-arabinofuranosidase [Thermobacillus xylanilyticus] |
| 6ZT8_A | 1.41e-198 | 16 | 512 | 7 | 495 | ChainA, Alpha-L-arabinofuranosidase [Thermobacillus xylanilyticus],6ZT8_B Chain B, Alpha-L-arabinofuranosidase [Thermobacillus xylanilyticus],6ZT8_C Chain C, Alpha-L-arabinofuranosidase [Thermobacillus xylanilyticus],6ZT9_A Chain A, Alpha-L-arabinofuranosidase [Thermobacillus xylanilyticus],6ZT9_B Chain B, Alpha-L-arabinofuranosidase [Thermobacillus xylanilyticus],6ZT9_C Chain C, Alpha-L-arabinofuranosidase [Thermobacillus xylanilyticus] |
| 2VRK_A | 3.29e-192 | 16 | 512 | 7 | 495 | Structureof a seleno-methionyl derivative of wild type arabinofuranosidase from Thermobacillus xylanilyticus [Thermobacillus xylanilyticus],2VRK_B Structure of a seleno-methionyl derivative of wild type arabinofuranosidase from Thermobacillus xylanilyticus [Thermobacillus xylanilyticus],2VRK_C Structure of a seleno-methionyl derivative of wild type arabinofuranosidase from Thermobacillus xylanilyticus [Thermobacillus xylanilyticus] |
Swiss-Prot Hits download full data without filtering help
| Hit ID | E-Value | Query Start | Query End | Hit Start | Hit End | Description |
|---|---|---|---|---|---|---|
| Q59219 | 1.95e-248 | 11 | 509 | 20 | 512 | Intracellular exo-alpha-L-arabinofuranosidase OS=Bacteroides ovatus OX=28116 GN=asdII PE=3 SV=1 |
| P94552 | 4.66e-184 | 27 | 512 | 17 | 493 | Intracellular exo-alpha-L-arabinofuranosidase 2 OS=Bacillus subtilis (strain 168) OX=224308 GN=abf2 PE=1 SV=2 |
| B8NIX4 | 5.68e-63 | 15 | 509 | 14 | 501 | Probable alpha-L-arabinofuranosidase C OS=Aspergillus flavus (strain ATCC 200026 / FGSC A1120 / IAM 13836 / NRRL 3357 / JCM 12722 / SRRC 167) OX=332952 GN=abfC PE=3 SV=1 |
| A2QQ94 | 8.12e-63 | 15 | 462 | 14 | 464 | Probable alpha-L-arabinofuranosidase C OS=Aspergillus niger (strain CBS 513.88 / FGSC A1513) OX=425011 GN=abfC PE=3 SV=1 |
| Q0D1I6 | 1.11e-62 | 5 | 462 | 4 | 474 | Probable alpha-L-arabinofuranosidase C OS=Aspergillus terreus (strain NIH 2624 / FGSC A1156) OX=341663 GN=abfC PE=3 SV=1 |

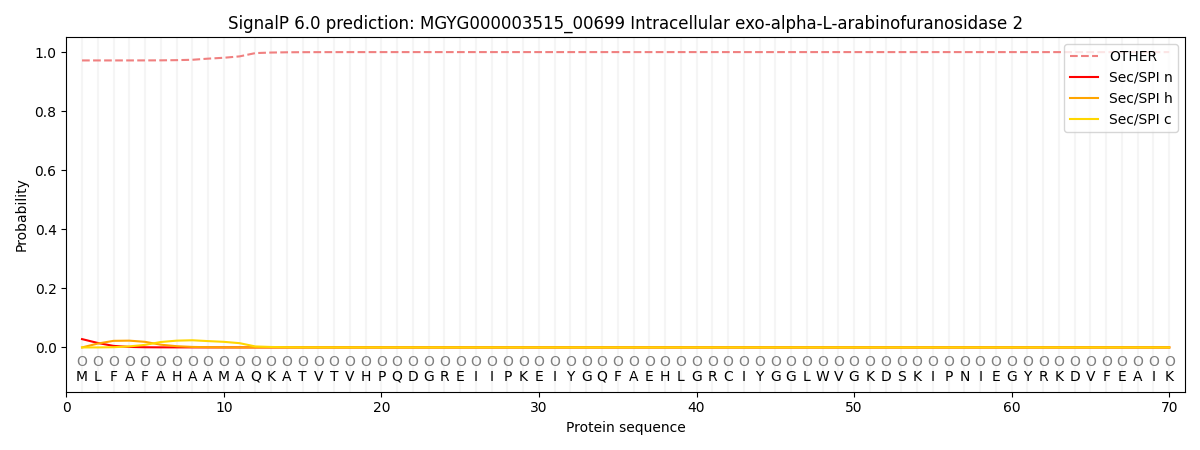

SignalP and Lipop Annotations help
This protein is predicted as OTHER
| Other | SP_Sec_SPI | LIPO_Sec_SPII | TAT_Tat_SPI | TATLIP_Sec_SPII | PILIN_Sec_SPIII |
|---|---|---|---|---|---|
| 0.973821 | 0.026070 | 0.000046 | 0.000044 | 0.000020 | 0.000029 |
