CAZyme Information: MGYG000003525_00696

Basic Information

• Species: RC9 sp004556005
• Lineage: Bacteria; Bacteroidota; Bacteroidia; Bacteroidales; UBA932; RC9; RC9 sp004556005
• CAZyme ID: MGYG000003525_00696
• CAZy Family: GH13
• CAZyme Description: 1,4-alpha-glucan branching enzyme GlgB

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
951	MGYG000003525_14|CGC1	106885.02	4.6538

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000003525	2213098	MAG	Fiji	Oceania

• Gene Location: Start: 40257; End: 43112 Strand: -

Full Sequence

MKRIFVLSLLATLFVACVKGPSSLSVSPSEVEIPAYGGSGTLVIRCDGEWSLEITQAENW
CKASLTKGSGNATVSLRAESNIGGESREANVCITAGSLAPATVRVLQKGEGTAPVEAVYP
DPASGITVEPEVPDADGECTIRFRPQAGNPLYNHSGEIYGHLGVVVEGEWMFVPCDWAVS
DEKVHFKKLGDNDWELKLTPSIREYFGSGETPVNMIAIIVRSEDGNTKSHSNDQFCTVTD
NNYKNEQFTPDPVVKETMPAGARYGINCNGDGSVTFVLYDRDTRGNCHNYCYIVGDWNGW
ERVPEAAMKRDDASGCWWITLSGFDPDKEYRFQYRLGTGSGTDIRISDPYTEIVYDQWND
KYISWAPEFPEGARALVSAFKINRDNYSWKVTDFKIEDRKDLIIYEMHLRDFSPSGDIAG
ALERLDHISELGVNAIELMPVQEFDGNDSWGYNPNHWFALDKAYGTREQYKQFIDECHKR
GIAVIFDVVYNHTTGSHSWAKMWWDSSLSCTAENNPWFNMYATHPYNVYHDINHENAMVR
QTIKESLGYLLTEYKVDGFRFDLSKGFTQTKTDPDVEKWGKYDQSRIDILEDYADYIHTV
NPDAAVILEHLSDWDEEKVLAEHGIQLWRNVNGEFRNAMSGTGSNFSNIWSTSPFGGFVG
YMESHDEERICNGVTSSNEDVSWGICGTLTDWGTKADITMSPDSPFFVARNVSFTASDMF
KIRGNSSWDDAFNWGASSKGYKLPLDNGYEMTLGSSSQDMAVPAAGSYDVYFCPEVGTIW
LMTPGKRPDEPEITGDADDALTAAMRRAGACAAFFLTVPGPKMIWQFGEIGYDYSINYND
RTGRKPVVTDKYMAQPSRRQLYDTYARLLRFRRENPRFFDSDAKFSWTPSGTTKTILCSV
DGKRFHVVGNFGKKDISYTLPAGSWKDWQTGKAPESTITLQQGEFRLFTDF

Enzyme Prediction

No EC number prediction in MGYG000003525_00696.

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GH13	412	640	4.1e-45	0.6613418530351438

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
cd11350	AmyAc_4	5.70e-146	387	879	1	387	Alpha amylase catalytic domain found in an uncharacterized protein family. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
cd11325	AmyAc_GTHase	7.42e-54	387	615	23	229	Alpha amylase catalytic domain found in Glycosyltrehalose trehalohydrolase (also called Maltooligosyl trehalose Trehalohydrolase). Glycosyltrehalose trehalohydrolase (GTHase) was discovered as part of a coupled system for the production of trehalose from soluble starch. In the first half of the reaction, glycosyltrehalose synthase (GTSase), an intramolecular glycosyl transferase, converts the glycosidic bond between the last two glucose residues of amylose from an alpha-1,4 bond to an alpha-1,1 bond, making a non-reducing glycosyl trehaloside. In the second half of the reaction, GTHase cleaves the alpha-1,4 glycosidic bond adjacent to the trehalose moiety to release trehalose and malto-oligosaccharide. Like isoamylase and other glycosidases that recognize branched oligosaccharides, GTHase contains an N-terminal extension and does not have the conserved calcium ion present in other alpha amylase family enzymes. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase. Glycosyltrehalose Trehalohydrolase Maltooligosyltrehalose Trehalohydrolase
COG0296	GlgB	1.10e-46	258	562	24	303	1,4-alpha-glucan branching enzyme [Carbohydrate transport and metabolism].
COG1523	PulA	4.65e-39	399	563	169	360	Pullulanase/glycogen debranching enzyme [Carbohydrate transport and metabolism].
cd11341	AmyAc_Pullulanase_LD-like	1.78e-38	401	563	2	198	Alpha amylase catalytic domain found in Pullulanase (also called dextrinase; alpha-dextrin endo-1,6-alpha glucosidase), limit dextrinase, and related proteins. Pullulanase is an enzyme with action similar to that of isoamylase; it cleaves 1,6-alpha-glucosidic linkages in pullulan, amylopectin, and glycogen, and in alpha-and beta-amylase limit-dextrins of amylopectin and glycogen. Pullulanases are very similar to limit dextrinases, although they differ in their action on glycogen and the rate of hydrolysis of limit dextrins. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
QCQ49667.1	1.55e-225	14	951	121	952
QKH86932.1	8.69e-225	14	951	121	952
QCQ46983.1	2.45e-224	14	951	121	952
QLK84352.1	2.45e-224	14	951	121	952
QRM72164.1	2.45e-224	14	951	121	952

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
1EHA_A	1.64e-30	343	620	49	292	CRYSTALSTRUCTURE OF GLYCOSYLTREHALOSE TREHALOHYDROLASE FROM SULFOLOBUS SOLFATARICUS [Saccharolobus solfataricus]
1EH9_A	1.64e-30	343	620	49	292	CrystalStructure Of Sulfolobus Solfataricus Glycosyltrehalose Trehalohydrolase [Saccharolobus solfataricus],3VGB_A Crystal structure of glycosyltrehalose trehalohydrolase (GTHase) from Sulfolobus solfataricus KM1 [Saccharolobus solfataricus]
3VGG_A	2.19e-30	343	601	49	277	Crystalstructure of glycosyltrehalose trehalohydrolase (E283Q) complexed with maltoheptaose [Saccharolobus solfataricus],3VGH_A Crystal structure of glycosyltrehalose trehalohydrolase (E283Q) complexed with maltotriosyltrehalose [Saccharolobus solfataricus]
3VGD_A	5.21e-30	343	620	49	292	Ctystalstructure of glycosyltrehalose trehalohydrolase (D252E) [Saccharolobus solfataricus]
3VGE_A	9.28e-30	343	620	49	292	Crystalstructure of glycosyltrehalose trehalohydrolase (D252S) [Saccharolobus solfataricus],3VGF_A Crystal structure of glycosyltrehalose trehalohydrolase (D252S) complexed with maltotriosyltrehalose [Saccharolobus solfataricus]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
Q55088	9.06e-30	343	620	50	293	Malto-oligosyltrehalose trehalohydrolase OS=Saccharolobus solfataricus OX=2287 GN=treZ PE=1 SV=2
P95867	9.29e-29	343	620	50	295	Malto-oligosyltrehalose trehalohydrolase OS=Saccharolobus solfataricus (strain ATCC 35092 / DSM 1617 / JCM 11322 / P2) OX=273057 GN=treZ PE=1 SV=1
Q44316	3.93e-28	299	562	34	267	Malto-oligosyltrehalose trehalohydrolase OS=Arthrobacter sp. (strain Q36) OX=104027 GN=treZ PE=3 SV=1
Q9AJN6	3.23e-26	370	497	70	197	Malto-oligosyltrehalose trehalohydrolase OS=Arthrobacter ramosus OX=1672 GN=treZ PE=3 SV=1
Q53238	8.43e-25	317	580	51	283	Malto-oligosyltrehalose trehalohydrolase OS=Rhizobium sp. (strain M-11) OX=269089 GN=treZ PE=3 SV=1

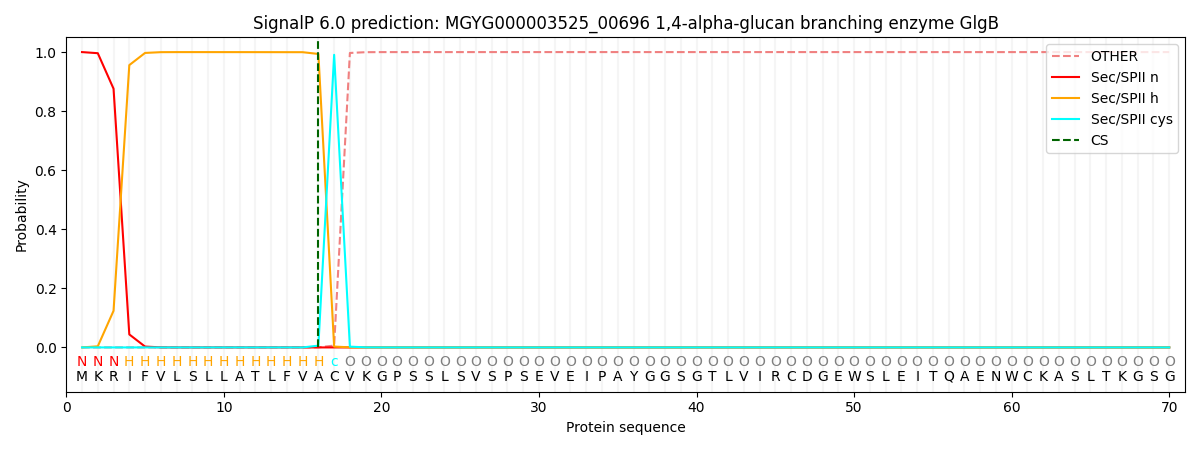

SignalP and Lipop Annotations

This protein is predicted as LIPO

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
0.000000	0.000002	1.000025	0.000000	0.000000	0.000000

TMHMM  Annotations

There is no transmembrane helices in MGYG000003525_00696.
