CAZyme Information: MGYG000003831_00171

Basic Information

• Lineage: Bacteria; Bacteroidota; Bacteroidia; Bacteroidales; Muribaculaceae; CAG-485
• CAZyme ID: MGYG000003831_00171
• CAZy Family: GH53
• CAZyme Description: Arabinogalactan endo-beta-1,4-galactanase

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
332	MGYG000003831_3|CGC1	36998.85	4.8357

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000003831	3246644	MAG	United States	North America

• Gene Location: Start: 27739; End: 28737 Strand: +

Full Sequence

MAAFALTAVASDNNKTFWLGGDISGTTADEARGHFTMNRDSVRVETTQLMKDYGMNATRL
RVWVDPKDGFSSPEDVLKMAKRSQALGMPVMVDFHYSDWWADPGKQNPPKEWLGMNLEQT
EKALADHTRSTLQLLKDNGIDVKWVQVGNETTHGFLWPMGKFEENPEQYASLTKAGVKAV
REVYPEAQVIIHLDNGFDQKLYDTVFDSLKANGVEWDVIGMSVYPYWAMEGGHEESEIMT
LVDSIANIRHLKKKYGTDVMIVETGVDARNPEPGRQFIAALIKAAKDLTDGACTGVFYWA
PEIDAEAAYRLGAFSHGMPTVIMDAFKEASGK

Enzyme Prediction

No EC number prediction in MGYG000003831_00171.

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GH53	20	303	1.5e-89	0.8859649122807017

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
pfam07745	Glyco_hydro_53	2.00e-92	20	302	3	298	Glycosyl hydrolase family 53. This domain belongs to family 53 of the glycosyl hydrolase classification. These enzymes are enzymes are endo-1,4- beta-galactanases (EC:3.2.1.89). The structure of this domain is known and has a TIM barrel fold.
COG3867	GanB	1.55e-83	14	302	36	343	Arabinogalactan endo-1,4-beta-galactosidase [Carbohydrate transport and metabolism].
COG5520	XynC	0.004	54	299	77	307	O-Glycosyl hydrolase [Cell wall/membrane/envelope biogenesis].
cd11330	AmyAc_OligoGlu	0.008	50	113	55	139	Alpha amylase catalytic domain found in oligo-1,6-glucosidase (also called isomaltase; sucrase-isomaltase; alpha-limit dextrinase) and related proteins. Oligo-1,6-glucosidase (EC 3.2.1.10) hydrolyzes the alpha-1,6-glucosidic linkage of isomalto-oligosaccharides, pannose, and dextran. Unlike alpha-1,4-glucosidases (EC 3.2.1.20), it fails to hydrolyze the alpha-1,4-glucosidic bonds of maltosaccharides. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
AIF26228.1	2.83e-135	16	327	25	333
BCS85804.1	2.40e-124	1	326	5	333
AGB28883.1	1.29e-117	2	330	4	336
SCM59778.1	1.86e-104	2	327	13	359
ADE81415.1	1.72e-100	5	328	11	340

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
6GPA_A	1.23e-87	17	327	7	314	Beta-1,4-galactanasefrom Bacteroides thetaiotaomicron with galactose [Bacteroides thetaiotaomicron VPI-5482],6GPA_B Beta-1,4-galactanase from Bacteroides thetaiotaomicron with galactose [Bacteroides thetaiotaomicron VPI-5482]
6GP5_A	4.04e-87	17	327	43	350	Beta-1,4-galactanasefrom Bacteroides thetaiotaomicron [Bacteroides thetaiotaomicron VPI-5482],6GP5_B Beta-1,4-galactanase from Bacteroides thetaiotaomicron [Bacteroides thetaiotaomicron VPI-5482]
1R8L_A	7.72e-42	15	311	22	333	Thestructure of endo-beta-1,4-galactanase from Bacillus licheniformis [Bacillus licheniformis],1R8L_B The structure of endo-beta-1,4-galactanase from Bacillus licheniformis [Bacillus licheniformis],1UR0_A The structure of endo-beta-1,4-galactanase from Bacillus licheniformis in complex with two oligosaccharide products. [Bacillus licheniformis],1UR0_B The structure of endo-beta-1,4-galactanase from Bacillus licheniformis in complex with two oligosaccharide products. [Bacillus licheniformis],1UR4_A The structure of endo-beta-1,4-galactanase from Bacillus licheniformis in complex with two oligosaccharide products. [Bacillus licheniformis],1UR4_B The structure of endo-beta-1,4-galactanase from Bacillus licheniformis in complex with two oligosaccharide products. [Bacillus licheniformis],2CCR_A Structure of Beta-1,4-Galactanase [Bacillus licheniformis],2CCR_B Structure of Beta-1,4-Galactanase [Bacillus licheniformis],2J74_A Structure of Beta-1,4-Galactanase [Bacillus licheniformis],2J74_B Structure of Beta-1,4-Galactanase [Bacillus licheniformis]
7OSK_A	9.03e-42	38	299	71	352	ChainA, Arabinogalactan endo-1,4-beta-galactosidase [Ignisphaera aggregans DSM 17230],7OSK_B Chain B, Arabinogalactan endo-1,4-beta-galactosidase [Ignisphaera aggregans DSM 17230]
2GFT_A	5.72e-41	15	311	22	333	ChainA, Glycosyl Hydrolase Family 53 [Bacillus licheniformis],2GFT_B Chain B, Glycosyl Hydrolase Family 53 [Bacillus licheniformis]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
P48843	2.97e-47	15	301	4	310	Uncharacterized protein in bgaB 5'region (Fragment) OS=Niallia circulans OX=1397 PE=3 SV=1
Q9Y7F8	5.19e-43	20	301	22	315	Probable arabinogalactan endo-beta-1,4-galactanase A OS=Aspergillus tubingensis OX=5068 GN=galA PE=2 SV=1
A2RB93	1.43e-42	20	301	22	315	Probable arabinogalactan endo-beta-1,4-galactanase A OS=Aspergillus niger (strain CBS 513.88 / FGSC A1513) OX=425011 GN=galA PE=3 SV=1
Q8X168	1.43e-42	20	301	22	315	Arabinogalactan endo-beta-1,4-galactanase A OS=Aspergillus niger OX=5061 GN=galA PE=1 SV=1
A1D3T4	4.49e-42	20	277	27	282	Probable arabinogalactan endo-beta-1,4-galactanase A OS=Neosartorya fischeri (strain ATCC 1020 / DSM 3700 / CBS 544.65 / FGSC A1164 / JCM 1740 / NRRL 181 / WB 181) OX=331117 GN=galA PE=3 SV=1

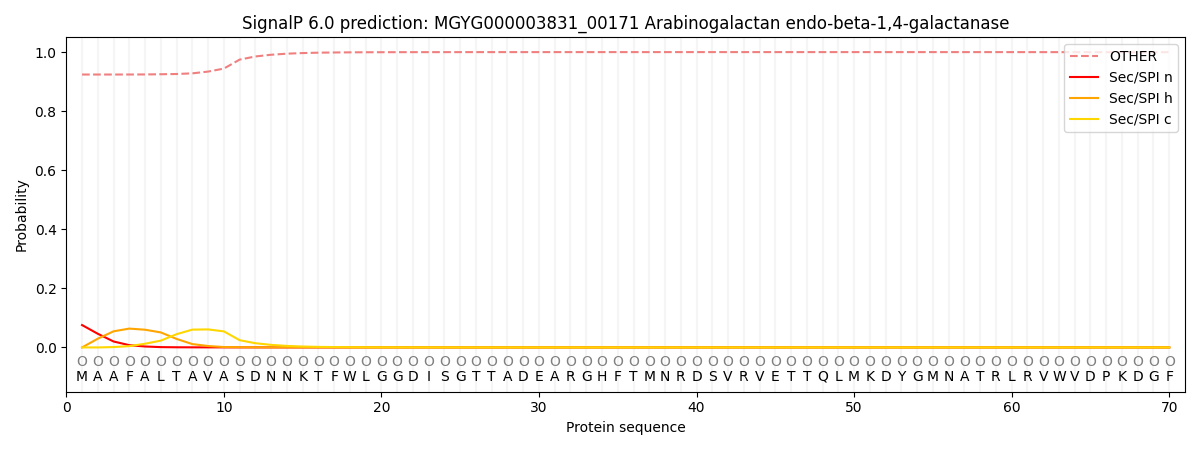

SignalP and Lipop Annotations

This protein is predicted as OTHER

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
0.929174	0.070232	0.000270	0.000108	0.000070	0.000160

TMHMM  Annotations

There is no transmembrane helices in MGYG000003831_00171.
