CAZyme Information: MGYG000003912_01510

You are here: Home > Sequence: MGYG000003912_01510

Basic Information | Genomic context | Full Sequence | Enzyme annotations |  CAZy signature domains |  CDD domains | CAZyme hits | PDB hits | Swiss-Prot hits | SignalP and Lipop annotations | TMHMM annotations

Basic Information help

Species Prevotella sp000435635
Lineage Bacteria; Bacteroidota; Bacteroidia; Bacteroidales; Bacteroidaceae; Prevotella; Prevotella sp000435635
CAZyme ID MGYG000003912_01510
CAZy Family GH97
CAZyme Description Glucan 1,4-alpha-glucosidase SusB
CAZyme Property
Protein Length CGC Molecular Weight Isoelectric Point
711 MGYG000003912_11|CGC1 80547.57 5.5949
Genome Property
Genome Assembly ID Genome Size Genome Type Country Continent
MGYG000003912 2374877 MAG China Asia
Gene Location Start: 45708;  End: 47843  Strand: -

Full Sequence      Download help

Enzyme Prediction      help

EC 3.2.1.3 3.2.1.20

CAZyme Signature Domains help

Family Start End Evalue family coverage
GH97 10 708 1.5e-258 0.993660855784469

CDD Domains      download full data without filtering help

Cdd ID Domain E-Value qStart qEnd sStart sEnd Domain Description
pfam10566 Glyco_hydro_97 7.37e-142 304 606 1 278
Glycoside hydrolase 97. This domain is the catalytic region of the bacterial glycosyl-hydrolase family 97. This central part of the GH97 family protein sequences represents a typical and complete (beta/alpha)8-barrel or catalytic TIM-barrel type domain. The N- and C-terminal parts of the sequences, mainly consisting of beta-strands, form two additional non-catalytic domains. In all known glycosidases with the (beta-alpha)8-barrel fold, the amino acid residues at the active site are located on the C-termini of the beta-strands.
pfam14508 GH97_N 2.63e-102 25 299 1 235
Glycosyl-hydrolase 97 N-terminal. This N-terminal domain of glycosyl-hydrolase-97 contributes part of the active site pocket. It is also important for contact with the catalytic and C-terminal domains of the whole.
pfam14509 GH97_C 6.53e-44 609 709 1 97
Glycosyl-hydrolase 97 C-terminal, oligomerization. Glycosyl-hydrolase-97 is made up of three tightly linked and highly conserved globular domains. The C-terminal domain is found to be necessary for oligomerization of the whole molecule in order to create the active-site pocket and the Ca++-binding site.

CAZyme Hits      help

Hit ID E-Value Query Start Query End Hit Start Hit End
VEH15005.1 0.0 6 709 5 708
AGB28440.1 0.0 6 710 4 708
BCS85623.1 0.0 1 711 14 722
QUB75499.1 0.0 3 711 2 712
QUB92620.1 0.0 18 711 19 712

PDB Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
2D73_A 0.0 21 708 23 723
CrystalStructure Analysis of SusB [Bacteroides thetaiotaomicron VPI-5482],2D73_B Crystal Structure Analysis of SusB [Bacteroides thetaiotaomicron VPI-5482],2ZQ0_A Crystal structure of SusB complexed with acarbose [Bacteroides thetaiotaomicron],2ZQ0_B Crystal structure of SusB complexed with acarbose [Bacteroides thetaiotaomicron]
2JKA_A 0.0 23 708 14 712
Nativestructure of a family 97 alpha-glucosidase from Bacteroides thetaiotaomicron [Bacteroides thetaiotaomicron VPI-5482],2JKA_B Native structure of a family 97 alpha-glucosidase from Bacteroides thetaiotaomicron [Bacteroides thetaiotaomicron VPI-5482],2JKE_A Structure of a family 97 alpha-glucosidase from Bacteroides thetaiotaomicron in complex with deoxynojirimycin [Bacteroides thetaiotaomicron VPI-5482],2JKE_B Structure of a family 97 alpha-glucosidase from Bacteroides thetaiotaomicron in complex with deoxynojirimycin [Bacteroides thetaiotaomicron VPI-5482],2JKP_A Structure of a family 97 alpha-glucosidase from Bacteroides thetaiotaomicron in complex with castanospermine [Bacteroides thetaiotaomicron VPI-5482],2JKP_B Structure of a family 97 alpha-glucosidase from Bacteroides thetaiotaomicron in complex with castanospermine [Bacteroides thetaiotaomicron VPI-5482]
3WFA_A 0.0 21 708 3 703
Catalyticrole of the calcium ion in GH97 inverting glycoside hydrolase [Bacteroides thetaiotaomicron],3WFA_B Catalytic role of the calcium ion in GH97 inverting glycoside hydrolase [Bacteroides thetaiotaomicron]
5HQC_A 8.86e-166 22 711 2 661
AGlycoside Hydrolase Family 97 enzyme R171K variant from Pseudoalteromonas sp. strain K8 [Pseudoalteromonas sp. K8]
5HQ4_A 1.77e-165 22 711 2 661
AGlycoside Hydrolase Family 97 enzyme from Pseudoalteromonas sp. strain K8 [Pseudoalteromonas sp. K8],5HQA_A A Glycoside Hydrolase Family 97 enzyme in complex with Acarbose from Pseudoalteromonas sp. strain K8 [Pseudoalteromonas sp. K8]

Swiss-Prot Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
G8JZS4 0.0 8 708 9 723
Glucan 1,4-alpha-glucosidase SusB OS=Bacteroides thetaiotaomicron (strain ATCC 29148 / DSM 2079 / JCM 5827 / CCUG 10774 / NCTC 10582 / VPI-5482 / E50) OX=226186 GN=susB PE=1 SV=1
Q8A6L0 6.62e-65 1 708 1 661
Retaining alpha-galactosidase OS=Bacteroides thetaiotaomicron (strain ATCC 29148 / DSM 2079 / JCM 5827 / CCUG 10774 / NCTC 10582 / VPI-5482 / E50) OX=226186 GN=BT_1871 PE=1 SV=1
D7CFN7 1.93e-37 4 705 14 617
Probable retaining alpha-galactosidase OS=Streptomyces bingchenggensis (strain BCW-1) OX=749414 GN=SBI_01652 PE=3 SV=1

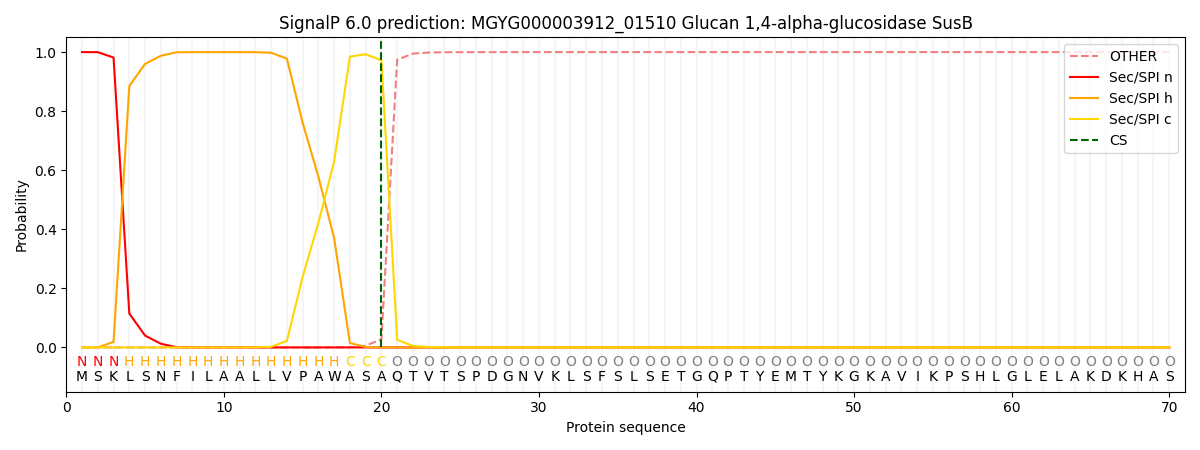

SignalP and Lipop Annotations help

This protein is predicted as SP

Other SP_Sec_SPI LIPO_Sec_SPII TAT_Tat_SPI TATLIP_Sec_SPII PILIN_Sec_SPIII
0.000285 0.999013 0.000197 0.000170 0.000160 0.000145

TMHMM  Annotations      help

There is no transmembrane helices in MGYG000003912_01510.
