CAZyme Information: MGYG000004077_00692

Basic Information

• Lineage: Bacteria; Firmicutes; Bacilli; Erysipelotrichales; Erysipelotrichaceae; Traorella
• CAZyme ID: MGYG000004077_00692
• CAZy Family: GH13
• CAZyme Description: Cyclomaltodextrinase

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
272		32418.26	6.4038

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000004077	1027619	MAG	United Kingdom	Europe

• Gene Location: Start: 813; End: 1631 Strand: -

Full Sequence

MNHWTQNAIFYHIYPLGFFGCEKHQTYQTVHRIRHLEAWIDHLRSLHVNALYIGPLFASS
SHGYDTIDYNQIDPRLGSNEDFKQLCQKLHENQIKIVLDGVFNHVGRNFWAFEDVCEKKW
ESPYKEWFSNLRFDGTTPYHDPFSYDSWEGHYELVKLNLYNQNVCDHLLQAVNMWIDEFD
IDGLRLDAANCIPPHFFKQLKSFTHAKKKDFWLMGEVIHGDYNQWANAEMLDSVTNYECY
KGIYSSHNTKNYFEIAYAYNRQHGDYGIYKNL

Enzyme Prediction

EC	3.2.1.-

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GH13	39	248	2.4e-64	0.7

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
cd11353	AmyAc_euk_bac_CMD_like	1.94e-173	7	272	1	268	Alpha amylase catalytic domain found in eukaryotic and bacterial cyclomaltodextrinases and related proteins. Cyclomaltodextrinase (CDase; EC3.2.1.54), neopullulanase (NPase; EC 3.2.1.135), and maltogenic amylase (MA; EC 3.2.1.133) catalyze the hydrolysis of alpha-(1,4) glycosidic linkages on a number of substrates including cyclomaltodextrins (CDs), pullulan, and starch. These enzymes hydrolyze CDs and starch to maltose and pullulan to panose by cleavage of alpha-1,4 glycosidic bonds whereas alpha-amylases essentially lack activity on CDs and pullulan. They also catalyze transglycosylation of oligosaccharides to the C3-, C4- or C6-hydroxyl groups of various acceptor sugar molecules. Since these proteins are nearly indistinguishable from each other, they are referred to as cyclomaltodextrinases (CMDs). This group of CMDs is mainly bacterial. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
cd11337	AmyAc_CMD_like	1.43e-142	9	272	1	229	Alpha amylase catalytic domain found in cyclomaltodextrinases and related proteins. Cyclomaltodextrinase (CDase; EC3.2.1.54), neopullulanase (NPase; EC 3.2.1.135), and maltogenic amylase (MA; EC 3.2.1.133) catalyze the hydrolysis of alpha-(1,4) glycosidic linkages on a number of substrates including cyclomaltodextrins (CDs), pullulan, and starch. These enzymes hydrolyze CDs and starch to maltose and pullulan to panose by cleavage of alpha-1,4 glycosidic bonds whereas alpha-amylases essentially lack activity on CDs and pullulan. They also catalyze transglycosylation of oligosaccharides to the C3-, C4- or C6-hydroxyl groups of various acceptor sugar molecules. Since these proteins are nearly indistinguishable from each other, they are referred to as cyclomaltodextrinases (CMDs). This group of CMDs is mainly bacterial. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
cd11354	AmyAc_bac_CMD_like	2.63e-79	7	266	1	252	Alpha amylase catalytic domain found in bacterial cyclomaltodextrinases and related proteins. Cyclomaltodextrinase (CDase; EC3.2.1.54), neopullulanase (NPase; EC 3.2.1.135), and maltogenic amylase (MA; EC 3.2.1.133) catalyze the hydrolysis of alpha-(1,4) glycosidic linkages on a number of substrates including cyclomaltodextrins (CDs), pullulan, and starch. These enzymes hydrolyze CDs and starch to maltose and pullulan to panose by cleavage of alpha-1,4 glycosidic bonds whereas alpha-amylases essentially lack activity on CDs and pullulan. They also catalyze transglycosylation of oligosaccharides to the C3-, C4- or C6-hydroxyl groups of various acceptor sugar molecules. Since these proteins are nearly indistinguishable from each other, they are referred to as cyclomaltodextrinases (CMDs). This group of CMDs is bacterial. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
cd11338	AmyAc_CMD	9.34e-71	40	237	62	258	Alpha amylase catalytic domain found in cyclomaltodextrinases and related proteins. Cyclomaltodextrinase (CDase; EC3.2.1.54), neopullulanase (NPase; EC 3.2.1.135), and maltogenic amylase (MA; EC 3.2.1.133) catalyze the hydrolysis of alpha-(1,4) glycosidic linkages on a number of substrates including cyclomaltodextrins (CDs), pullulan, and starch. These enzymes hydrolyze CDs and starch to maltose and pullulan to panose by cleavage of alpha-1,4 glycosidic bonds whereas alpha-amylases essentially lack activity on CDs and pullulan. They also catalyze transglycosylation of oligosaccharides to the C3-, C4- or C6-hydroxyl groups of various acceptor sugar molecules. Since these proteins are nearly indistinguishable from each other, they are referred to as cyclomaltodextrinases (CMDs). The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
pfam00128	Alpha-amylase	6.14e-34	40	238	10	235	Alpha amylase, catalytic domain. Alpha amylase is classified as family 13 of the glycosyl hydrolases. The structure is an 8 stranded alpha/beta barrel containing the active site, interrupted by a ~70 a.a. calcium-binding domain protruding between beta strand 3 and alpha helix 3, and a carboxyl-terminal Greek key beta-barrel domain.

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
BBK22306.1	4.04e-135	1	272	1	272
BBK62357.1	1.63e-134	1	272	1	272
QNM11247.1	2.22e-132	1	272	1	272
BCT45612.1	3.19e-129	1	272	1	273
QQR25586.1	3.42e-127	1	272	1	272

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
7D9B_A	6.36e-41	40	237	191	394	ChainA, Alpha-glycosidase [Weissella cibaria]
7D9C_A	1.68e-40	40	237	191	394	ChainA, Alpha-glycosidase [Weissella confusa],7DCG_A Chain A, Alpha-glycosidase [Weissella cibaria],7DCH_A Chain A, Alpha-glycosidase [Weissella cibaria]
7EHH_A	3.21e-40	40	237	191	394	ChainA, alpha-glucosidase [Weissella cibaria],7EHI_A Chain A, alpha glucosidase [Weissella cibaria]
2WC7_A	9.57e-40	4	237	8	260	Crystalstructure of Nostoc Punctiforme Debranching Enzyme(NPDE)(Acarbose soaked) [Nostoc punctiforme],2WCS_A Crystal Structure of Debranching enzyme from Nostoc punctiforme (NPDE) [Nostoc punctiforme],2WKG_A Chain A, Alpha Amylase, Catalytic Region [Nostoc punctiforme PCC 73102]
1J0H_A	8.00e-39	40	243	182	383	Crystalstructure of Bacillus stearothermophilus neopullulanase [Geobacillus stearothermophilus],1J0H_B Crystal structure of Bacillus stearothermophilus neopullulanase [Geobacillus stearothermophilus],1J0I_A Crystal structure of neopullulanase complex with panose [Geobacillus stearothermophilus],1J0I_B Crystal structure of neopullulanase complex with panose [Geobacillus stearothermophilus]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
P29964	1.15e-41	4	237	128	374	Cyclomaltodextrinase OS=Thermoanaerobacter pseudethanolicus (strain ATCC 33223 / 39E) OX=340099 GN=Teth39_0676 PE=1 SV=2
P32818	2.26e-38	40	237	182	377	Maltogenic alpha-amylase OS=Bacillus acidopullulyticus OX=28030 PE=3 SV=1
P38940	6.04e-38	40	243	182	383	Neopullulanase OS=Geobacillus stearothermophilus OX=1422 GN=nplT PE=1 SV=1
A0A7U9P668	8.34e-38	40	237	182	377	Cyclomaltodextrinase OS=Geobacillus thermopakistaniensis (strain MAS1) OX=1408282 GN=T260_08735 PE=1 SV=1
Q59226	3.16e-37	4	237	127	374	Cyclomaltodextrinase OS=Bacillus sp. OX=1409 GN=CDI5 PE=1 SV=1

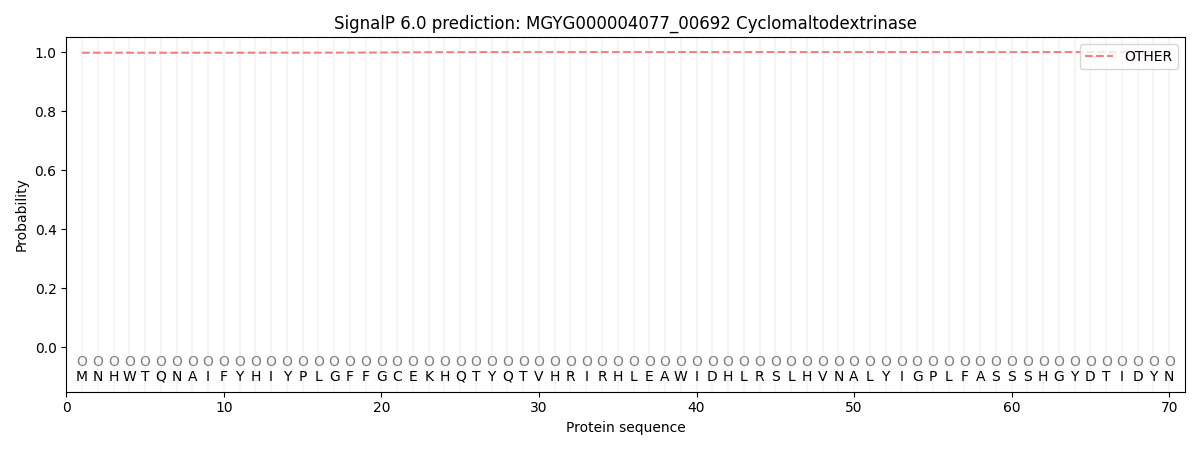

SignalP and Lipop Annotations

This protein is predicted as OTHER

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
0.998164	0.001807	0.000059	0.000004	0.000002	0.000004

TMHMM  Annotations

There is no transmembrane helices in MGYG000004077_00692.
