CAZyme Information: MGYG000004203_01391

You are here: Home > Sequence: MGYG000004203_01391

Basic Information | Genomic context | Full Sequence | Enzyme annotations |  CAZy signature domains |  CDD domains | CAZyme hits | PDB hits | Swiss-Prot hits | SignalP and Lipop annotations | TMHMM annotations

Basic Information help

Species
Lineage Bacteria; Firmicutes_A; Clostridia; Lachnospirales; Lachnospiraceae; Acetatifactor;
CAZyme ID MGYG000004203_01391
CAZy Family GH130
CAZyme Description Beta-1,4-mannooligosaccharide phosphorylase
CAZyme Property
Protein Length CGC Molecular Weight Isoelectric Point
338 MGYG000004203_10|CGC1 38135.08 5.2324
Genome Property
Genome Assembly ID Genome Size Genome Type Country Continent
MGYG000004203 2860639 MAG United Kingdom Europe
Gene Location Start: 86468;  End: 87484  Strand: -

Full Sequence      Download help

Enzyme Prediction      help

EC 2.4.1.319 2.4.1.- 2.4.1.320

CAZyme Signature Domains help

Family Start End Evalue family coverage
GH130 27 324 2e-97 0.9966216216216216

CDD Domains      download full data without filtering help

Cdd ID Domain E-Value qStart qEnd sStart sEnd Domain Description
cd08993 GH130 5.01e-151 45 320 4 279
Glycosyl hydrolase family 130. This subfamily contains glycosyl hydrolase family 130 (GH130) proteins, as classified by the carbohydrate-active enzymes database (CAZY), are phosphorylases and hydrolases for beta-mannosides, and include beta-1,4-mannosylglucose phosphorylase (EC 2.4.1.281), beta-1,4-mannooligosaccharide phosphorylase (EC 2.4.1.319), among others that have yet to be characterized. They possess 5-bladed beta-propeller domains similar to families 32, 43, 62, 68, 117 (GH32, GH43, GH62, GH68, GH117). GH130 enzymes are involved in the bacterial utilization of mannans or N-linked glycans. Beta-1,4-mannosylglucose phosphorylase is involved in degradation of beta-1,4-D-mannosyl-N-acetyl-D-glucosamine linkages in the core of N-glycans; it produces alpha-mannose 1-phosphate and glucose from 4-O-beta-D-mannosyl-D-glucose and inorganic phosphate, using a critical catalytic Asp as a proton donor. This family includes Ruminococcus albus 4-O-beta-D-mannosyl-D-glucose phosphorylase (RaMP1) and beta-(1,4)-mannooligosaccharide phosphorylase (RaMP2), enzymes that phosphorolyze beta-mannosidic linkages at the non-reducing ends of their substrates, and have substantially diverse substrate specificity that are determined by three loop regions.
COG2152 COG2152 2.42e-99 27 327 5 313
Predicted glycosyl hydrolase, GH43/DUF377 family [Carbohydrate transport and metabolism].
cd18607 GH130 3.39e-93 45 312 4 267
Glycoside hydrolase family 130. Members of the glycosyl hydrolase family 130, as classified by the carbohydrate-active enzymes database (CAZY), are phosphorylases and hydrolases for beta-mannosides, and include beta-1,4-mannosylglucose phosphorylase (EC 2.4.1.281), beta-1,4-mannooligosaccharide phosphorylase (EC 2.4.1.319), beta-1,4-mannosyl-N-acetyl-glucosamine phosphorylase (EC 2.4.1.320), beta-1,2-mannobiose phosphorylase (EC 2.4.1.-), beta-1,2-oligomannan phosphorylase (EC 2.4.1.-) and beta-1,2-mannosidase (EC 3.2.1.-). They possess 5-bladed beta-propeller domains similar to families 32, 43, 62, 68, 117 (GH32, GH43, GH62, GH68, GH117). GH130 enzymes are involved in the bacterial utilization of mannans or N-linked glycans. Beta-1,4-mannosylglucose phosphorylase is involved in degradation of beta-1,4-D-mannosyl-N-acetyl-D-glucosamine linkages in the core of N-glycans; it produces alpha-mannose 1-phosphate and glucose from 4-O-beta-D-mannosyl-D-glucose and inorganic phosphate, using a critical catalytic Asp as a proton donor.
cd18615 GH130 6.27e-88 64 314 25 277
Glycosyl hydrolase family 130; uncharacterized. This subfamily contains glycosyl hydrolase family 130 (GH130) proteins, as classified by the carbohydrate-active enzymes database (CAZY), most of which are as yet uncharacterized. GH130 enzymes are phosphorylases and hydrolases for beta-mannosides, and include beta-1,4-mannosylglucose phosphorylase (EC 2.4.1.281), beta-1,4-mannooligosaccharide phosphorylase (EC 2.4.1.319), beta-1,4-mannosyl-N-acetyl-glucosamine phosphorylase (EC 2.4.1.320), beta-1,2-mannobiose phosphorylase (EC 2.4.1.-), beta-1,2-oligomannan phosphorylase (EC 2.4.1.-) and beta-1,2-mannosidase (EC 3.2.1.-). They possess 5-bladed beta-propeller domains similar to families 32, 43, 62, 68, 117 (GH32, GH43, GH62, GH68, GH117). GH130 enzymes are involved in the bacterial utilization of mannans or N-linked glycans. Beta-1,4-mannosylglucose phosphorylase is involved in degradation of beta-1,4-D-mannosyl-N-acetyl-D-glucosamine linkages in the core of N-glycans; it produces alpha-mannose 1-phosphate and glucose from 4-O-beta-D-mannosyl-D-glucose and inorganic phosphate, using a critical catalytic Asp as a proton donor.
cd18612 GH130_Lin0857-like 9.69e-84 47 312 6 258
Glycoside hydrolase family 130 such as Listeria innocua beta-1,2-mannobiose phosphorylase. This subfamily contains the glycosyl hydrolase family 130 (GH130), as classified by the carbohydrate-active enzymes database (CAZY), enzymes that are phosphorylases and hydrolases for beta-mannosides, and includes Listeria innocua beta-1,2-mannobiose phosphorylase (Lin0857). hey possess 5-bladed beta-propeller domains similar to families 32, 43, 62, 68, 117 (GH32, GH43, GH62, GH68, GH117). GH130 enzymes are involved in the bacterial utilization of mannans or N-linked glycans. Structure of Lin0857 shows beta-1,2-mannotriose bound in a U-shape, interacting with a phosphate analog at both ends. Lin0857 has a unique dimer structure connected by a loop, with a significant open-close loop displacement observed for substrate entry. A long loop, which is exclusively present in Lin0857, covers the active site to limit the pocket size.

CAZyme Hits      help

Hit ID E-Value Query Start Query End Hit Start Hit End
AEY67872.1 1.45e-193 4 338 1 336
ACL77295.1 9.76e-192 8 338 5 336
CDZ25115.1 8.21e-189 1 337 1 337
APC39750.1 2.83e-187 1 338 1 339
ADL52882.1 1.14e-184 1 338 1 340

PDB Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
1VKD_A 1.55e-157 5 327 14 337
Crystalstructure of a predicted glycosidase (tm1225) from thermotoga maritima msb8 at 2.10 A resolution [Thermotoga maritima MSB8],1VKD_B Crystal structure of a predicted glycosidase (tm1225) from thermotoga maritima msb8 at 2.10 A resolution [Thermotoga maritima MSB8],1VKD_C Crystal structure of a predicted glycosidase (tm1225) from thermotoga maritima msb8 at 2.10 A resolution [Thermotoga maritima MSB8],1VKD_D Crystal structure of a predicted glycosidase (tm1225) from thermotoga maritima msb8 at 2.10 A resolution [Thermotoga maritima MSB8],1VKD_E Crystal structure of a predicted glycosidase (tm1225) from thermotoga maritima msb8 at 2.10 A resolution [Thermotoga maritima MSB8],1VKD_F Crystal structure of a predicted glycosidase (tm1225) from thermotoga maritima msb8 at 2.10 A resolution [Thermotoga maritima MSB8]
5AYD_A 4.02e-133 1 327 1 333
Crystalstructure of Ruminococcus albus beta-(1,4)-mannooligosaccharide phosphorylase (RaMP2) in complexes with phosphate [Ruminococcus albus 7 = DSM 20455],5AYD_B Crystal structure of Ruminococcus albus beta-(1,4)-mannooligosaccharide phosphorylase (RaMP2) in complexes with phosphate [Ruminococcus albus 7 = DSM 20455],5AYD_C Crystal structure of Ruminococcus albus beta-(1,4)-mannooligosaccharide phosphorylase (RaMP2) in complexes with phosphate [Ruminococcus albus 7 = DSM 20455],5AYD_D Crystal structure of Ruminococcus albus beta-(1,4)-mannooligosaccharide phosphorylase (RaMP2) in complexes with phosphate [Ruminococcus albus 7 = DSM 20455],5AYD_E Crystal structure of Ruminococcus albus beta-(1,4)-mannooligosaccharide phosphorylase (RaMP2) in complexes with phosphate [Ruminococcus albus 7 = DSM 20455],5AYD_F Crystal structure of Ruminococcus albus beta-(1,4)-mannooligosaccharide phosphorylase (RaMP2) in complexes with phosphate [Ruminococcus albus 7 = DSM 20455],5AYE_A Crystal structure of Ruminococcus albus beta-(1,4)-mannooligosaccharide phosphorylase (RaMP2) in complexes with phosphate and beta-(1,4)-mannobiose [Ruminococcus albus 7 = DSM 20455],5AYE_B Crystal structure of Ruminococcus albus beta-(1,4)-mannooligosaccharide phosphorylase (RaMP2) in complexes with phosphate and beta-(1,4)-mannobiose [Ruminococcus albus 7 = DSM 20455],5AYE_C Crystal structure of Ruminococcus albus beta-(1,4)-mannooligosaccharide phosphorylase (RaMP2) in complexes with phosphate and beta-(1,4)-mannobiose [Ruminococcus albus 7 = DSM 20455],5AYE_D Crystal structure of Ruminococcus albus beta-(1,4)-mannooligosaccharide phosphorylase (RaMP2) in complexes with phosphate and beta-(1,4)-mannobiose [Ruminococcus albus 7 = DSM 20455],5AYE_E Crystal structure of Ruminococcus albus beta-(1,4)-mannooligosaccharide phosphorylase (RaMP2) in complexes with phosphate and beta-(1,4)-mannobiose [Ruminococcus albus 7 = DSM 20455],5AYE_F Crystal structure of Ruminococcus albus beta-(1,4)-mannooligosaccharide phosphorylase (RaMP2) in complexes with phosphate and beta-(1,4)-mannobiose [Ruminococcus albus 7 = DSM 20455]
4UDG_A 1.87e-129 14 329 29 347
Crystalstructure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.60 Angstrom in complex with N-acetylglucosamine and inorganic phosphate [uncultured organism],4UDG_B Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.60 Angstrom in complex with N-acetylglucosamine and inorganic phosphate [uncultured organism],4UDG_C Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.60 Angstrom in complex with N-acetylglucosamine and inorganic phosphate [uncultured organism],4UDG_D Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.60 Angstrom in complex with N-acetylglucosamine and inorganic phosphate [uncultured organism],4UDG_E Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.60 Angstrom in complex with N-acetylglucosamine and inorganic phosphate [uncultured organism],4UDG_F Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.60 Angstrom in complex with N-acetylglucosamine and inorganic phosphate [uncultured organism],4UDI_A Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.85 Angstrom from unknown human gut bacteria (Uhgb_MP) [uncultured organism],4UDI_B Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.85 Angstrom from unknown human gut bacteria (Uhgb_MP) [uncultured organism],4UDI_C Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.85 Angstrom from unknown human gut bacteria (Uhgb_MP) [uncultured organism],4UDI_D Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.85 Angstrom from unknown human gut bacteria (Uhgb_MP) [uncultured organism],4UDI_E Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.85 Angstrom from unknown human gut bacteria (Uhgb_MP) [uncultured organism],4UDI_F Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.85 Angstrom from unknown human gut bacteria (Uhgb_MP) [uncultured organism],4UDJ_A Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.60 Angstrom in complex with beta-D-mannopyranose and inorganic phosphate [uncultured organism],4UDJ_B Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.60 Angstrom in complex with beta-D-mannopyranose and inorganic phosphate [uncultured organism],4UDJ_C Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.60 Angstrom in complex with beta-D-mannopyranose and inorganic phosphate [uncultured organism],4UDJ_D Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.60 Angstrom in complex with beta-D-mannopyranose and inorganic phosphate [uncultured organism],4UDJ_E Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.60 Angstrom in complex with beta-D-mannopyranose and inorganic phosphate [uncultured organism],4UDJ_F Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.60 Angstrom in complex with beta-D-mannopyranose and inorganic phosphate [uncultured organism],4UDK_A Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.76 Angstrom from unknown human gut bacteria (Uhgb_MP) in complex with N-acetyl-D-glucosamine, beta-D-mannopyranose and inorganic phosphate [uncultured organism],4UDK_B Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.76 Angstrom from unknown human gut bacteria (Uhgb_MP) in complex with N-acetyl-D-glucosamine, beta-D-mannopyranose and inorganic phosphate [uncultured organism],4UDK_C Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.76 Angstrom from unknown human gut bacteria (Uhgb_MP) in complex with N-acetyl-D-glucosamine, beta-D-mannopyranose and inorganic phosphate [uncultured organism],4UDK_D Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.76 Angstrom from unknown human gut bacteria (Uhgb_MP) in complex with N-acetyl-D-glucosamine, beta-D-mannopyranose and inorganic phosphate [uncultured organism],4UDK_F Crystal structure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.76 Angstrom from unknown human gut bacteria (Uhgb_MP) in complex with N-acetyl-D-glucosamine, beta-D-mannopyranose and inorganic phosphate [uncultured organism]
4UDK_E 1.87e-129 14 329 29 347
Crystalstructure of b-1,4-mannopyranosyl-chitobiose phosphorylase at 1.76 Angstrom from unknown human gut bacteria (Uhgb_MP) in complex with N-acetyl-D-glucosamine, beta-D-mannopyranose and inorganic phosphate [uncultured organism]
5B0P_A 8.38e-42 71 329 106 356
Beta-1,2-Mannobiosephosphorylase from Listeria innocua - glycerol complex [Listeria innocua Clip11262],5B0P_B Beta-1,2-Mannobiose phosphorylase from Listeria innocua - glycerol complex [Listeria innocua Clip11262],5B0Q_A beta-1,2-Mannobiose phosphorylase from Listeria innocua - mannose complex [Listeria innocua Clip11262],5B0Q_B beta-1,2-Mannobiose phosphorylase from Listeria innocua - mannose complex [Listeria innocua Clip11262],5B0R_A Beta-1,2-Mannobiose phosphorylase from Listeria innocua - beta-1,2-mannobiose complex [Listeria innocua Clip11262],5B0R_B Beta-1,2-Mannobiose phosphorylase from Listeria innocua - beta-1,2-mannobiose complex [Listeria innocua Clip11262],5B0S_A Beta-1,2-Mannobiose phosphorylase from Listeria innocua - beta-1,2-mannotriose complex [Listeria innocua Clip11262],5B0S_B Beta-1,2-Mannobiose phosphorylase from Listeria innocua - beta-1,2-mannotriose complex [Listeria innocua Clip11262]

Swiss-Prot Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
E6UBR9 2.20e-132 1 327 1 333
Beta-1,4-mannooligosaccharide phosphorylase OS=Ruminococcus albus (strain ATCC 27210 / DSM 20455 / JCM 14654 / NCDO 2250 / 7) OX=697329 GN=Rumal_0099 PE=1 SV=1
Q8A8Y4 2.04e-127 14 329 6 322
1,4-beta-mannosyl-N-acetylglucosamine phosphorylase OS=Bacteroides thetaiotaomicron (strain ATCC 29148 / DSM 2079 / JCM 5827 / CCUG 10774 / NCTC 10582 / VPI-5482 / E50) OX=226186 GN=BT_1033 PE=1 SV=1
B0K2C2 6.64e-47 45 315 24 290
1,2-beta-oligomannan phosphorylase OS=Thermoanaerobacter sp. (strain X514) OX=399726 GN=Teth514_1788 PE=1 SV=1
Q92DF6 5.40e-41 71 324 106 351
Beta-1,2-mannobiose phosphorylase OS=Listeria innocua serovar 6a (strain ATCC BAA-680 / CLIP 11262) OX=272626 GN=lin0857 PE=1 SV=1
B0K2C3 6.46e-40 47 319 26 300
Beta-1,2-mannobiose phosphorylase OS=Thermoanaerobacter sp. (strain X514) OX=399726 GN=Teth514_1789 PE=1 SV=1

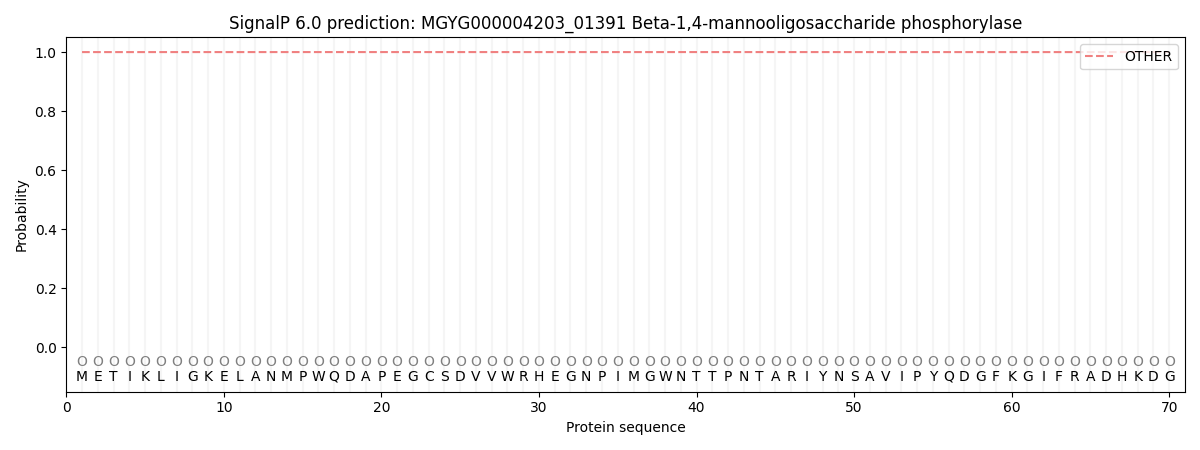

SignalP and Lipop Annotations help

This protein is predicted as OTHER

Other SP_Sec_SPI LIPO_Sec_SPII TAT_Tat_SPI TATLIP_Sec_SPII PILIN_Sec_SPIII
1.000062 0.000000 0.000000 0.000000 0.000000 0.000000

TMHMM  Annotations      help

There is no transmembrane helices in MGYG000004203_01391.
