CAZyme Information: MGYG000004271_02077

Basic Information

• Species: Roseburia sp900542495
• Lineage: Bacteria; Firmicutes_A; Clostridia; Lachnospirales; Lachnospiraceae; Roseburia; Roseburia sp900542495
• CAZyme ID: MGYG000004271_02077
• CAZy Family: GH13
• CAZyme Description: Glycogen debranching enzyme

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
624	MGYG000004271_18|CGC1	71663.25	5.9501

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000004271	3205451	MAG	China	Asia

• Gene Location: Start: 29266; End: 31140 Strand: +

Full Sequence

MNYTVTEGNYLKFGLQEVKDGVIFTFAGEKEDVCAVILYDRSLHVADRVEAPAAFCRGAV
RSICIQGLKTKNLFYNYEINGEVITDAYAKKIAGREKWNDVKRADKEYLICGSFEESAYE
WQSAGCPEIPKNEMFMYKLHVRGFSMDSGKKGKMRGTFLAVEDQIPYLKALGVTTVEFMP
LYEFEEMEIPKKQKLPGYIPQDNTAYNETLPDTEAEHPKVNYWGYTKGFYFAPKASYSCS
KNVAQELKHLIDTLHQNQIECVLEMYFEQEENQNLILDALRYWATEFRVDGFHLIGDNVP
ITAIAQDLFLRRSKIFYPYIPEQLWKEKENYPHLFVYNEEYLYTARKLLNHQGGSLFEFS
NQQKKQNATVGFVNFVANNNGFTLADLFSYCEKHNEANGEENADGSNYNFSMNCGAEGKT
SKKYVRELRRKHLYMALSMLLFAQGVPLLLAGDEALNSQQGNNNAYCQDNKTGWVNWKHV
AGMEQLQEFVTKLAAFRRSHPILHKEEPMHLNDYKHKGCPDLSYHSDNAWVAGFPEEKGA
FGVMYCGDYTNLPSGEPDDMIYIGYNFHTGVNELALPKLAEKKKWYIIMDTAEQEQAFLP
VEKLAENQHRITVRPQSVVVLLGK

Enzyme Prediction

No EC number prediction in MGYG000004271_02077.

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GH13	267	457	1.4e-42	0.6068376068376068

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
cd11326	AmyAc_Glg_debranch	4.26e-108	119	500	1	433	Alpha amylase catalytic domain found in glycogen debranching enzymes. Debranching enzymes facilitate the breakdown of glycogen through glucosyltransferase and glucosidase activity. These activities are performed by a single enzyme in mammals, yeast, and some bacteria, but by two distinct enzymes in Escherichia coli and other bacteria. Debranching enzymes perform two activities: 4-alpha-D-glucanotransferase (EC 2.4.1.25) and amylo-1,6-glucosidase (EC 3.2.1.33). 4-alpha-D-glucanotransferase catalyzes the endohydrolysis of 1,6-alpha-D-glucoside linkages at points of branching in chains of 1,4-linked alpha-D-glucose residues. Amylo-alpha-1,6-glucosidase catalyzes the endohydrolysis of 1,6-alpha-D-glucoside linkages at points of branching in chains of 1,4-linked alpha-D-glucose residues. In Escherichia coli, GlgX is the debranching enzyme and malQ is the 4-alpha-glucanotransferase. TreX, an archaeal glycogen-debranching enzyme has dual activities like mammals and yeast, but is structurally similar to GlgX. TreX exists in two oligomeric states, a dimer and tetramer. Isoamylase (EC 3.2.1.68) is one of the starch-debranching enzymes that catalyzes the hydrolysis of alpha-1,6-glucosidic linkages specific in alpha-glucans such as amylopectin or glycogen and their beta-limit dextrins. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
COG1523	PulA	6.94e-86	1	621	8	689	Pullulanase/glycogen debranching enzyme [Carbohydrate transport and metabolism].
PRK03705	PRK03705	1.27e-63	119	503	136	564	glycogen debranching protein GlgX.
PRK14510	PRK14510	4.41e-49	136	508	161	577	bifunctional glycogen debranching protein GlgX/4-alpha-glucanotransferase.
cd00551	AmyAc_family	7.73e-35	136	457	2	259	Alpha amylase catalytic domain family. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; and C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost this catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
VCV22339.1	3.10e-259	1	623	1	623
AEN96493.1	1.69e-226	1	624	12	633
CBK90497.1	2.90e-203	1	624	1	618
CBK94637.1	5.82e-203	1	624	1	618
ACR75563.1	8.25e-203	1	624	1	618

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
2VNC_A	1.21e-55	17	620	26	712	Crystalstructure of Glycogen Debranching enzyme TreX from Sulfolobus solfataricus [Saccharolobus solfataricus],2VNC_B Crystal structure of Glycogen Debranching enzyme TreX from Sulfolobus solfataricus [Saccharolobus solfataricus],2VR5_A Crystal structure of Trex from Sulfolobus Solfataricus in complex with acarbose intermediate and glucose [Saccharolobus solfataricus],2VR5_B Crystal structure of Trex from Sulfolobus Solfataricus in complex with acarbose intermediate and glucose [Saccharolobus solfataricus],2VUY_A Crystal structure of Glycogen Debranching exzyme TreX from Sulfolobus solfatarius [Saccharolobus solfataricus],2VUY_B Crystal structure of Glycogen Debranching exzyme TreX from Sulfolobus solfatarius [Saccharolobus solfataricus],7EAV_A Chain A, Glycogen debranching enzyme [Saccharolobus solfataricus],7EAV_B Chain B, Glycogen debranching enzyme [Saccharolobus solfataricus]
4J7R_A	2.09e-42	117	551	207	758	CrystalStructure of Chlamydomonas reinhardtii Isoamylase 1 (ISA1) [Chlamydomonas reinhardtii],4J7R_B Crystal Structure of Chlamydomonas reinhardtii Isoamylase 1 (ISA1) [Chlamydomonas reinhardtii],4OKD_A Crystal Structure of Chlamydomonas reinhardtii Isoamylase 1 (ISA1) in complex with maltoheptaose [Chlamydomonas reinhardtii],4OKD_B Crystal Structure of Chlamydomonas reinhardtii Isoamylase 1 (ISA1) in complex with maltoheptaose [Chlamydomonas reinhardtii]
2WSK_A	9.49e-40	119	503	136	564	Crystalstructure of Glycogen Debranching Enzyme GlgX from Escherichia coli K-12 [Escherichia coli K-12]
1BF2_A	4.53e-23	122	593	166	713	StructureOf Pseudomonas Isoamylase [Pseudomonas amyloderamosa]
2E8Y_A	6.36e-16	86	525	179	639	Crystalstructure of pullulanase type I from Bacillus subtilis str. 168 [Bacillus subtilis],2E8Y_B Crystal structure of pullulanase type I from Bacillus subtilis str. 168 [Bacillus subtilis],2E8Z_A Crystal structure of pullulanase type I from Bacillus subtilis str. 168 complexed with alpha-cyclodextrin [Bacillus subtilis],2E8Z_B Crystal structure of pullulanase type I from Bacillus subtilis str. 168 complexed with alpha-cyclodextrin [Bacillus subtilis],2E9B_A Crystal structure of pullulanase type I from Bacillus subtilis str. 168 complexed with maltose [Bacillus subtilis],2E9B_B Crystal structure of pullulanase type I from Bacillus subtilis str. 168 complexed with maltose [Bacillus subtilis]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
Q9M0S5	2.58e-60	3	624	83	764	Isoamylase 3, chloroplastic OS=Arabidopsis thaliana OX=3702 GN=ISA3 PE=1 SV=2
B9G434	4.80e-57	1	624	96	781	Isoamylase 3, chloroplastic OS=Oryza sativa subsp. japonica OX=39947 GN=ISA3 PE=2 SV=1
B2VJR7	1.23e-52	119	506	136	566	Glycogen debranching enzyme OS=Erwinia tasmaniensis (strain DSM 17950 / CFBP 7177 / CIP 109463 / NCPPB 4357 / Et1/99) OX=465817 GN=glgX PE=3 SV=1
P45178	1.77e-46	63	531	63	611	Glycogen operon protein GlgX homolog OS=Haemophilus influenzae (strain ATCC 51907 / DSM 11121 / KW20 / Rd) OX=71421 GN=glgX PE=3 SV=1
O04196	7.58e-46	3	554	67	721	Isoamylase 1, chloroplastic OS=Arabidopsis thaliana OX=3702 GN=ISA1 PE=1 SV=1

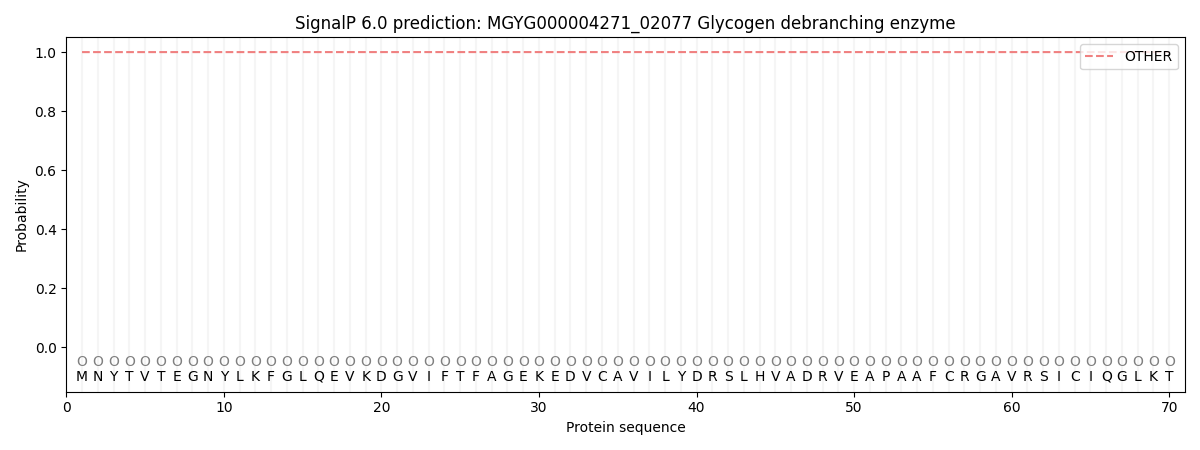

SignalP and Lipop Annotations

This protein is predicted as OTHER

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
1.000049	0.000000	0.000000	0.000000	0.000000	0.000000

TMHMM  Annotations

There is no transmembrane helices in MGYG000004271_02077.
