CAZyme Information: MGYG000004693_00347

You are here: Home > Sequence: MGYG000004693_00347

Basic Information | Genomic context | Full Sequence | Enzyme annotations |  CAZy signature domains |  CDD domains | CAZyme hits | PDB hits | Swiss-Prot hits | SignalP and Lipop annotations | TMHMM annotations

Basic Information help

Species
Lineage Bacteria; Firmicutes_A; Clostridia; Lachnospirales; Lachnospiraceae; UMGS1375;
CAZyme ID MGYG000004693_00347
CAZy Family CBM48
CAZyme Description 1,4-alpha-glucan branching enzyme GlgB
CAZyme Property
Protein Length CGC Molecular Weight Isoelectric Point
861 MGYG000004693_6|CGC1 98460.67 5.7917
Genome Property
Genome Assembly ID Genome Size Genome Type Country Continent
MGYG000004693 1958211 MAG Sweden Europe
Gene Location Start: 17029;  End: 19614  Strand: +

Full Sequence      Download help

Enzyme Prediction      help

EC 2.4.1.18

CAZyme Signature Domains help

Family Start End Evalue family coverage
GH13 285 585 1.5e-157 0.9966777408637874
CBM48 131 217 1.9e-20 0.9078947368421053

CDD Domains      download full data without filtering help

Cdd ID Domain E-Value qStart qEnd sStart sEnd Domain Description
PRK05402 PRK05402 0.0 12 733 4 721
1,4-alpha-glucan branching protein GlgB.
PRK14706 PRK14706 0.0 132 735 27 621
glycogen branching enzyme; Provisional
PRK14705 PRK14705 0.0 9 733 503 1220
glycogen branching enzyme; Provisional
PRK12313 PRK12313 0.0 110 739 5 631
1,4-alpha-glucan branching protein GlgB.
PRK12568 PRK12568 0.0 28 729 29 722
glycogen branching enzyme; Provisional

CAZyme Hits      help

Hit ID E-Value Query Start Query End Hit Start Hit End
AWY97839.1 0.0 1 749 1 746
CBK76766.1 0.0 1 747 1 758
CBL36572.1 0.0 1 747 1 758
QNM09059.1 0.0 1 746 1 741
QBE99030.1 0.0 1 737 1 734

PDB Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
5GQW_A 1.63e-258 14 749 30 789
Crystalstructure of branching enzyme W610N mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GQX_A Crystal structure of branching enzyme W610N mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142]
5GR5_A 4.62e-258 14 749 30 789
Crystalstructure of branching enzyme W610A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]
5GQZ_A 6.54e-258 14 749 30 789
Crystalstructure of branching enzyme Y500A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]
5GQU_A 9.26e-258 14 749 30 789
Crystalstructure of branching enzyme from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GQV_A Crystal structure of branching enzyme from Cyanothece sp. ATCC 51142 in complex with maltohexaose [Crocosphaera subtropica ATCC 51142],5GQY_A Crystal structure of branching enzyme from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142]
5GR2_A 1.31e-257 14 749 30 789
Crystalstructure of branching enzyme L541A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142],5GR4_A Crystal structure of branching enzyme L541A mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142]

Swiss-Prot Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
Q8DLB8 2.20e-272 14 743 8 760
1,4-alpha-glucan branching enzyme GlgB OS=Thermosynechococcus vestitus (strain IAM M-273 / NIES-2133 / BP-1) OX=197221 GN=glgB PE=3 SV=1
Q2JT08 9.41e-270 18 735 14 753
1,4-alpha-glucan branching enzyme GlgB OS=Synechococcus sp. (strain JA-3-3Ab) OX=321327 GN=glgB PE=3 SV=1
Q2JK68 2.53e-265 18 735 14 753
1,4-alpha-glucan branching enzyme GlgB OS=Synechococcus sp. (strain JA-2-3B'a(2-13)) OX=321332 GN=glgB PE=3 SV=1
Q1AZ86 4.92e-265 13 733 6 716
1,4-alpha-glucan branching enzyme GlgB OS=Rubrobacter xylanophilus (strain DSM 9941 / NBRC 16129 / PRD-1) OX=266117 GN=glgB PE=3 SV=1
Q8YYX9 8.50e-264 14 744 11 762
1,4-alpha-glucan branching enzyme GlgB OS=Nostoc sp. (strain PCC 7120 / SAG 25.82 / UTEX 2576) OX=103690 GN=glgB PE=3 SV=1

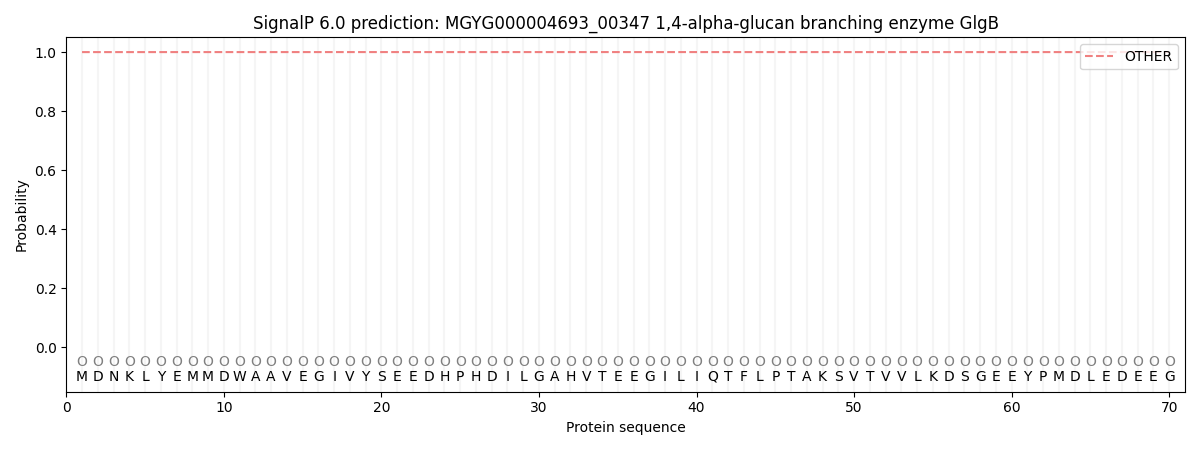

SignalP and Lipop Annotations help

This protein is predicted as OTHER

Other SP_Sec_SPI LIPO_Sec_SPII TAT_Tat_SPI TATLIP_Sec_SPII PILIN_Sec_SPIII
1.000053 0.000000 0.000000 0.000000 0.000000 0.000000

TMHMM  Annotations      help

There is no transmembrane helices in MGYG000004693_00347.
