CAZyme Information: MGYG000004848_00341

Basic Information

• Lineage: Bacteria; Bacteroidota; Bacteroidia; Bacteroidales; Bacteroidaceae; Prevotella
• CAZyme ID: MGYG000004848_00341
• CAZy Family: GH16
• CAZyme Description: Beta-glucanase

CAZyme Property

Protein Length	CGC	Molecular Weight	Isoelectric Point
284	MGYG000004848_3|CGC1	32568.26	4.5359

Genome Property

Genome Assembly ID	Genome Size	Genome Type	Country	Continent
MGYG000004848	2237652	MAG	China	Asia

• Gene Location: Start: 41987; End: 42841 Strand: -

Full Sequence

MKIQVFAFLLFAFAGEVAAVAENDNWELVWSDEFNRDGKPDTAYWNYEQGFVRNYEDQWY
QPDNAWQTGGLLVIEGRKERLANPEYNAGSDDWRHGREFAEYTSASLNTAGKVDFLYGRL
EVRARIPVGGGAWPAIWTLGNDMEWPSCGEIDIMECYPVDGEPSILANAAWGRNRRFDAE
WDSSHTPLSHFTAKDKDWASKFHVWRMDWDETAIKLYLDDELLNSIPLSETVNGSIGNHT
NPFKRPQYVLLNLAIGGNNGGKIDDSAMPMRYEIDYVRIYKKVK

Enzyme Prediction

No EC number prediction in MGYG000004848_00341.

CAZyme Signature Domains

Family	Start	End	Evalue	family coverage
GH16	30	280	3.1e-64	0.9956521739130435

CDD Domains

Cdd ID	Domain	E-Value	qStart	qEnd	sStart	sEnd	Domain Description
cd08023	GH16_laminarinase_like	2.86e-80	30	280	1	235	Laminarinase, member of the glycosyl hydrolase family 16. Laminarinase, also known as glucan endo-1,3-beta-D-glucosidase, is a glycosyl hydrolase family 16 member that hydrolyzes 1,3-beta-D-glucosidic linkages in 1,3-beta-D-glucans such as laminarins, curdlans, paramylons, and pachymans, with very limited action on mixed-link (1,3-1,4-)-beta-D-glucans.
cd08024	GH16_CCF	1.11e-28	104	281	101	330	Coelomic cytolytic factor, member of glycosyl hydrolase family 16. Subgroup of glucanases of unknown function that are related to beta-GRP (beta-1,3-glucan recognition protein), but contain active site residues. Beta-GRPs are one group of pattern recognition receptors (PRRs), also referred to as biosensor proteins, that complexes with pathogen-associated beta-1,3-glucans and then transduces signals necessary for activation of an appropriate innate immune response. Beta-GRPs are present in insects and lack all catalytic residues. This subgroup contains related proteins that still contain the active site and are widely distributed in eukaryotes. Their structures adopt a jelly roll fold with a deep active site channel harboring the catalytic residues, like those of other glycosyl hydrolase family 16 members.
cd02182	GH16_Strep_laminarinase_like	3.06e-27	26	280	2	258	Streptomyces laminarinase-like, member of glycosyl hydrolase family 16. Proteins similar to Streptomyces sioyaensis beta-1,3-glucanase (laminarinase) present in Actinomycetales as well as Peziomycotina. Laminarinases belong to glycosyl hydrolase family 16 and hydrolyze the glycosidic bond of the 1,3-beta-linked glucan, a major component of fungal and plant cell walls and the structural and storage polysaccharides (laminarin) of marine macro-algae. Members of the GH16 family have a conserved jelly roll fold with an active site channel.
cd00413	Glyco_hydrolase_16	4.40e-26	32	280	1	210	glycosyl hydrolase family 16. The O-Glycosyl hydrolases are a widespread group of enzymes that hydrolyse the glycosidic bond between two or more carbohydrates, or between a carbohydrate and a non-carbohydrate moiety. A glycosyl hydrolase classification system based on sequence similarity has led to the definition of more than 95 different families inlcuding glycosyl hydrolase family 16. Family 16 includes lichenase, xyloglucan endotransglycosylase (XET), beta-agarase, kappa-carrageenase, endo-beta-1,3-glucanase, endo-beta-1,3-1,4-glucanase, and endo-beta-galactosidase, all of which have a conserved jelly roll fold with a deep active site channel harboring the catalytic residues.
cd02178	GH16_beta_agarase	7.64e-18	17	281	10	258	Beta-agarase, member of glycosyl hydrolase family 16. Beta-agarase is a glycosyl hydrolase family 16 (GH16) member that hydrolyzes the internal beta-1,4-linkage of agarose, a hydrophilic polysaccharide found in the cell wall of Rhodophyceaea, marine red algae. Agarose is a linear chain of galactose units linked by alternating L-alpha-1,3- and D-beta-1,4-linkages that are additionally modified by a 3,6-anhydro-bridge. Agarose forms thermo-reversible gels that are widely used in the food industry or as a laboratory medium. While beta-agarases are also found in two other families derived from the sequence-based classification of glycosyl hydrolases (GH50, and GH86) the GH16 members are most abundant. This domain adopts a curved beta-sandwich conformation, with a tunnel-shaped active site cavity, referred to as a jellyroll fold.

CAZyme Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End
QDO67480.1	2.21e-138	26	282	25	282
QUU07365.1	1.23e-137	19	284	21	287
QRP56726.1	1.23e-137	19	284	21	287
QQT78030.1	1.23e-137	19	284	21	287
ASM65435.1	1.23e-137	19	284	21	287

PDB Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
6T2N_AAA	1.46e-47	26	281	52	303	ChainAAA, Glycoside hydrolase family 16 protein [Akkermansia muciniphila],6T2N_BBB Chain BBB, Glycoside hydrolase family 16 protein [Akkermansia muciniphila]
3AZX_A	7.10e-45	24	281	8	255	Crystalstructure of the laminarinase catalytic domain from Thermotoga maritima MSB8 [Thermotoga maritima MSB8],3AZX_B Crystal structure of the laminarinase catalytic domain from Thermotoga maritima MSB8 [Thermotoga maritima MSB8],3AZY_A Crystal structure of the laminarinase catalytic domain from Thermotoga maritima MSB8 [Thermotoga maritima MSB8],3AZY_B Crystal structure of the laminarinase catalytic domain from Thermotoga maritima MSB8 [Thermotoga maritima MSB8],3AZY_C Crystal structure of the laminarinase catalytic domain from Thermotoga maritima MSB8 [Thermotoga maritima MSB8],3AZY_D Crystal structure of the laminarinase catalytic domain from Thermotoga maritima MSB8 [Thermotoga maritima MSB8],3AZZ_A Crystal structure of the laminarinase catalytic domain from Thermotoga maritima MSB8 in complex with gluconolactone [Thermotoga maritima MSB8],3AZZ_B Crystal structure of the laminarinase catalytic domain from Thermotoga maritima MSB8 in complex with gluconolactone [Thermotoga maritima MSB8],3AZZ_C Crystal structure of the laminarinase catalytic domain from Thermotoga maritima MSB8 in complex with gluconolactone [Thermotoga maritima MSB8],3AZZ_D Crystal structure of the laminarinase catalytic domain from Thermotoga maritima MSB8 in complex with gluconolactone [Thermotoga maritima MSB8],3B00_A Crystal structure of the laminarinase catalytic domain from Thermotoga maritima MSB8 in complex with cetyltrimethylammonium bromide [Thermotoga maritima MSB8],3B00_B Crystal structure of the laminarinase catalytic domain from Thermotoga maritima MSB8 in complex with cetyltrimethylammonium bromide [Thermotoga maritima MSB8],3B00_C Crystal structure of the laminarinase catalytic domain from Thermotoga maritima MSB8 in complex with cetyltrimethylammonium bromide [Thermotoga maritima MSB8],3B00_D Crystal structure of the laminarinase catalytic domain from Thermotoga maritima MSB8 in complex with cetyltrimethylammonium bromide [Thermotoga maritima MSB8],3B01_A Crystal structure of the laminarinase catalytic domain from Thermotoga maritima MSB8 [Thermotoga maritima MSB8],3B01_B Crystal structure of the laminarinase catalytic domain from Thermotoga maritima MSB8 [Thermotoga maritima MSB8],3B01_C Crystal structure of the laminarinase catalytic domain from Thermotoga maritima MSB8 [Thermotoga maritima MSB8],3B01_D Crystal structure of the laminarinase catalytic domain from Thermotoga maritima MSB8 [Thermotoga maritima MSB8]
4DFS_A	2.44e-44	24	281	16	263	Structureof the catalytic domain of an endo-1,3-beta-glucanase (laminarinase) from Thermotoga petrophila RKU-1 [Thermotoga petrophila RKU-1],4DFS_B Structure of the catalytic domain of an endo-1,3-beta-glucanase (laminarinase) from Thermotoga petrophila RKU-1 [Thermotoga petrophila RKU-1]
3ILN_A	1.24e-43	25	284	4	251	ChainA, Laminarinase [Rhodothermus marinus],3ILN_B Chain B, Laminarinase [Rhodothermus marinus]
4BQ1_A	2.82e-43	28	281	13	256	Crystalstructure of of LamAcat from Zobellia galactanivorans [Zobellia galactanivorans],4BQ1_B Crystal structure of of LamAcat from Zobellia galactanivorans [Zobellia galactanivorans]

Swiss-Prot Hits

Hit ID	E-Value	Query Start	Query End	Hit Start	Hit End	Description
P45798	7.27e-41	25	284	39	286	Beta-glucanase OS=Rhodothermus marinus OX=29549 GN=bglA PE=1 SV=1
P23903	4.60e-35	28	282	425	681	Glucan endo-1,3-beta-glucosidase A1 OS=Niallia circulans OX=1397 GN=glcA PE=1 SV=1
Q27082	5.97e-28	26	281	25	253	Clotting factor G alpha subunit OS=Tachypleus tridentatus OX=6853 PE=1 SV=1
C1IE32	1.18e-25	26	278	20	265	Glucan endo-1,3-beta-glucosidase OS=Cryptopygus antarcticus OX=187623 PE=1 SV=1
Q9ZG90	1.62e-25	18	281	48	288	Keratan-sulfate endo-1,4-beta-galactosidase OS=Sphingobacterium multivorum OX=28454 PE=1 SV=1

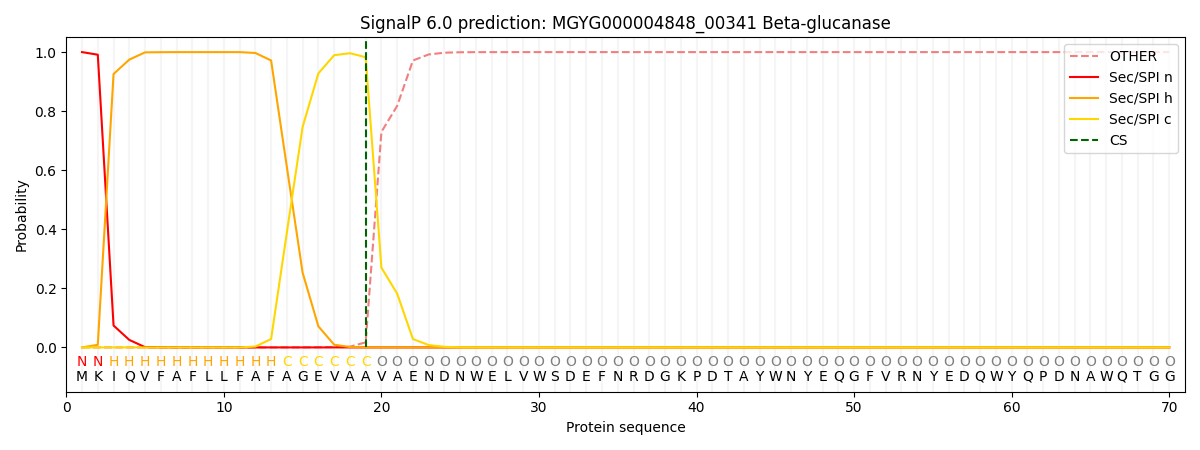

SignalP and Lipop Annotations

This protein is predicted as SP

Other	SP_Sec_SPI	LIPO_Sec_SPII	TAT_Tat_SPI	TATLIP_Sec_SPII	PILIN_Sec_SPIII
0.000170	0.999224	0.000150	0.000167	0.000139	0.000134

TMHMM  Annotations

There is no transmembrane helices in MGYG000004848_00341.
